Vacuum hose diagram

2001 MERCURY SABLE
160,000 MILES • 3.0L • 6 CYL • 2WD • AUTOMATIC
Avatar
RUDOLPHTHERED
  • MEMBER
  • 1 POST
I need to know what kind of hoses are broken. There is one hose that runs along the top side of the fire wall. It looks like it has a splitter at the end but not sure if it was a mistake. It is connected to what looks like a vacuum valve(?) which that is connected to the EVAP system.


If someone could please tell me or post a picture I would greatly appreciate it.
Dec 5, 2017 at 3:13 PM
Advertisement
Avatar
SATURNTECH9
  • ✓ASE Certified Mechanic
  • 30,869 POSTS
  • ASE Certified Mechanic

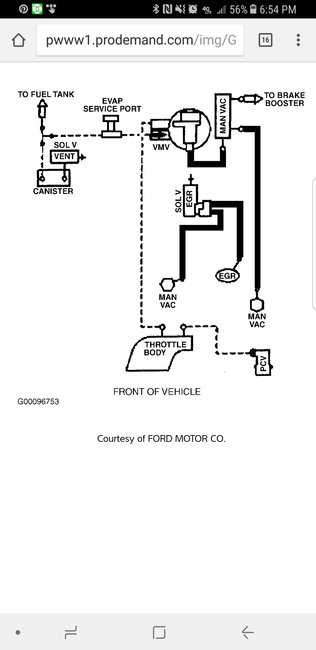

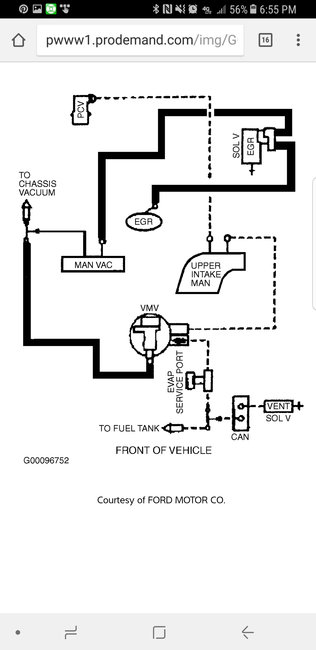

The diagram on the left is the dual overhead cam and the one on the right is for the single cam engine.Let me know what you find also posting some pictures of what you got going with those goes would really help.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Dec 5, 2017 at 6:57 PM
