Vacuum hose diagram needed?

1984 BUICK ELECTRA
142,000 MILES • 5.0L • V8 • 2WD • AUTOMATIC
Avatar
LOCKWOOD
Looking for a clear diagram that shows placement of vacuum hoses. The original hoses are missing for the EGR valve. Need to re-route the hoses.

Vacuum Hose Diagram Vin Y 4 BBL Auto Trans All Models Federal

Thanks for help.
Dec 2, 2024 at 12:02 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,193 POSTS
  • ASE Certified Mechanic
Hi,

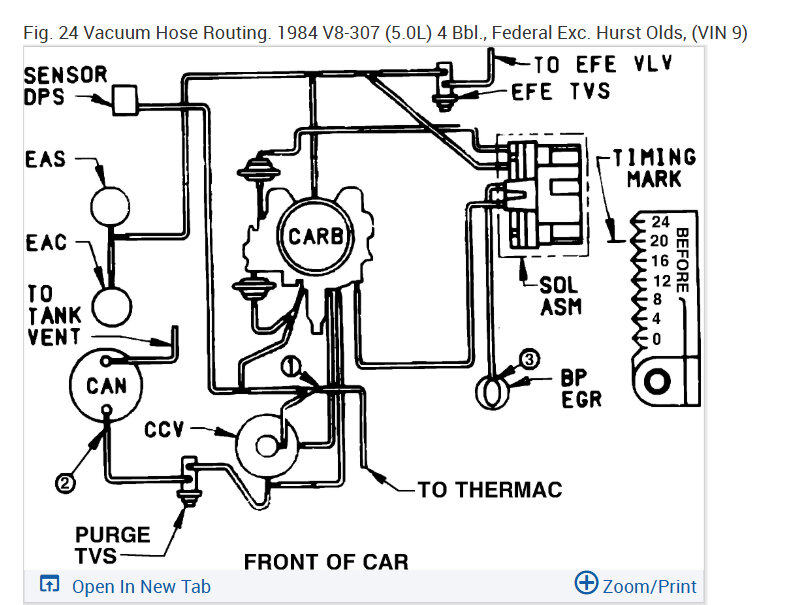

There is a printout of the vacuum schematic in my manual that I attached below. Take a look through it and let me know if it helps.

Let me know.

Take care,

Joe

See pic below.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Dec 2, 2024 at 5:17 PM
