Vacuum hose diagram needed?

2015 CHEVROLET MALIBU
203,455 MILES • 2.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
JR999
  • MEMBER
  • 1 POST
I've looked everywhere for a diagram for it but no luck. I've seen one from a 2001 on a post on your site but I think everything is on the opposite side on the 2015 or I might be looking at the diagram wrong.
Oct 10, 2024 at 8:57 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic

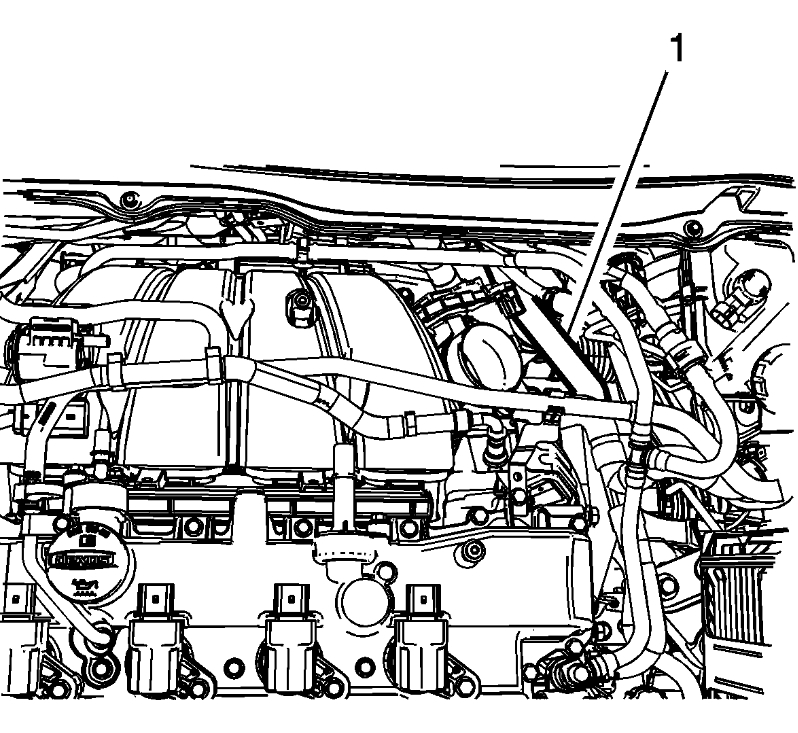

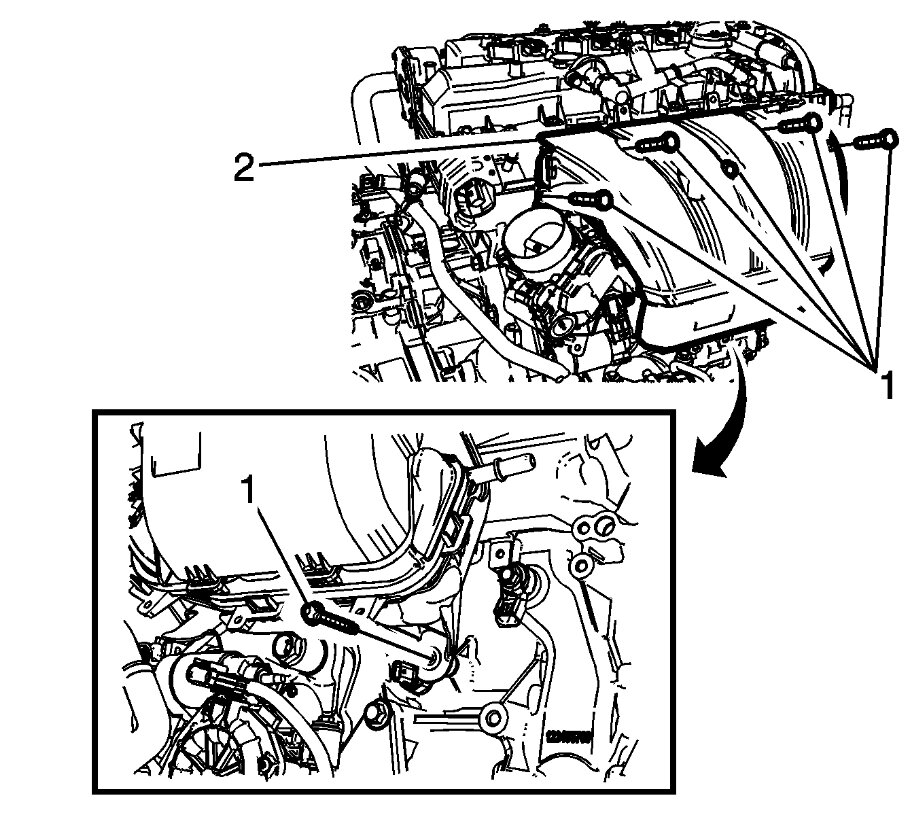

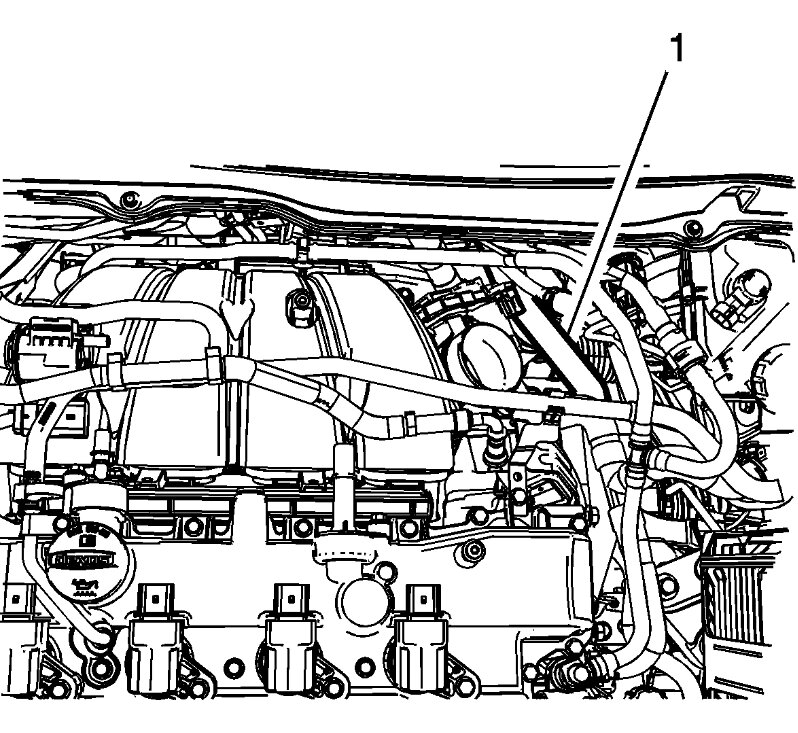

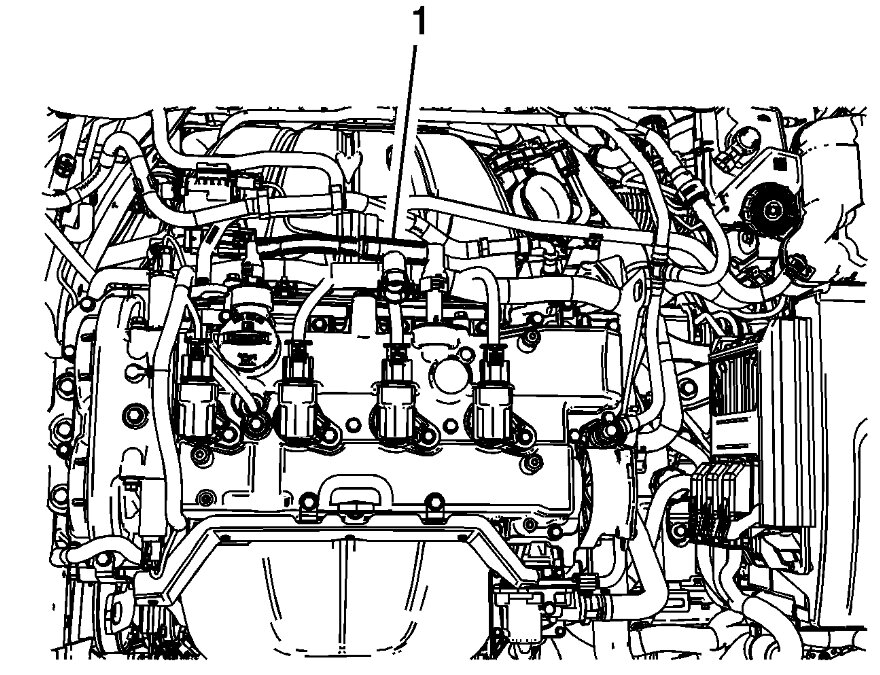

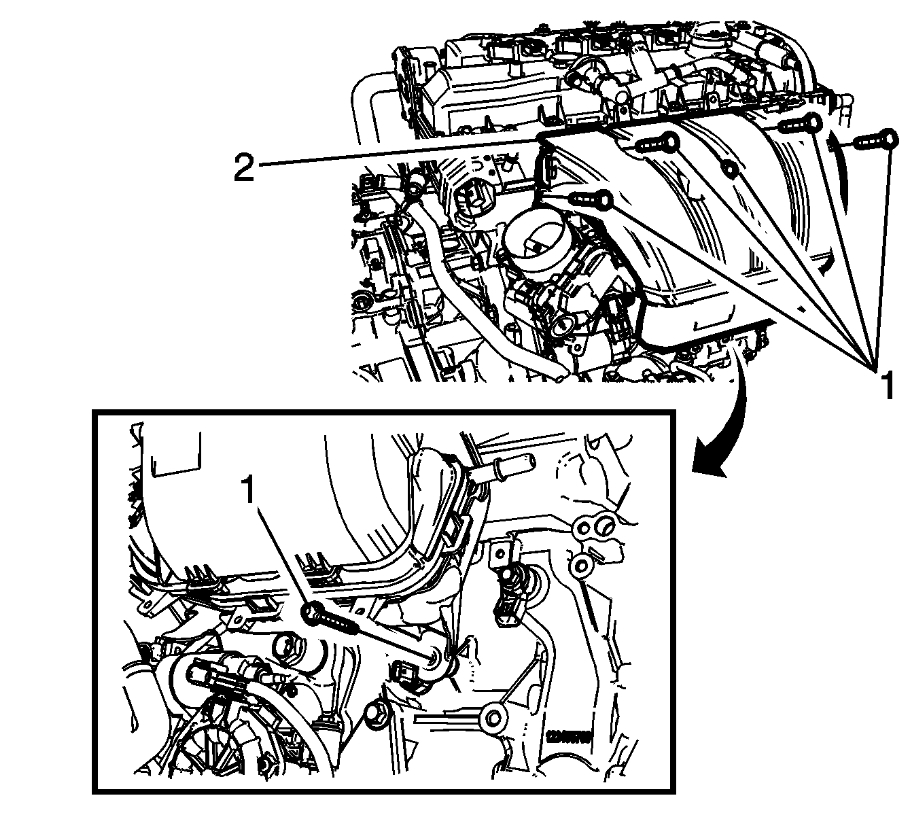

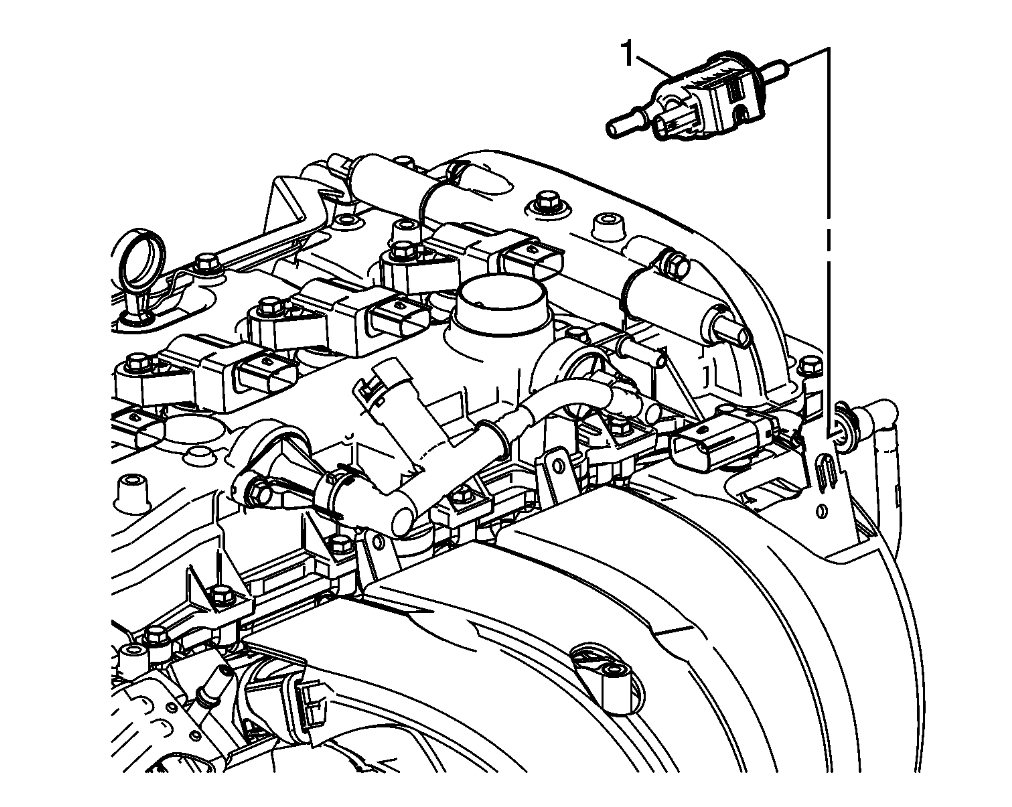

Yep, they are not big on giving out vacuum diagrams for newer cars. You can kind of see the vacuum lines in these intake manifold replacement images. Sorry, I don't have more for you. Check out the images (below). Let us know how it goes.
