Vacuum diagram needed?

2010 CHEVROLET TRAVERSE
180,000 MILES • 3.6L • 2WD • AUTOMATIC
Avatar
DMJR87
  • MEMBER
  • 1 POST
I'm trying to find a vacuum diagram (image or illustration) for the vehicle listed above, the vacuum lines were disconnected. I attempted to put them in their appropriate locations but failed. I ended up getting a sucking whistling noise and having brake vacuum booster operation issues. Any help would be greatly appreciated!
May 31, 2023 at 1:28 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,194 POSTS
  • ASE Certified Mechanic
Hi,

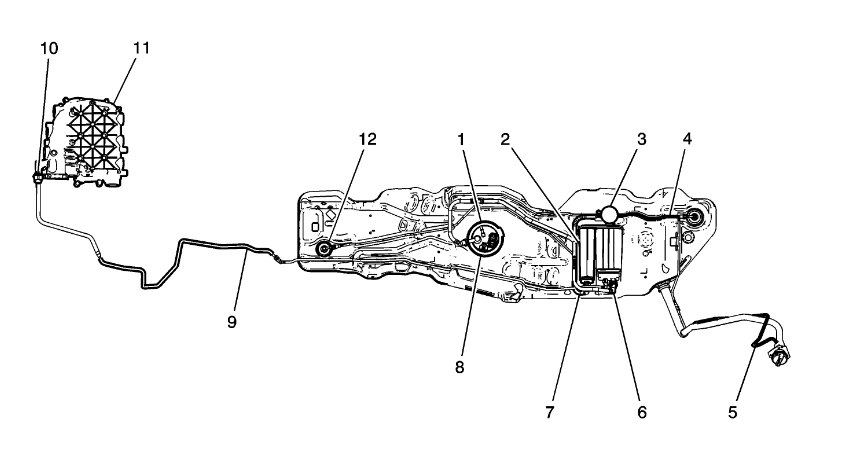

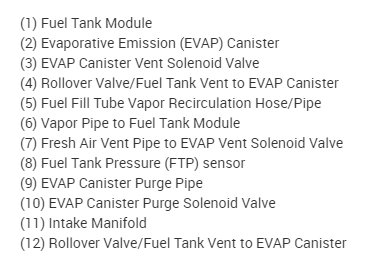

I attached the vacuum schematic for the evaporative emission system (pics 1 and 2).

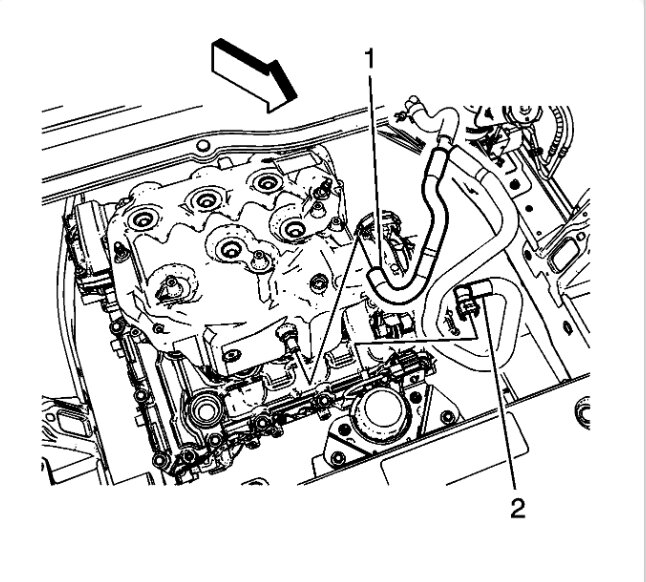

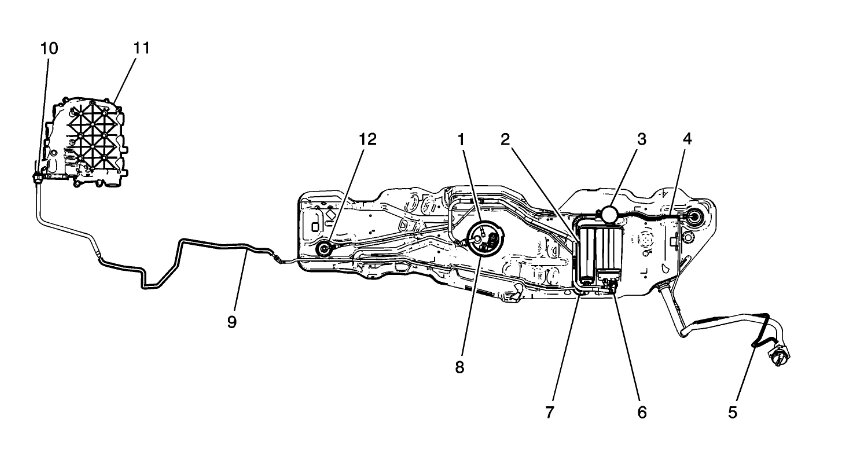

Pic 3 shows the vacuum supply to the vacuum brake booster.

Can you tell approximately where the noise is coming from? Also, let me know what is happening with the brake booster.

Take care,

Joe

See pic below.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
