Need vacuum line diagram please.
SPONSORED LINKS
Vacuum lines diagram needed
23 Replies
KASEKENNY
- MECHANIC
- 18,907 POSTS

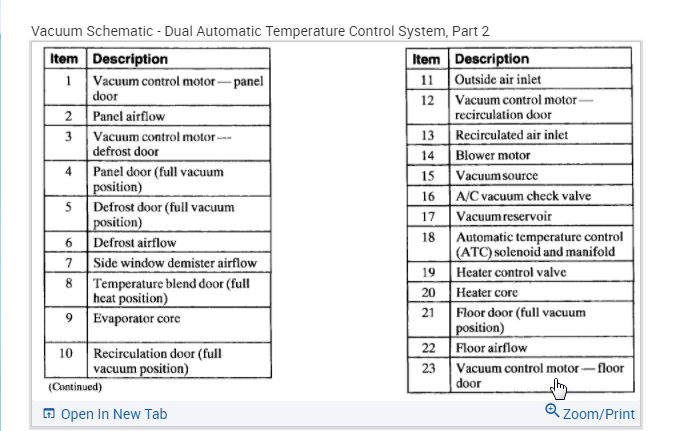

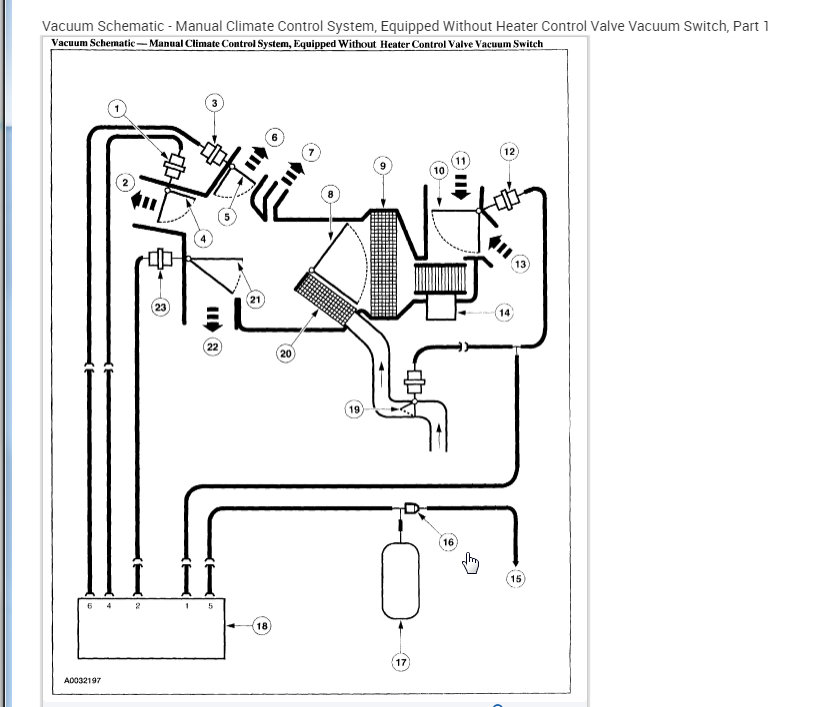

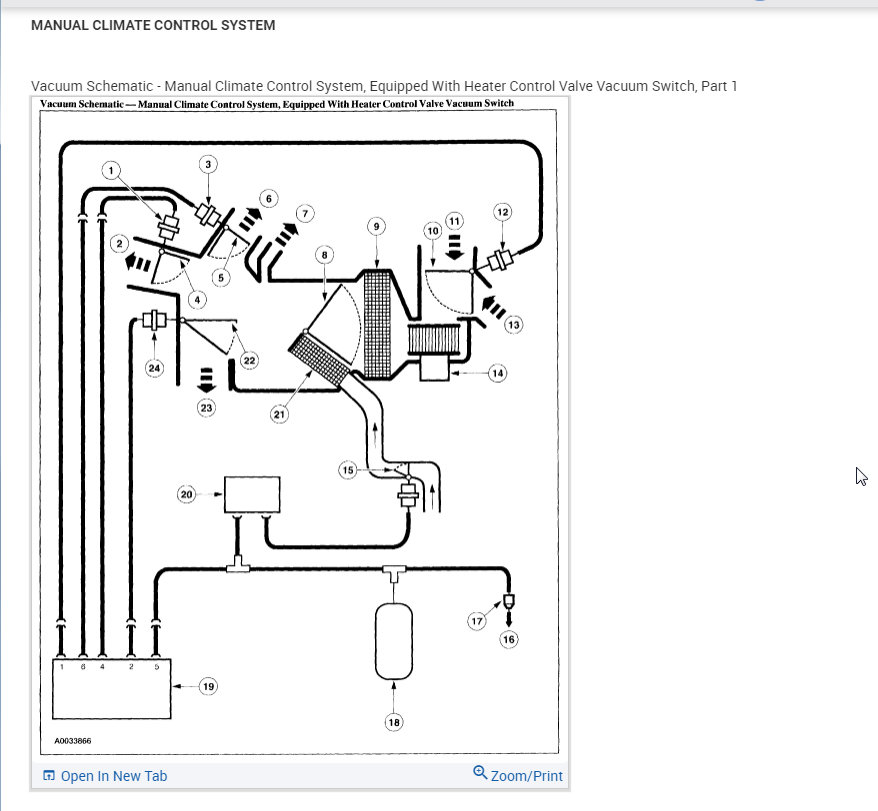

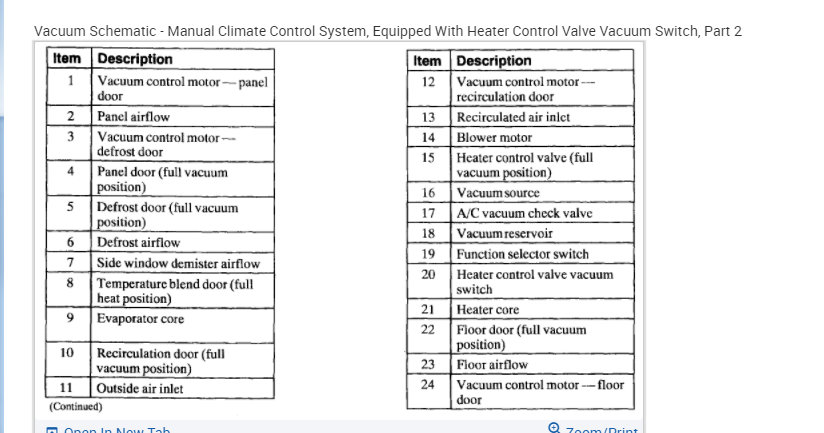

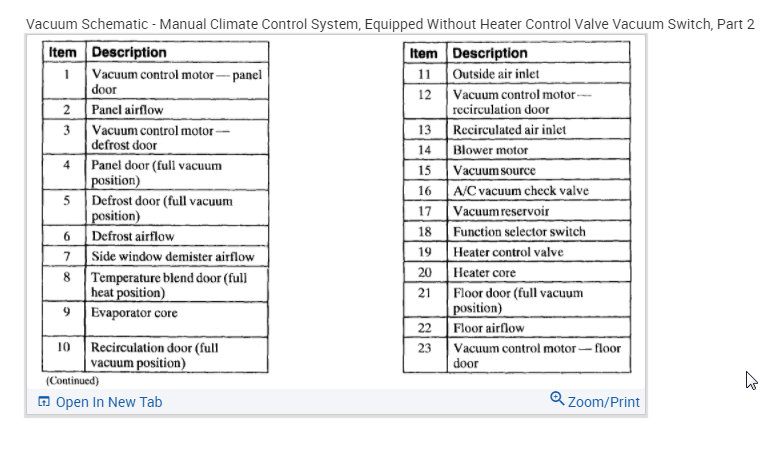

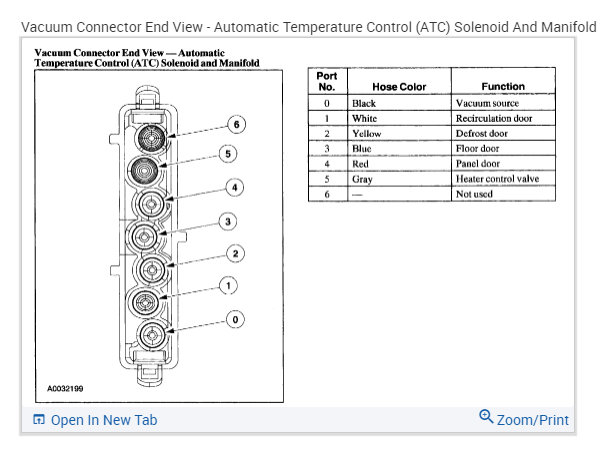

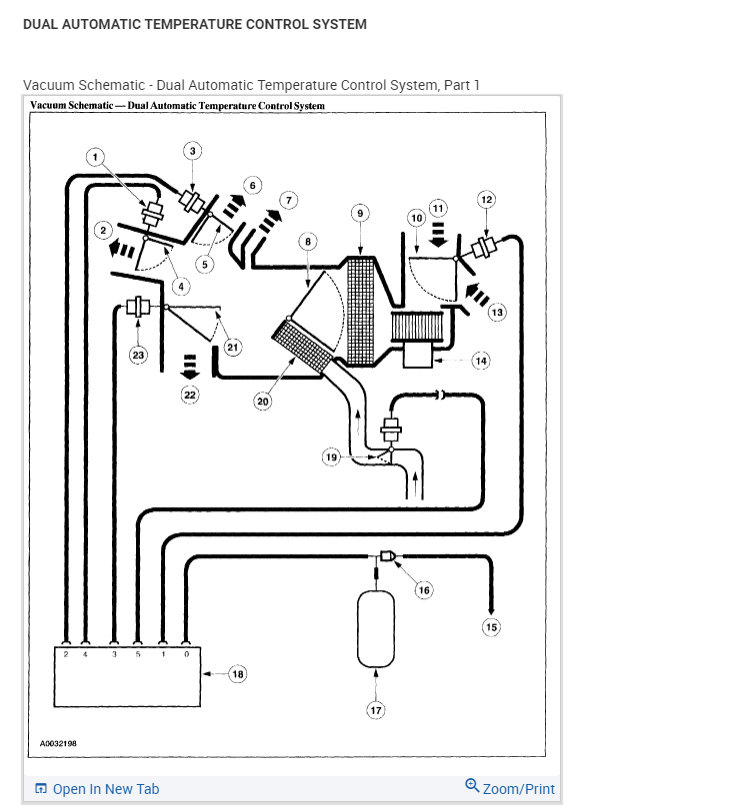

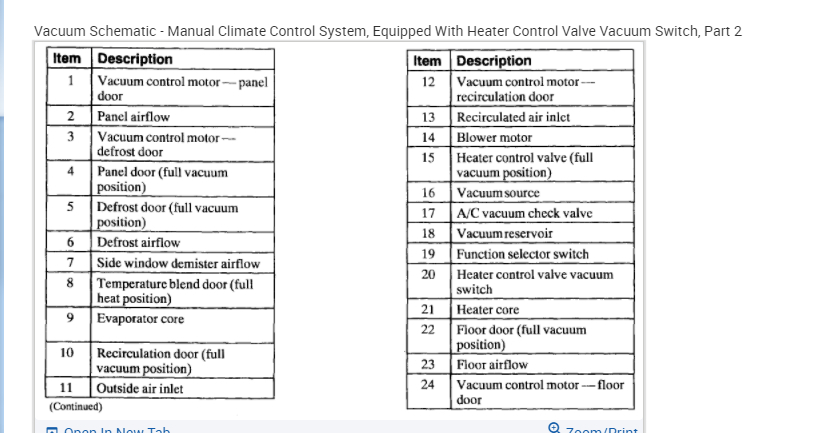

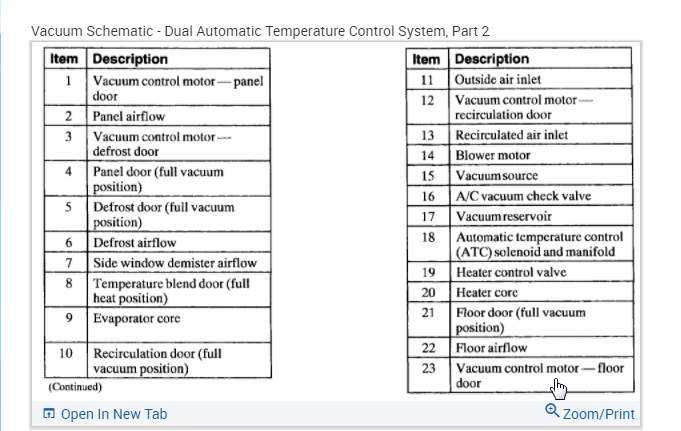

I attached the diagrams depending on what system you have. Take a look at these and let me know if you need other information. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Thanks
Images (Click to make bigger)
SPONSORED LINKS
Was this helpful?
Yes
No
Monday, October 12th, 2020 AT 1:29 PM
RICKY PEARSON
- MEMBER
- 1 POST
- 2000 FORD EXPLORER
- 5.0L
- V8
- 2WD
- 100,009 MILES
I have vacuum line of sum sort come off the back of the engine. I do not no how to fix it. It is also blowing oil out? Altogether there are three lines of vacuum.
Was this helpful?
Yes
No
-2
Wednesday, December 9th, 2020 AT 1:58 PM
(Merged)
KEN L
- MASTER CERTIFIED MECHANIC
- 48,363 POSTS
Hello,
It sounds like the PCV line has come undone or has broken. Can you upload a picture so I can see which one you are talking about? Cheers, Ken
It sounds like the PCV line has come undone or has broken. Can you upload a picture so I can see which one you are talking about? Cheers, Ken
Was this helpful?
Yes
No
-2
Wednesday, December 9th, 2020 AT 1:58 PM
(Merged)
R.CANNONFAMILY
- MEMBER
- 2 POSTS
- 2000 FORD EXPLORER
- 6 CYL
- 2WD
- AUTOMATIC
- 85,000 MILES
Hey folks, I just rebuilt the motor and need a diagram for the vacuum and plug ins just to make sure I have them right. Thanks for your help
Was this helpful?
Yes
No
Wednesday, December 9th, 2020 AT 1:59 PM
(Merged)
BMRFIXIT
- MECHANIC
- 19,053 POSTS

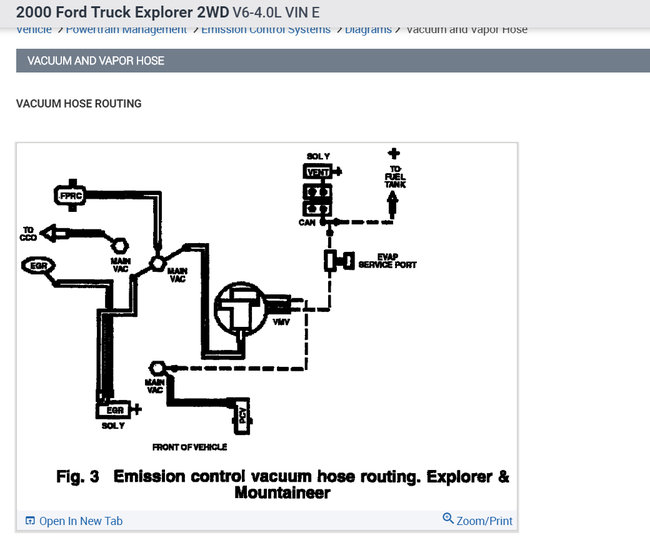

Here is the engine vacuum lines in the diagrams below.
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to make bigger)
SPONSORED LINKS
Was this helpful?
Yes
No
+2
Wednesday, December 9th, 2020 AT 1:59 PM
(Merged)
TFRANK386
- MEMBER
- 2 POSTS
- 1995 FORD EXPLORER
- 4.0L
- 6 CYL
- 4WD
- AUTOMATIC
- 138,376 MILES
My vehicle blows hot air continually even with the thermostat indicator on the cool setting. I am sure one of or more of the hoses are crossed up. Can I get the correct hose diagram for this?
Was this helpful?
Yes
No
+1
Wednesday, December 9th, 2020 AT 1:59 PM
(Merged)
ASEMASTER6371
- MECHANIC
- 52,797 POSTS
Good evening.

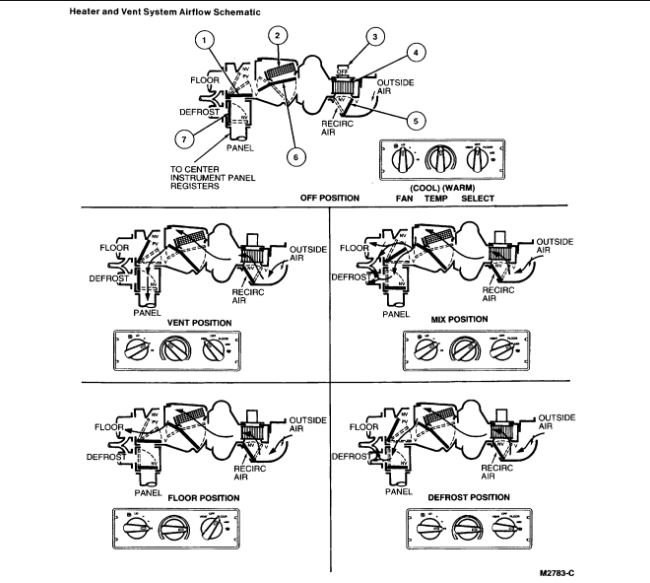

I attached a couple of vacuum diagrams for you to view. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Roy
I attached a couple of vacuum diagrams for you to view. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Roy

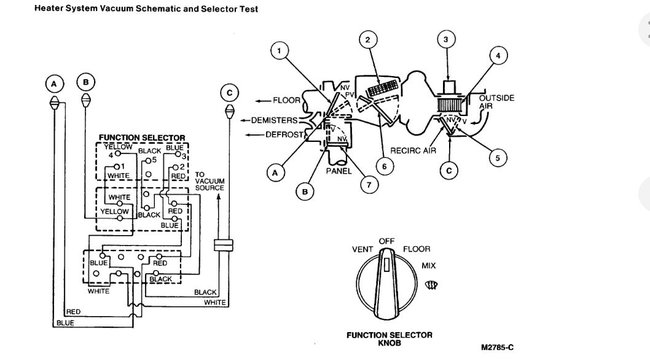

Images (Click to make bigger)
Was this helpful?
Yes
No
Wednesday, December 9th, 2020 AT 1:59 PM
(Merged)
LPMGR6
- MEMBER
- 1 POST
- 1999 FORD EXPLORER
- 6 CYL
- 4WD
- AUTOMATIC
- 157,000 MILES
In my explorer the engine light is on. The code was for vacuum hose. I replaced the hoses but was told there are several. Is there a map of the hoses I could look at to find what else I need to replace.
Was this helpful?
Yes
No
Wednesday, December 9th, 2020 AT 1:59 PM
(Merged)
BLUELIGHTNIN6
- MECHANIC
- 16,542 POSTS

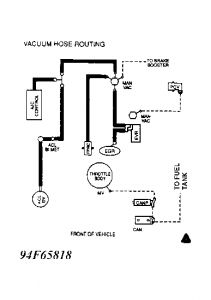

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Was this helpful?
Yes
No
-1
Wednesday, December 9th, 2020 AT 1:59 PM
(Merged)
MALONG23236
- MEMBER
- 1 POST
- 1994 FORD EXPLORER
- 4 CYL
- 4WD
- AUTOMATIC
- 242,000 MILES

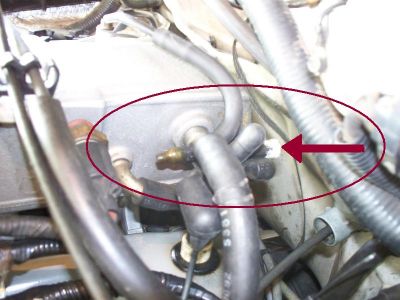

One of the six lines on my upper intake manifold vacuum tree is broken/open/exposed. I cannot find the end that it connects to. I looked in the Haynes Repair Manual but could not find the scheme that diagram the connection. I also when to the Ford website. Is there another source?
Was this helpful?
Yes
No
-1
Wednesday, December 9th, 2020 AT 2:00 PM
(Merged)
DAVE H
- MECHANIC
- 13,384 POSTS
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
when u screw on the oil reservoir cap it twists the bottom part. and oil is leaking out of it
when u screw on the oil reservoir cap it twists the bottom part. and oil is leaking out of it
Was this helpful?
Yes
No
+3
Wednesday, December 9th, 2020 AT 2:00 PM
(Merged)
PHIL WINTSCH
- MEMBER
- 1 POST
- 1996 FORD EXPLORER
- 6 CYL
- 4WD
- MANUAL
- 13,500 MILES
Where are the vacuum hoses located
SPONSORED LINKS
Was this helpful?
Yes
No
-1
Wednesday, December 9th, 2020 AT 2:00 PM
(Merged)
BLUELIGHTNIN6
- MECHANIC
- 16,542 POSTS
Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Was this helpful?
Yes
No
Wednesday, December 9th, 2020 AT 2:00 PM
(Merged)
BARRELRACER400HP
- MEMBER
- 2 POSTS
- FORD EXPLORER
I have a 1993 Ford explorer xlt 4x4 with a 4.0 liter that has 64,000 miles.
I picked this vehicle up a month ago and it was loping at accellerationb so I checked vaccum lines. I found a vaccume line was missing, with a stub and a screw in the end to replace it. The vacuum line chart only shows a few vacuum lines and I cant find the end of the line, is there any complete chart?
Also, It makes a single clunk when turning the wheels either way. I just replaced the front shocks, lubricated every nook and cranny available to stop some annoying squeeking, hoping the noise was friction, but its still doing it. I just had the hubs serviced and learned one of fords dumber ideas is that you can't lubricate the ball joints. My mechanic explained that when they get dry you just have to replace them.... Do you thing this could be the noise?
It doesnt sound like a serious problem but I have noticed speeds over 55, there is a light shudder comming from the front end... It could also be the age and everything has seen better days, but if you could just ease my mind, Thanks!
I picked this vehicle up a month ago and it was loping at accellerationb so I checked vaccum lines. I found a vaccume line was missing, with a stub and a screw in the end to replace it. The vacuum line chart only shows a few vacuum lines and I cant find the end of the line, is there any complete chart?
Also, It makes a single clunk when turning the wheels either way. I just replaced the front shocks, lubricated every nook and cranny available to stop some annoying squeeking, hoping the noise was friction, but its still doing it. I just had the hubs serviced and learned one of fords dumber ideas is that you can't lubricate the ball joints. My mechanic explained that when they get dry you just have to replace them.... Do you thing this could be the noise?
It doesnt sound like a serious problem but I have noticed speeds over 55, there is a light shudder comming from the front end... It could also be the age and everything has seen better days, but if you could just ease my mind, Thanks!
Was this helpful?
Yes
No
Wednesday, December 9th, 2020 AT 2:02 PM
(Merged)
MERLIN2021
- MECHANIC
- 17,250 POSTS

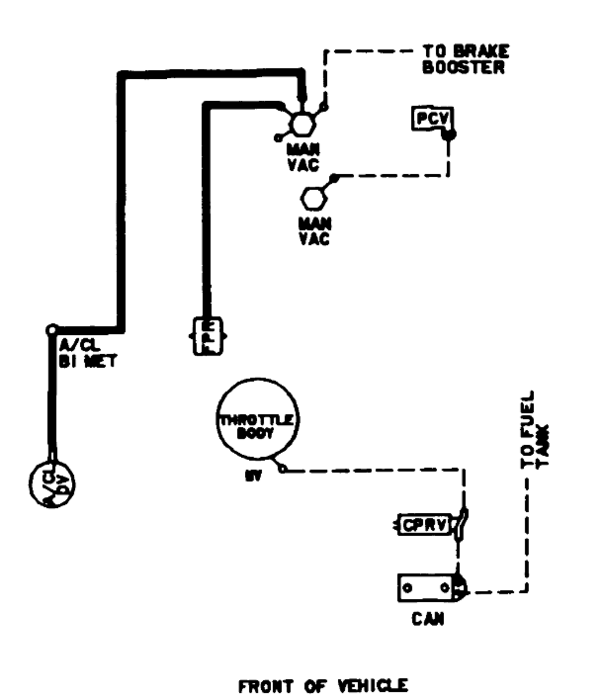

To get the propper diagram for your truck I need the ca;ibration code! It should be on the drivers door jamb, and on one ot the valve covers. To test the ball jpoints, jack the truck with a floor jack, under the ball joit as close to the tire as you can, then try to shake the whell by placing your hands at 1200 oclock and 6 oclock. Then at 3 and 9, any play? Play means something is worn. Could be tie rod ends or ball joints. Clunk can be ball joint or control arm bushings. It looks like all 4.0 goes from the throttle body to the cannister purge.
Was this helpful?
Yes
No
-1
Wednesday, December 9th, 2020 AT 2:02 PM
(Merged)
BIGDADDY999
- MEMBER
- 5 POSTS
- 1992 FORD EXPLORER
- 858,000 MILES
I have 1 small vacuum line that is broken, coming from drivers side to passenger side
the 2nd one is by the air conditioner one end goes into a circle cap and comes out of it, but it looks like the bottom is broken
where do they come from and where do they go
the 2nd one is by the air conditioner one end goes into a circle cap and comes out of it, but it looks like the bottom is broken
where do they come from and where do they go
Was this helpful?
Yes
No
Friday, December 11th, 2020 AT 12:09 PM
(Merged)
HMAC300
- MECHANIC
- 48,601 POSTS

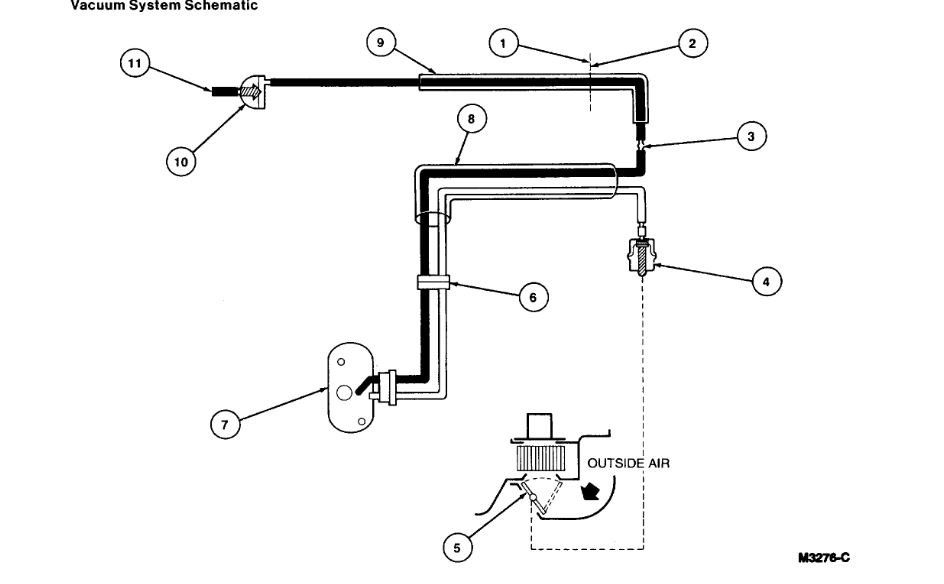

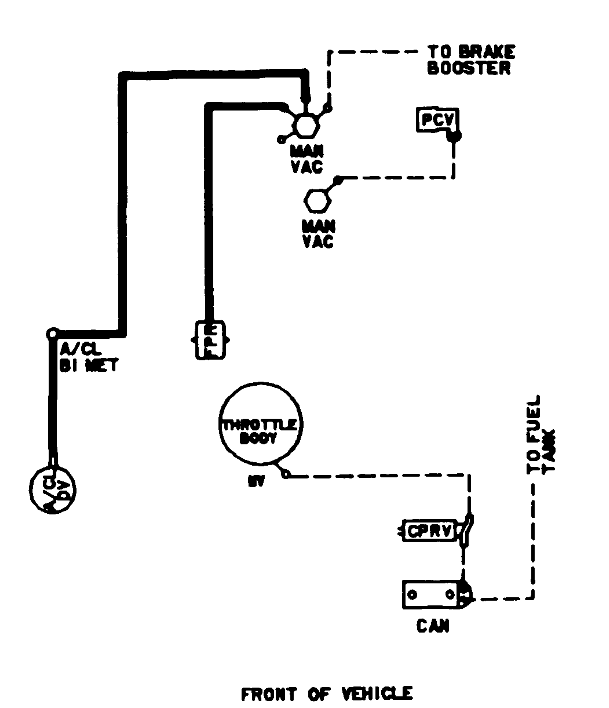

Heres a diagram you can look and see where you are talking about.
Image (Click to make bigger)
Was this helpful?
Yes
No
Friday, December 11th, 2020 AT 12:09 PM
(Merged)
BIGDADDY999
- MEMBER
- 5 POSTS
What do the abreviations mean in your diagram, please tell me what they are thank you
Was this helpful?
Yes
No
Friday, December 11th, 2020 AT 12:09 PM
(Merged)
BIGDADDY999
- MEMBER
- 5 POSTS
There is a vacuum line that runs into a round piece that looks like it is mounted on some thing
Was this helpful?
Yes
No
Friday, December 11th, 2020 AT 12:09 PM
(Merged)
BIGDADDY999
- MEMBER
- 5 POSTS
There is a small vacuum line on drivers side that starts in the wiring harness, where is it to run
Was this helpful?
Yes
No
Friday, December 11th, 2020 AT 12:09 PM
(Merged)
