I need to find a vacuum diagram?

Tiny
JOHNYBGOOD
  • MEMBER
  • 1989 CHEVROLET CAMARO
  • 1.7L
  • V6
  • 2WD
  • MANUAL
  • 17,000 MILES
I need to find a vacuum diagram for my Camaro, mpfi 2.8 tb I can't find one that got all the hoses coming off my motor it's a Canadian model, if that makes a difference.
Thursday, June 6th, 2024 AT 12:08 PM

5 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,665 POSTS

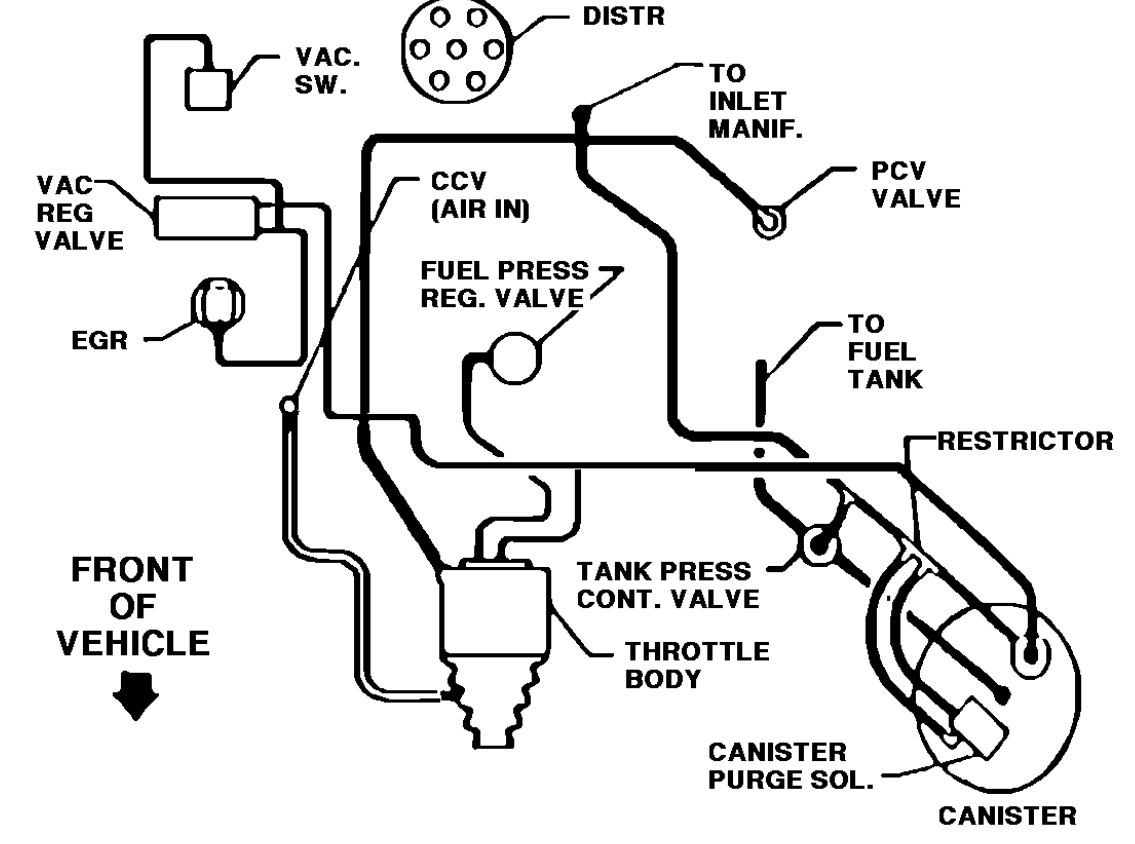

Sure, here is the engine and EVAP vacuum lines, check out the images (below). Let us know if you need anything else.
Was this
answer
helpful?
Yes
No
Thursday, June 6th, 2024 AT 5:36 PM
Tiny
JOHNYBGOOD
  • MEMBER
  • 21 POSTS
It does not look quite like mine, mine is another round thing with a vacuum hose coming out of it by the EGR, and then I got 2 more that, one goes to the eye I don't know where the other one goes.
Was this
answer
helpful?
Yes
No
Monday, June 17th, 2024 AT 1:35 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,665 POSTS
Can you upload an images of what you are talking about?
Was this
answer
helpful?
Yes
No
Tuesday, June 18th, 2024 AT 10:35 AM
Tiny
JOHNYBGOOD
  • MEMBER
  • 21 POSTS
I have a air pump not sure what that does or where it goes. I also have the brake booster hose and not sure how where it goes but small hose goes over to a round thing hose come off it to I think the ECM I don't no perry frustrated.
Was this
answer
helpful?
Yes
No
Tuesday, June 25th, 2024 AT 2:24 PM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,665 POSTS
If you upload images for what you are looking at I can help you find out were the vacuum lines go. Please do so in your response.
Was this
answer
helpful?
Yes
No
Wednesday, June 26th, 2024 AT 9:25 AM
