Vacuum diagram needed?

Tiny
FORESTER1
  • MEMBER
  • 2000 FORD EXPLORER
  • 5.0L
  • V8
  • 4WD
  • AUTOMATIC
  • 80,000 MILES
I am looking for a vacuum lines diagram to properly repair and replace multiple small brittle vacuum lines.
Tuesday, July 4th, 2023 AT 11:24 AM

3 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,602 POSTS

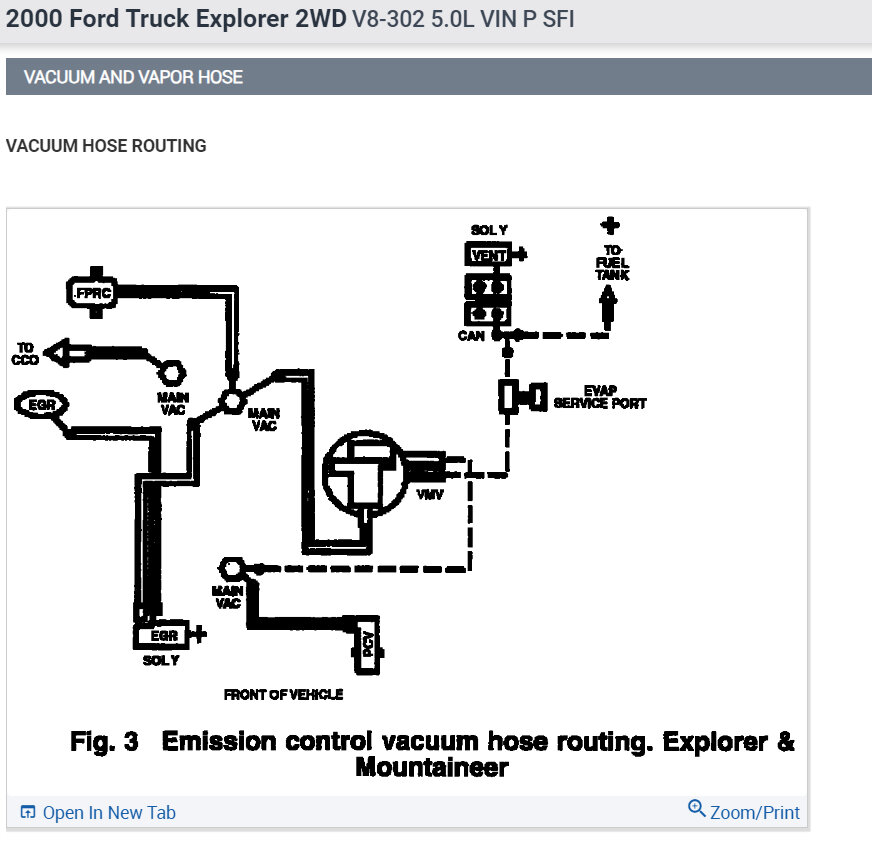

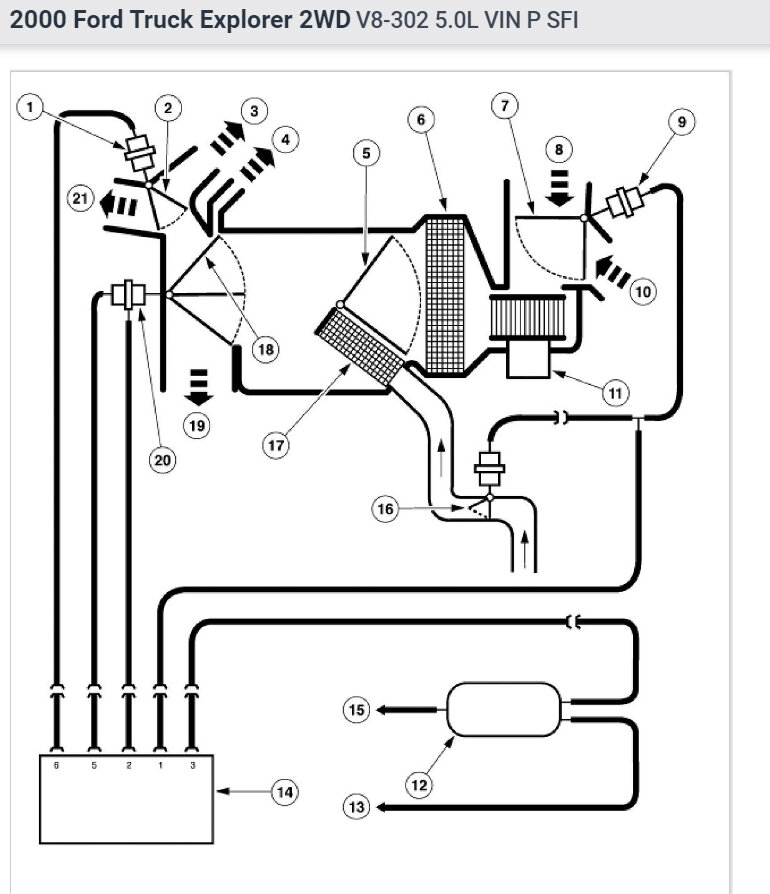

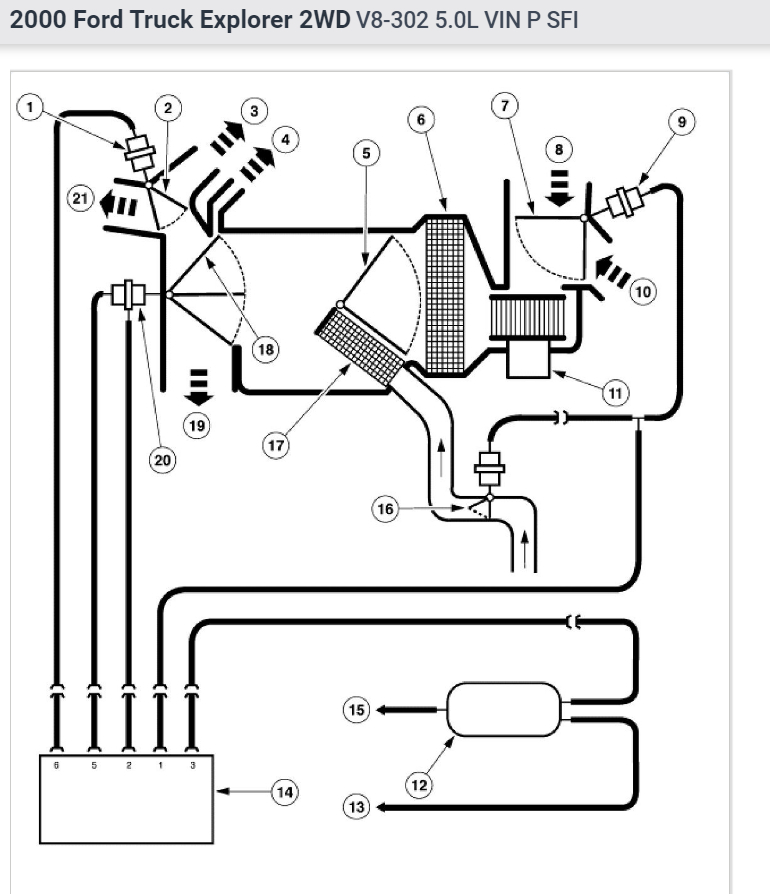

Yep, here are the engine and HVAC vacuum line diagrams as requested. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
