Side mirror/lens defogger/lens schematic wiring?

Tiny
1OF1RE4
  • MEMBER
  • 2008 HONDA CRV
  • 2.4L
  • 4 CYL
  • 4WD
  • AUTOMATIC
  • 196,000 MILES
I’ve been searching online. I just need the Japanese/EURO 9 pin auto folding side mirror/lens defogger/lens angle adjustment's schematic wiring diagram. I need to know what each wire does. The USDM which I have never came with the folding mirror and turn signals. I’m doing a conversion for my USDM 2008 Honda CRV. If you can get the Japanese/EURO I would love you forever. Thanks !
SPONSORED LINKS
Saturday, November 25th, 2023 AT 11:08 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS

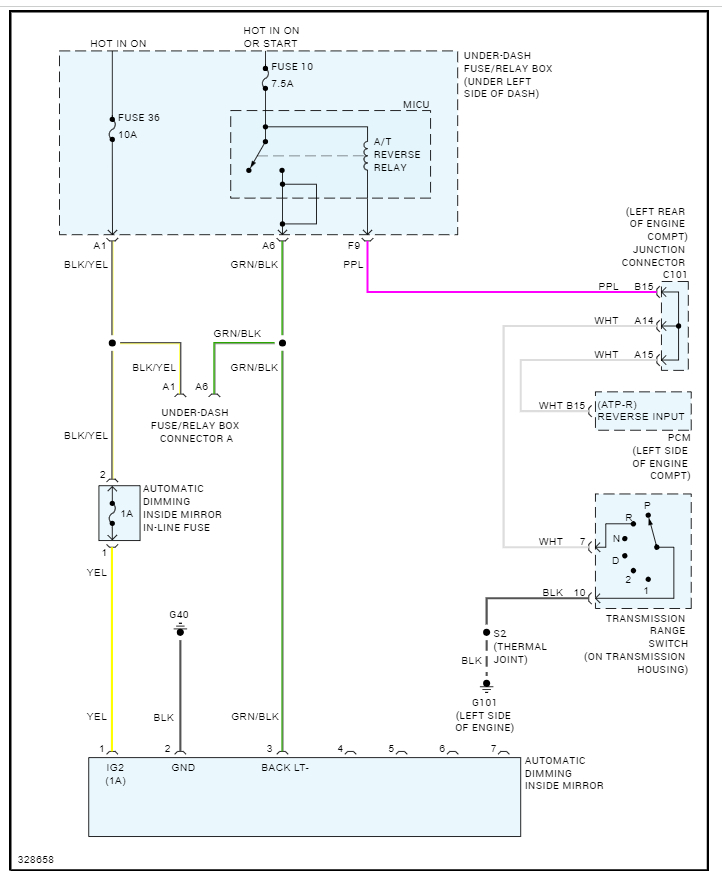

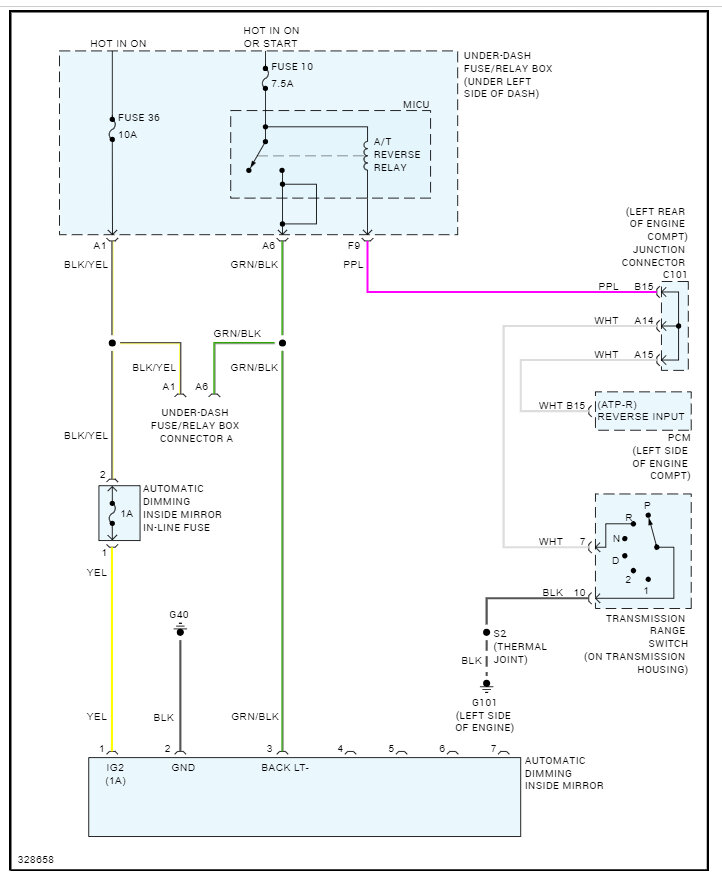

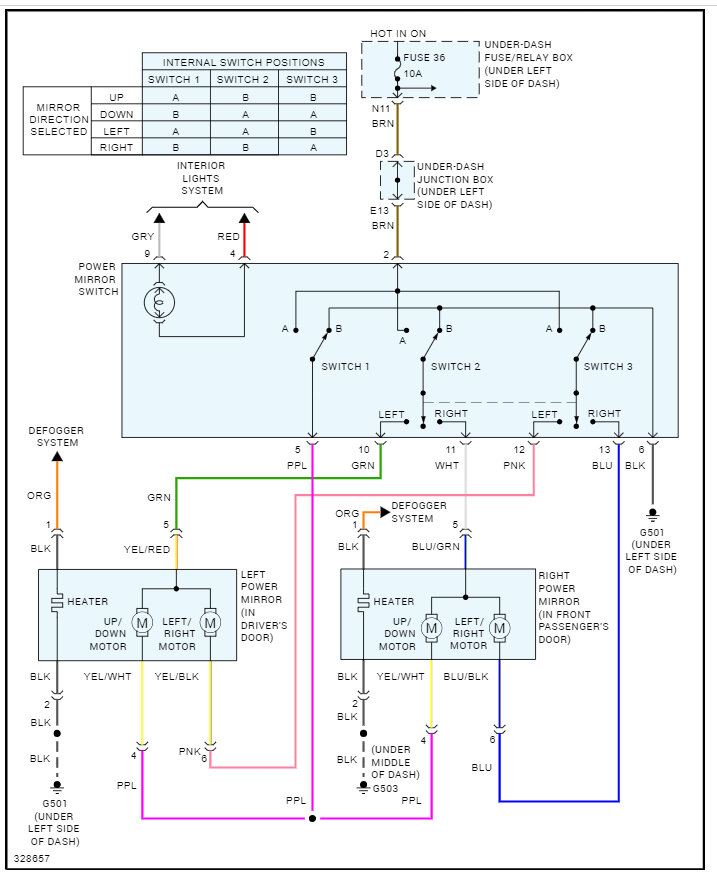

Here are the wiring diagrams you have requested. Check out the images (below). Let us know if you need anything else.
