Under the hood fuse block diagram needed

1994 CHEVROLET SILVERADO
112,000 MILES • 5.3L • V8 • 2WD • AUTOMATIC
Avatar
DIANA1963
  • MEMBER
  • 2 POSTS
I need a diagram of the under the hood fuse block for the truck listed above.
Apr 5, 2021 at 9:38 PM
Advertisement
Avatar
ASEMASTER6371
  • ✓Experienced Mechanic
  • 52,796 POSTS
Good morning,

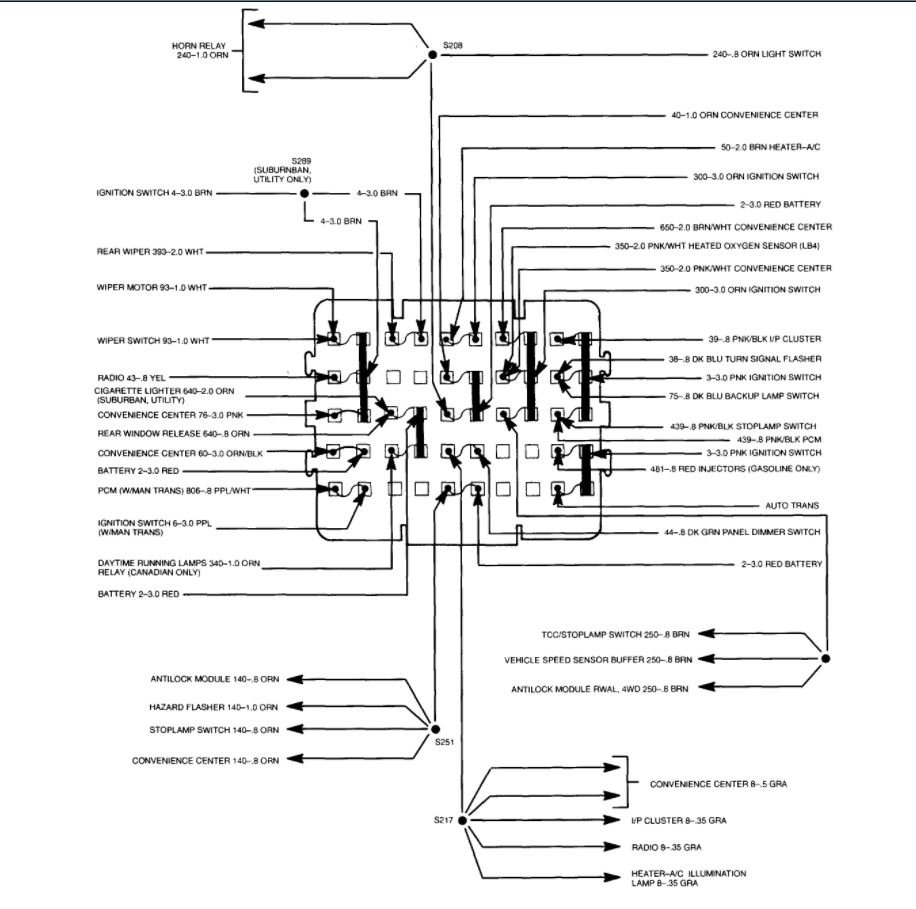

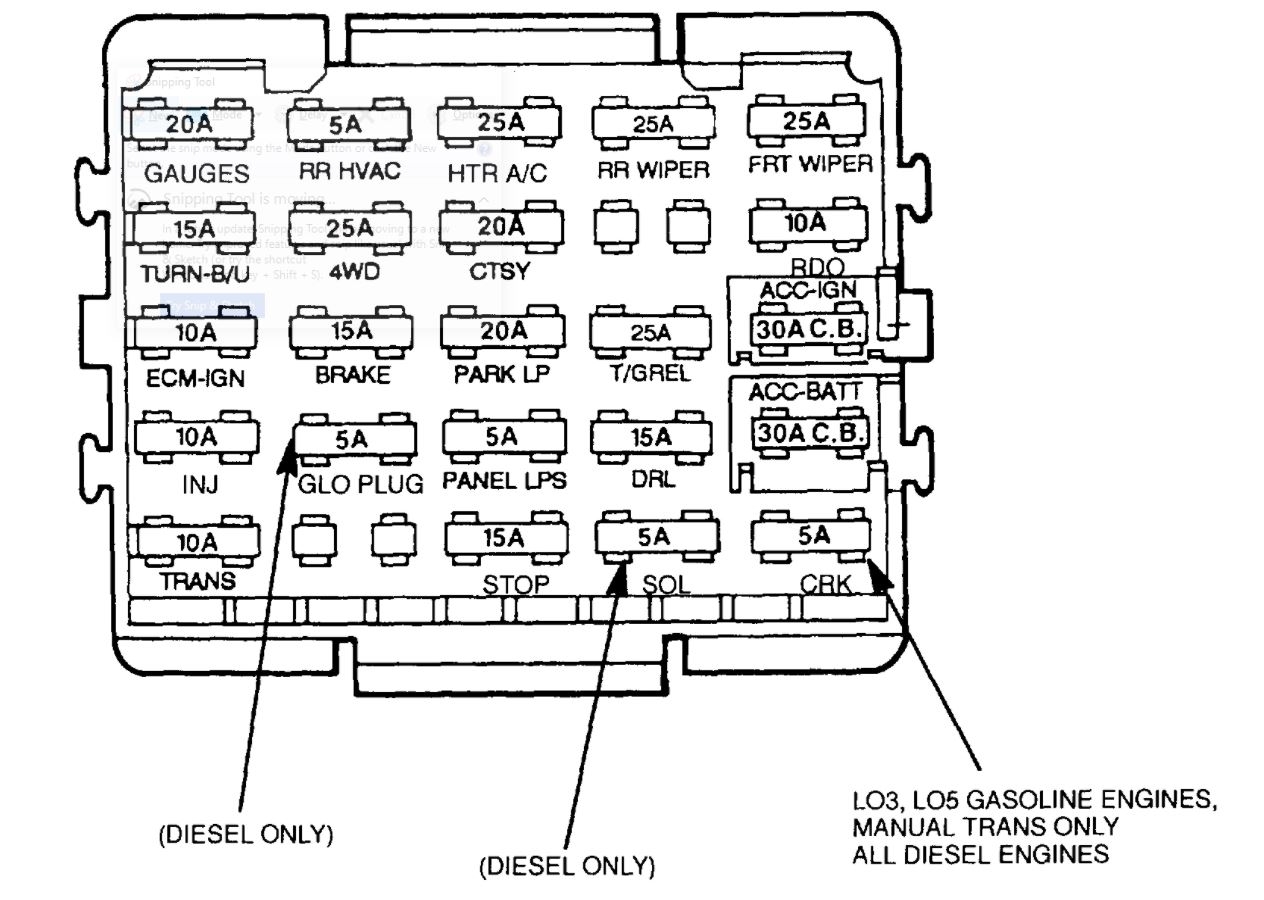

I attached a picture of the front and back of the fuse block for you to view.

https://www.2carpros.com/articles/how-to-check-wiring

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Let us know if you have any other questions.

Roy
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
