under hood fuse box wiring diagram needed?

2002 BUICK CENTURY
100,000 MILES • 3.1L • 6 CYL • 2WD • AUTOMATIC
Avatar
HAYDEN224
Hi, I need a wiring diagram for the under-hood fuse box.
Aug 25, 2025 at 6:59 PM
Advertisement
Avatar
MECHTRIX
  • ✓ASE Certified Mechanic
  • 382 POSTS
  • ASE Certified Mechanic
Here's the diagram for the under the hood fuse box. please click the image below.

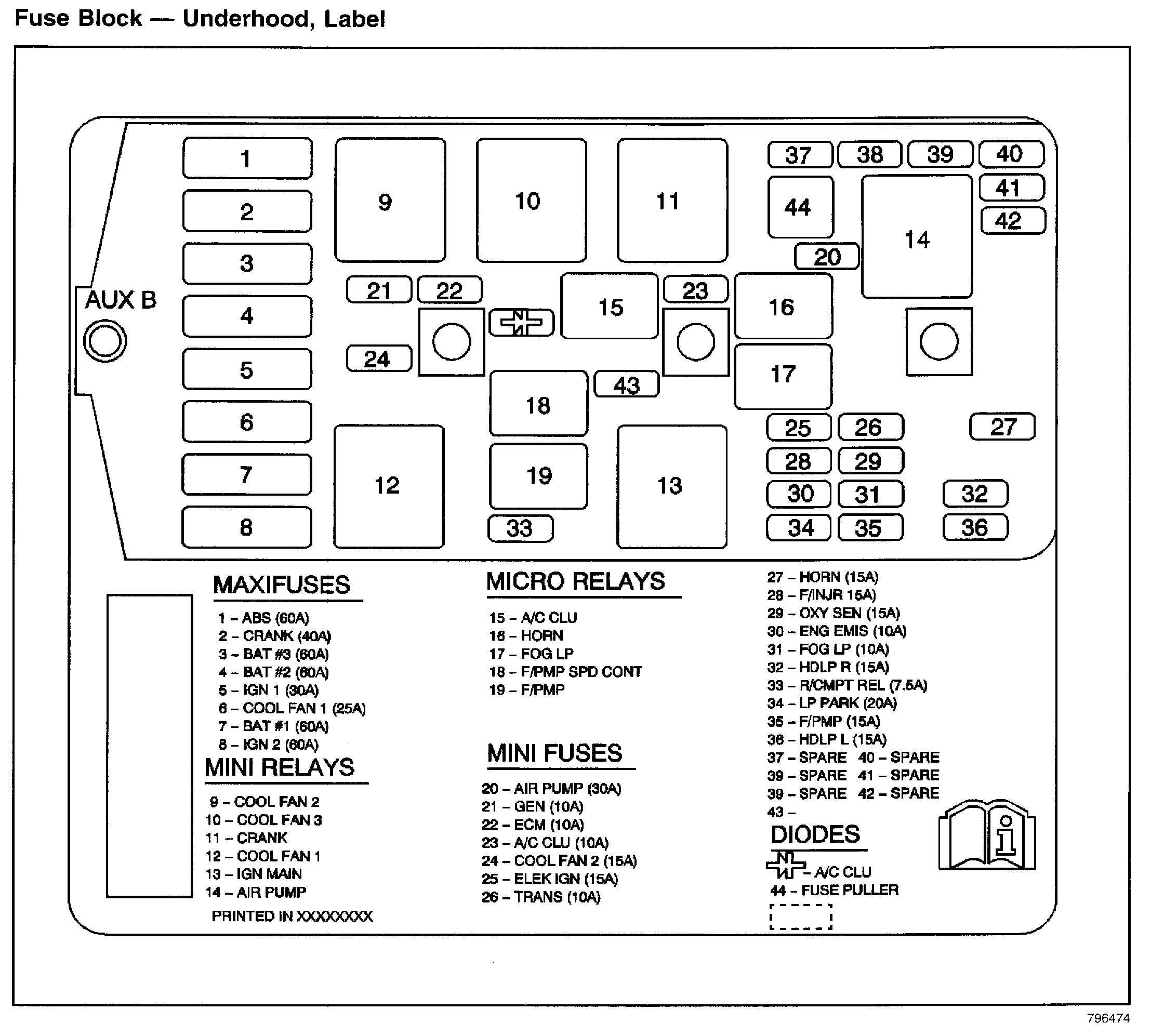

Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Aug 25, 2025 at 8:25 PM
Avatar
HAYDEN224
  • MEMBER
  • 5 POSTS
I need where the wires go into the fuse box.
Aug 26, 2025 at 7:57 AM
Avatar
HAYDEN224
  • MEMBER
  • 5 POSTS
I need the diagram for this.
Image (Click to enlarge)
Attached Media
Aug 26, 2025 at 7:58 AM
Avatar
MECHTRIX
  • ✓ASE Certified Mechanic
  • 382 POSTS
  • ASE Certified Mechanic
What distribution
Power ?
Ground ?
Theres alot of them
Im assuming power
Aug 26, 2025 at 11:47 AM
Avatar
HAYDEN224
  • MEMBER
  • 5 POSTS

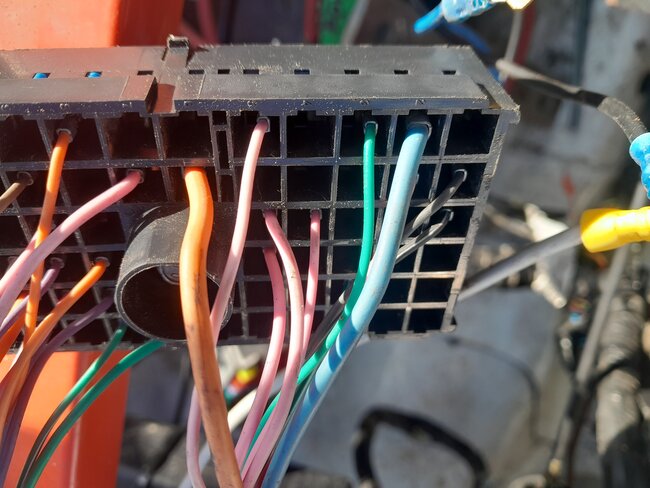

I need it for the pink wires I screwed up and now I don't know where to put them.
Aug 26, 2025 at 11:56 AM
Avatar
MECHTRIX
  • ✓ASE Certified Mechanic
  • 382 POSTS
  • ASE Certified Mechanic

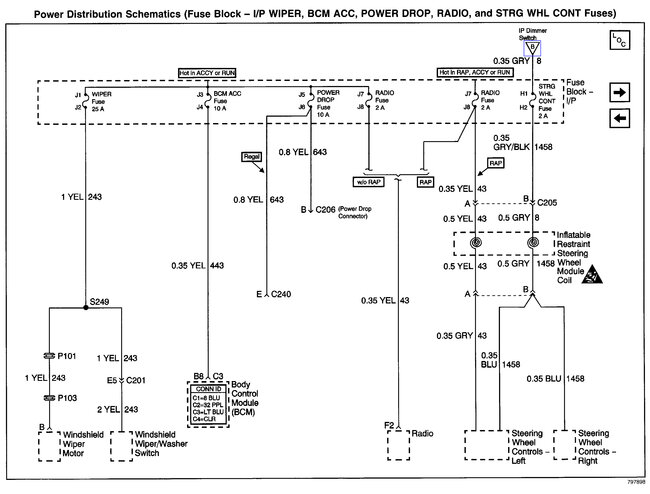

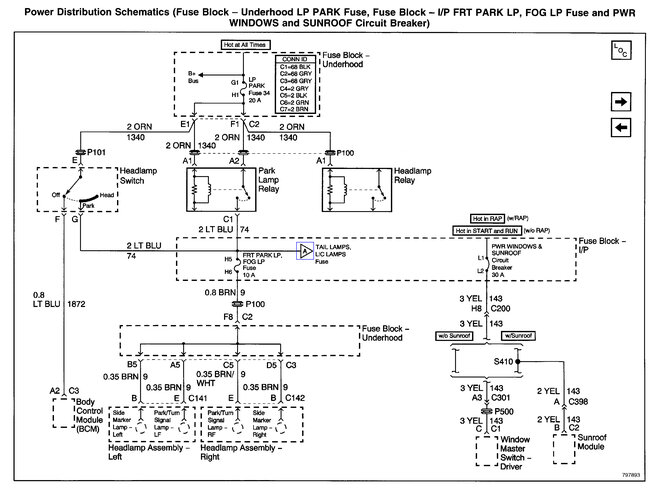

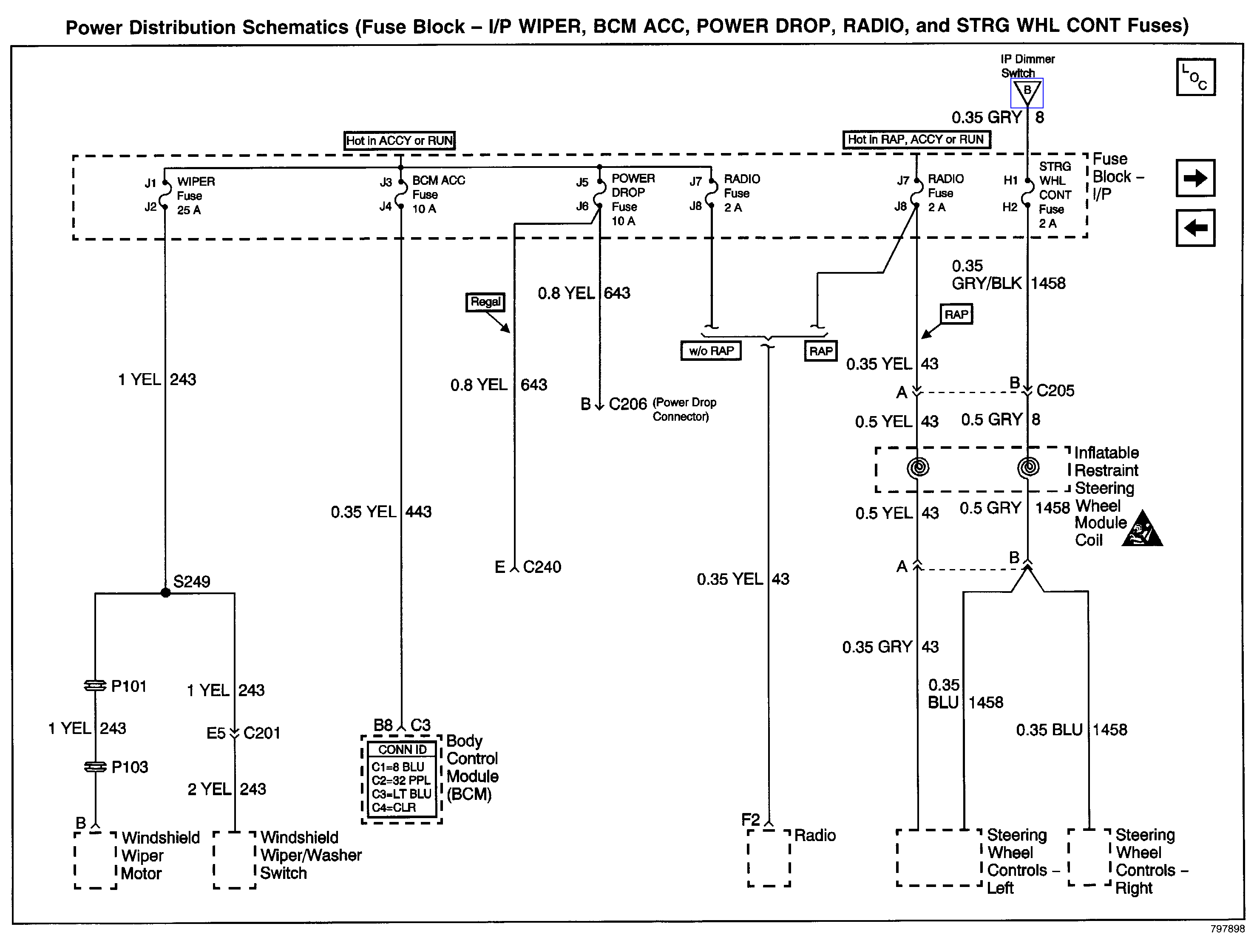

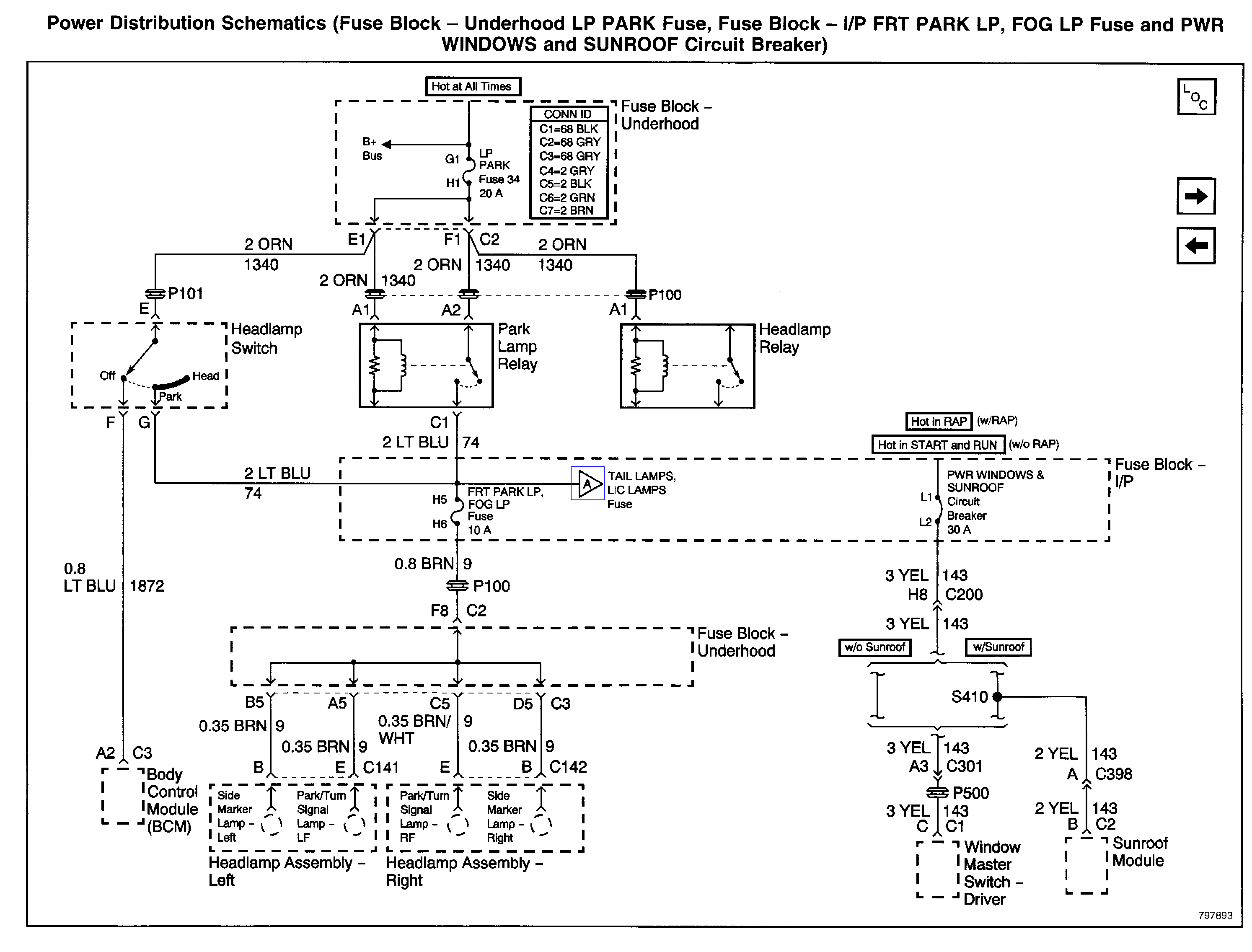

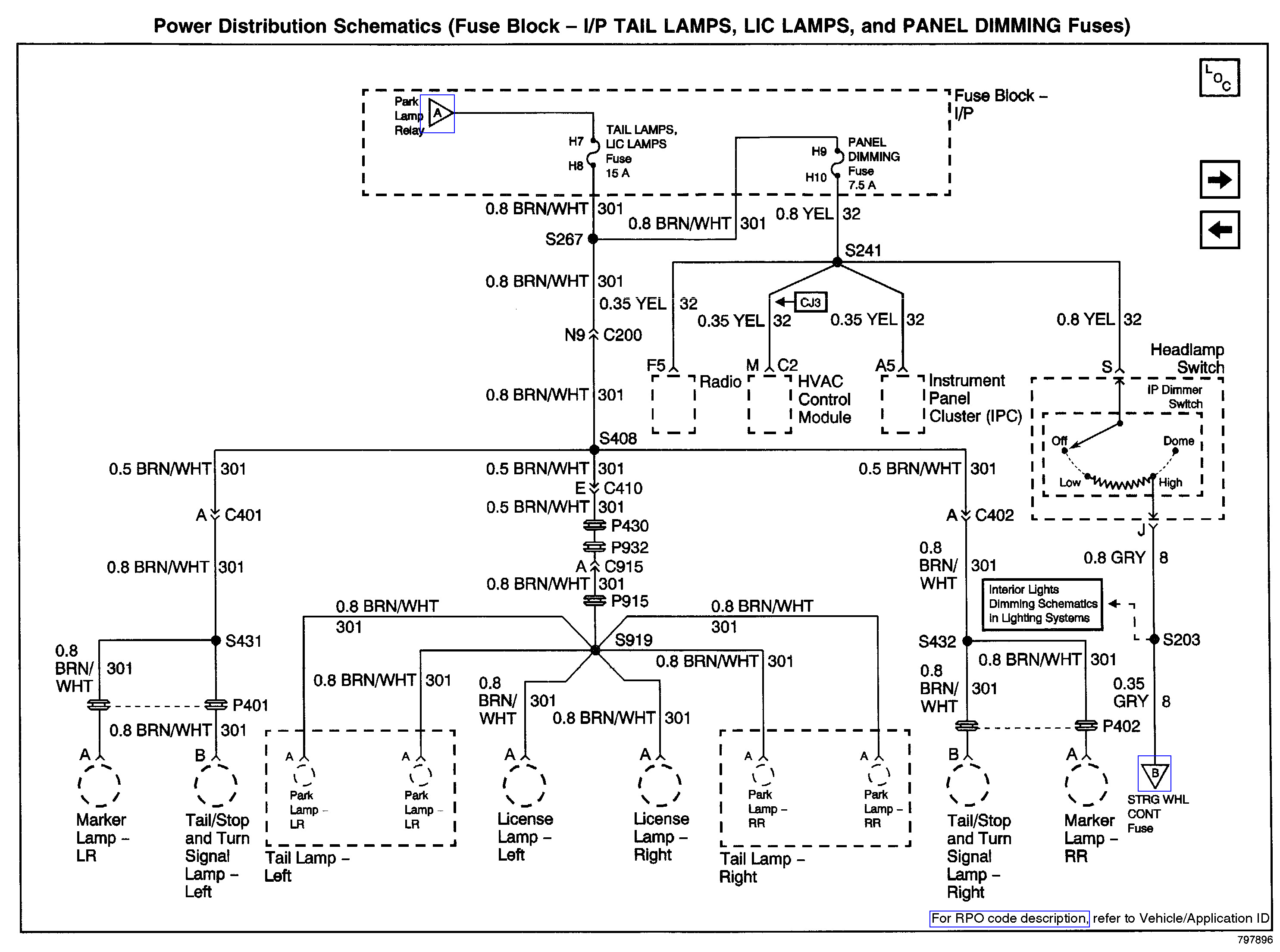

There's 3 diagrams for the underhood relay and fuze box
Each one shows up top what they're for including wire color ..just keep in mind they're combined for the one box ..just click the images below . Good luck
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Aug 26, 2025 at 12:58 PM
Avatar
HAYDEN224
  • MEMBER
  • 5 POSTS
Thank youill give it a try when I get home.
Aug 26, 2025 at 2:07 PM
Avatar
MECHTRIX
  • ✓ASE Certified Mechanic
  • 382 POSTS
  • ASE Certified Mechanic
Great it think everything you need is there glad to help good luck
Aug 26, 2025 at 2:40 PM
