I need to know where all the little tubes go connected on the valve body. I can't figure it out.
Sep 2, 2022 at 1:58 PM
Transmission valve body valve lines?
1997 TOYOTA AVALON
RAYMOND NIMMO II
- MEMBER
- 1 POST
Advertisement
JACOBANDNICKOLAS
- ✓ASE Certified Mechanic
- 110,194 POSTS
Hi,

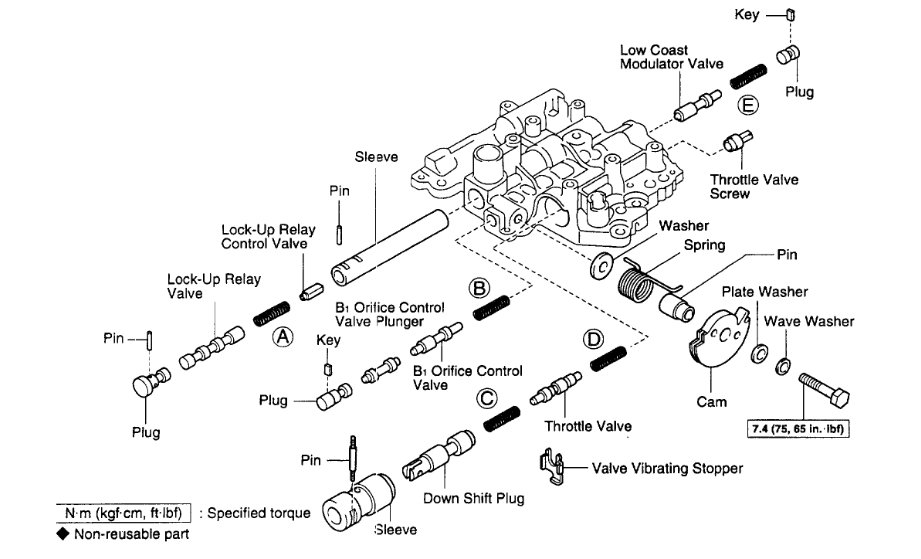

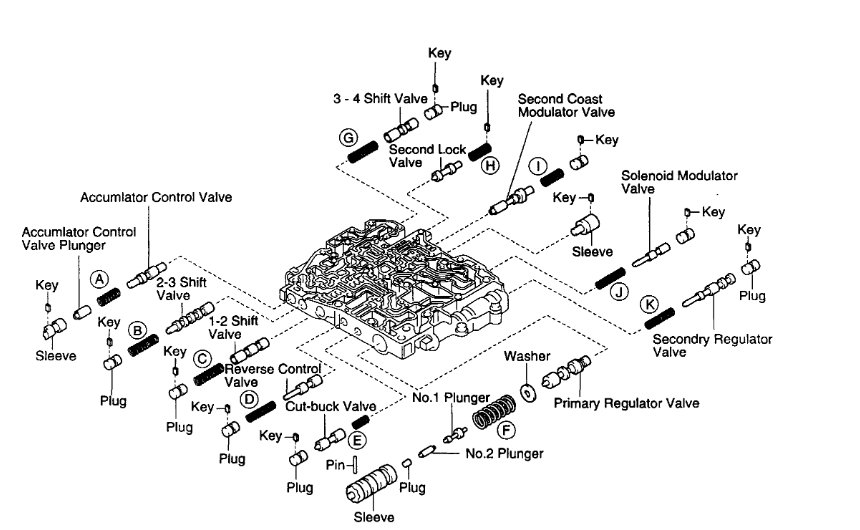

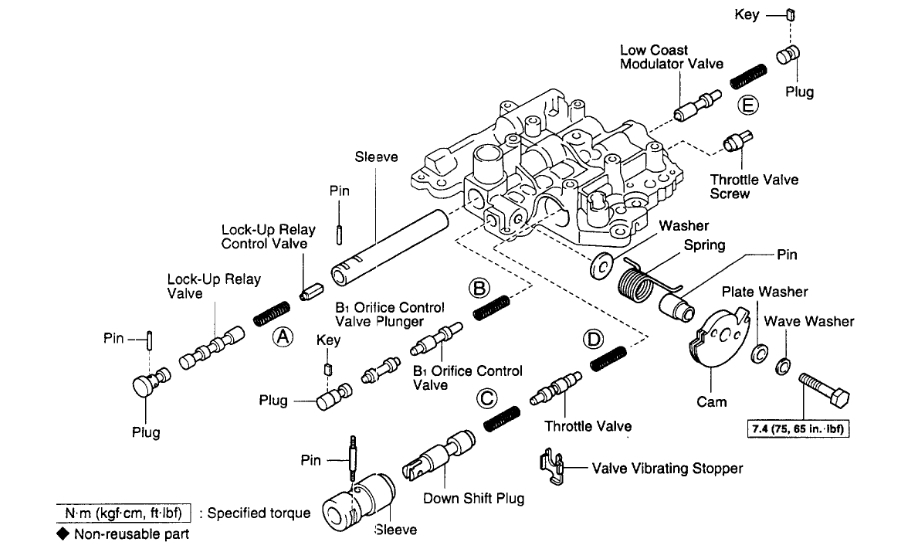

I'm not sure what you are referring to when you say tubes. So, I have attached two pics below. Pic 1 is an exploded view of the upper valve body. Pic 2 is an exploded view of the lower valve body.
Take a look through them and see if you can identify the components you need.
Let me know if this helps or if you have other questions.
Take care,
Joe
See pics below.
I'm not sure what you are referring to when you say tubes. So, I have attached two pics below. Pic 1 is an exploded view of the upper valve body. Pic 2 is an exploded view of the lower valve body.
Take a look through them and see if you can identify the components you need.
Let me know if this helps or if you have other questions.
Take care,
Joe
See pics below.
