Transmission installation full parts diagram that shows each part and gives their name needed

2003 LINCOLN LS

1,000,000 MILES • 3.9L • V8 • 2WD

BRIAN CHILDRESS

MEMBER
19 POSTS

I'm changing transmission in my car, and I am having trouble ordering some of the parts I need and I don't remember exactly how they go back together. Can I get a full parts diagram that shows each part and gives their name so I can order the correct parts and put them back together?

Image (Click to enlarge)

Oct 22, 2021 at 9:18 PM

Advertisement

JACOBANDNICKOLAS

✓Experienced Mechanic
110,248 POSTS

Hi, Brian.

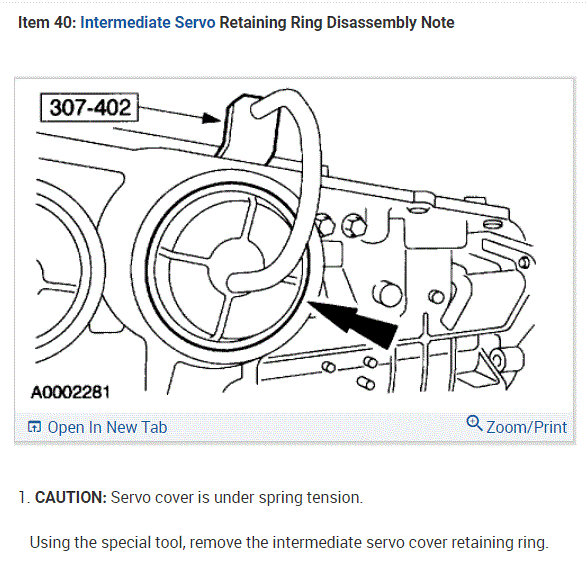

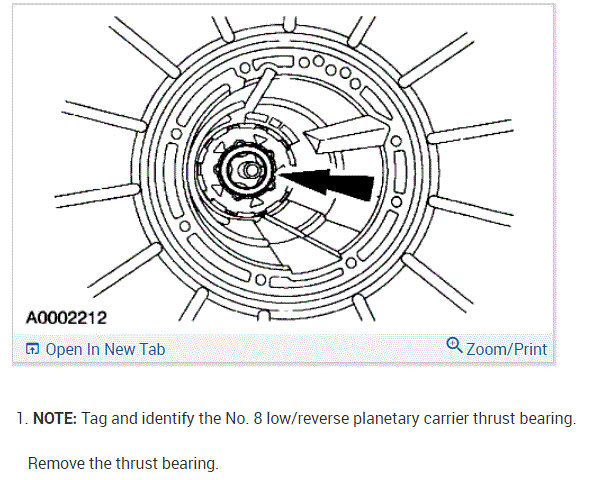

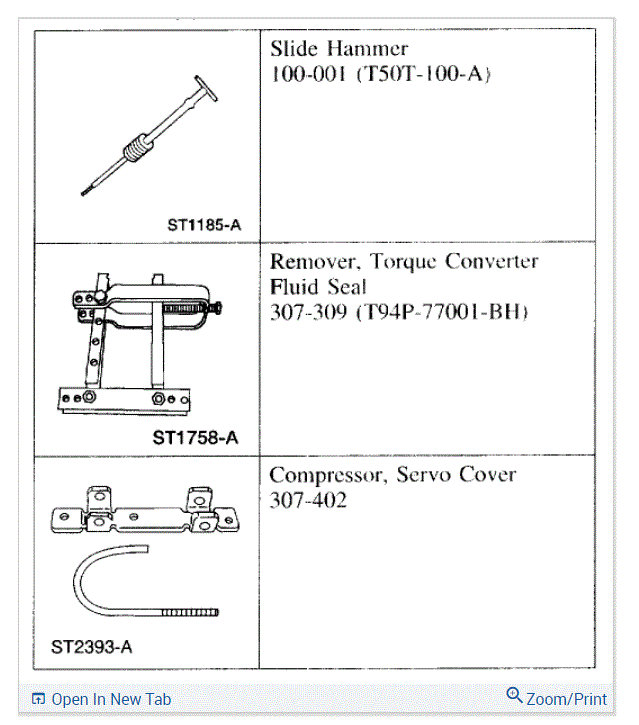

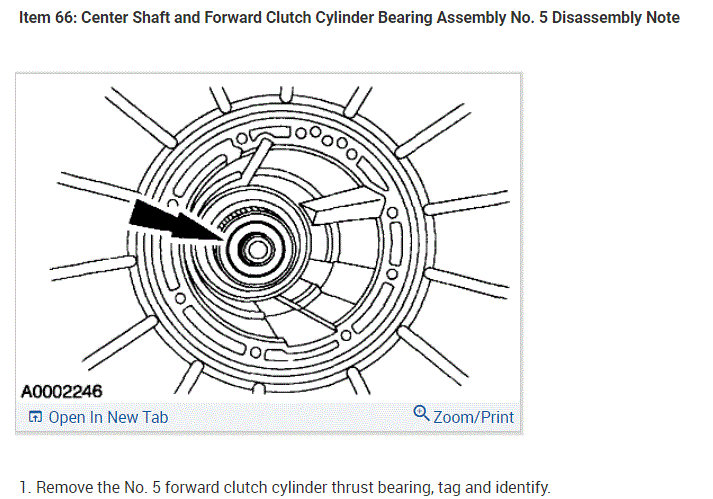

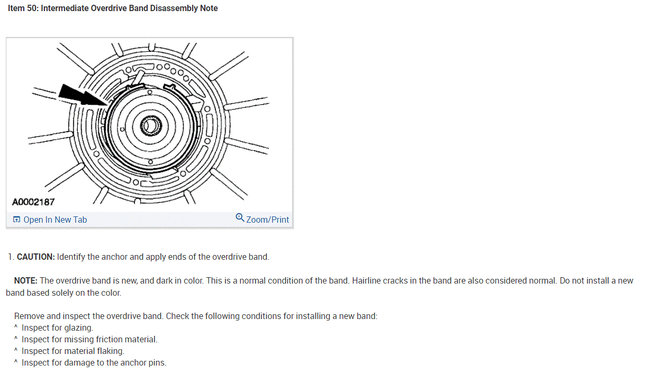

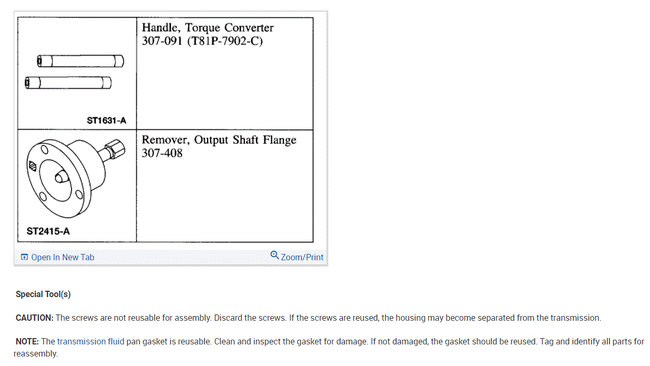

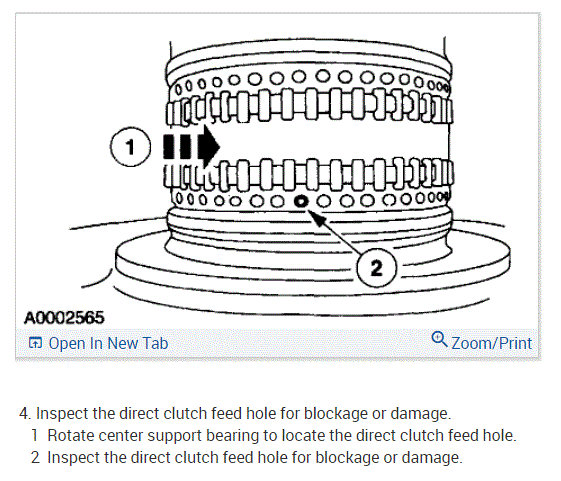

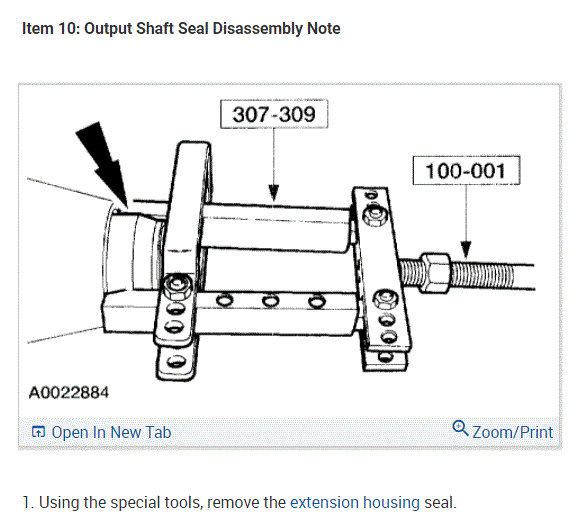

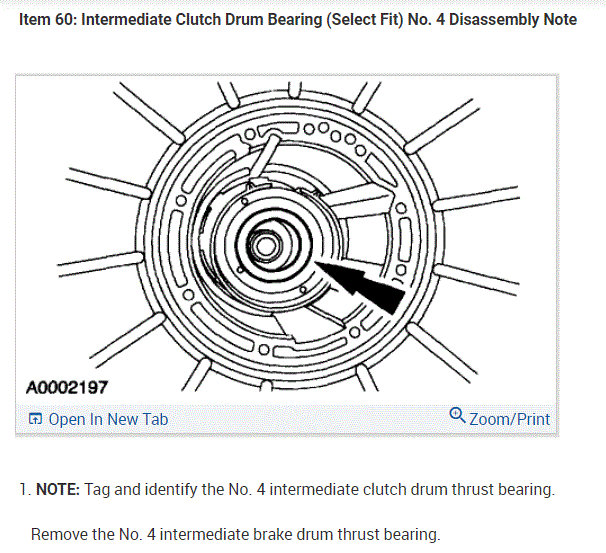

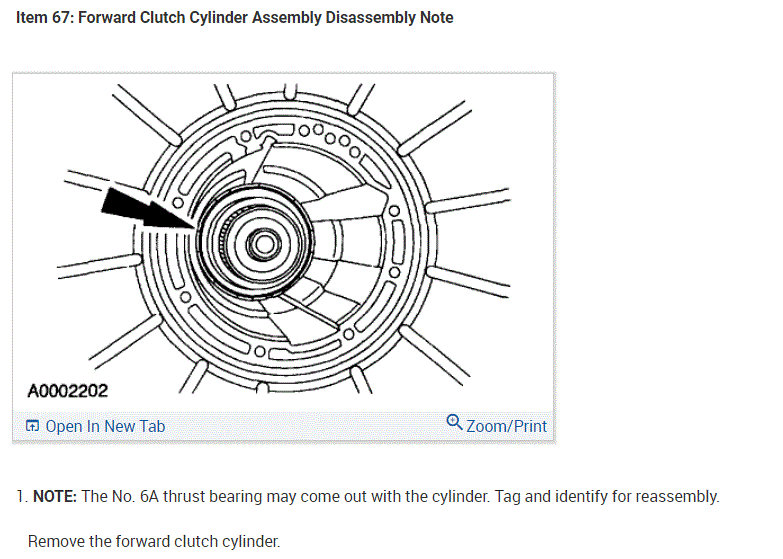

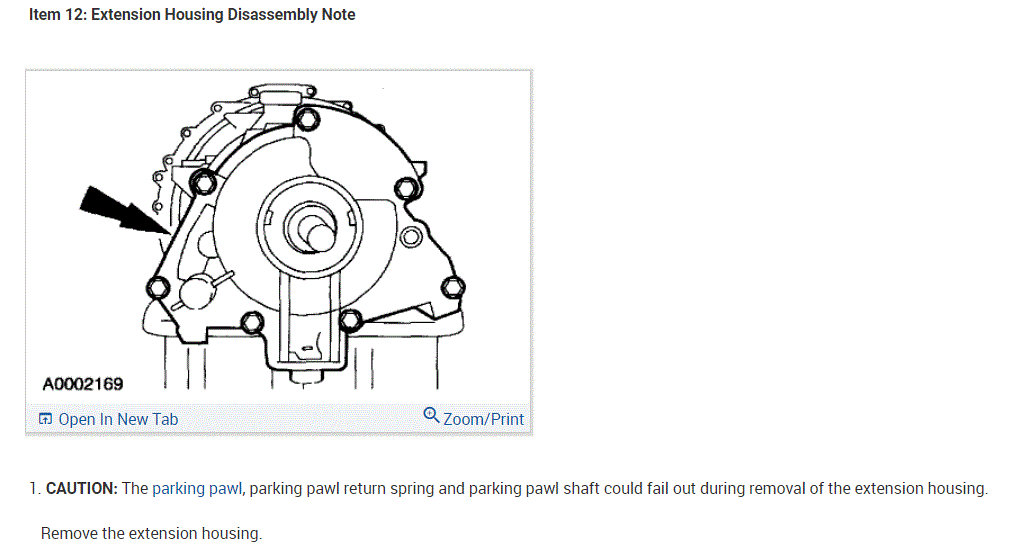

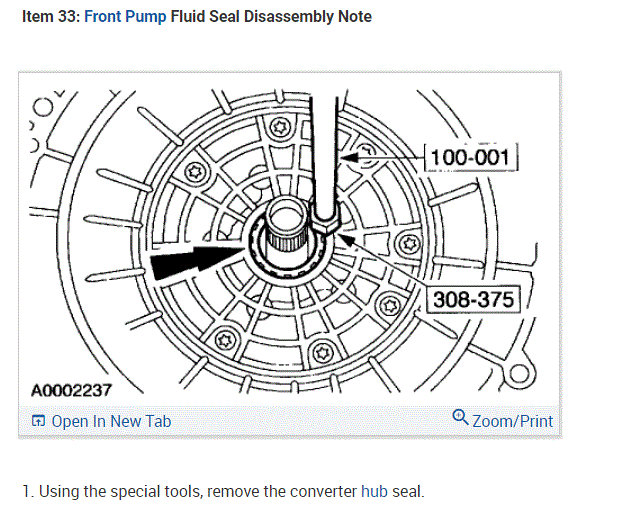

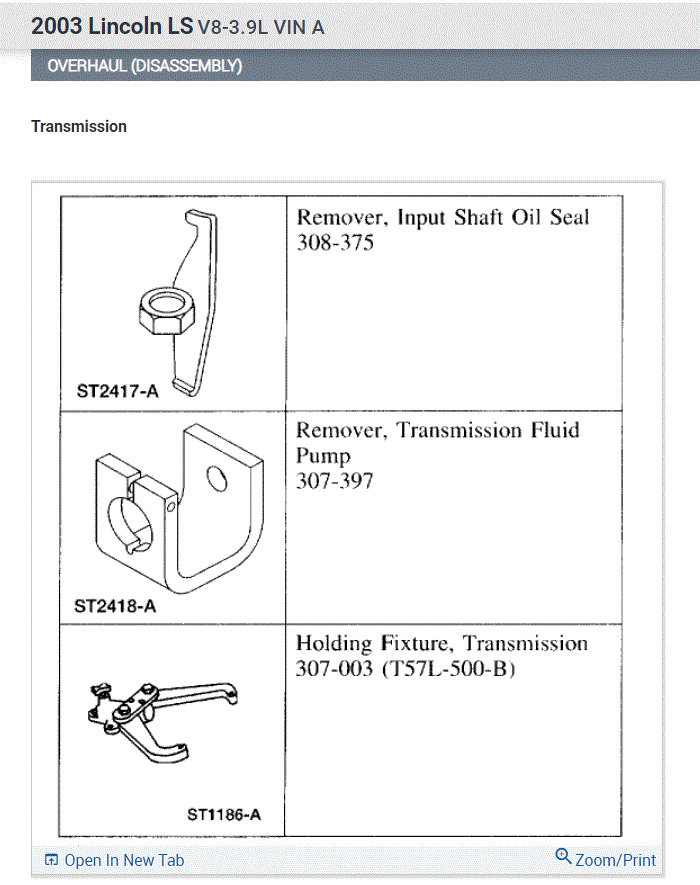

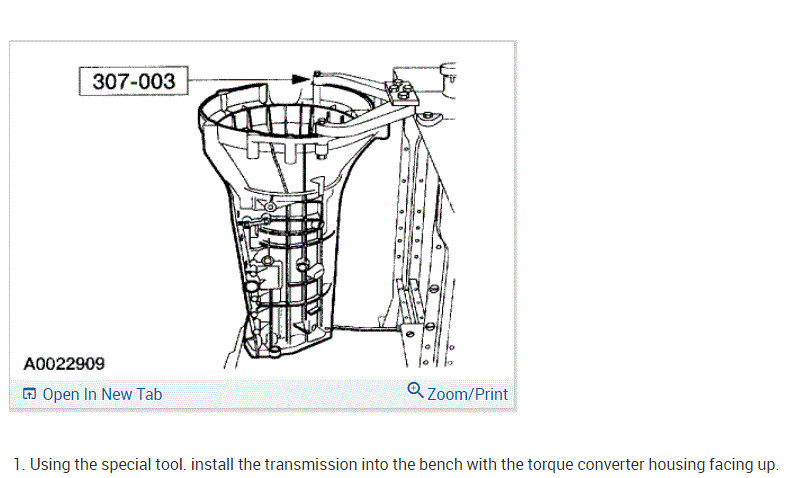

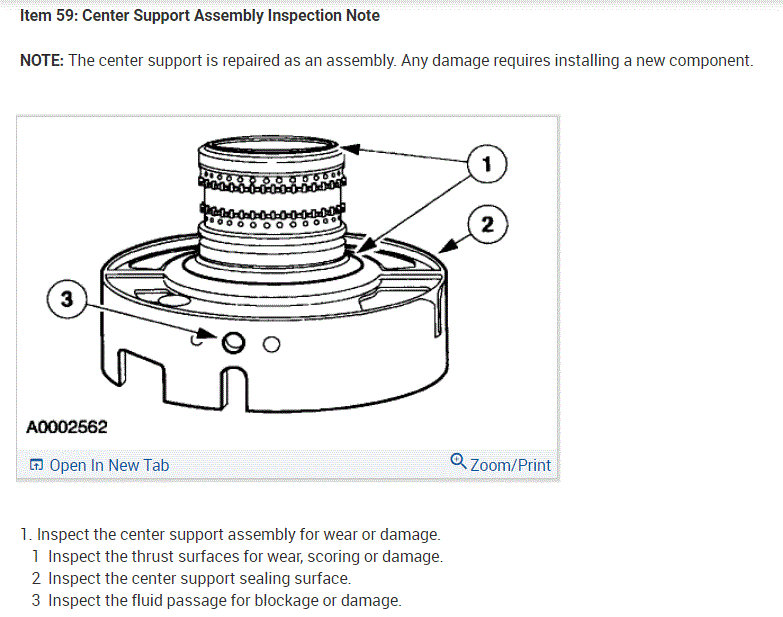

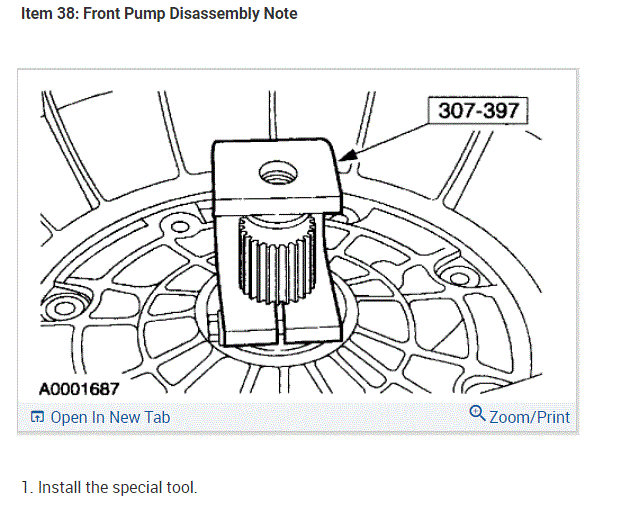

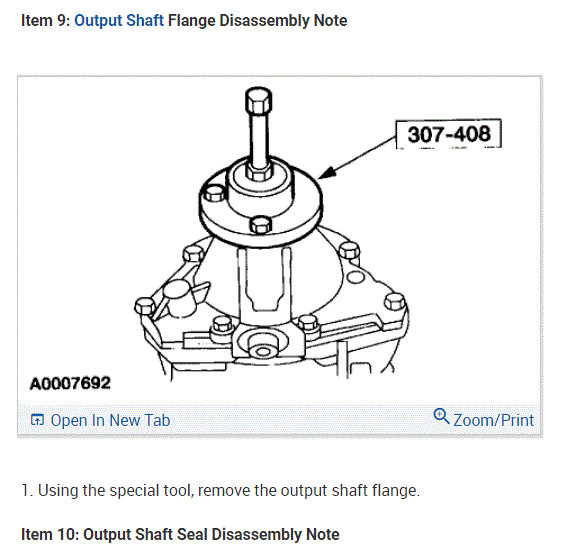

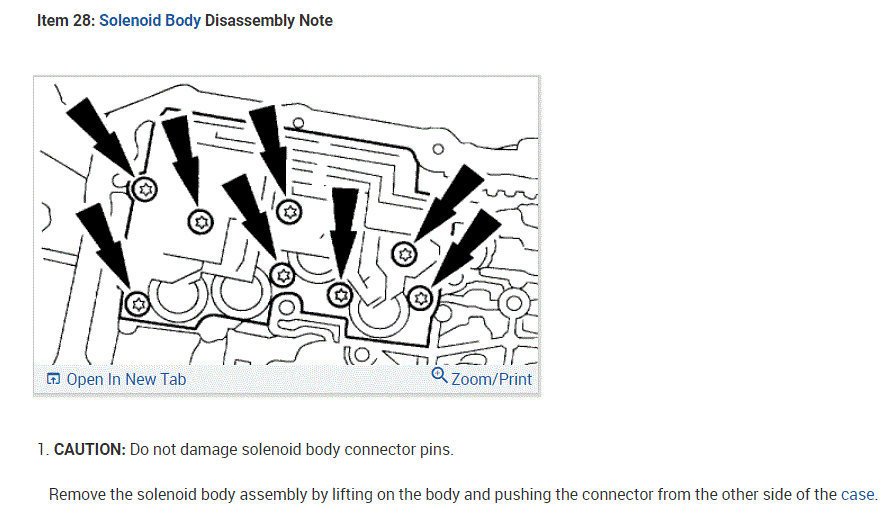

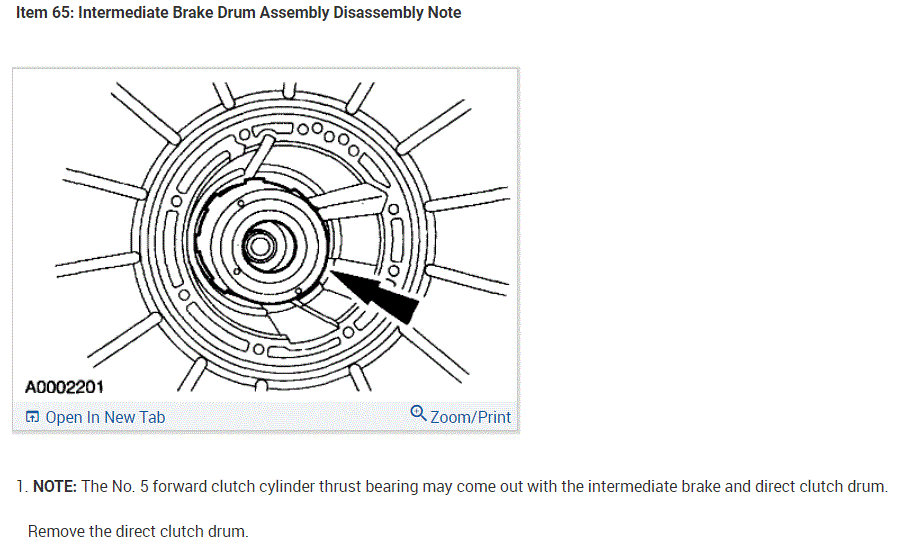

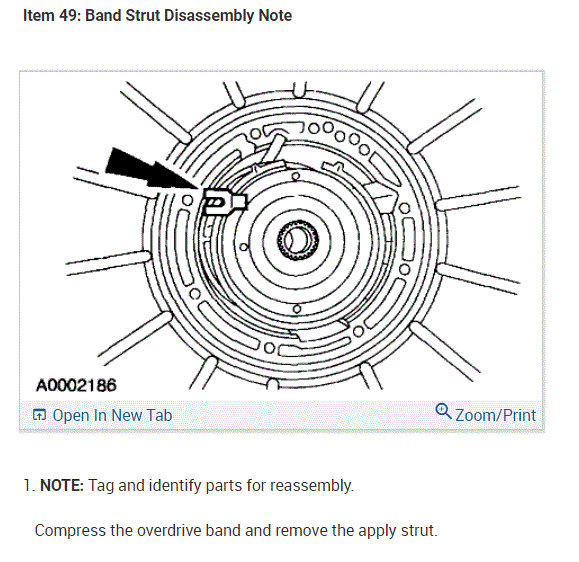

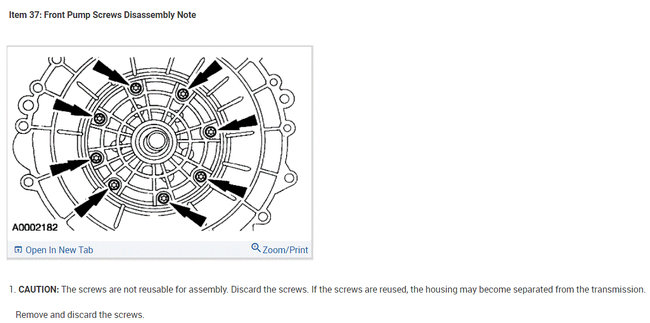

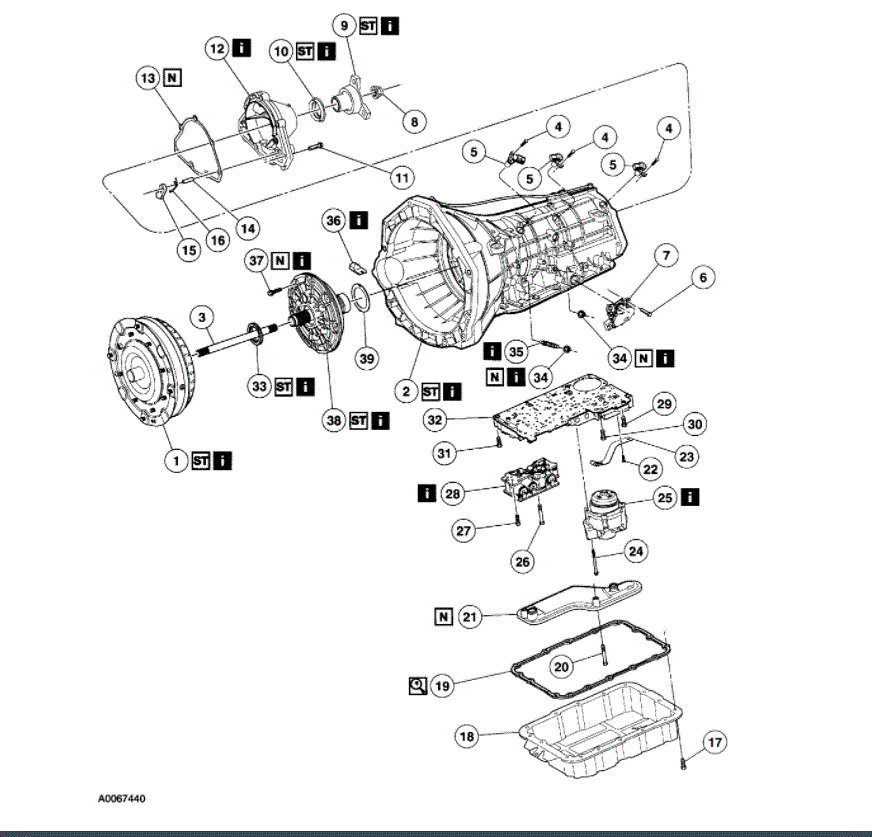

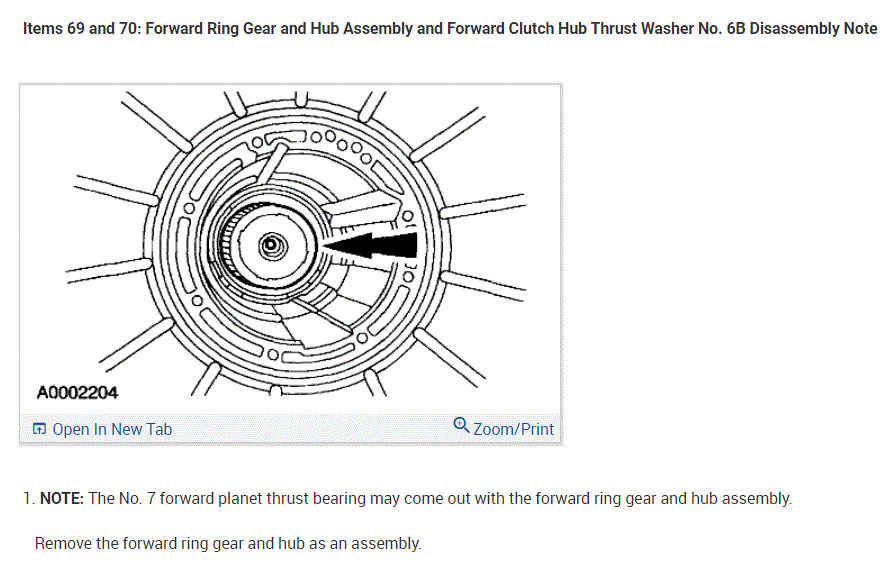

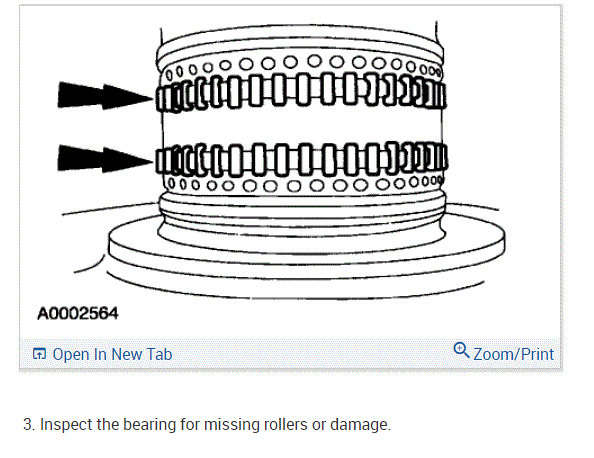

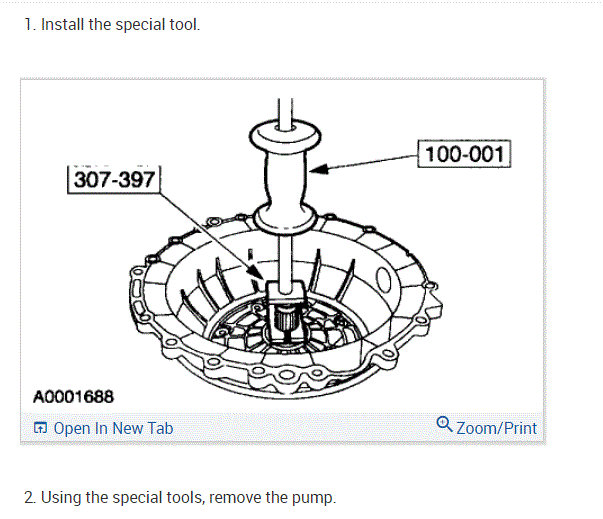

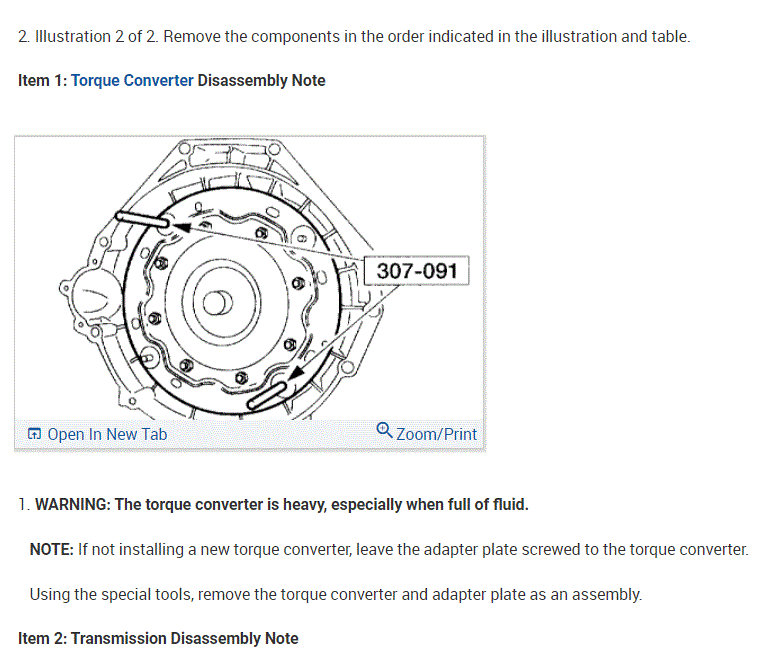

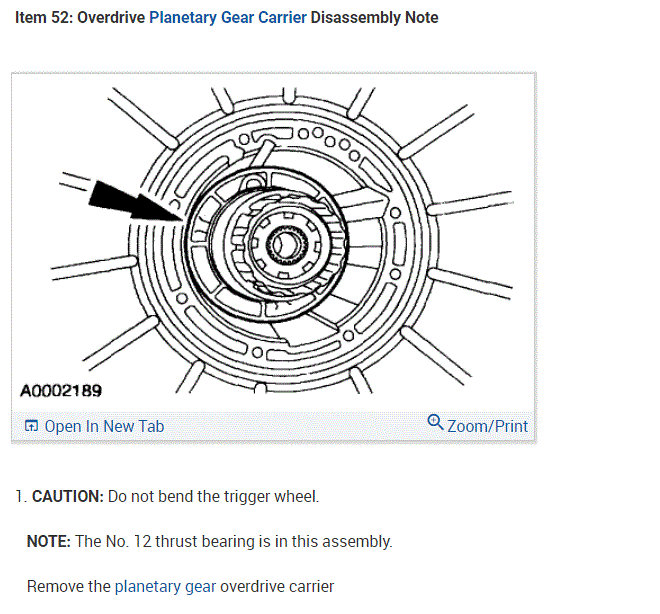

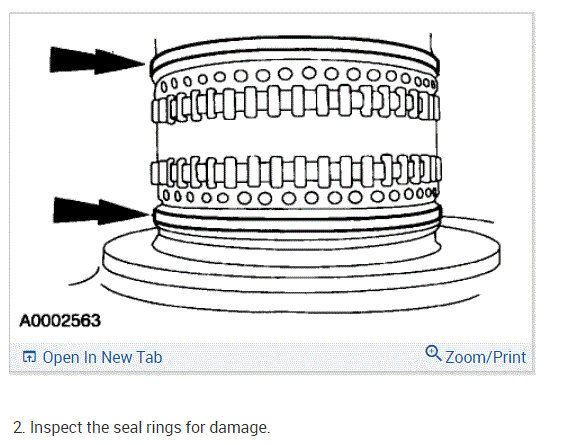

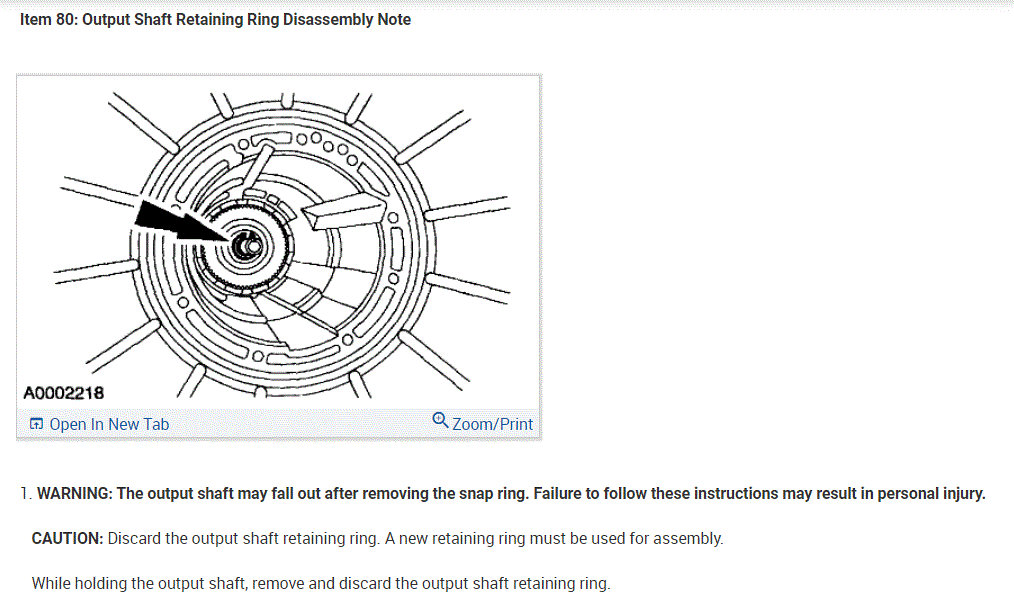

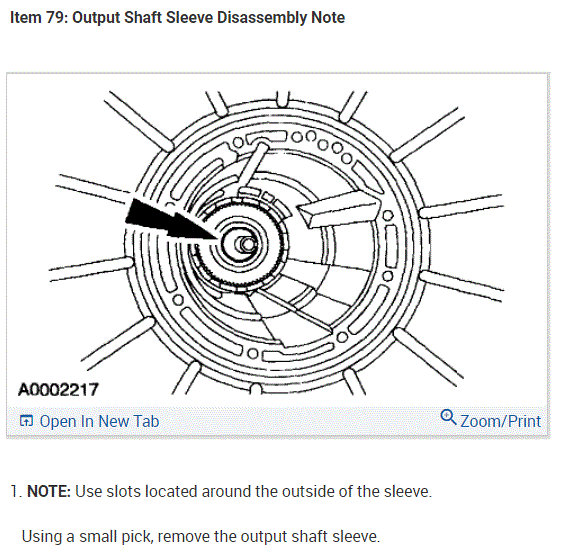

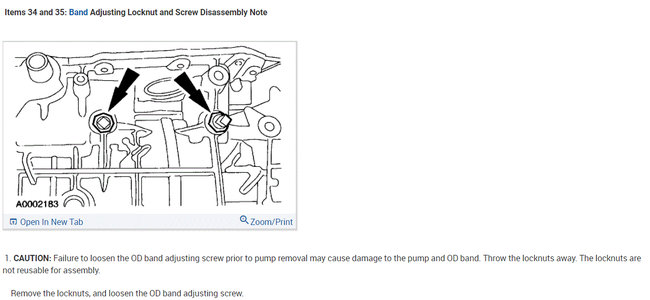

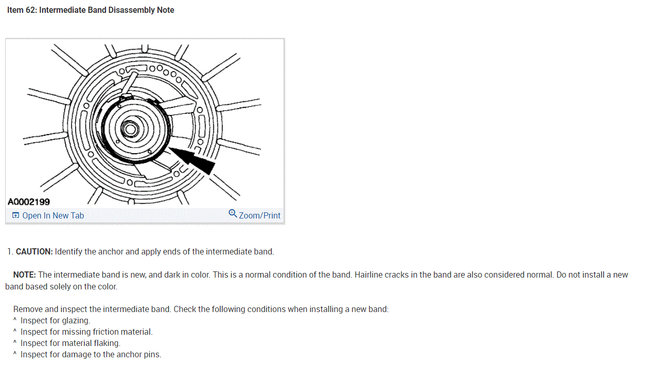

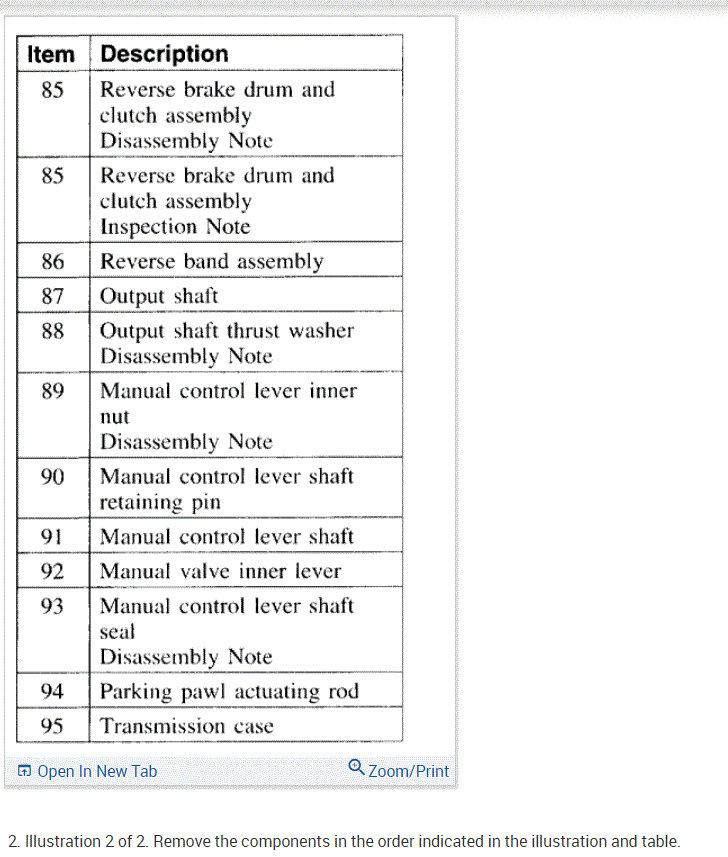

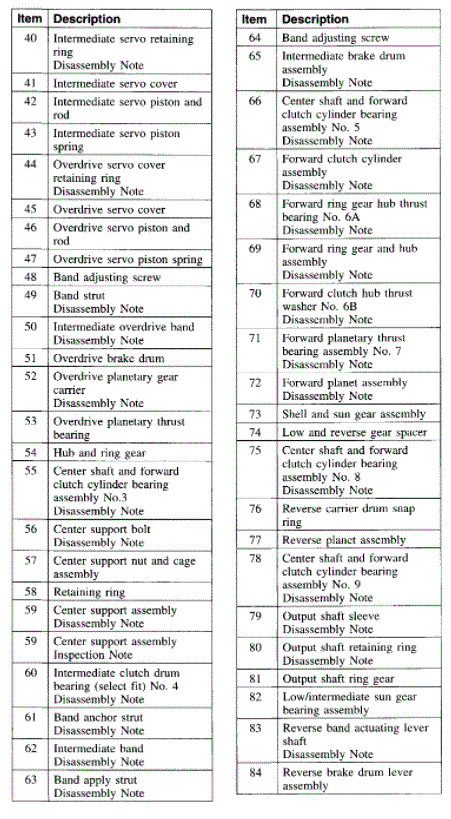

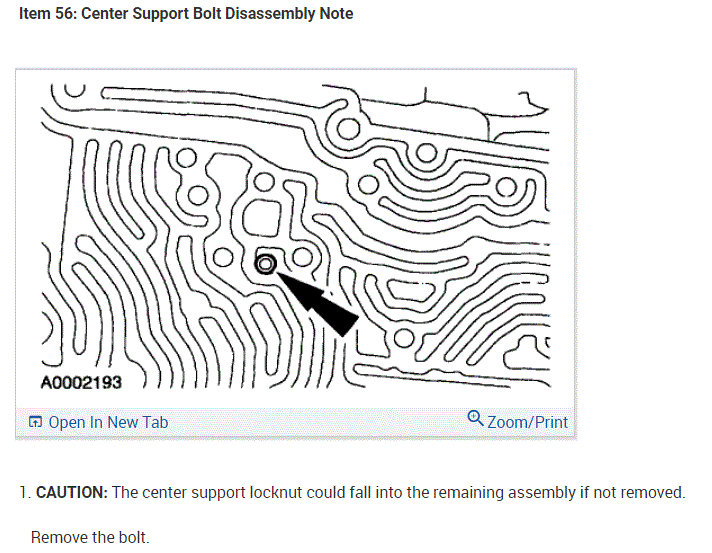

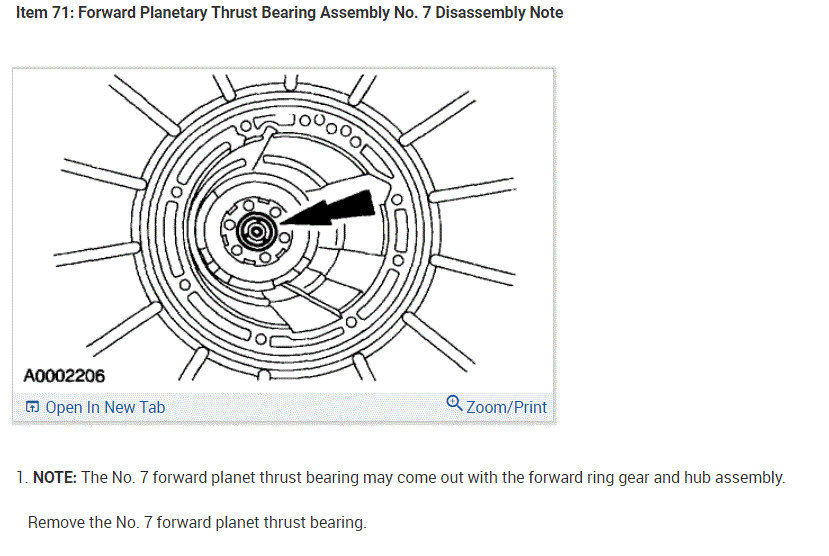

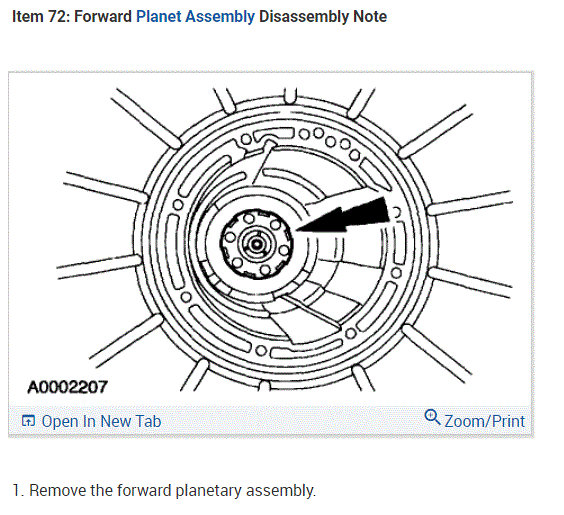

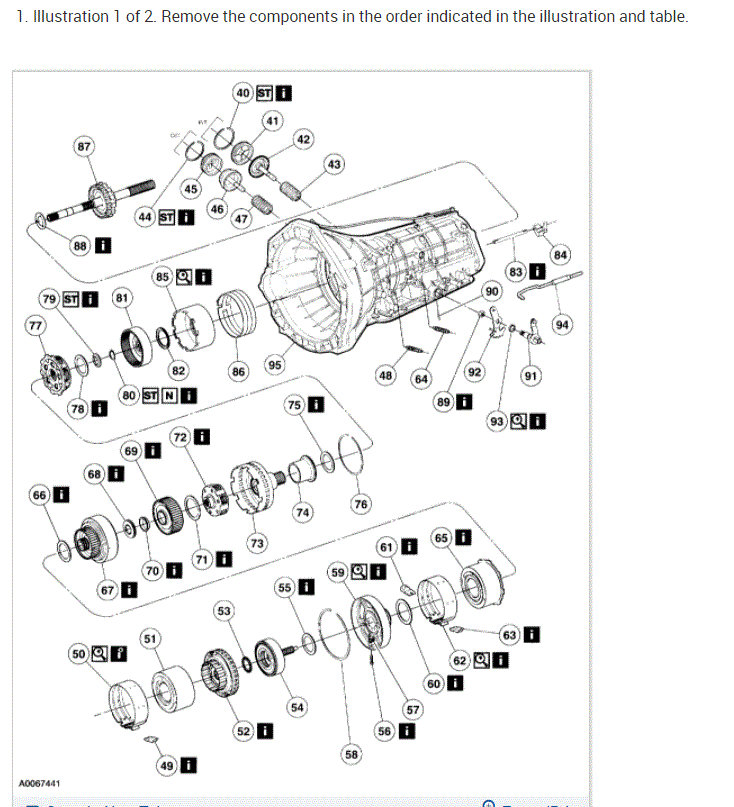

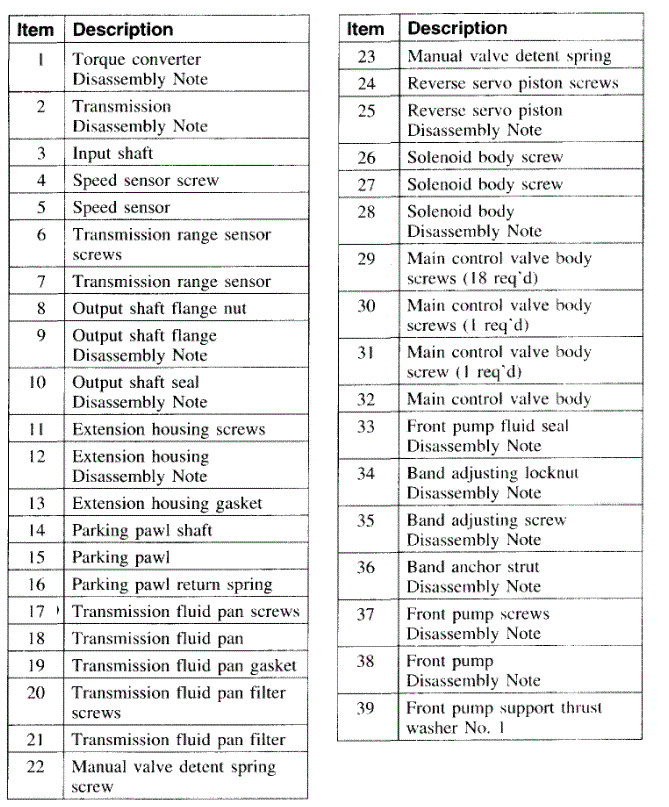

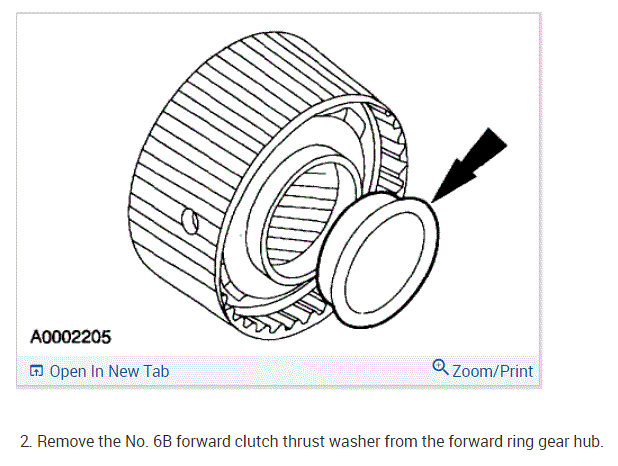

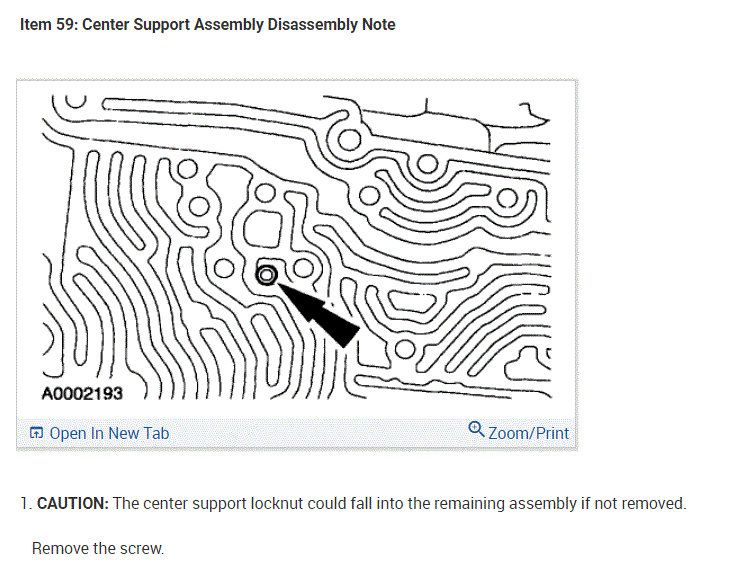

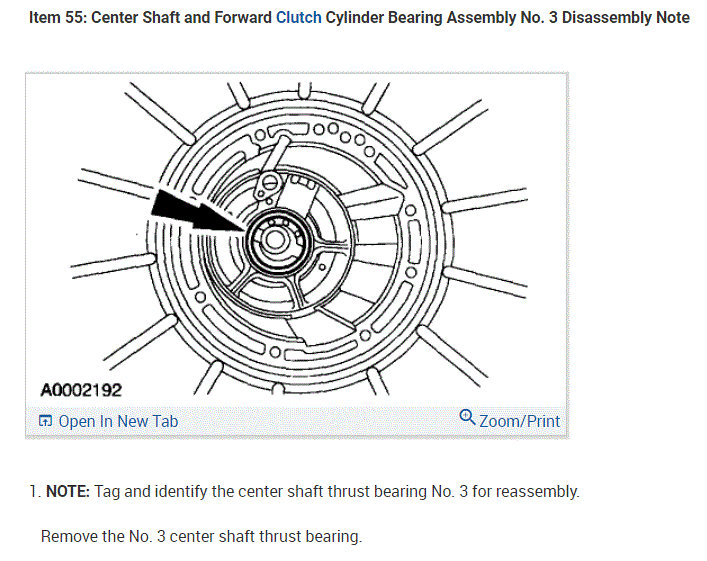

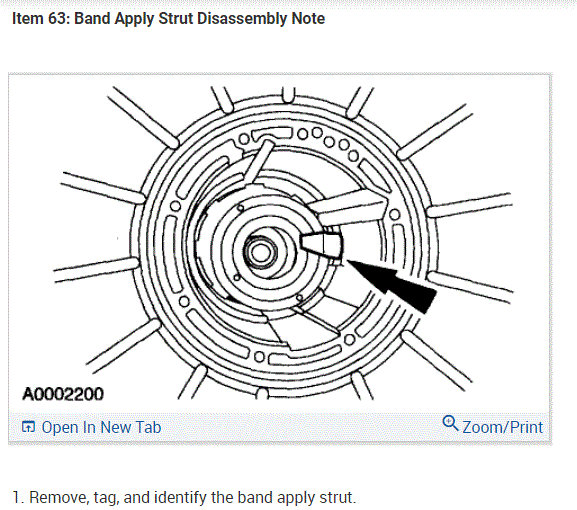

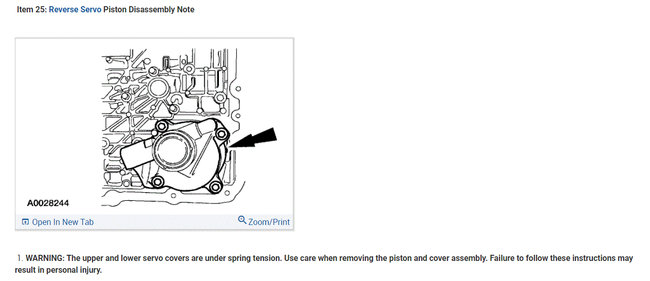

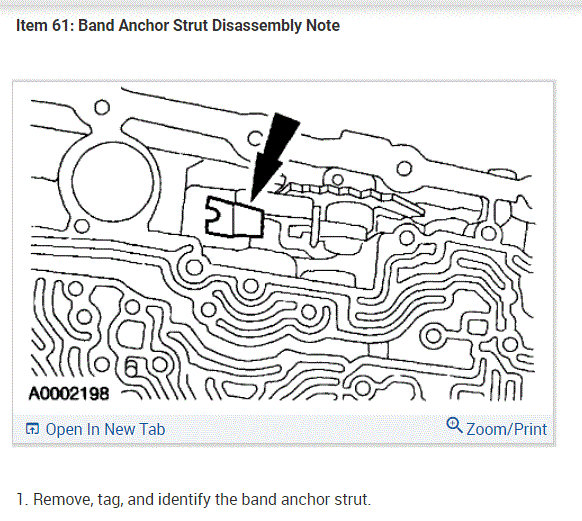

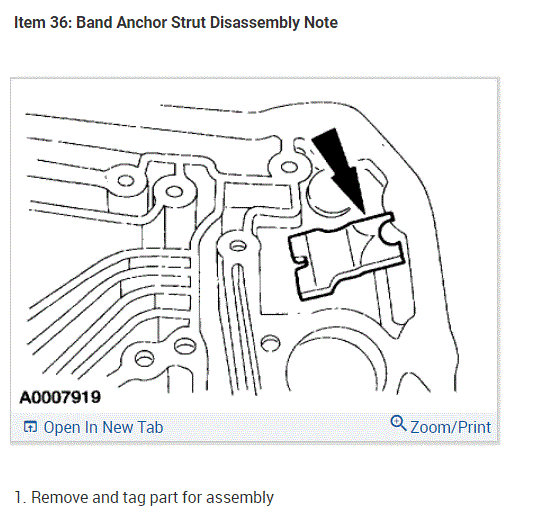

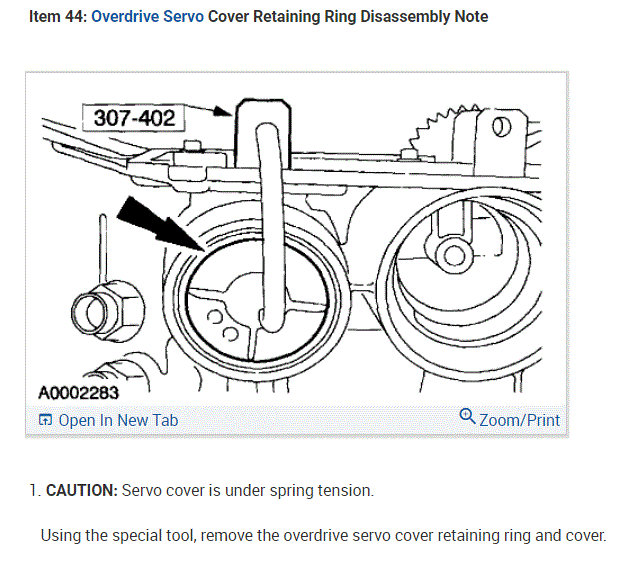

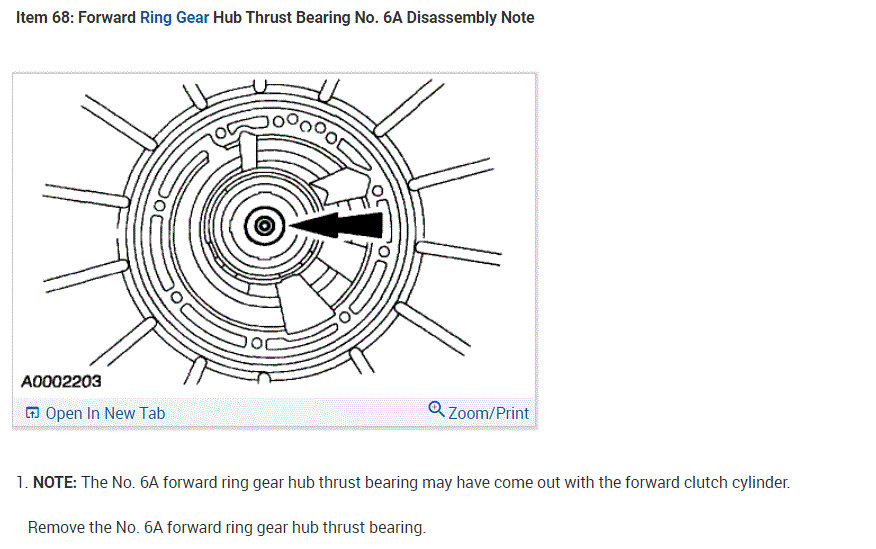

I attached the directions for disassembly and inspection of the entire transmission below. These directions begin with exploded views and part identification. Let me know if this is what you needed.

Take care,

Joe

See pics below.
