Transfer Case wiring diagram needed?

2001 CHEVROLET SILVERADO
289,700 MILES • 5.3L • V8 • 4WD
Avatar
SUSAN ELDER
  • MEMBER
  • 1 POST
Need a wire diagram for the transfer case, I just replaced the transmission and forgot to mark wires before pulling it.
Feb 9, 2025 at 12:56 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

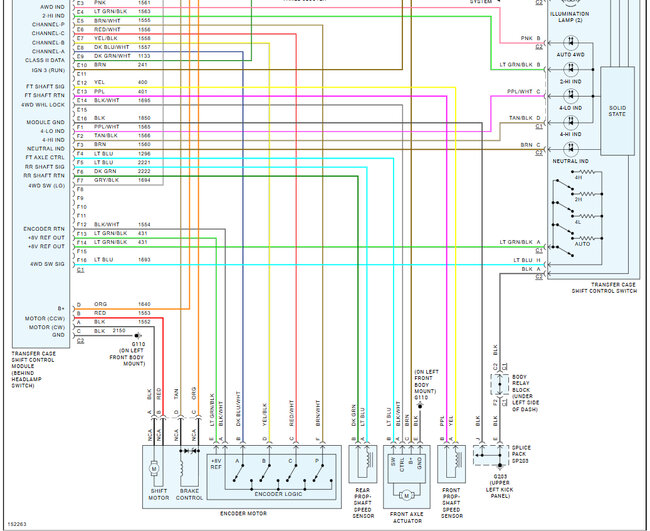

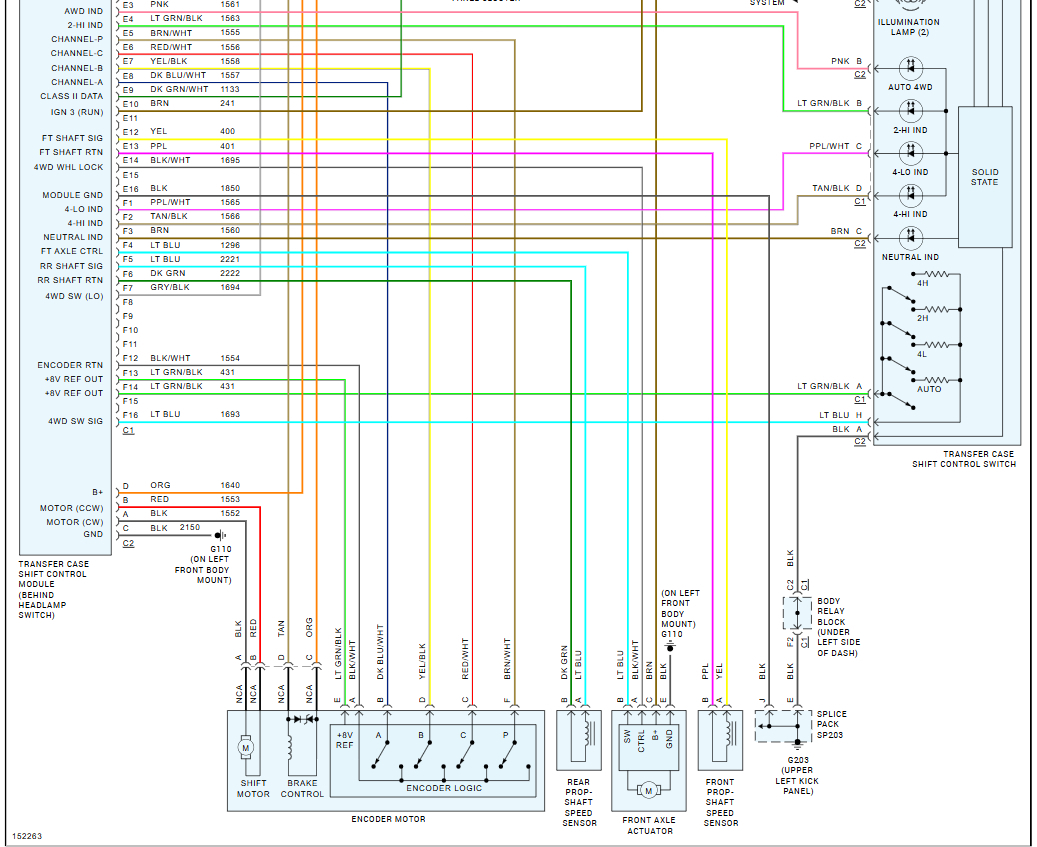

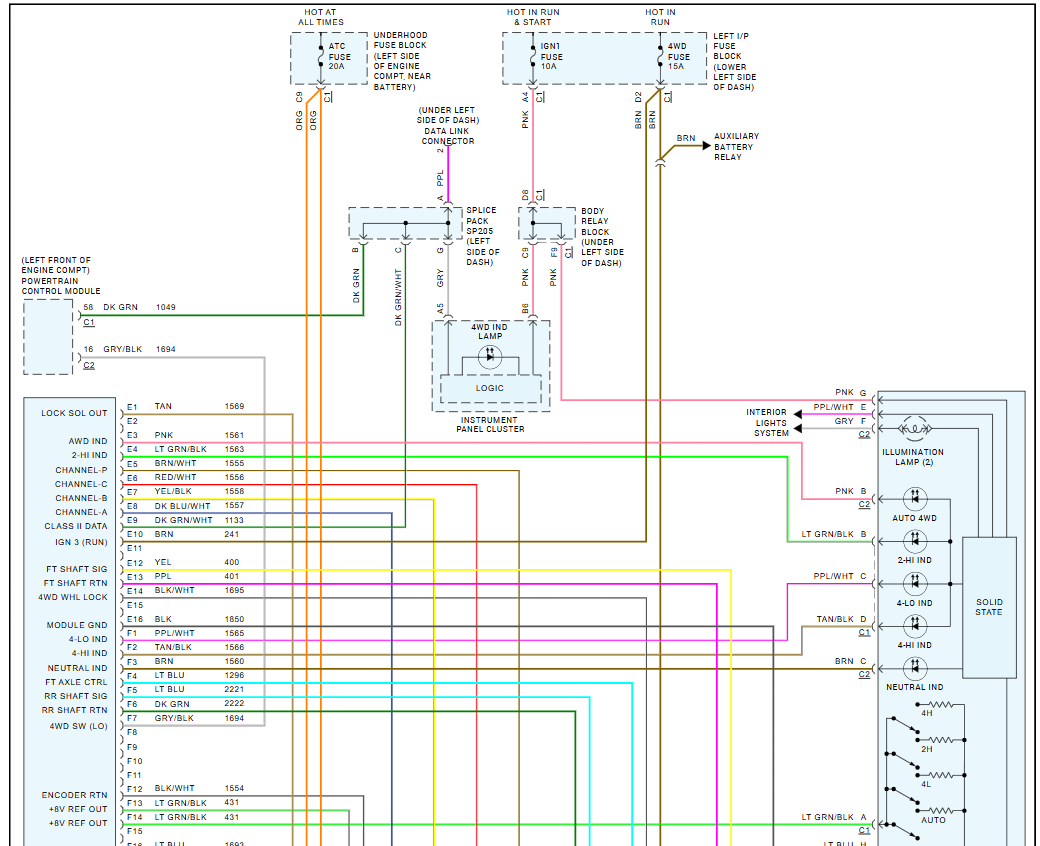

Sure, here are the wiring diagrams for your truck transfer case. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Feb 9, 2025 at 5:16 PM
