Transfer case wiring diagram needed?

2002 CHEVROLET SILVERADO
250,000 MILES • 5.3L • V8 • 4WD • AUTOMATIC
Avatar
KEVIN YOUNG2
  • MEMBER
  • 1 POST
I recently replaced my transmission and transfer case and I'm having problems figuring out where all the wire connectors go on my transfer case.
Jun 8, 2023 at 12:40 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,194 POSTS
  • ASE Certified Mechanic
Hi,

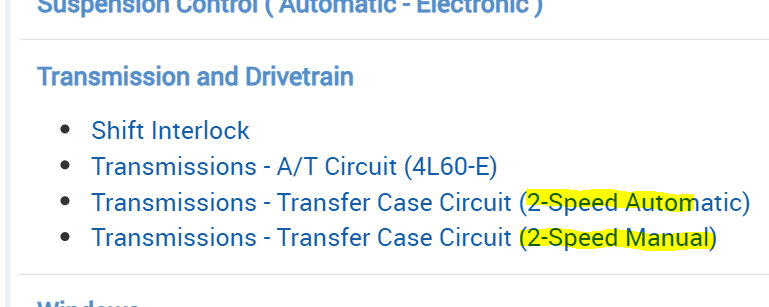

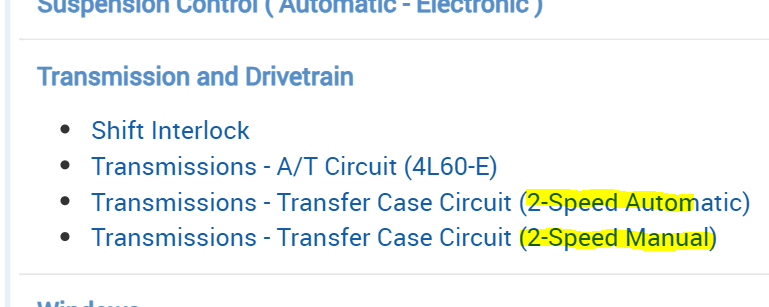

I would be happy to help. However, there are two different transfer cases that are listed. One is a 2-speed manual and the other is a 2-speed automatic transfer case. See pic below.

Could you let me know which one you have so I can provide the correct wiring schematics?

Let me know.

Take care,

joe

See pic below.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
