I need a diagram to route the serpentine belt?
SPONSORED LINKS
SERPENTINE BELT
5 Replies
MERLIN2021
- MECHANIC
- 17,250 POSTS
Hello,

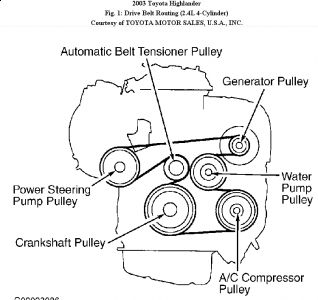

Here is a diagrams below to show you the routing and a guide to walk you through the steps of changing it out.
https://www.2carpros.com/articles/replace-serpentine-belt
Please let us know if you need anything else to get the problem fixed.
Here is a diagrams below to show you the routing and a guide to walk you through the steps of changing it out.
https://www.2carpros.com/articles/replace-serpentine-belt
Please let us know if you need anything else to get the problem fixed.
SPONSORED LINKS
Was this helpful?
Yes
No
+5
Tuesday, July 7th, 2009 AT 11:37 AM
JOE KASHMER
- MEMBER
- 2 POSTS
- 2002 TOYOTA HIGHLANDER
- 6 CYL
- 2WD
- AUTOMATIC
- 114,000 MILES
What is the best way to change the outer belts? Alternator and the power steering belts.
Was this helpful?
Yes
No
Monday, July 29th, 2019 AT 3:00 PM
(Merged)
IMPALASS
- MECHANIC
- 3,112 POSTS
Hello -
To better assist you please tell me if your model is just a Highlander or the limited. Also the engine size in liter.
To better assist you please tell me if your model is just a Highlander or the limited. Also the engine size in liter.
Was this helpful?
Yes
No
Monday, July 29th, 2019 AT 3:00 PM
(Merged)
JOE KASHMER
- MEMBER
- 2 POSTS
Highlander Limited 3.0 liter
Was this helpful?
Yes
No
+1
Monday, July 29th, 2019 AT 3:00 PM
(Merged)
IMPALASS
- MECHANIC
- 3,112 POSTS
Hello -
Well the manual doesn't show your information. That usually means they consider that basic enough to be performed by looking at it.
I will be more than happy to assist you if you can either take a several pics of the front part so I can see the belt routing or you can describe it.
From what you say..... You have 2 belts? One that goes to the crankshaft, alternator and power steering... With no other pulleys in-between?
Then an inner belt that goes to the crankshaft, water pump, AC? Is this correct or am I missing something?
Do you have general auto mechanical knowledge?
Well the manual doesn't show your information. That usually means they consider that basic enough to be performed by looking at it.
I will be more than happy to assist you if you can either take a several pics of the front part so I can see the belt routing or you can describe it.
From what you say..... You have 2 belts? One that goes to the crankshaft, alternator and power steering... With no other pulleys in-between?
Then an inner belt that goes to the crankshaft, water pump, AC? Is this correct or am I missing something?
Do you have general auto mechanical knowledge?
