Do you have a pic of the interior fuse box cover & fuse layout?

Tiny
THESHANDRIL
  • MEMBER
  • 1987 TOYOTA 4RUNNER
Do you have a pic of the interior fuse box cover & fuse layout, for 87 4runner? Or do u have a link for 1?
Tuesday, August 5th, 2008 AT 7:51 PM

6 Replies

Tiny
MHPAUTOS
  • MECHANIC
  • 31,937 POSTS
Hi there,

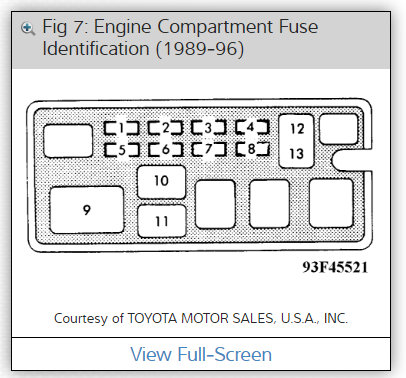

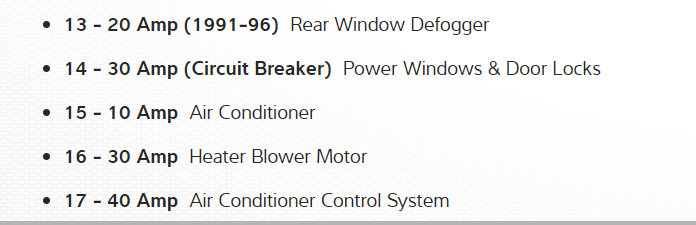

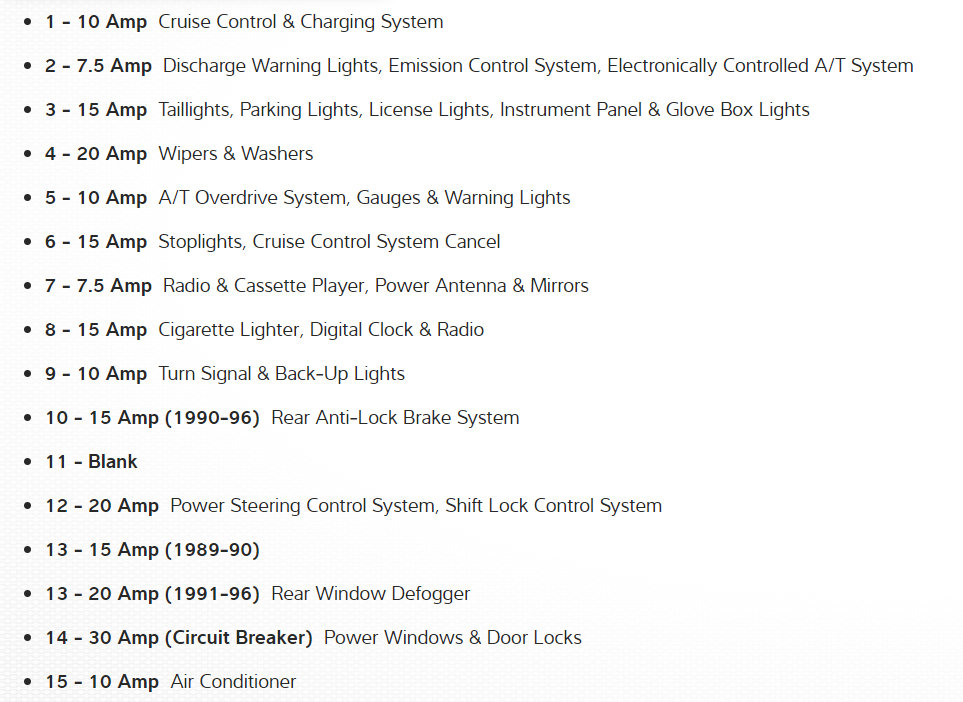

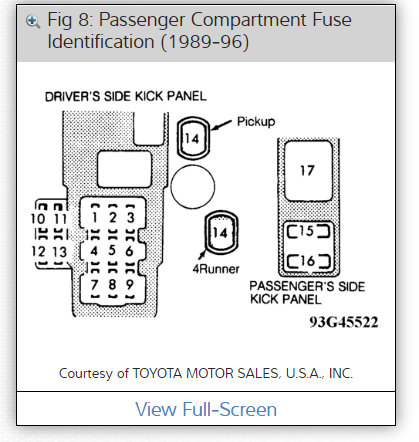

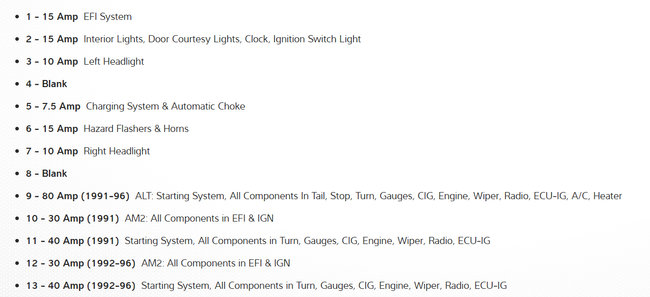

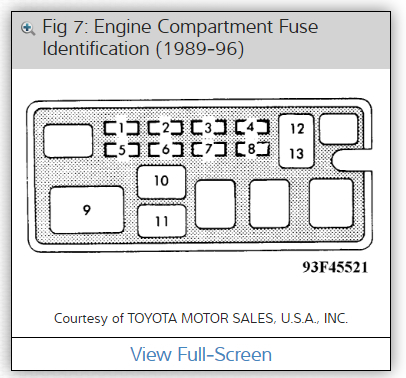

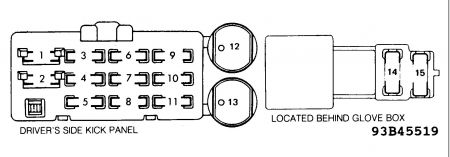

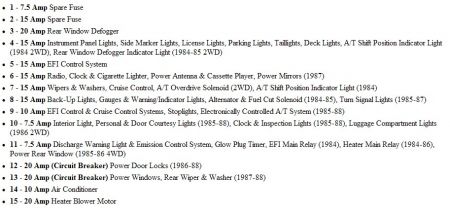

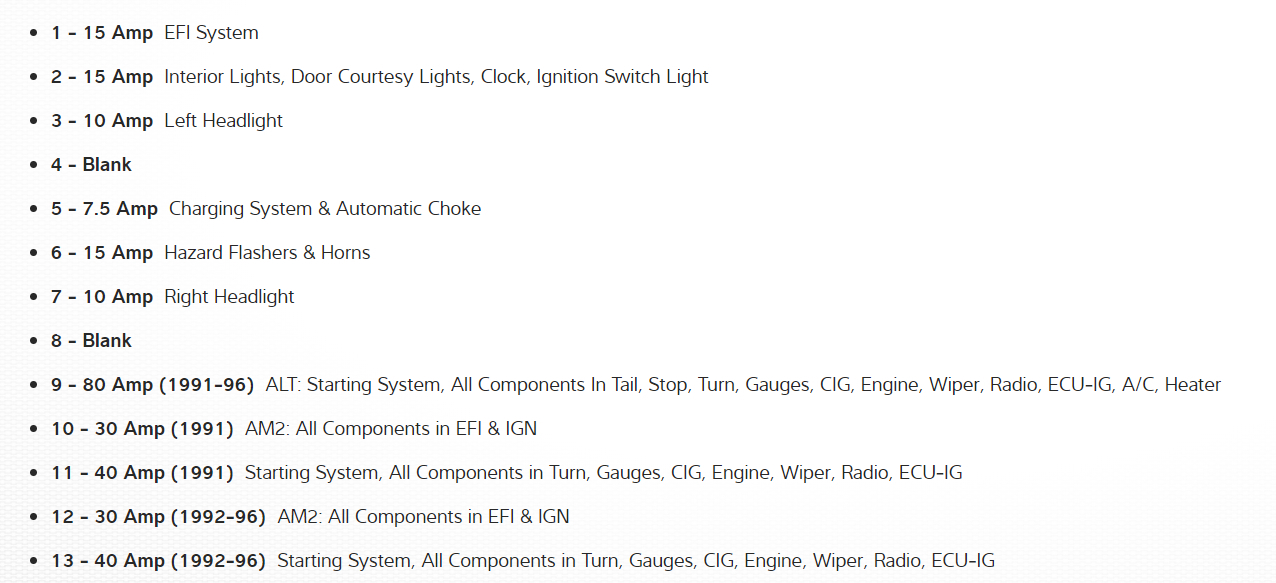

Fuse box layout as per pic.

Mark (mhpautos)


https://www.2carpros.com/forum/automotive_pictures/61395_snap_1_2.jpg




https://www.2carpros.com/forum/automotive_pictures/61395_Graphic_10_1.jpg

Was this
answer
helpful?
Yes
No
+3
Wednesday, August 6th, 2008 AT 8:49 AM
Tiny
INDIANACOWBOY
  • MEMBER
  • 2 POSTS
  • 1986 TOYOTA 4RUNNER
Electrical problem
1986 Toyota 4Runner Four Wheel Drive Automatic

My little brother has a 1986 Toyota 4Runner. I have looked EVERYWHERE and cant find the fuse box. The only one I found is under the hood, above the tire, passenger side. But it's big fuses that run the main parts of the motor. I need the one for the radio/lighter/headlights, etc. Can anyone tell me where this is at? I've looked in the cab, under and on the side of the dash, under the hood. Thank you.
**And PLEASE dont tell me to look in the owners manual. IF I had one, I WOULDNT be asking this question. It didnt come with the used truck when he got it, I dont know where to get one. Thanks.
Was this
answer
helpful?
Yes
No
-2
Thursday, July 30th, 2020 AT 12:15 PM (Merged)
Tiny
KHLOW2008
  • MECHANIC
  • 41,814 POSTS
Hi alwaznujrzy04,

Should be near centre console under steering if I am not mistaken.
Was this
answer
helpful?
Yes
No
-1
Thursday, July 30th, 2020 AT 12:15 PM (Merged)
Tiny
INDIANACOWBOY
  • MEMBER
  • 2 POSTS
I found it, it is next to wear the E-Brake pedal would be if it was a newer car. There's that plastic molding along the inner wall between the door frame and fire wall. You must pull off the molding, then the front of the fuse box is white and plain. Pull it off, and the fuses are there. Thanks for the reply. I went out and looked again after your post, and while doing so, saw the white fuse box barely sticking out where the molding was loose. Thanks again for the help.
Was this
answer
helpful?
Yes
No
+4
Thursday, July 30th, 2020 AT 12:15 PM (Merged)
Tiny
GLOPEZ
  • MEMBER
  • 1 POST
  • 1986 TOYOTA 4RUNNER
Having problems finding the plug for the check jumper to retard the vaccum advance. Iread and it'ds telling me to look for a green plug by the air filter. The only ones I found 3 yellow plugs. I neeed help. In my 1988 4runner the jumper is beside the fuse box behing battery /.
Was this
answer
helpful?
Yes
No
Thursday, July 30th, 2020 AT 12:16 PM (Merged)
Tiny
RASMATAZ
  • MECHANIC
  • 75,992 POSTS
Find the engine check connector in the engine compartment should be right beside the power distribution box. Turn key to On position and jump terminal TE-1 to E_1. Now disconnect all vac hoses at vacuum canister-plug it-start truck check timing not in spec's adjust it-the rest computer takes over.
Was this
answer
helpful?
Yes
No
Thursday, July 30th, 2020 AT 12:16 PM (Merged)
