Tipm pinout for c3, c5, c6, c7?

2014 RAM 3500
210,426 MILES • 6.7L • V6 • 4WD • AUTOMATIC
Avatar
WALTER917
Looking for a pinout diagram for c3,c5,c6, c7
Dec 11, 2025 at 4:12 PM
Advertisement
Avatar
CARADIODOC
  • ✓ASE Certified Mechanic
  • 34,310 POSTS
  • ASE Certified Mechanic

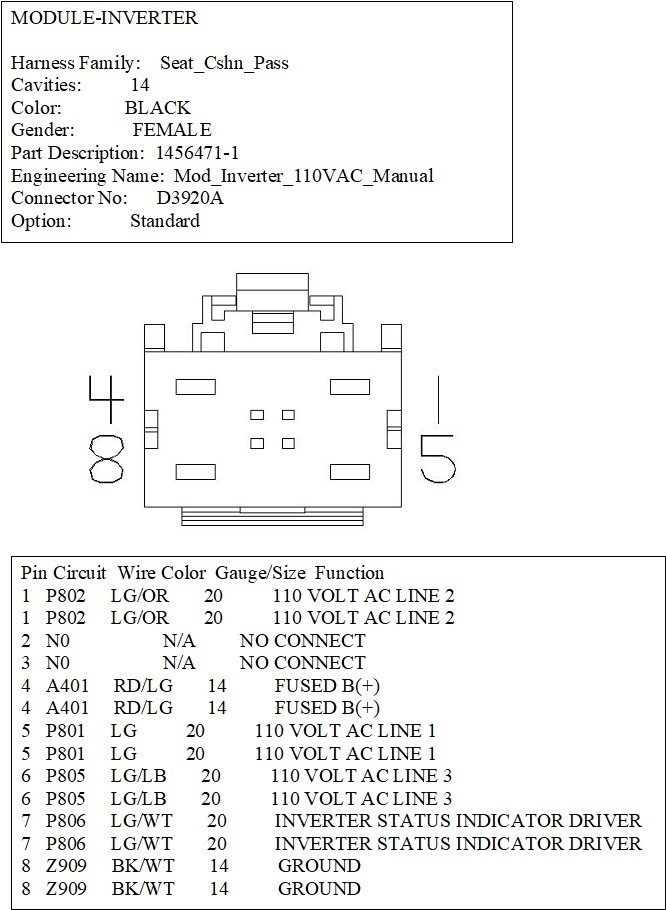

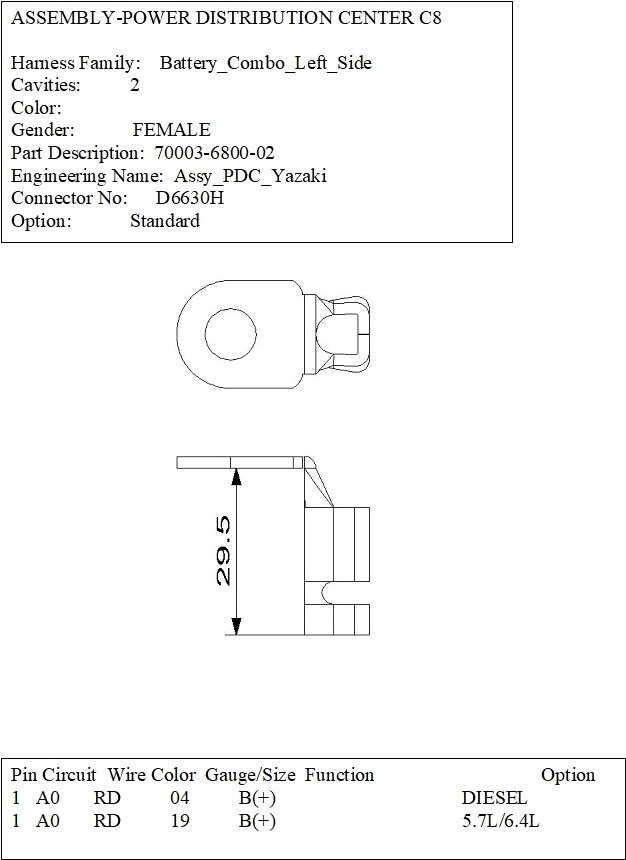

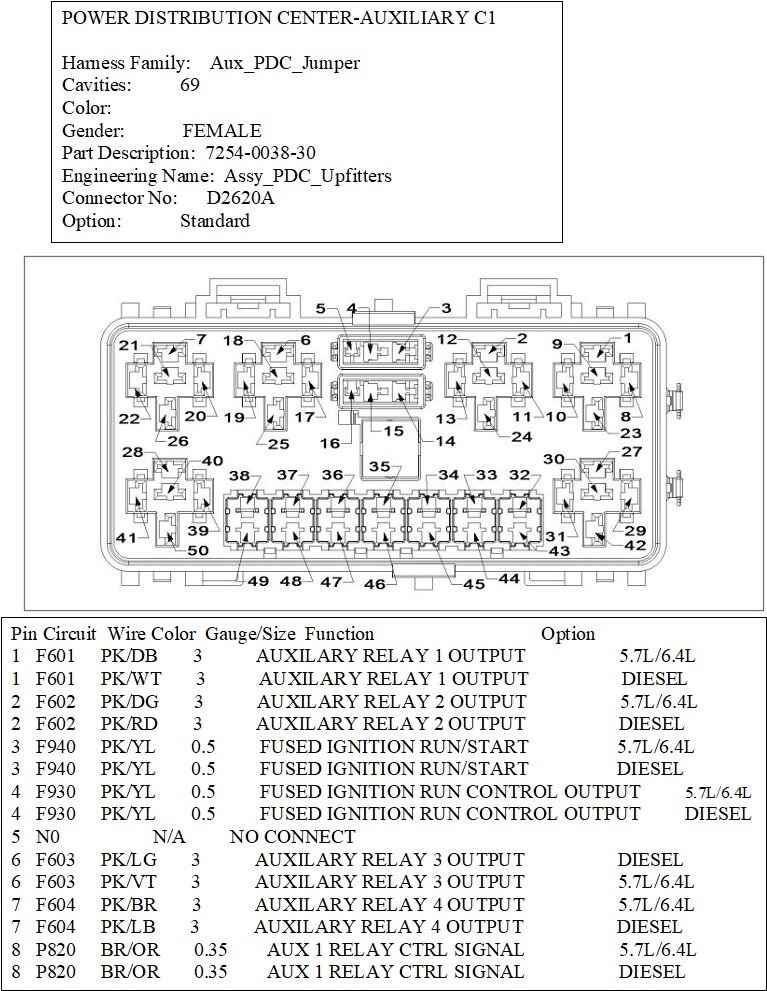

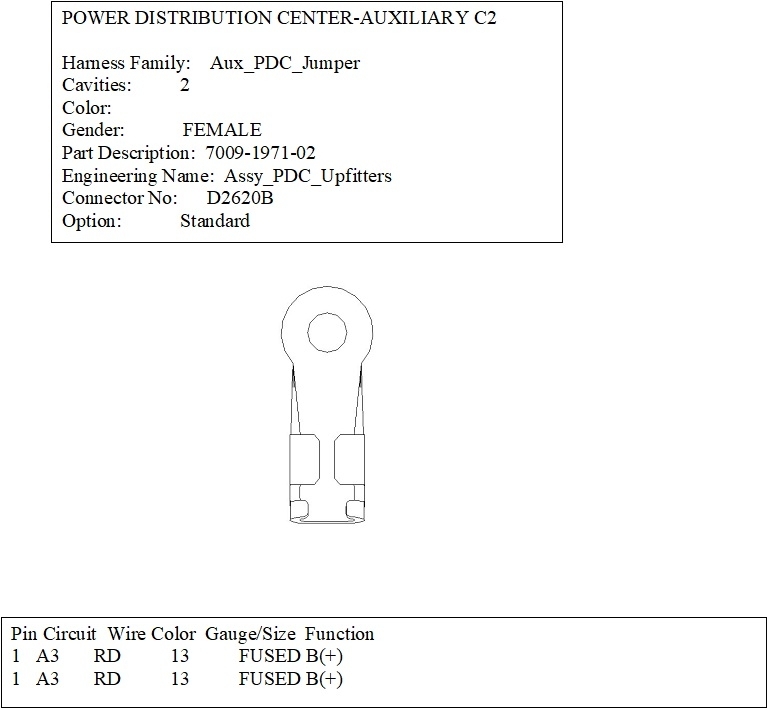

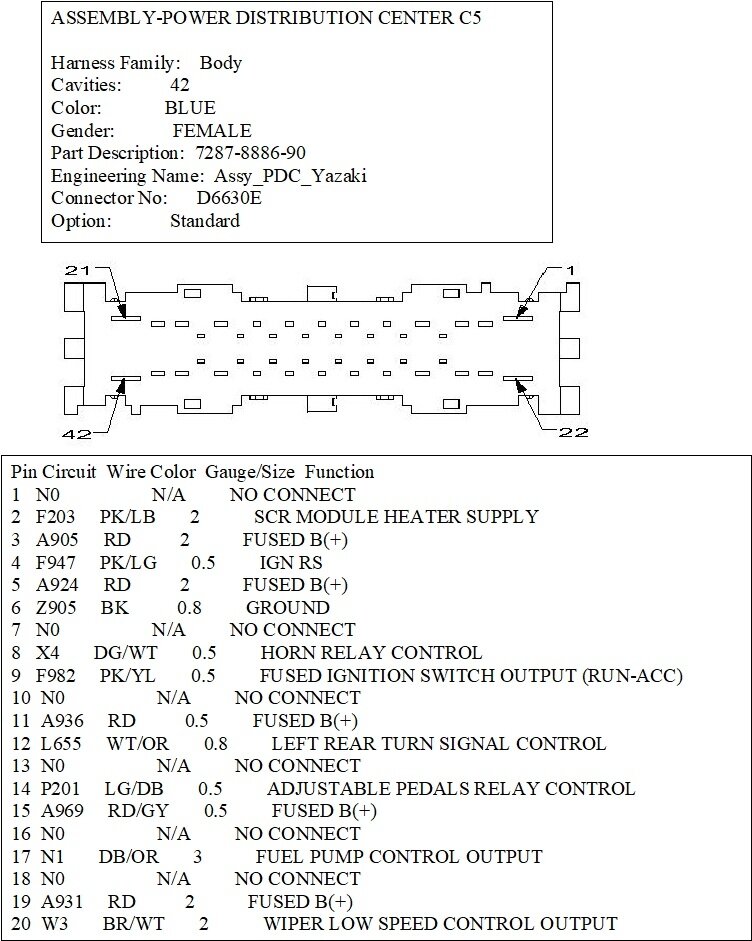

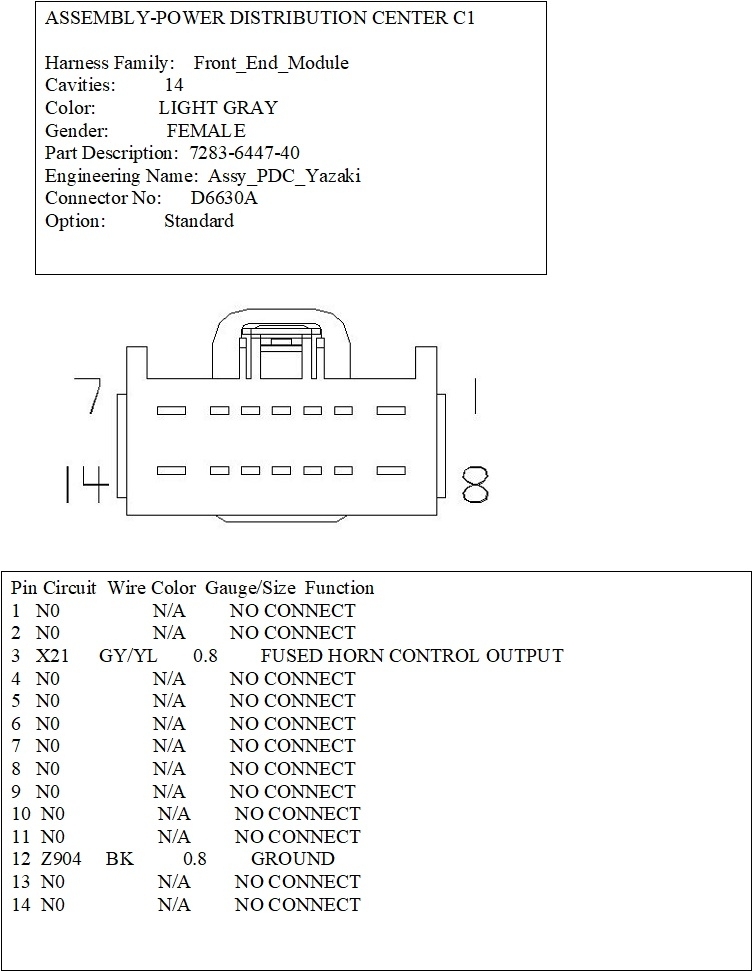

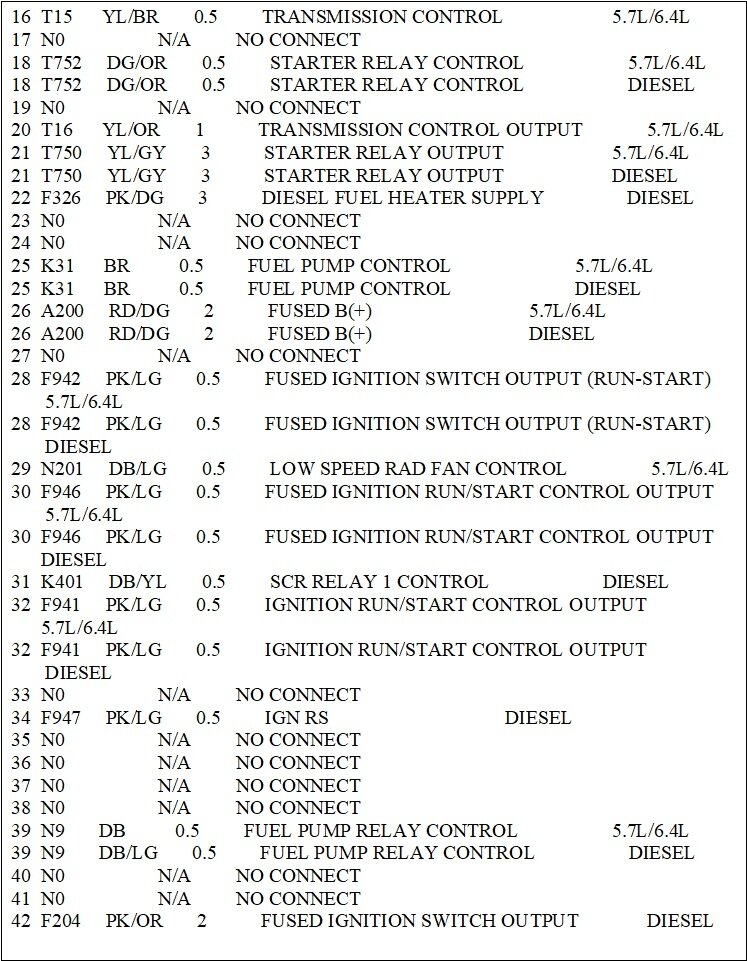

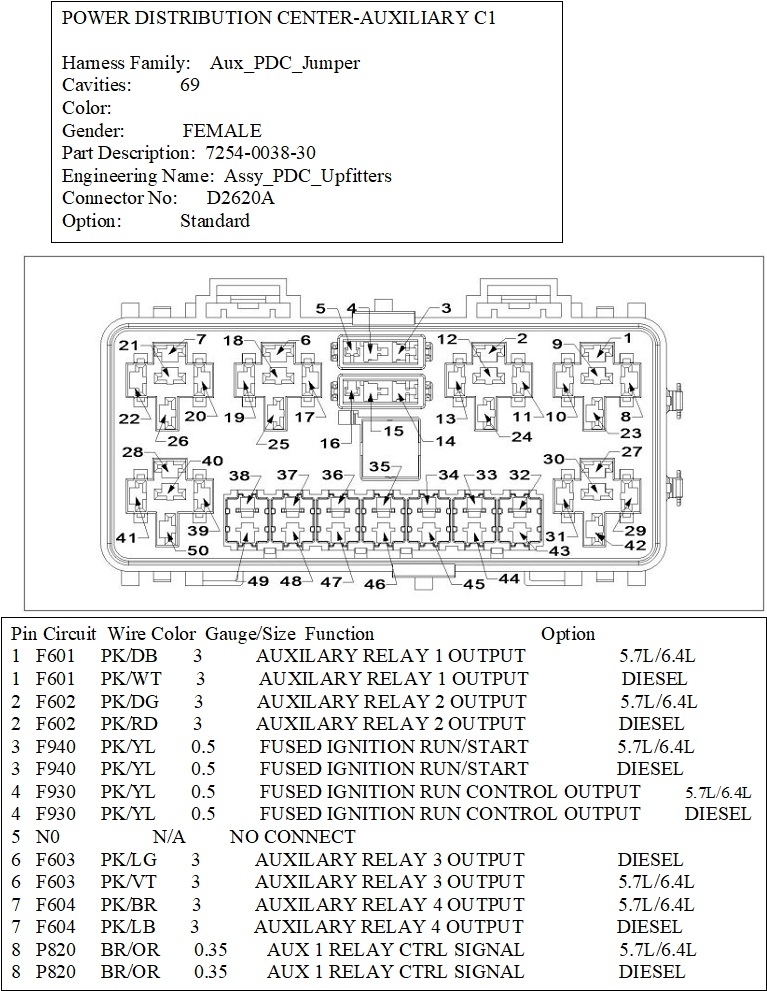

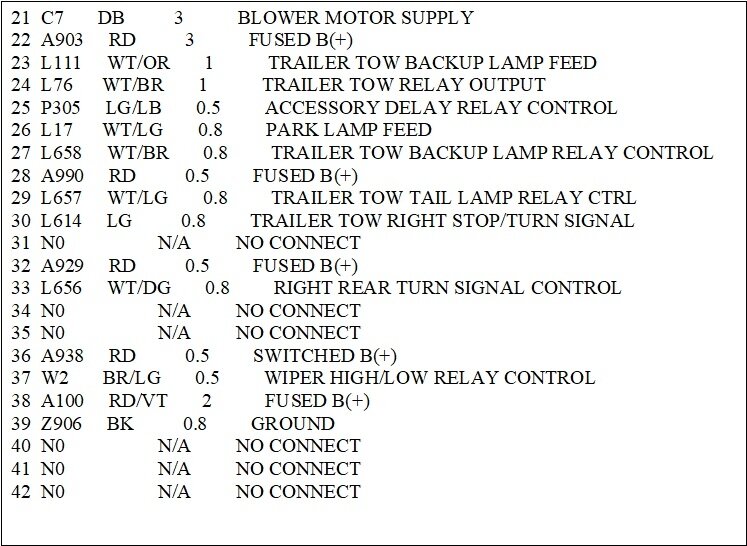

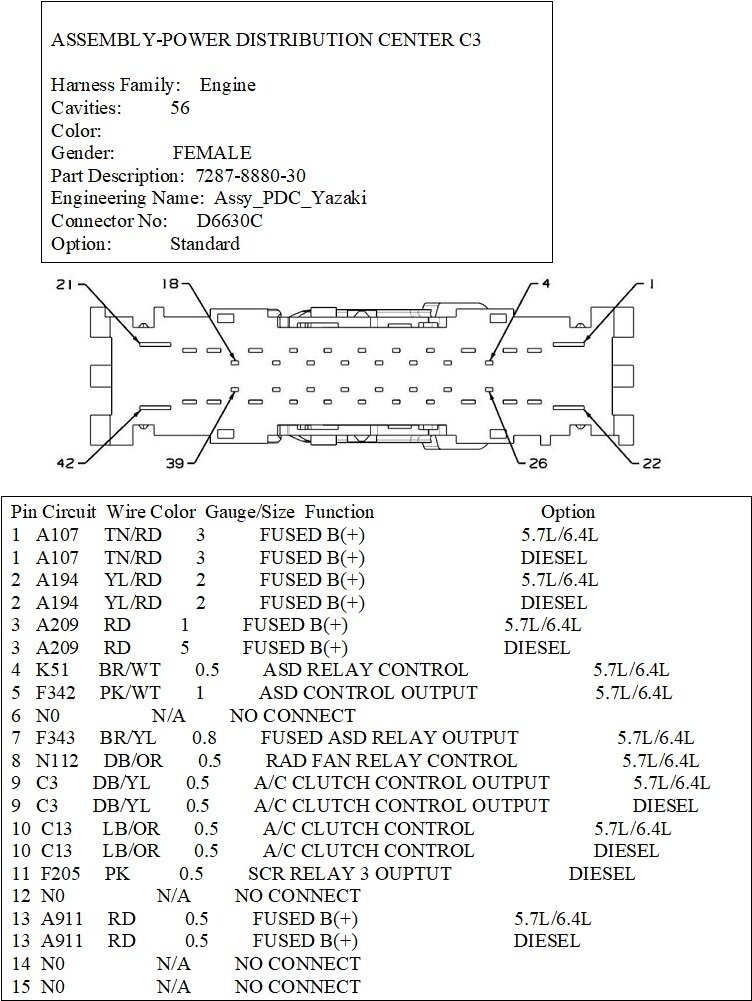

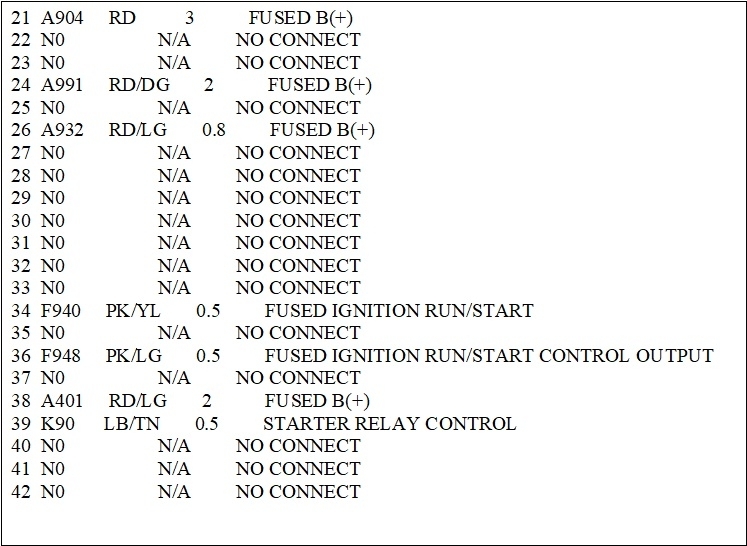

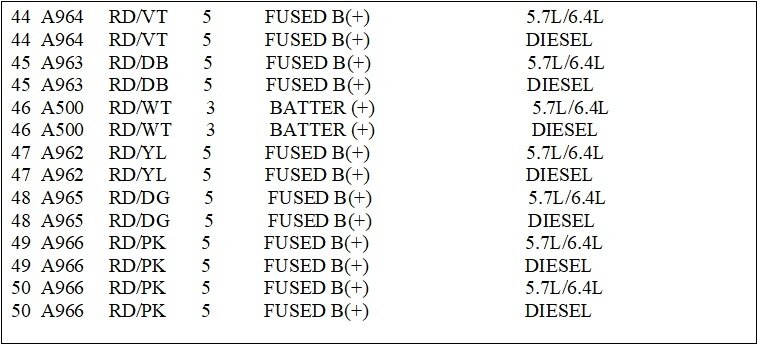

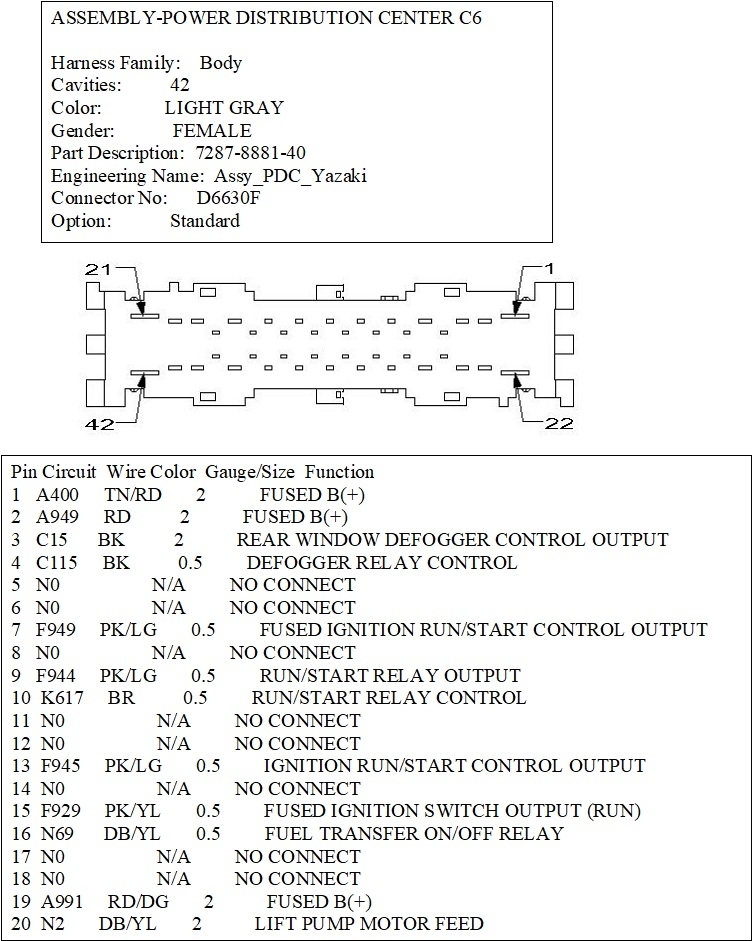

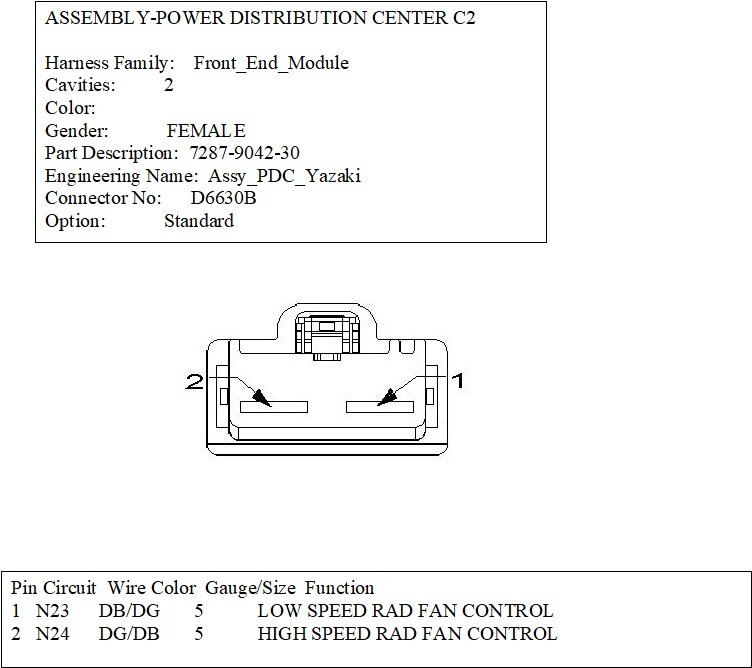

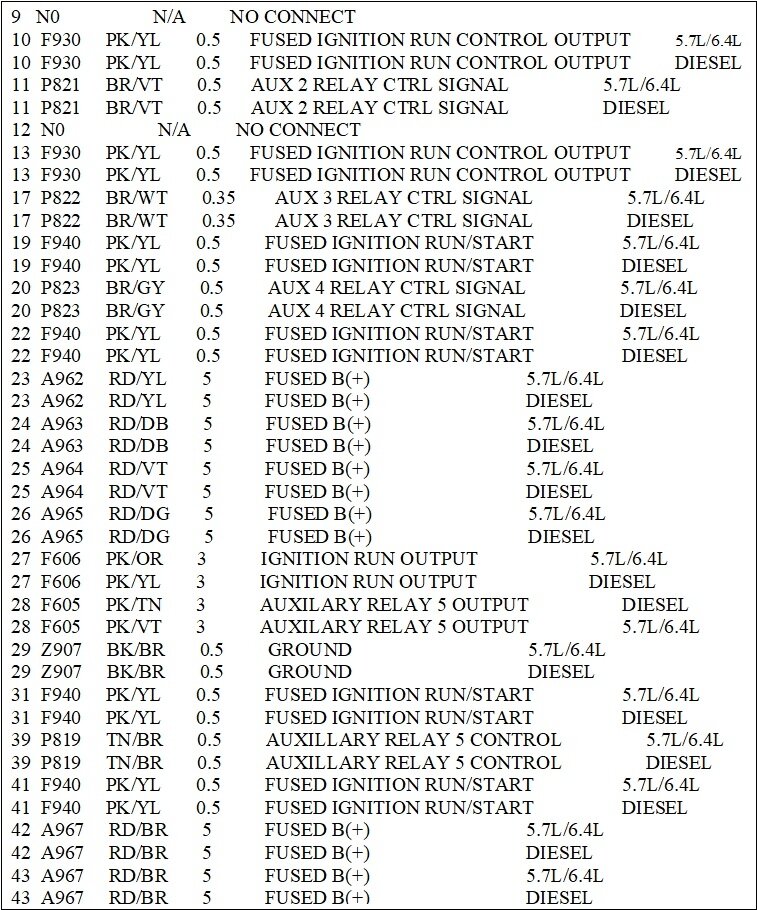

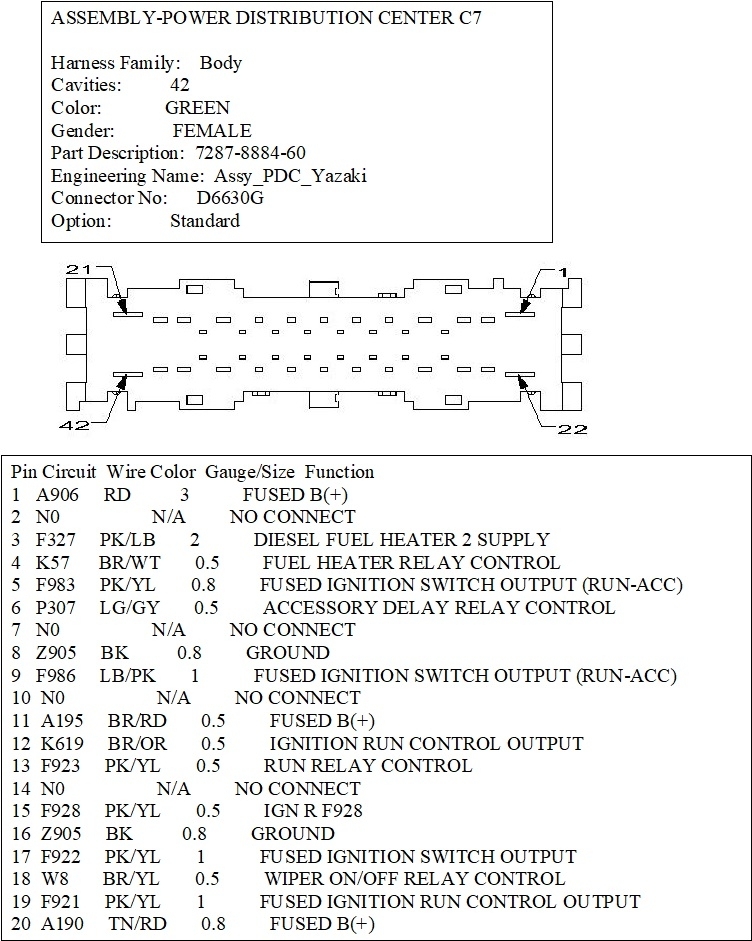

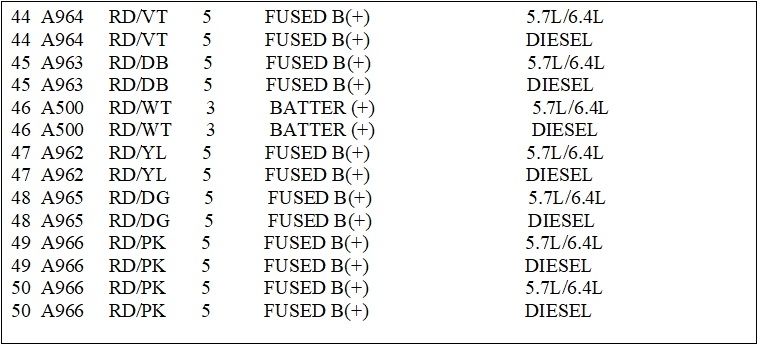

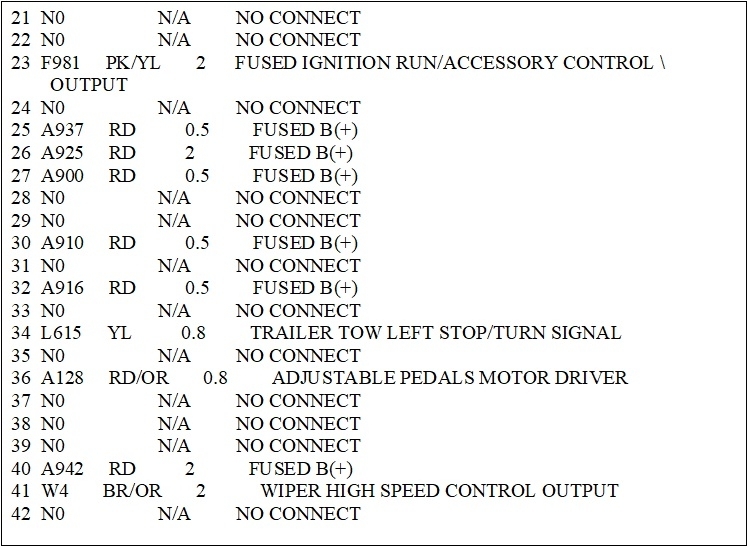

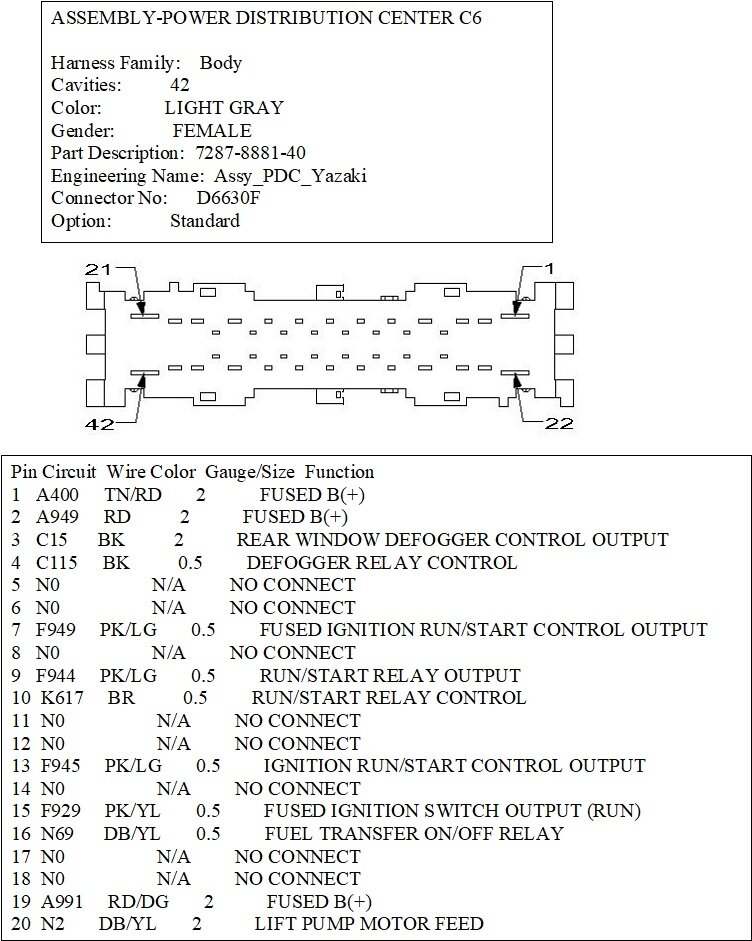

Here's all the connectors related to the TIPM. A few are two images for one connector because the list of wires was so long. You'll find the connector numbers on the top line of the descriptions.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
