Timing alignment

Tiny
LIISASMITH1964
  • MEMBER
  • 2005 KIA CARNIVAL
  • 2.5L
  • 6 CYL
  • AUTOMATIC
  • 163 MILES
Can you please help with correct timing alignment as I am having difficulty.
Thank you.
Monday, June 18th, 2018 AT 4:09 PM

1 Reply

Tiny
KHLOW2008
  • MECHANIC
  • 41,814 POSTS
Hi,

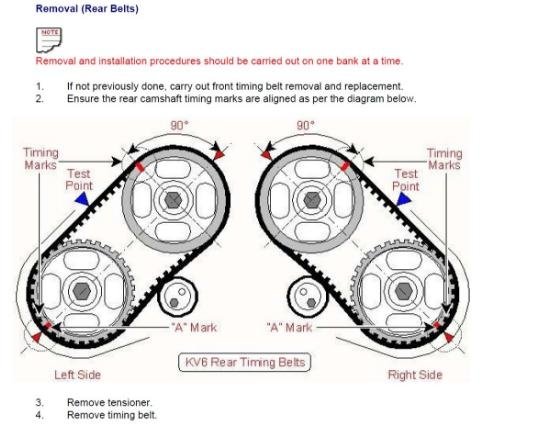

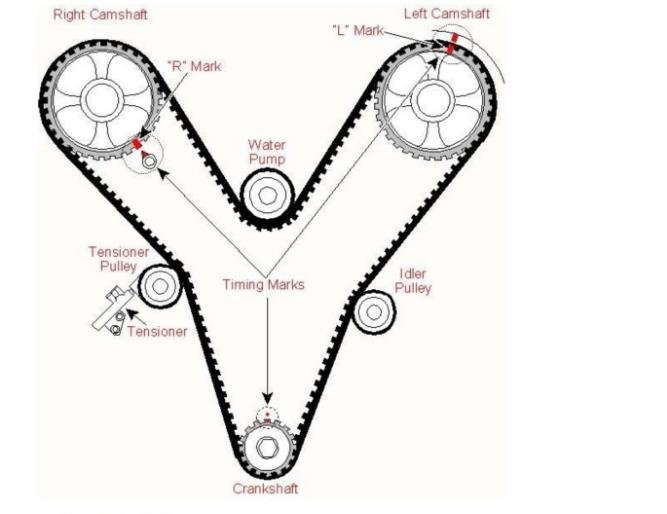

Attached are the two diagrams for the timing belt and their markings. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
Was this
answer
helpful?
Yes
No
Tuesday, June 19th, 2018 AT 7:55 AM
