Can I get the wiring diagram for the Throttle Positioning Sensor?

Tiny
DOLLABILL25
  • MEMBER
  • 2001 MERCEDES BENZ S430
  • V8
  • 2WD
  • AUTOMATIC
  • 150,000 MILES
I would just like to know the wiring schematic for the throttle positioning sensor. Please and thank you.
Thursday, May 30th, 2024 AT 2:31 PM

1 Reply

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 46,719 POSTS

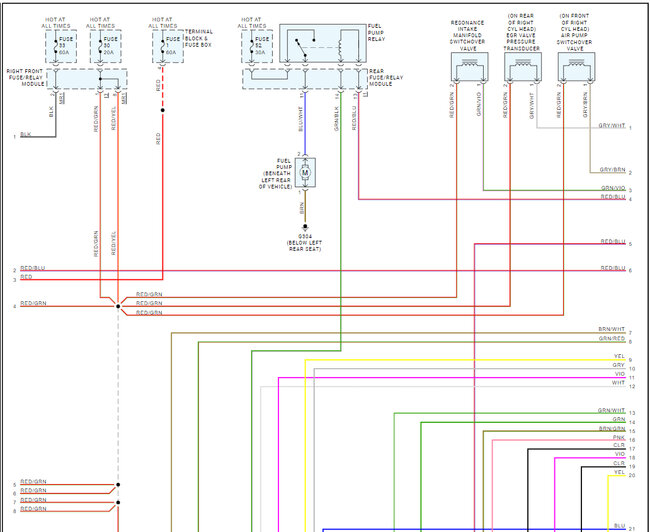

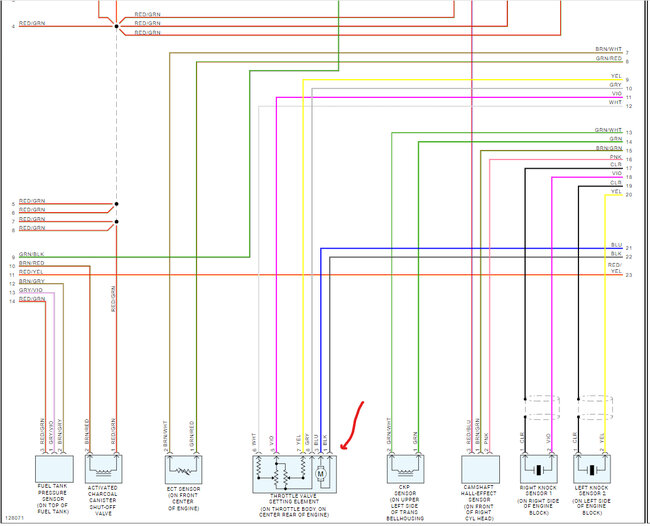

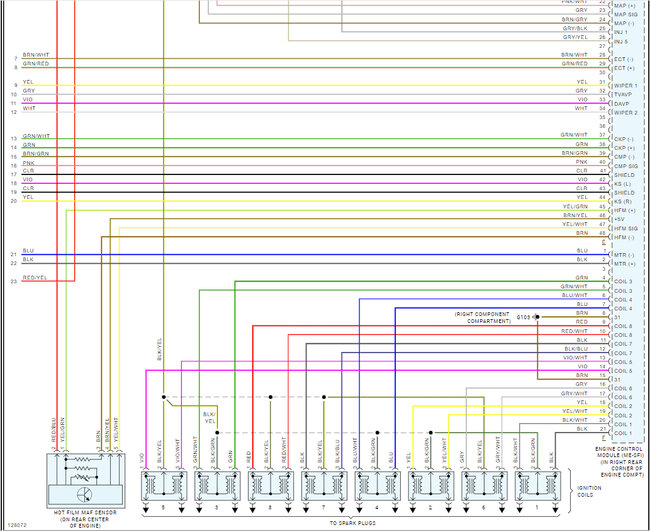

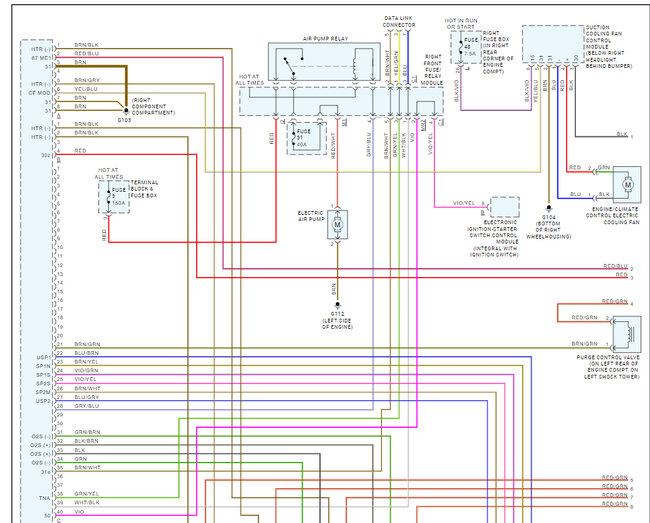

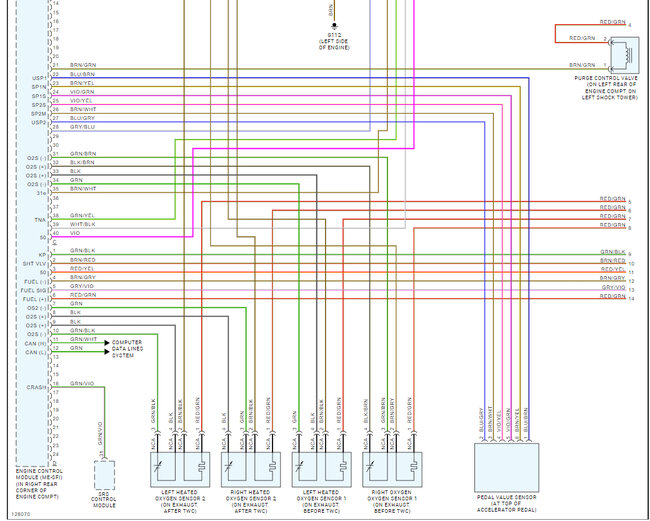

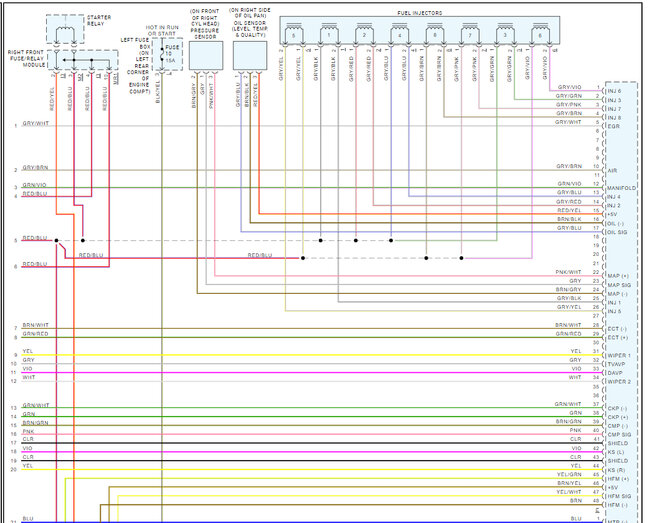

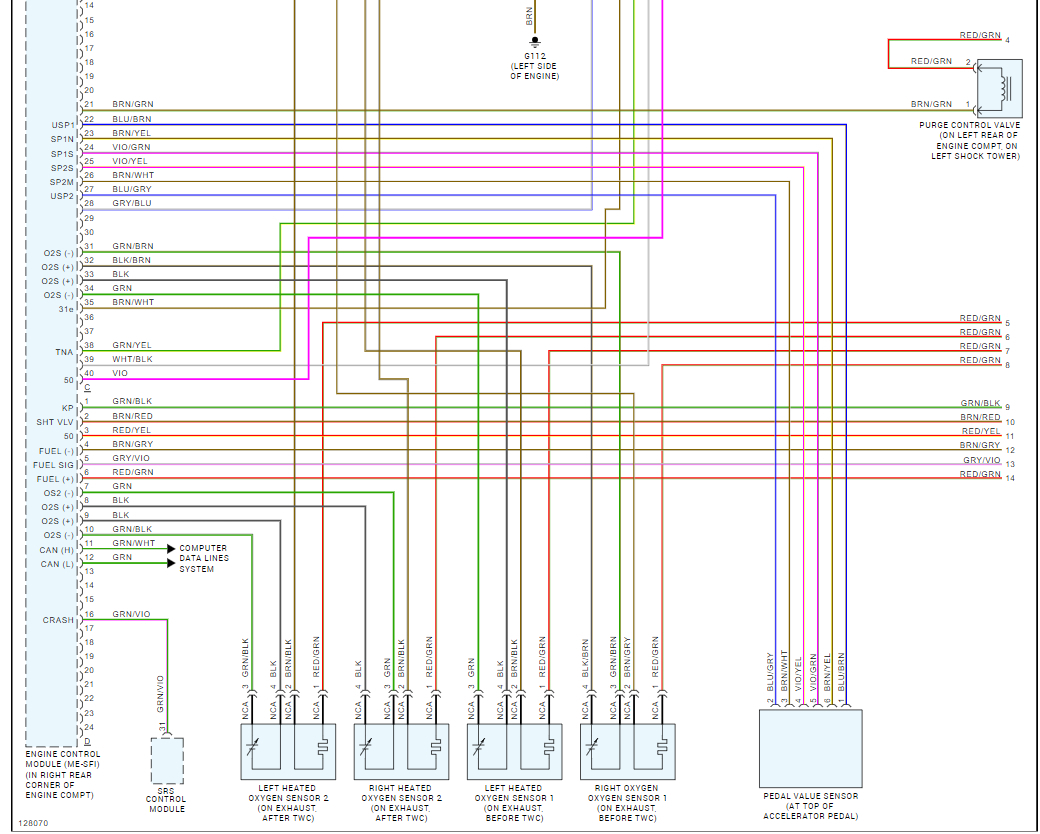

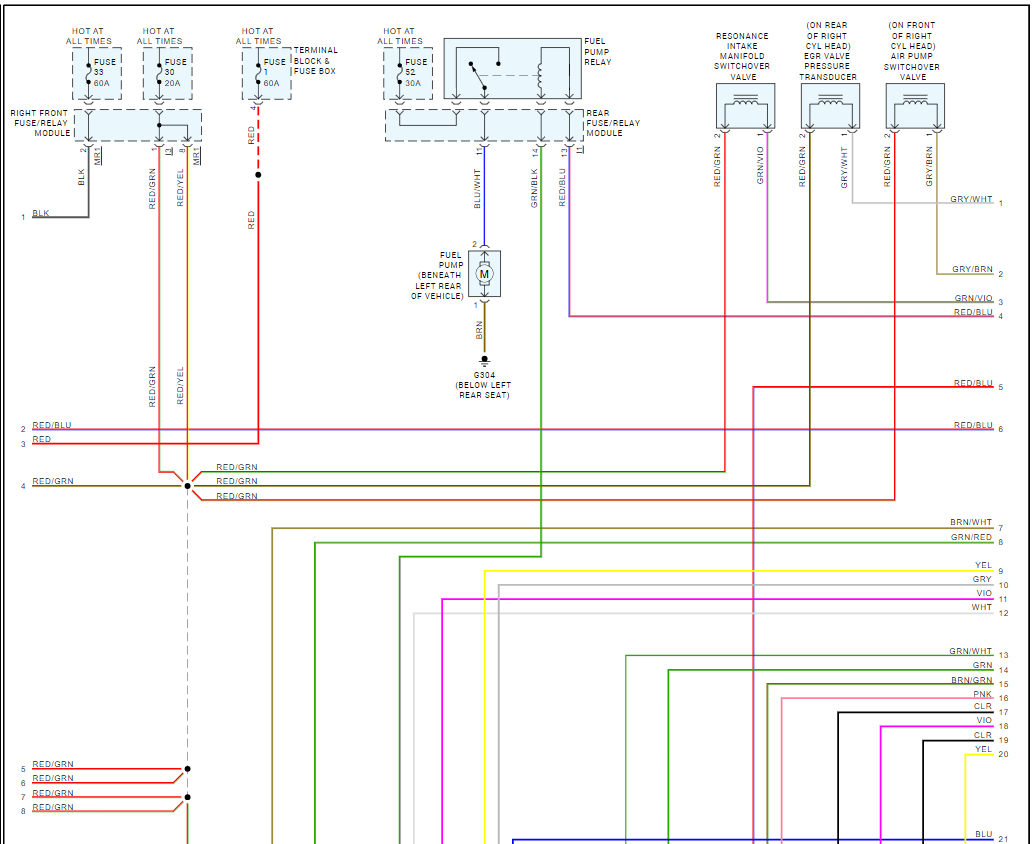

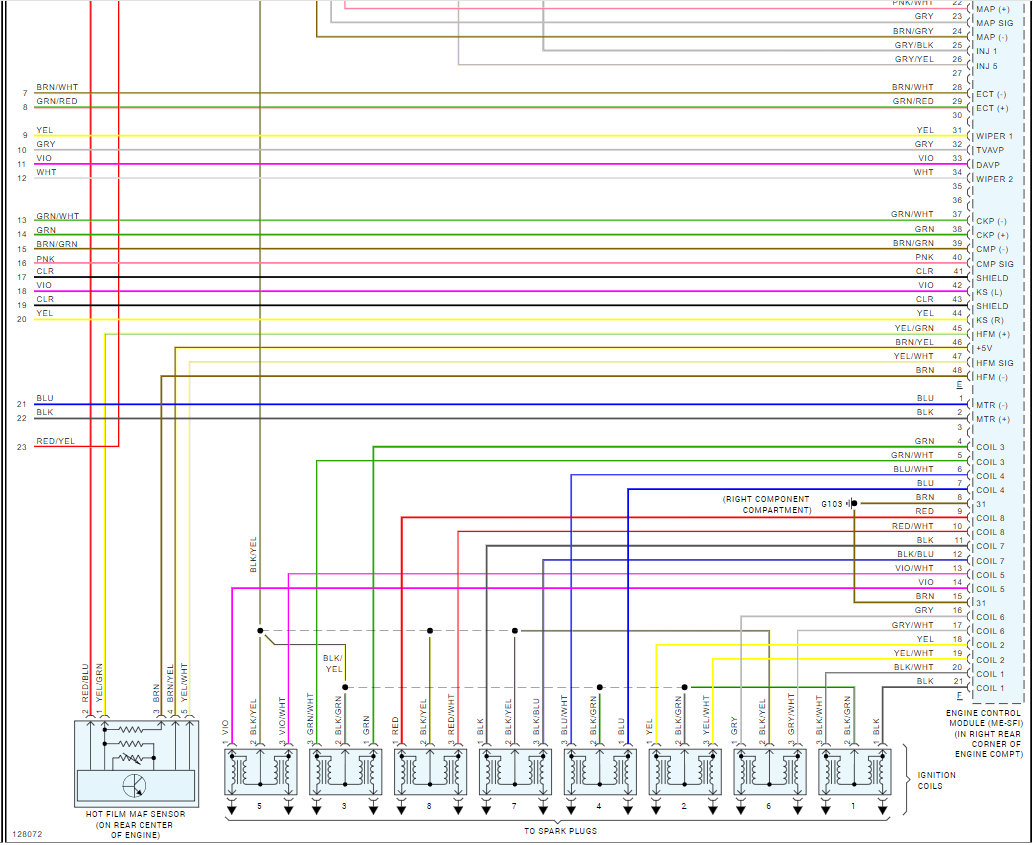

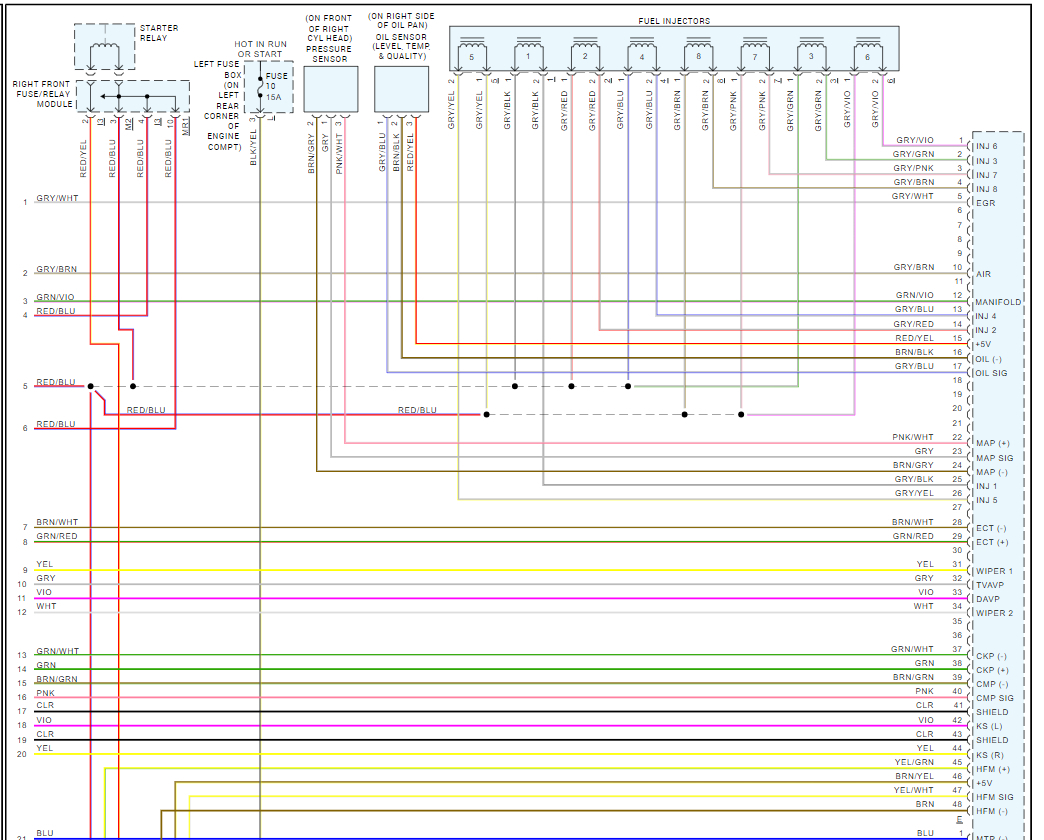

Sure, here is the throttle position sensor wiring which is included in the engine wiring diagrams which I have provided. Check out the images (below). Let us know if you need anything else.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
