Serpentine belt diagram needed

Tiny
CHRISTINA NINA
  • MEMBER
  • 2005 DODGE CARAVAN
  • 3.3L
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 196,000 MILES
We changed the water pump and now we are trying to put the belt back on. Can you give me a blown up diagram of the pulley?
Tuesday, October 1st, 2019 AT 4:02 PM

5 Replies

Tiny
KASEKENNY
  • MECHANIC
  • 18,907 POSTS
Hi,

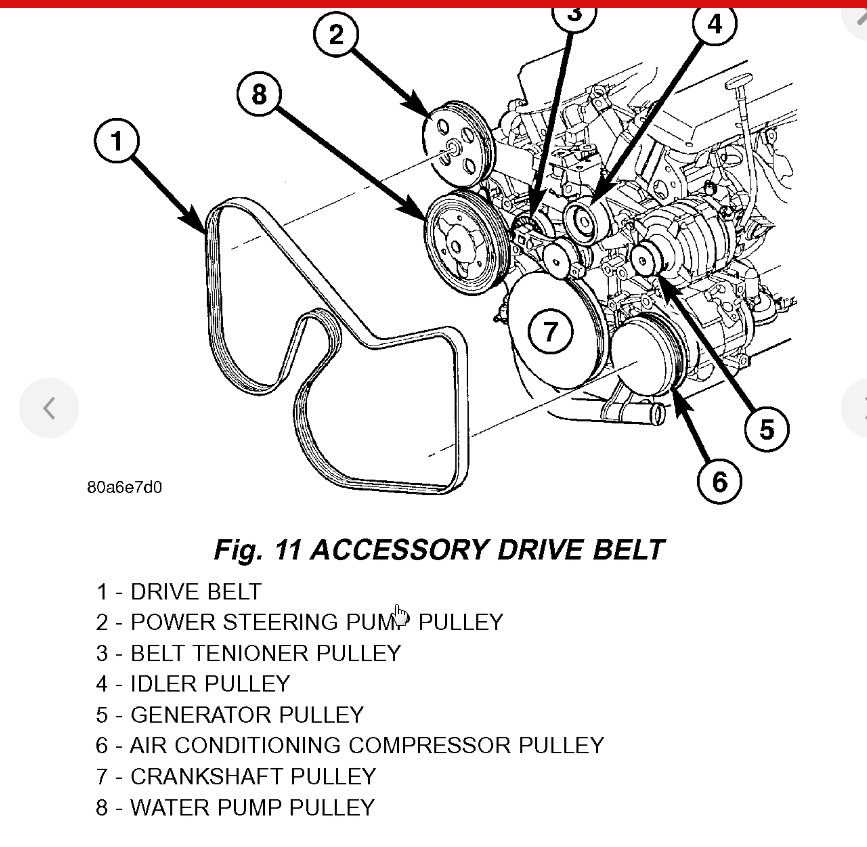

Here is a picture of the front of the engine that shows the belt route. Let me know if you need more information. Thanks
Image (Click to make bigger)
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
-1
Tuesday, October 1st, 2019 AT 5:02 PM
Tiny
CHRISTINA NINA
  • MEMBER
  • 1 POST
Thank you.
Was this
answer
helpful?
Yes
No
Wednesday, October 2nd, 2019 AT 11:01 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,643 POSTS
KASEKENNY1 is one of our best! Use 2CarPros anytime, we are here to help. Please tell a friend.
Was this
answer
helpful?
Yes
No
+1
Wednesday, October 2nd, 2019 AT 11:02 AM
Tiny
JOHNHERE
  • MEMBER
  • 1 POST
  • 2005 DODGE CARAVAN
  • 6 CYL
  • 2WD
  • AUTOMATIC
  • 83,000 MILES
I had to replace my water pump but can not get my belt on.
Could you help?
Was this
answer
helpful?
Yes
No
-1
Thursday, October 3rd, 2019 AT 11:29 AM (Merged)
Tiny
DOCFIXIT
  • MECHANIC
  • 18,828 POSTS

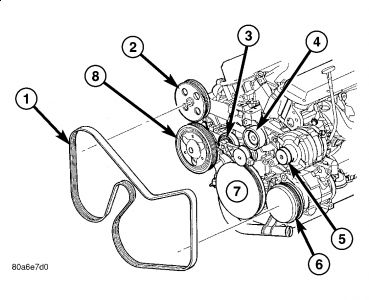

Is this a diagram of your belt routing?


https://www.2carpros.com/forum/automotive_pictures/198357_Graphic_277.jpg

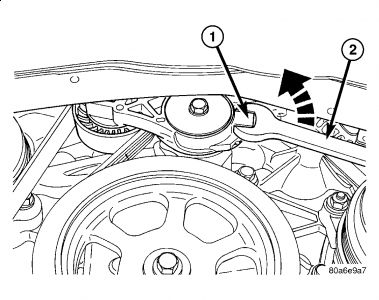

if yes then are you taking tension off tensioner?


https://www.2carpros.com/forum/automotive_pictures/198357_Grafic_3_82.jpg
