May you please help me with the color code of the lead that feeds into the coolant temperature sensor of the vehicle listed above? The loom was tempered with. So I'm failing to locate it.
Thursday, June 11th, 2020 AT 4:14 AM

3 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,643 POSTS
Hello,

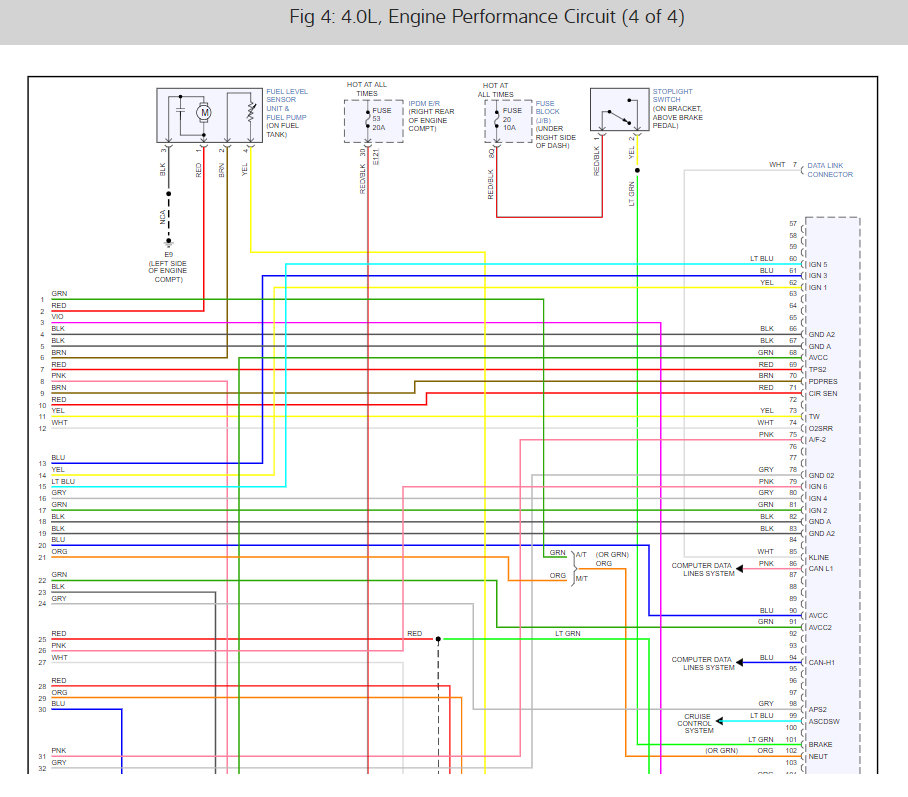

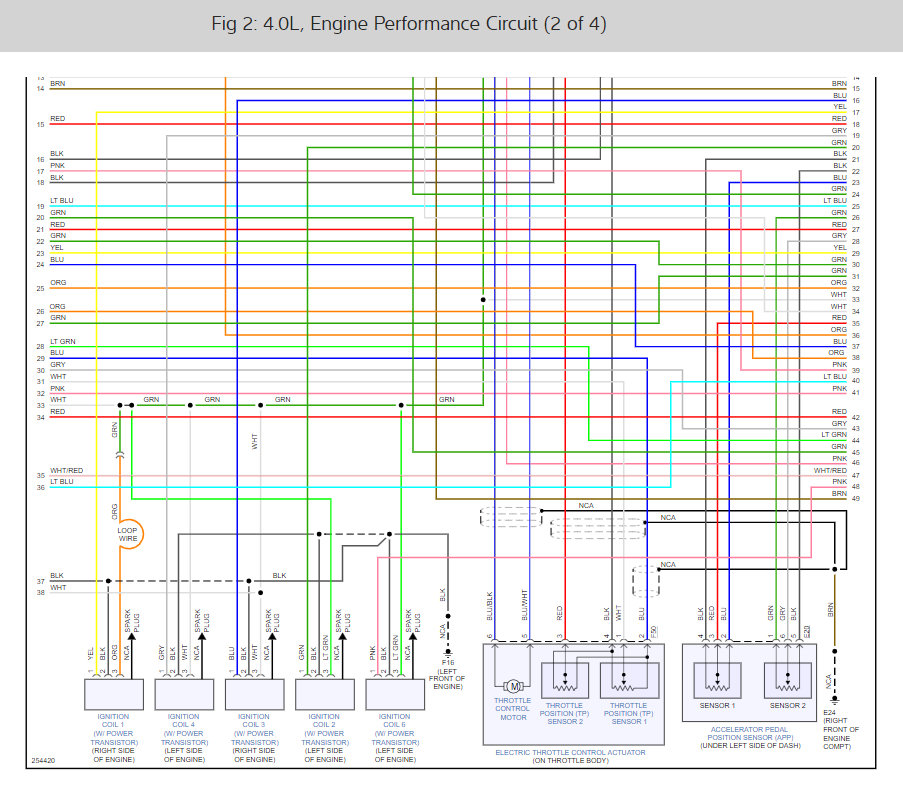

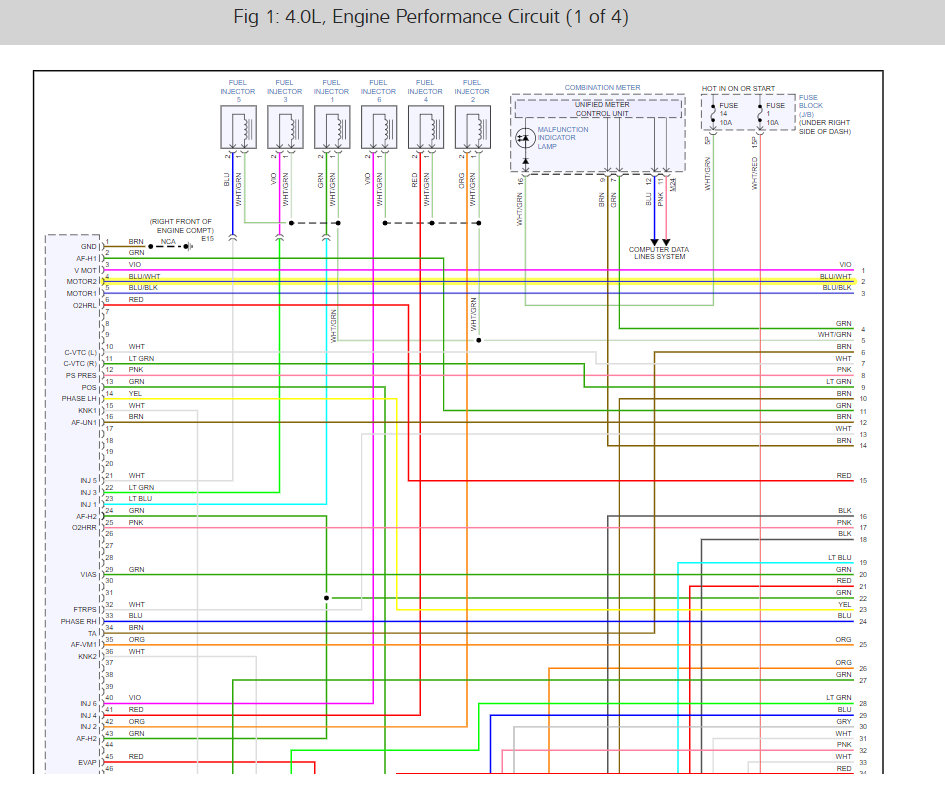

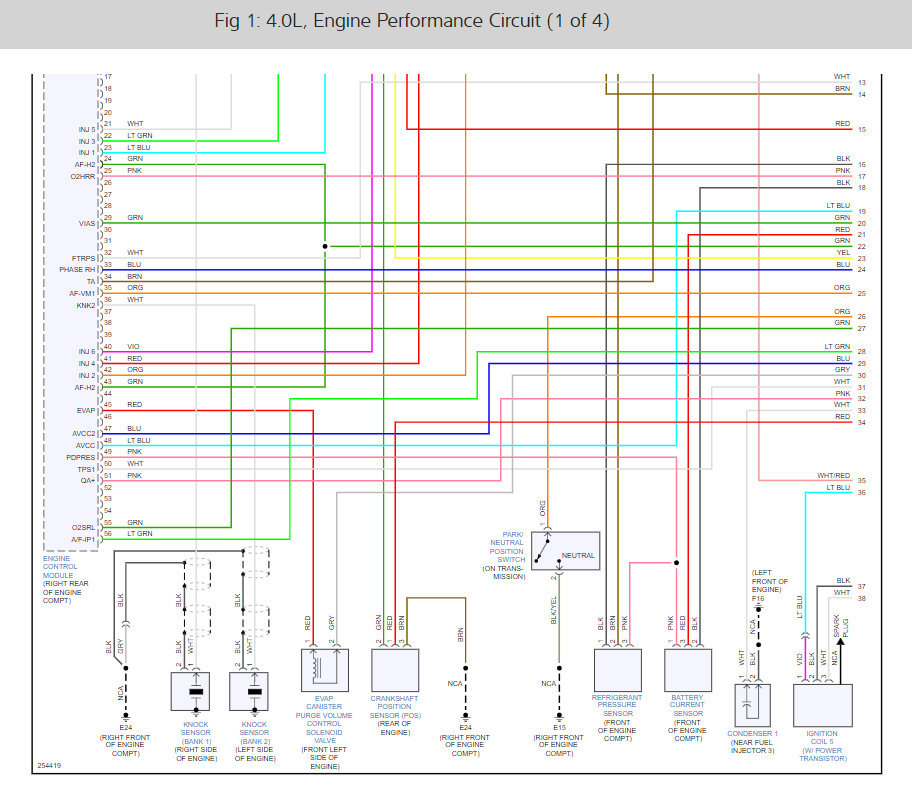

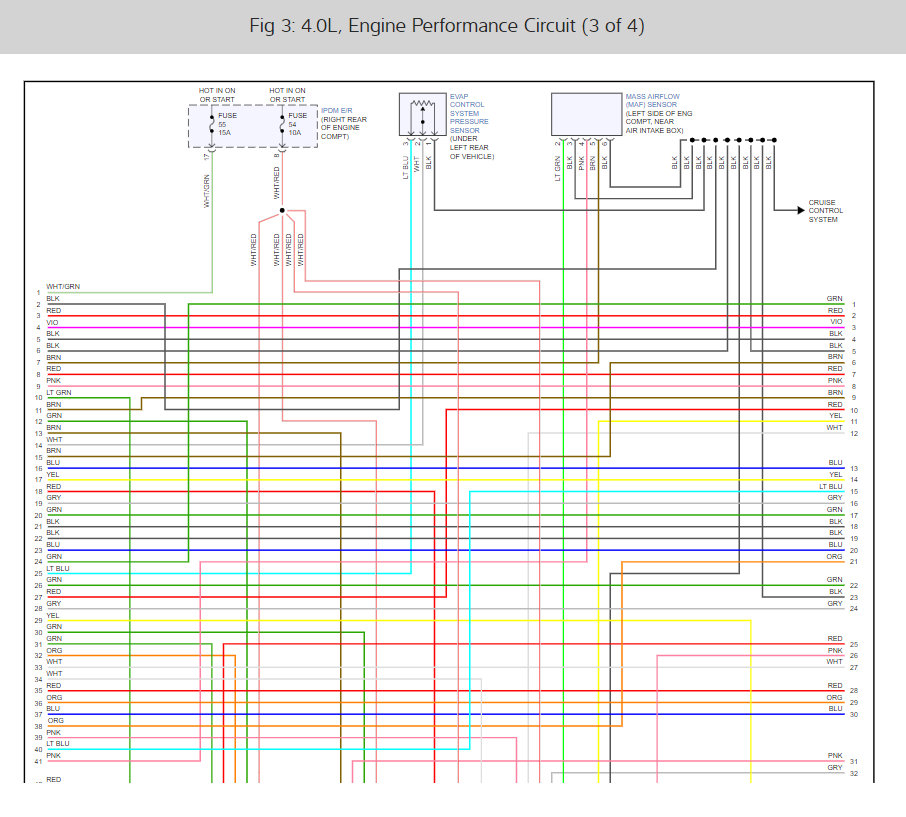

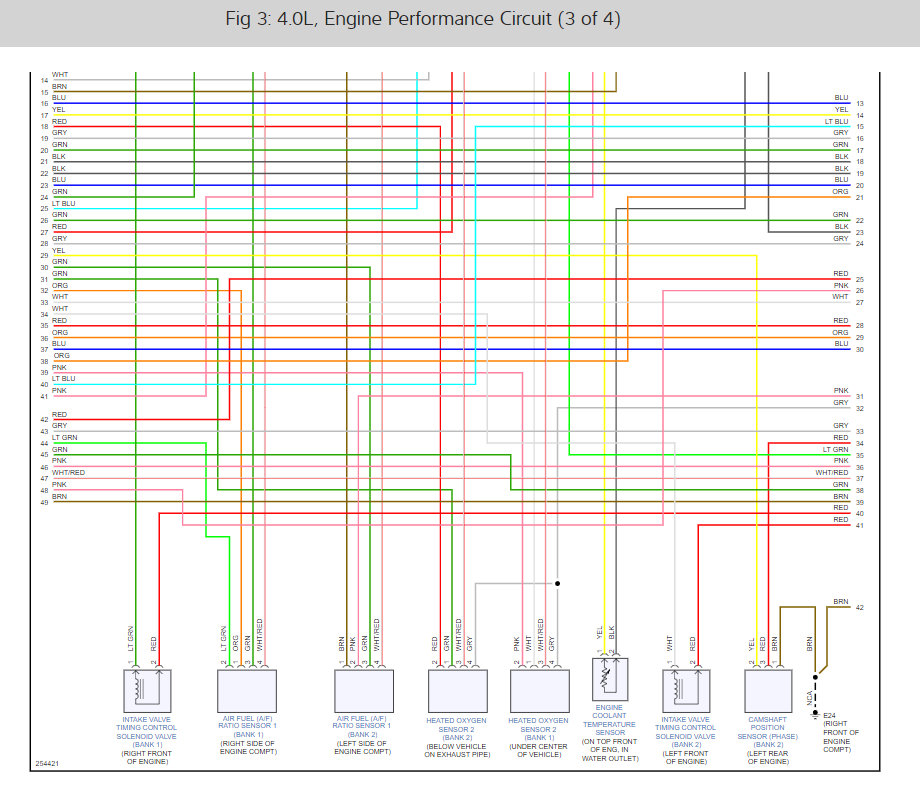

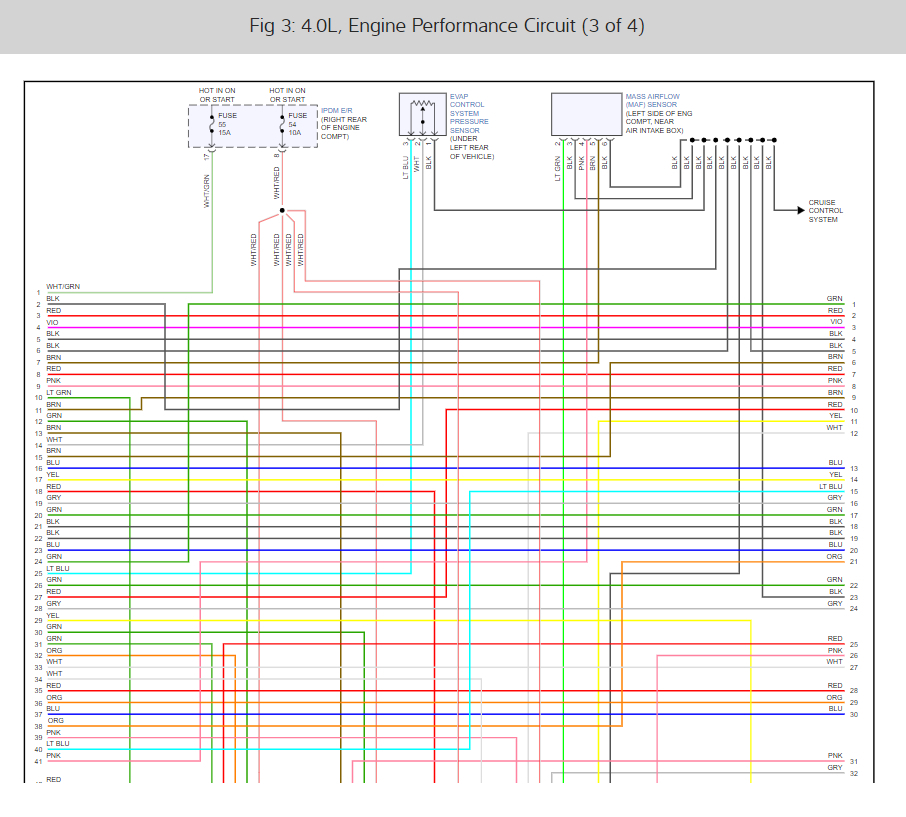

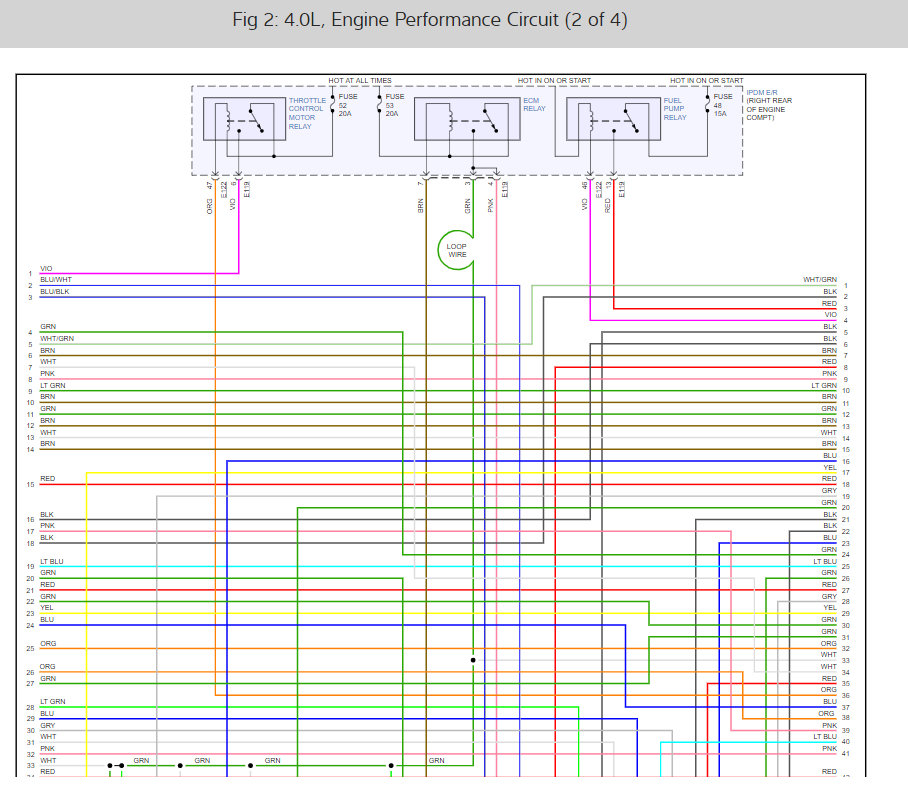

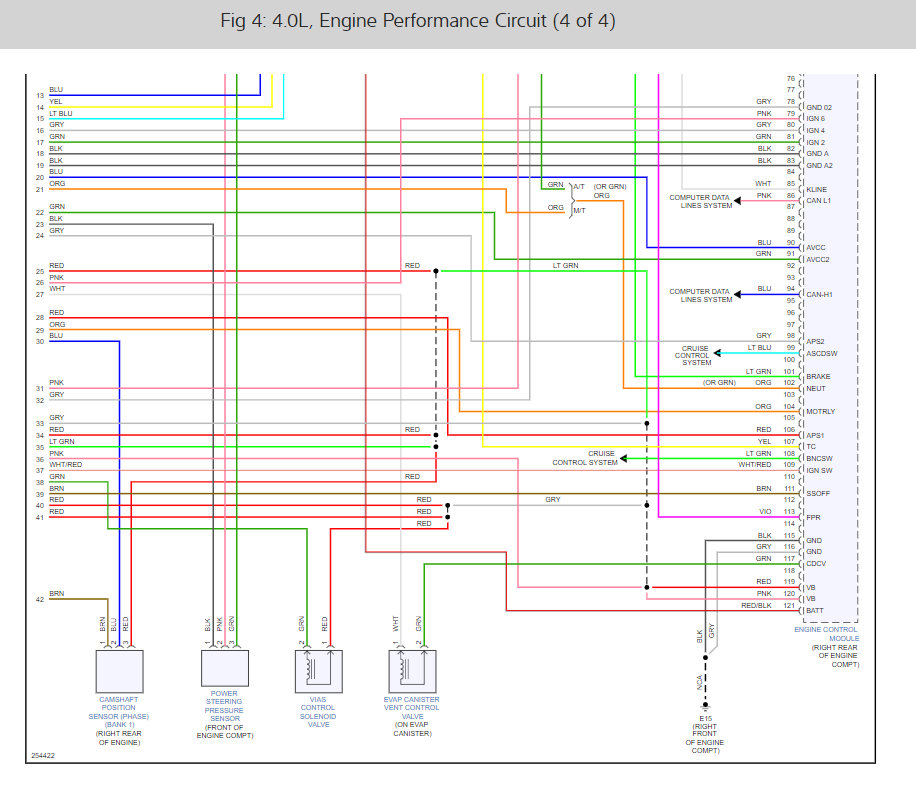

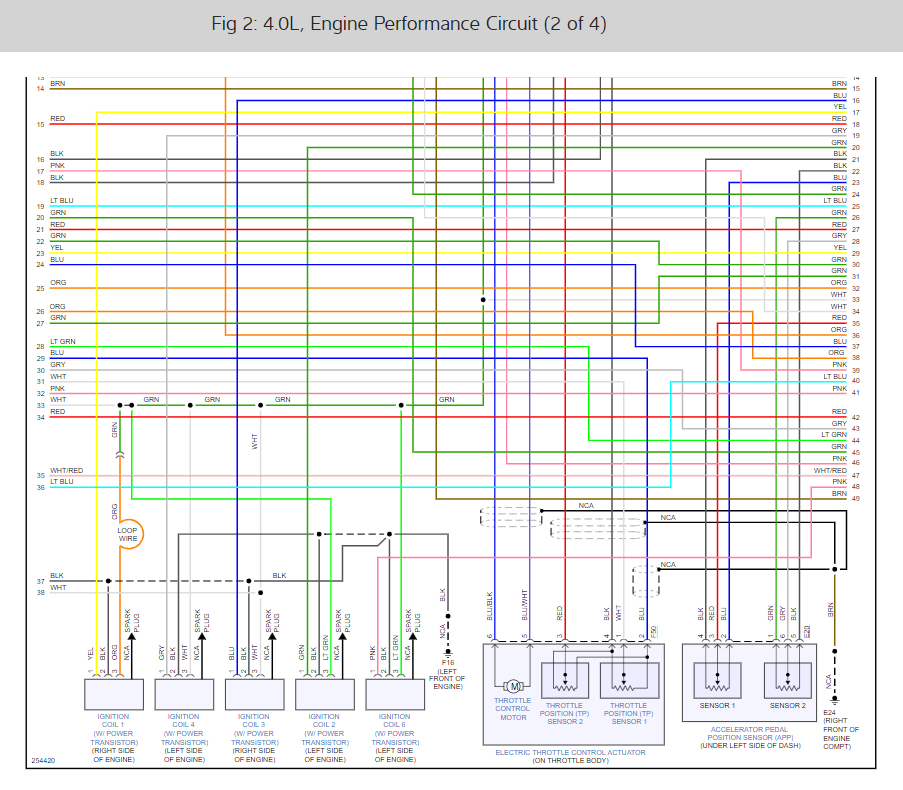

Here are the engine wiring diagrams which feature the coolant sensor wire colors and a guide to help you test the wiring once repaired:

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
Friday, June 12th, 2020 AT 10:47 AM
Tiny
AUTO SUPREMACY-THE MAESTRO
  • MEMBER
  • 15 POSTS
Thanks a lot, but there is this other temperature sensor with a single lead that feeds into it. This in particular is the one I am inquiring on. I thank you.
Was this
answer
helpful?
Yes
No
Saturday, June 13th, 2020 AT 11:00 AM
Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 47,643 POSTS
Can you please shoot a quick video with your phone so we can see what's going on? That would be great. You can upload it here with your response.
