code P0722, TCM wiring diagram needed?

2002 VOLKSWAGEN BEETLE
154,000 MILES • 2.0L • 4 CYL • 2WD • AUTOMATIC
Avatar
WISEALEX53
  • MEMBER
  • 2 POSTS
I get code P0722 output speed sensor circuit no signal. Could you please provide TCM wiring diagrams to check the wires for any open circuit? my transmission is 01M 4speed, gas engine 2.0l, the TCM PN is 01M927 733 KQ.
Sep 18, 2023 at 7:44 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,837 POSTS
  • ASE Certified Mechanic
Did you replace the output speed sensor? Here is a guide to help with the testing and the TCM wiring diagrams as requested:

https://www.2carpros.com/articles/how-to-check-wiring

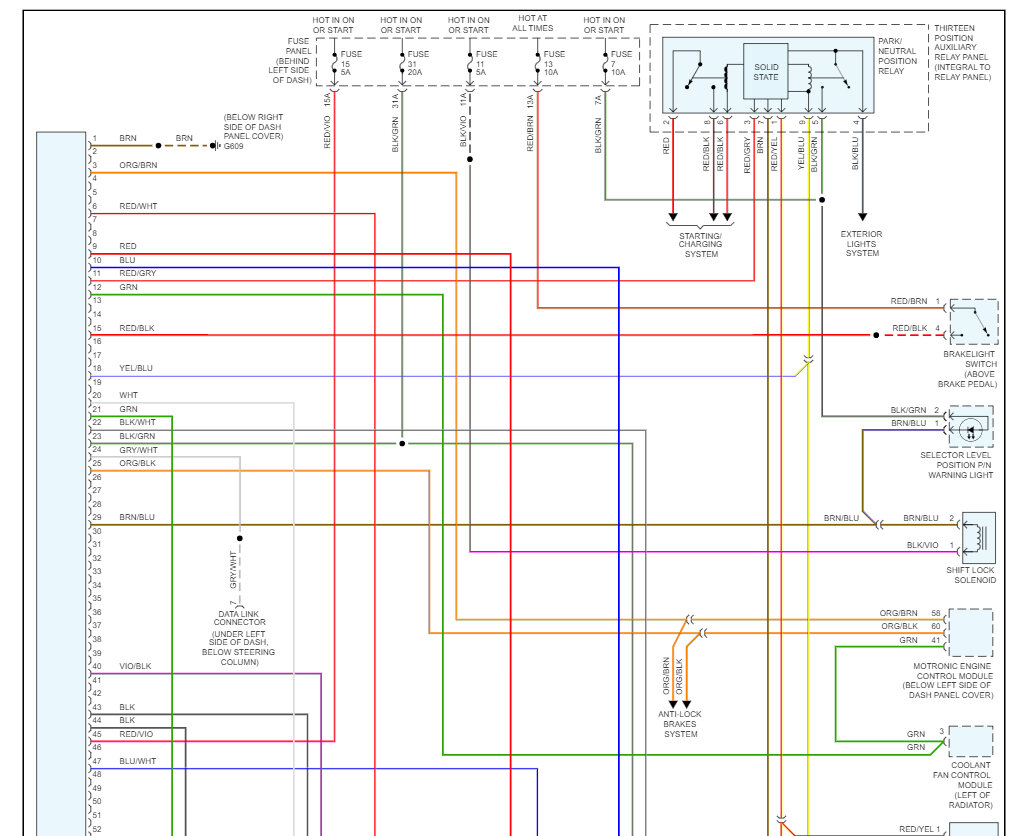

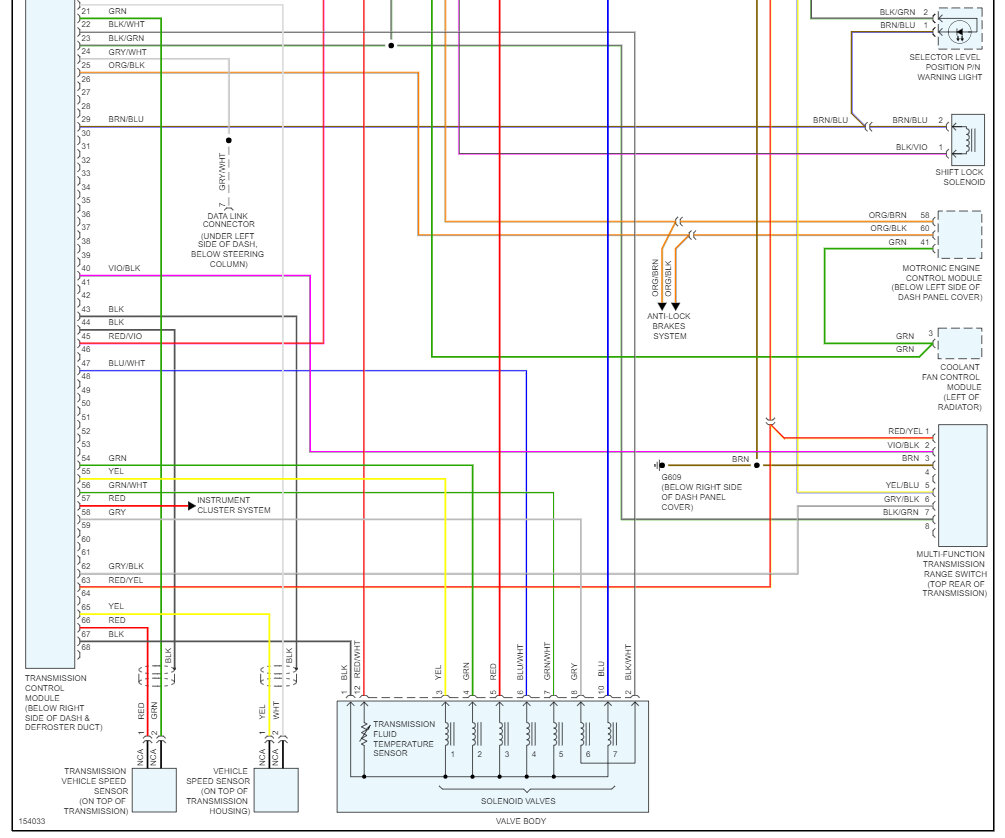

Transmissions - A/T Circuit (Early Production)

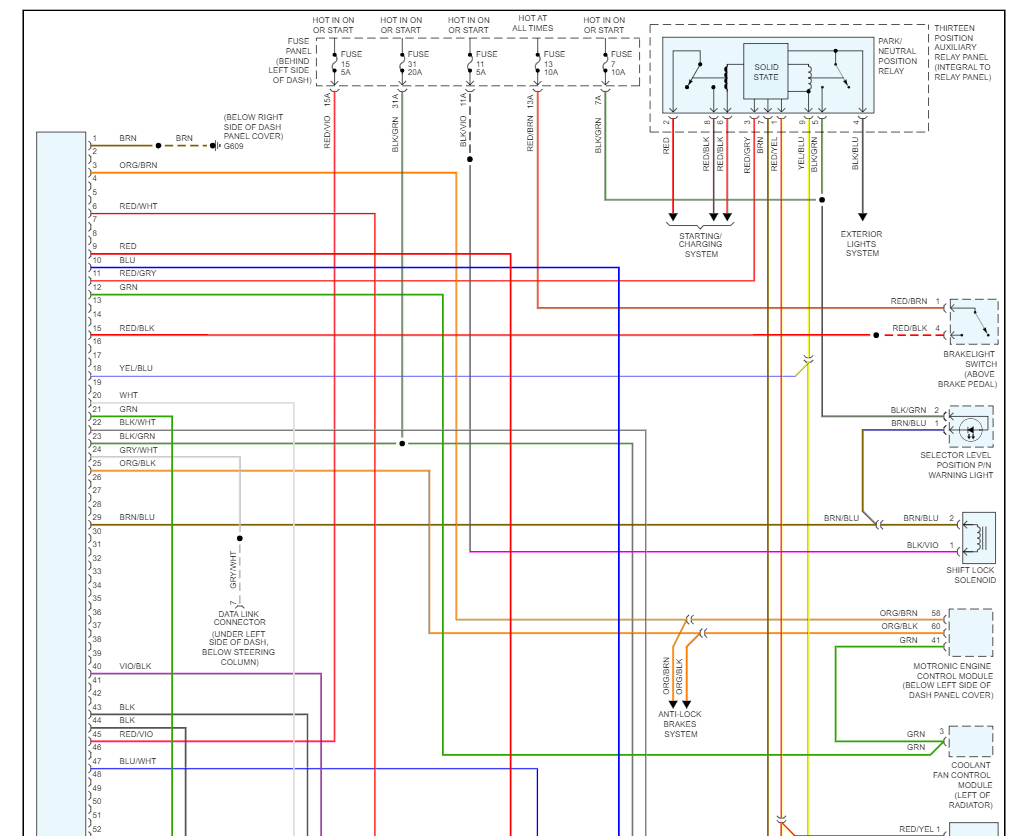

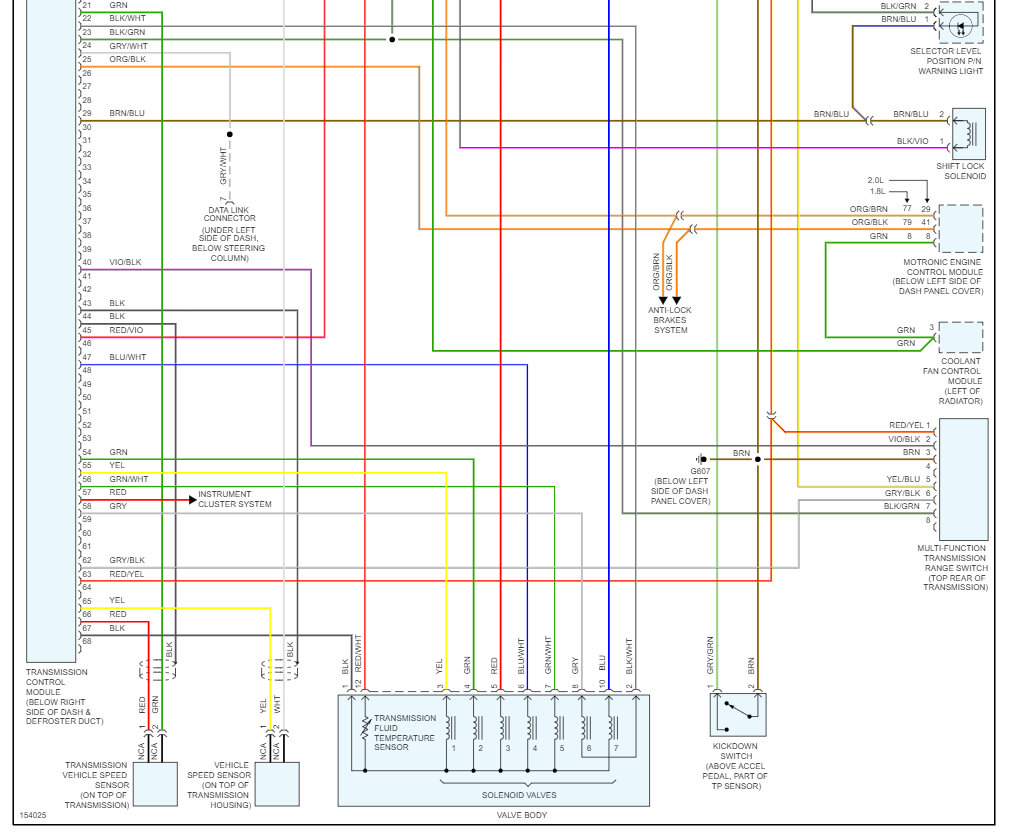

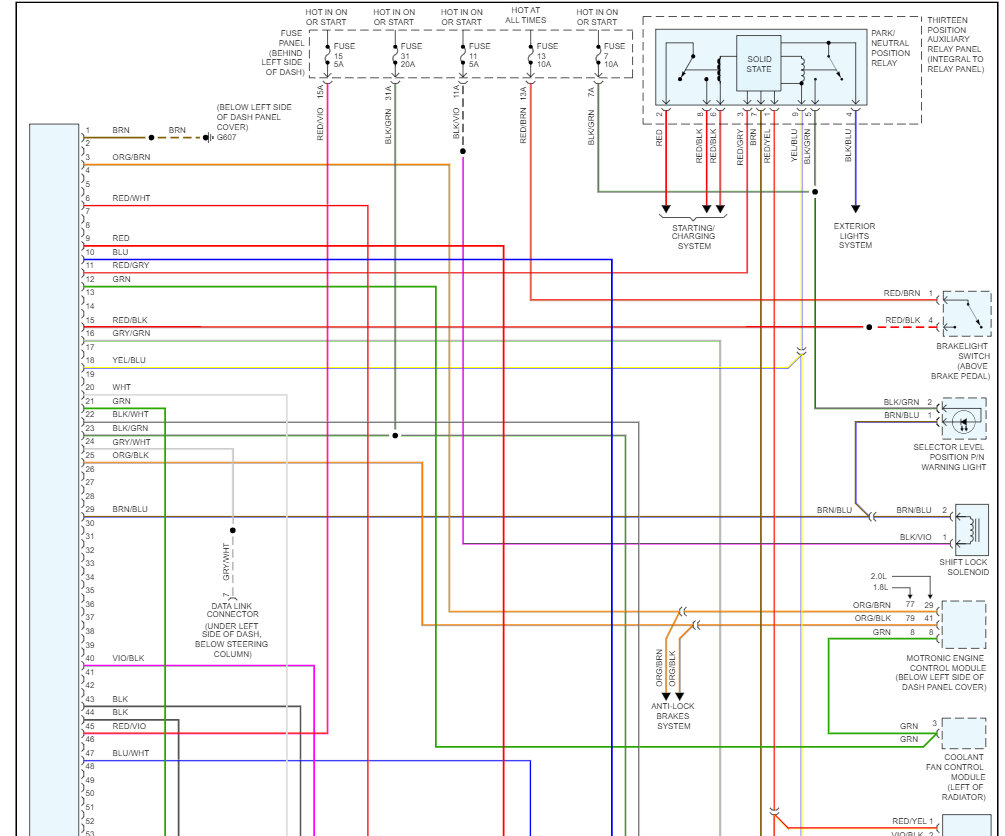

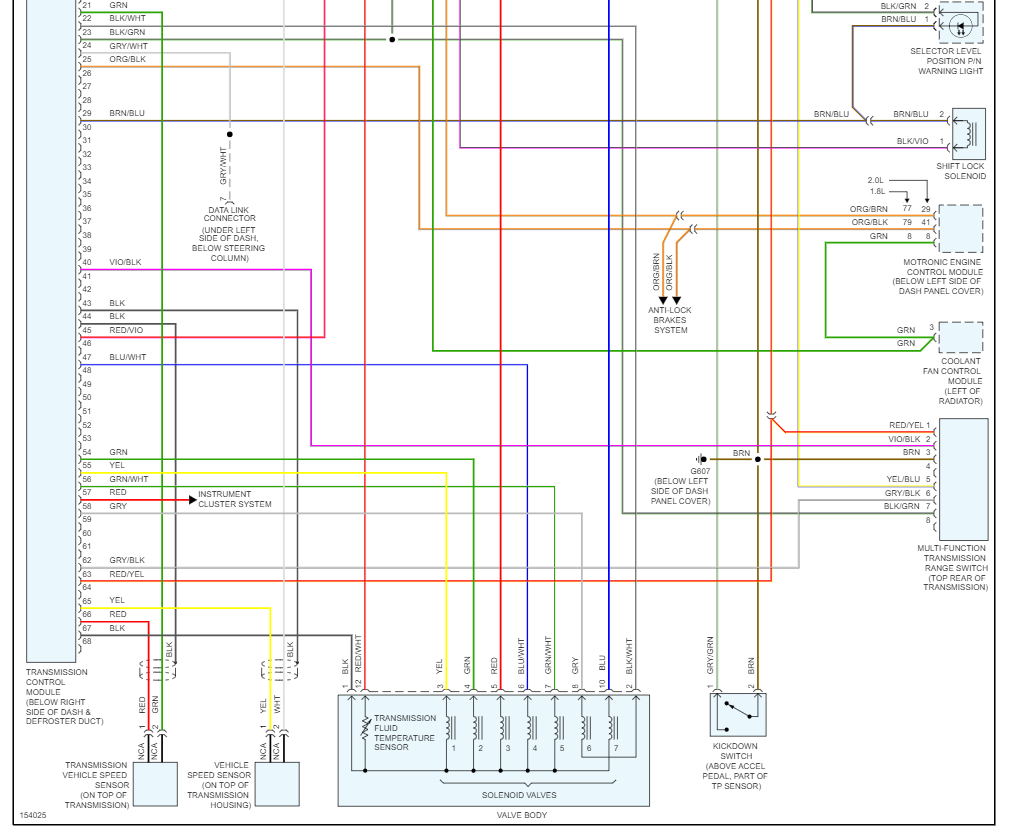

Transmissions - A/T Circuit (Late Production)

Check out the images (below). Please let us know what you find.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Sep 18, 2023 at 4:44 PM
