Need wireing diagram for the connector
Friday, May 14th, 2021 AT 8:10 PM

1 Reply

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,755 POSTS
Hi,

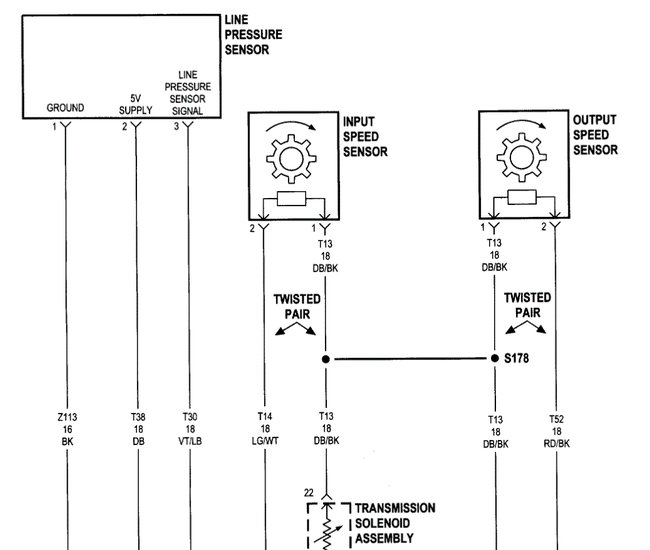

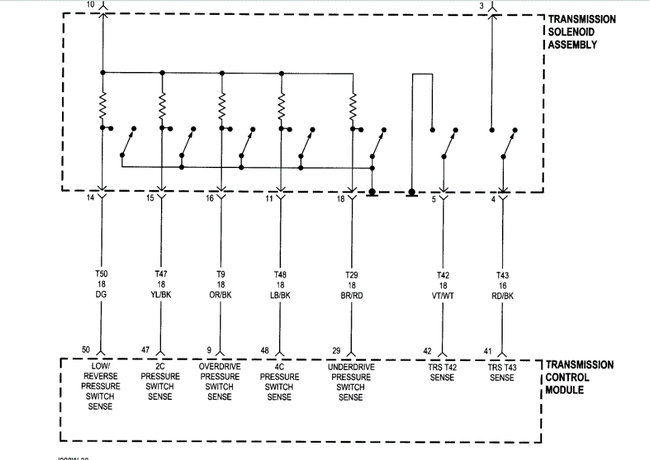

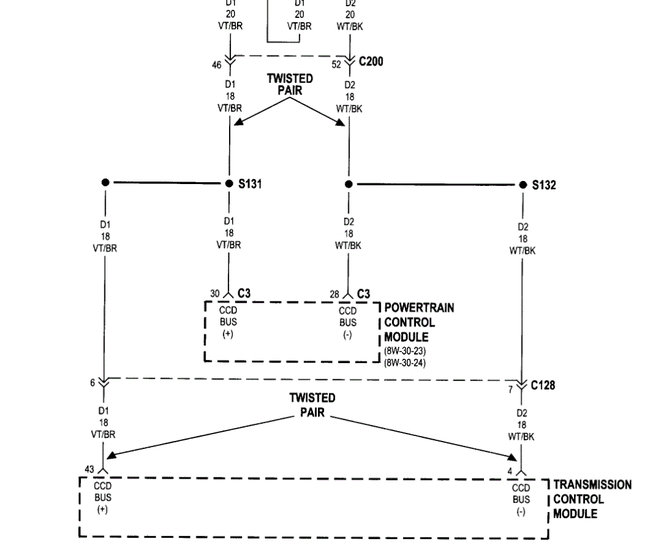

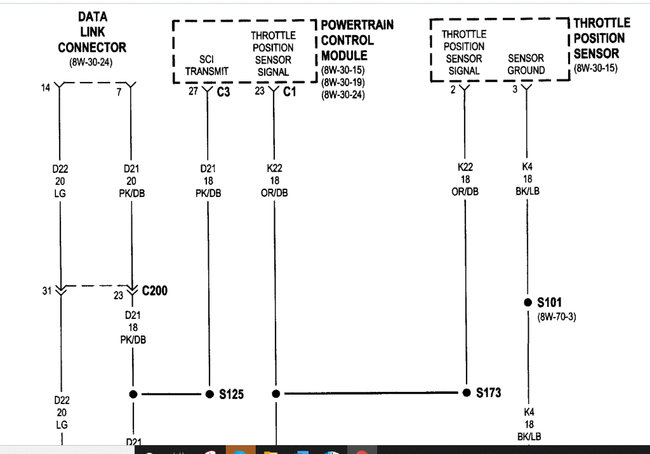

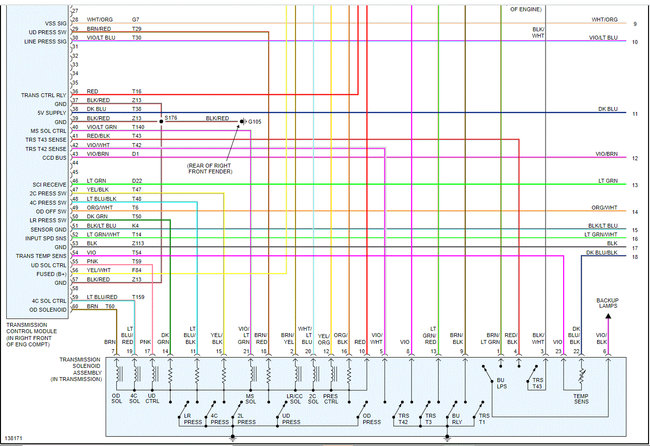

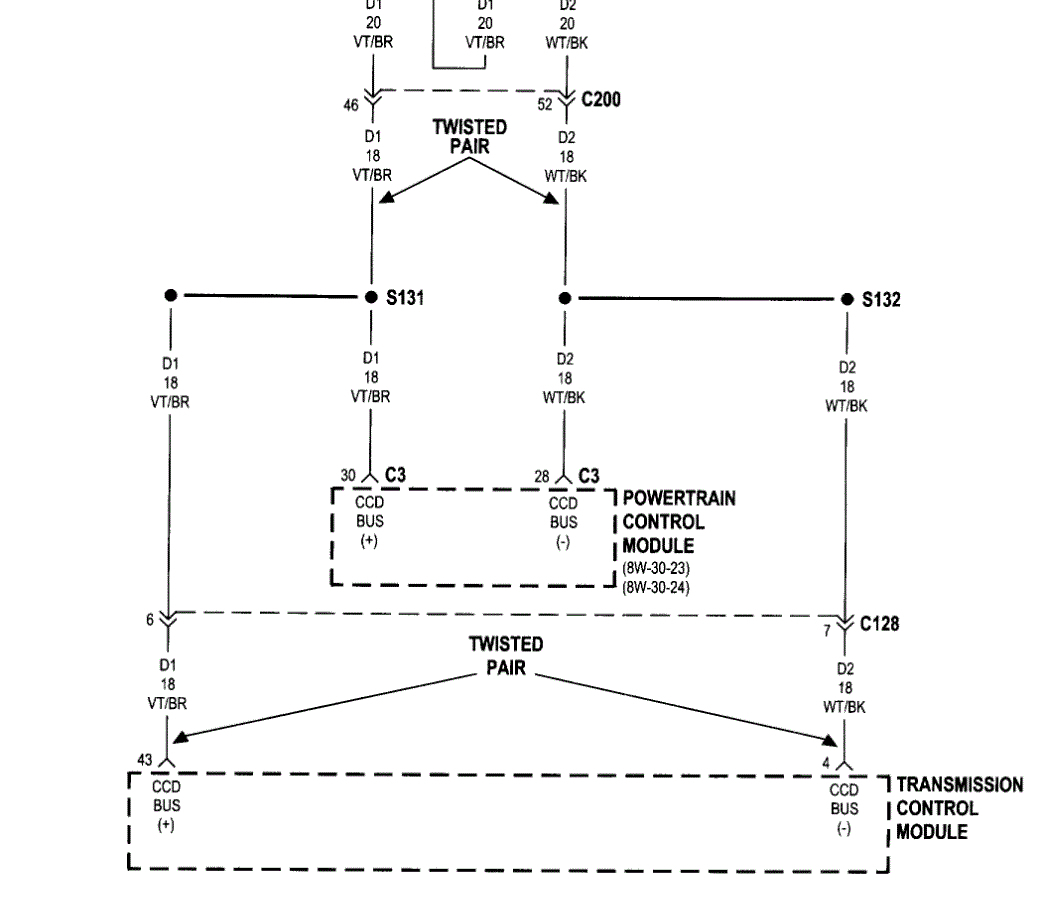

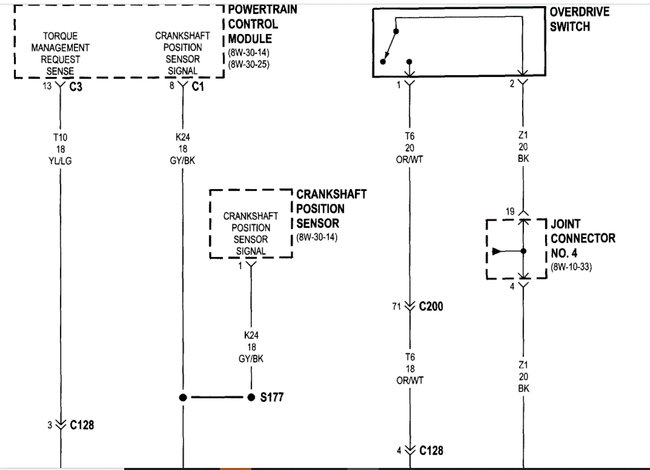

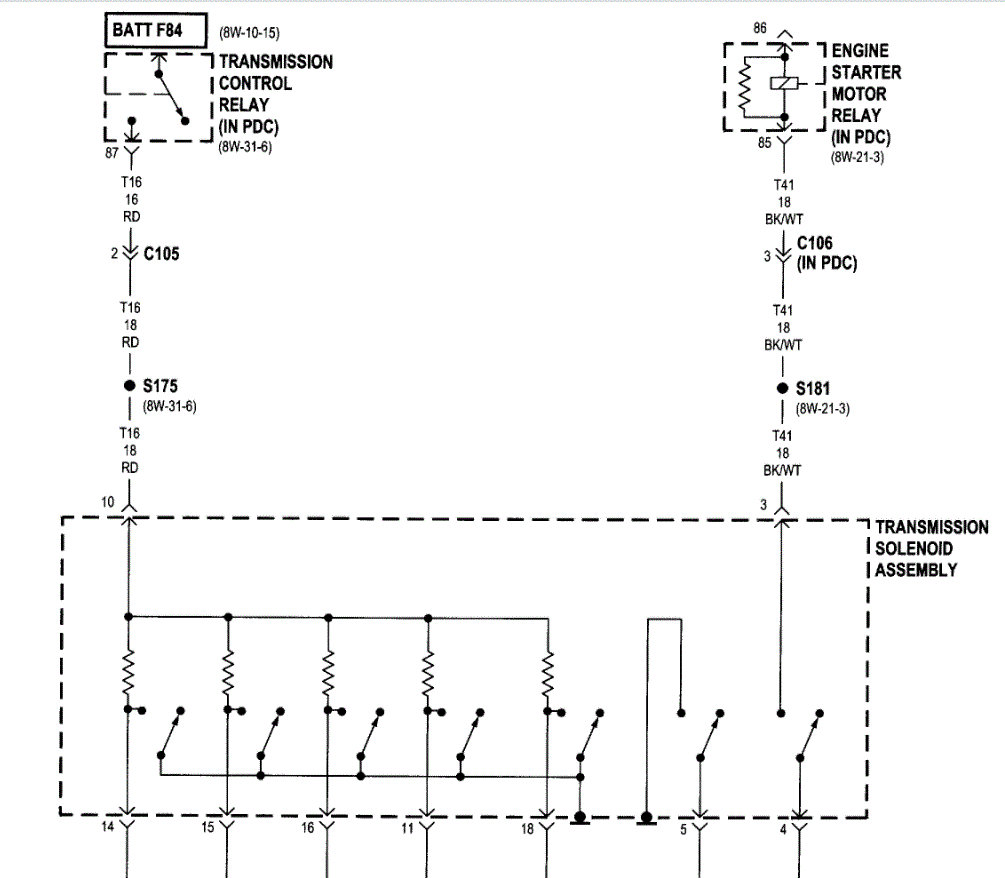

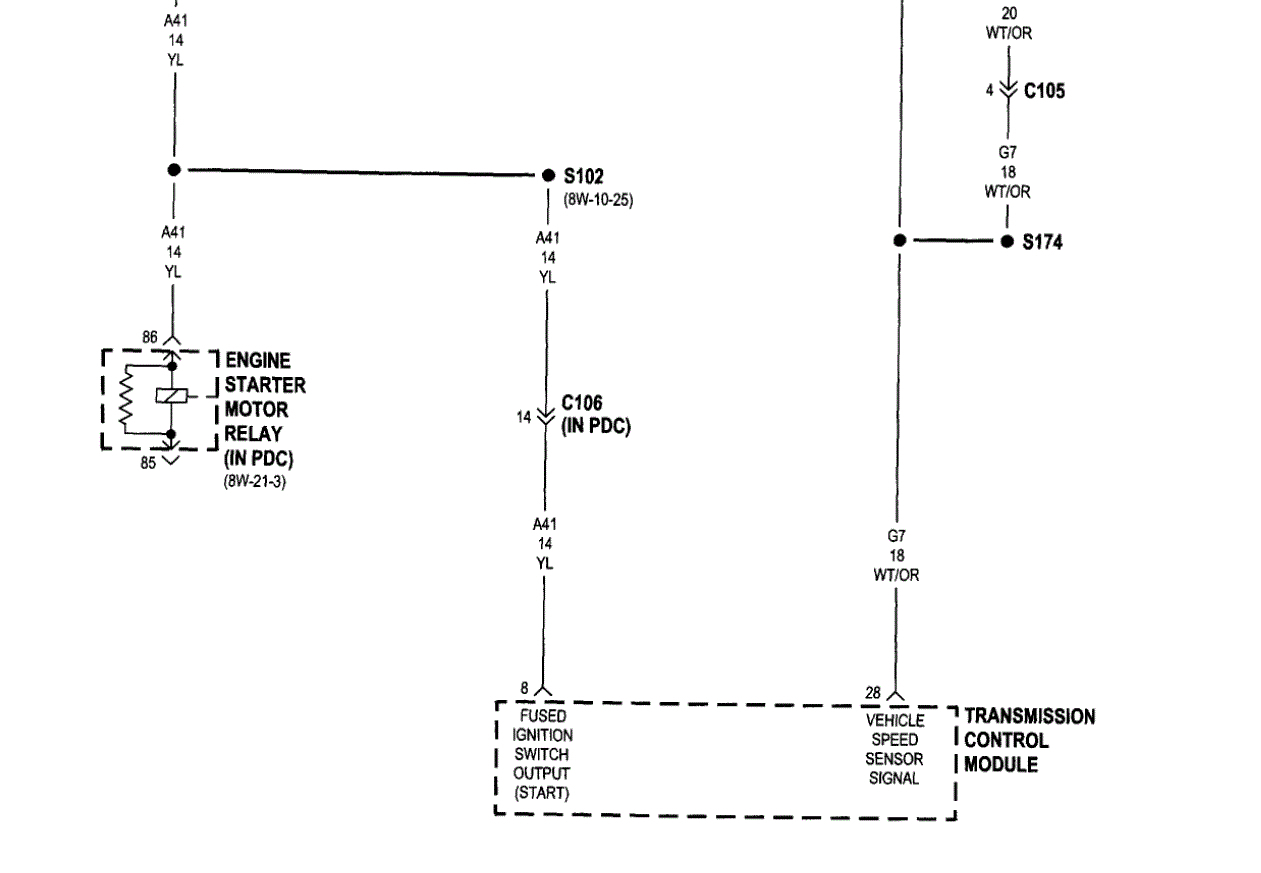

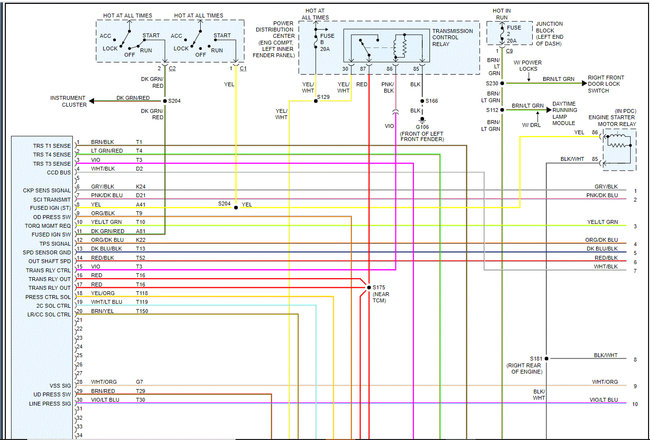

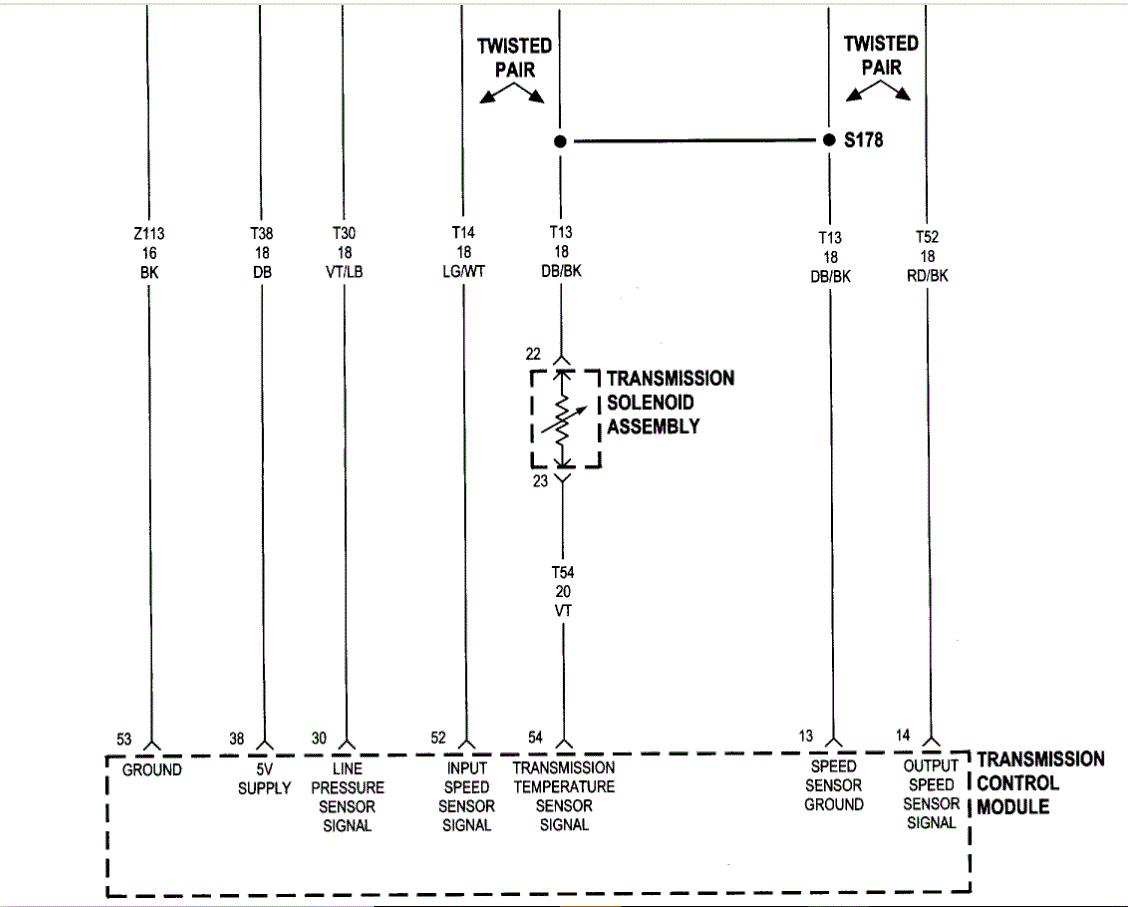

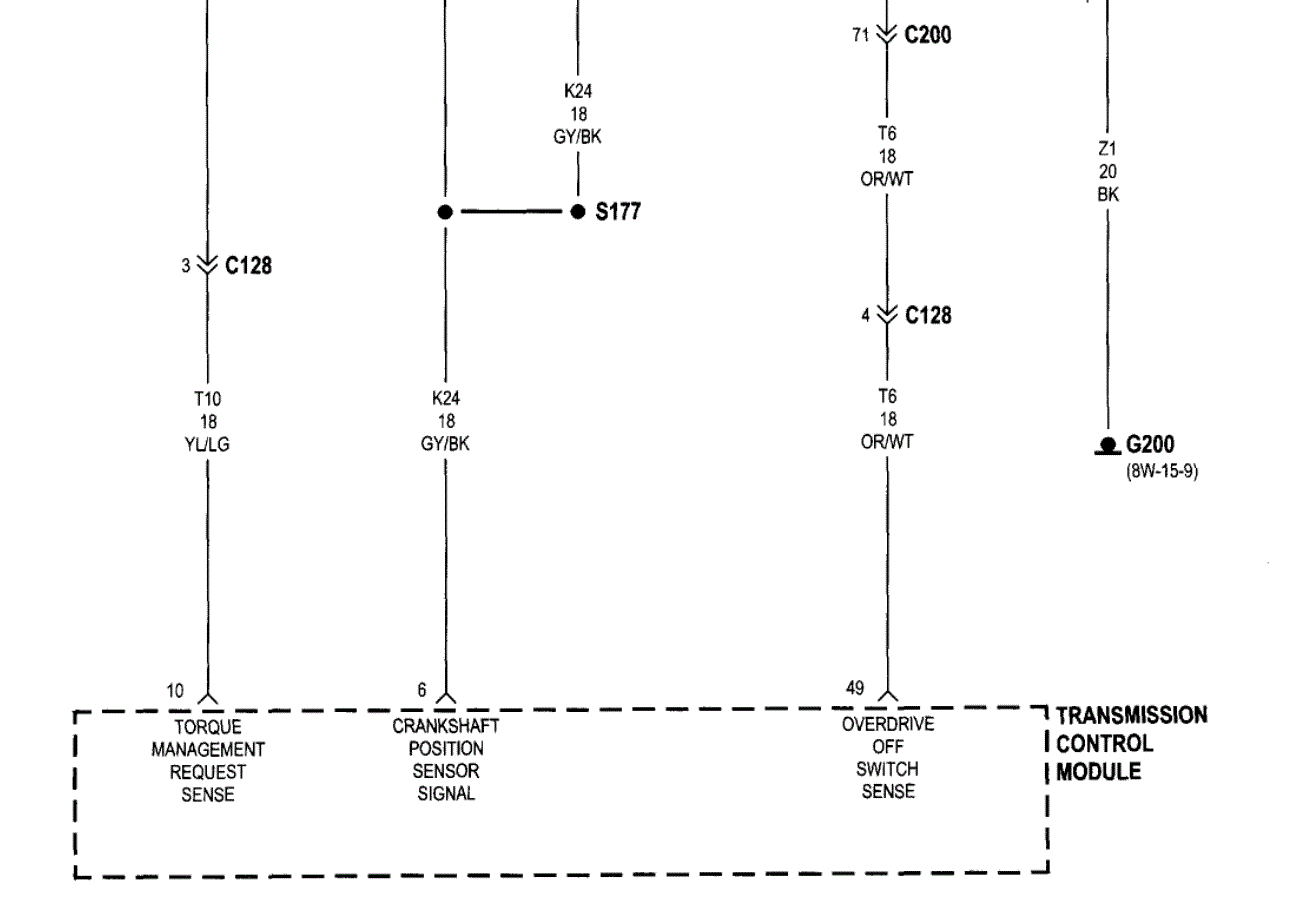

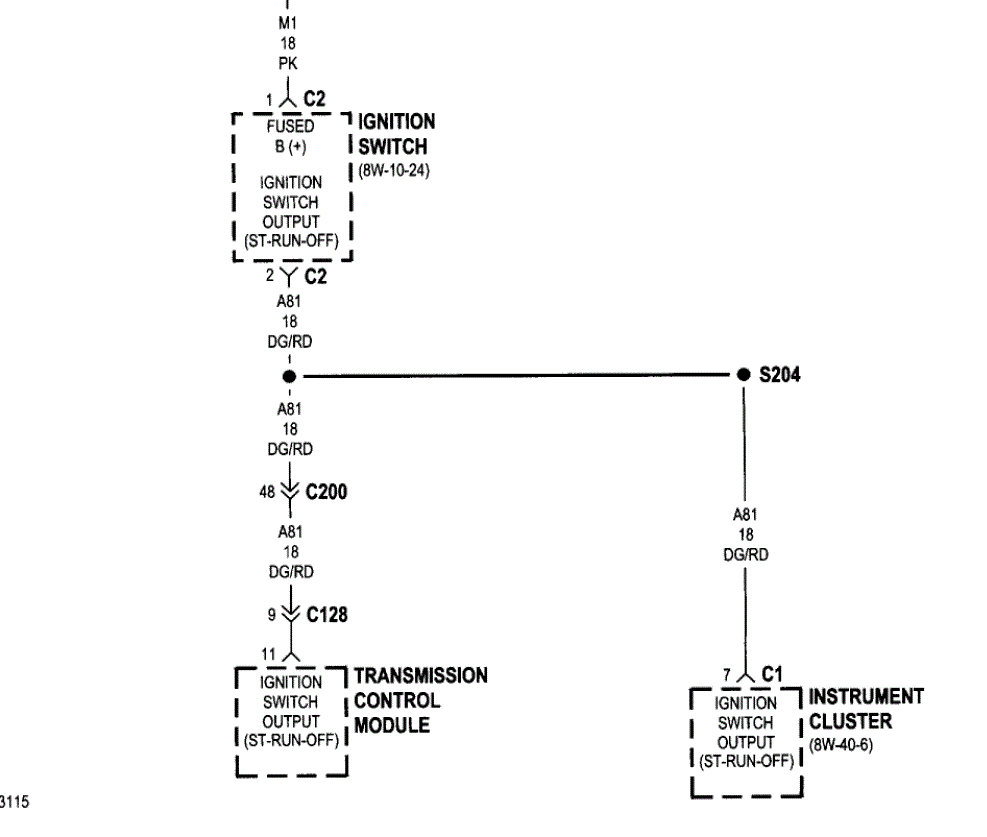

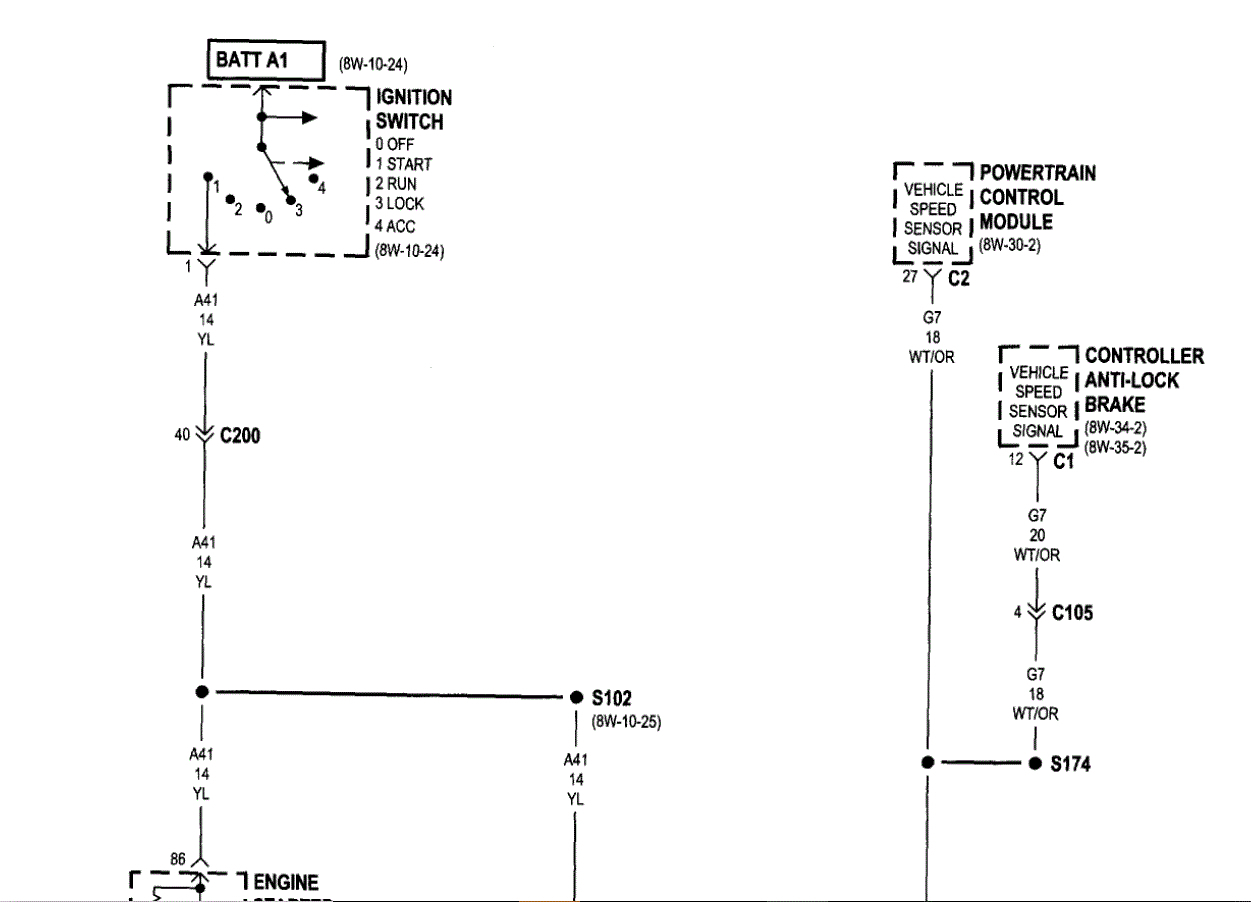

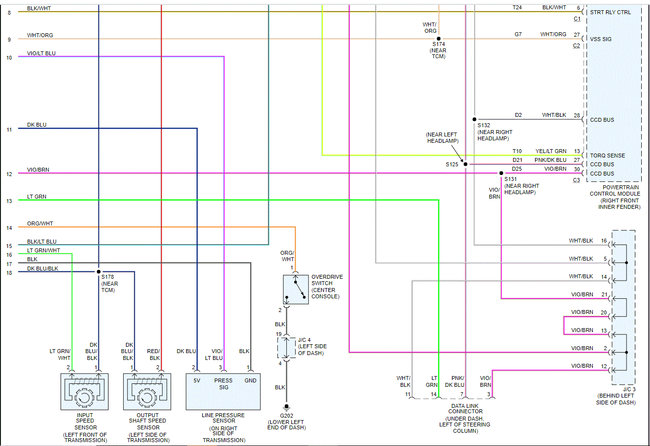

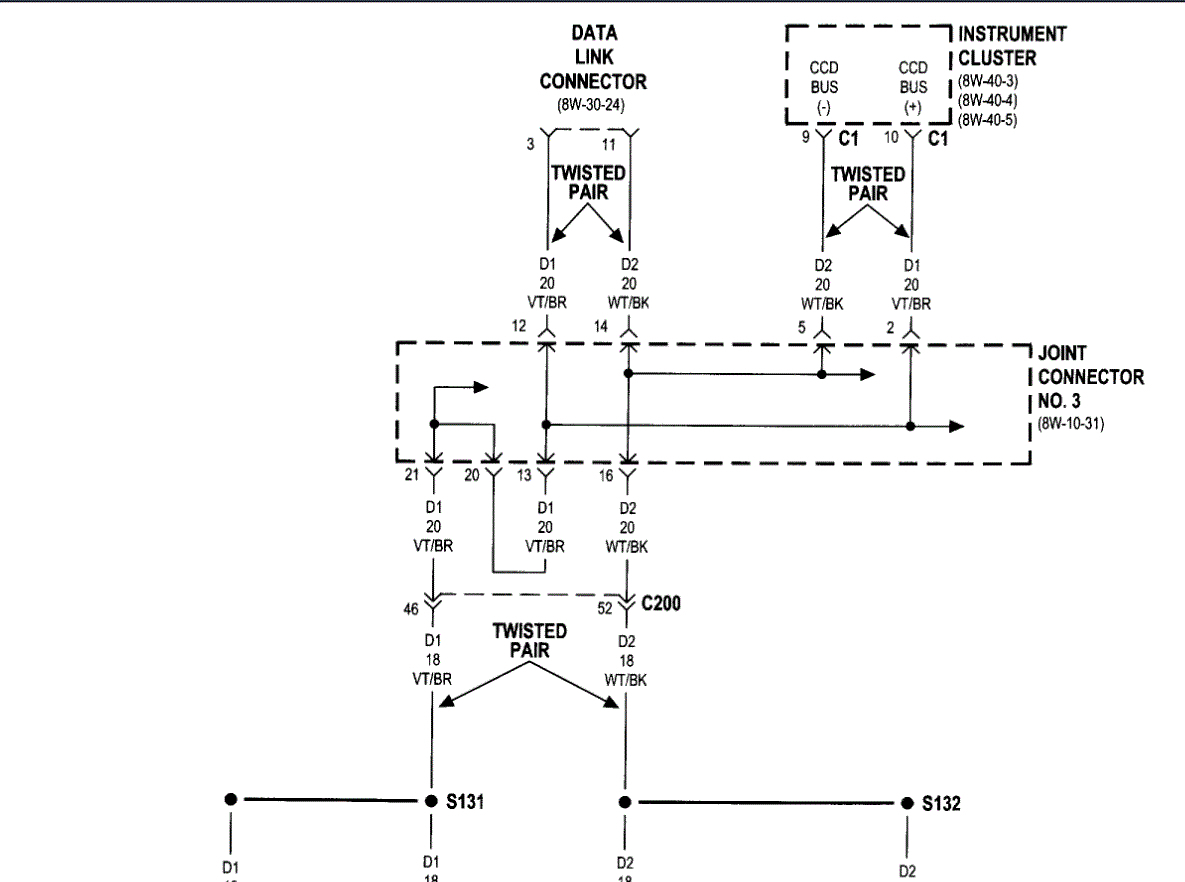

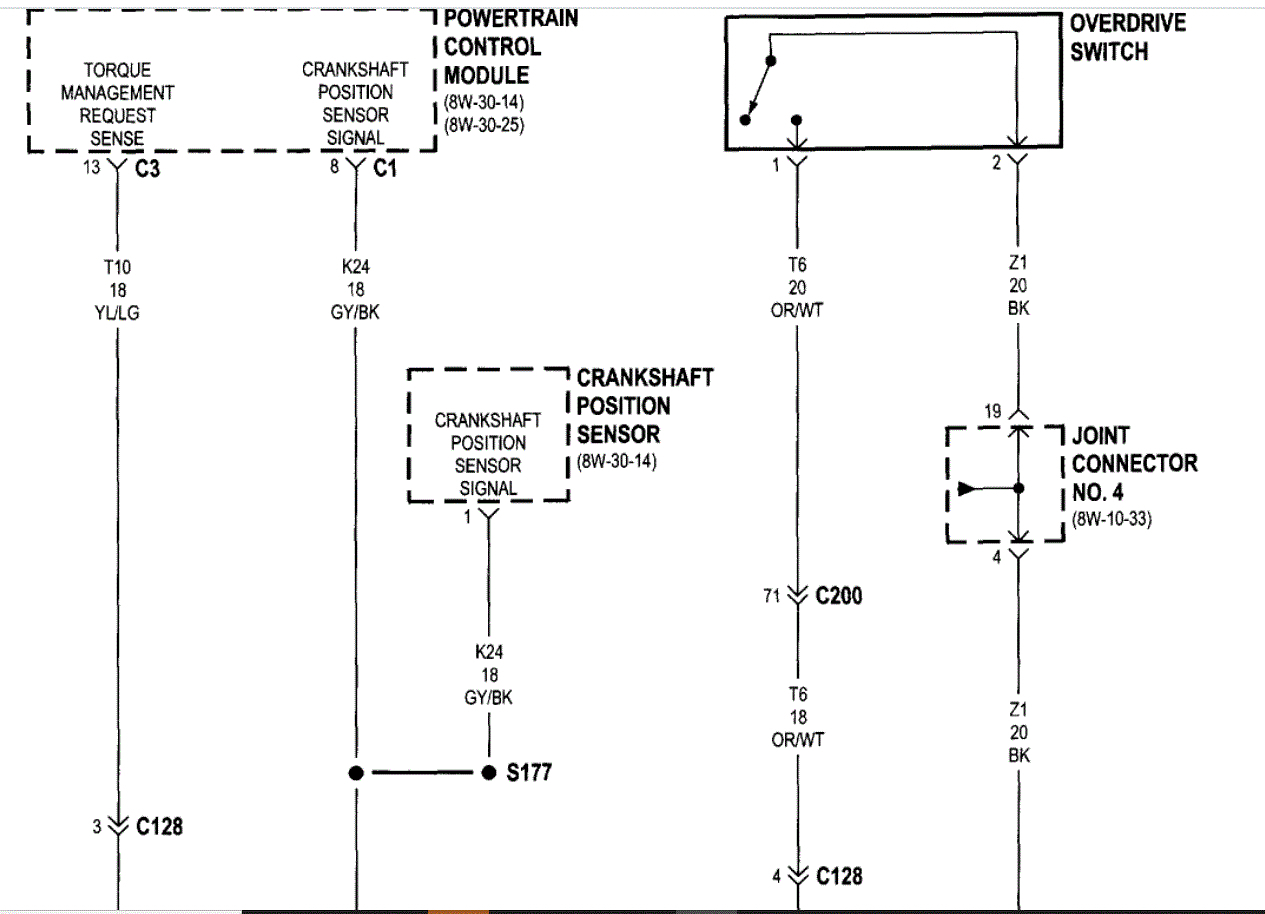

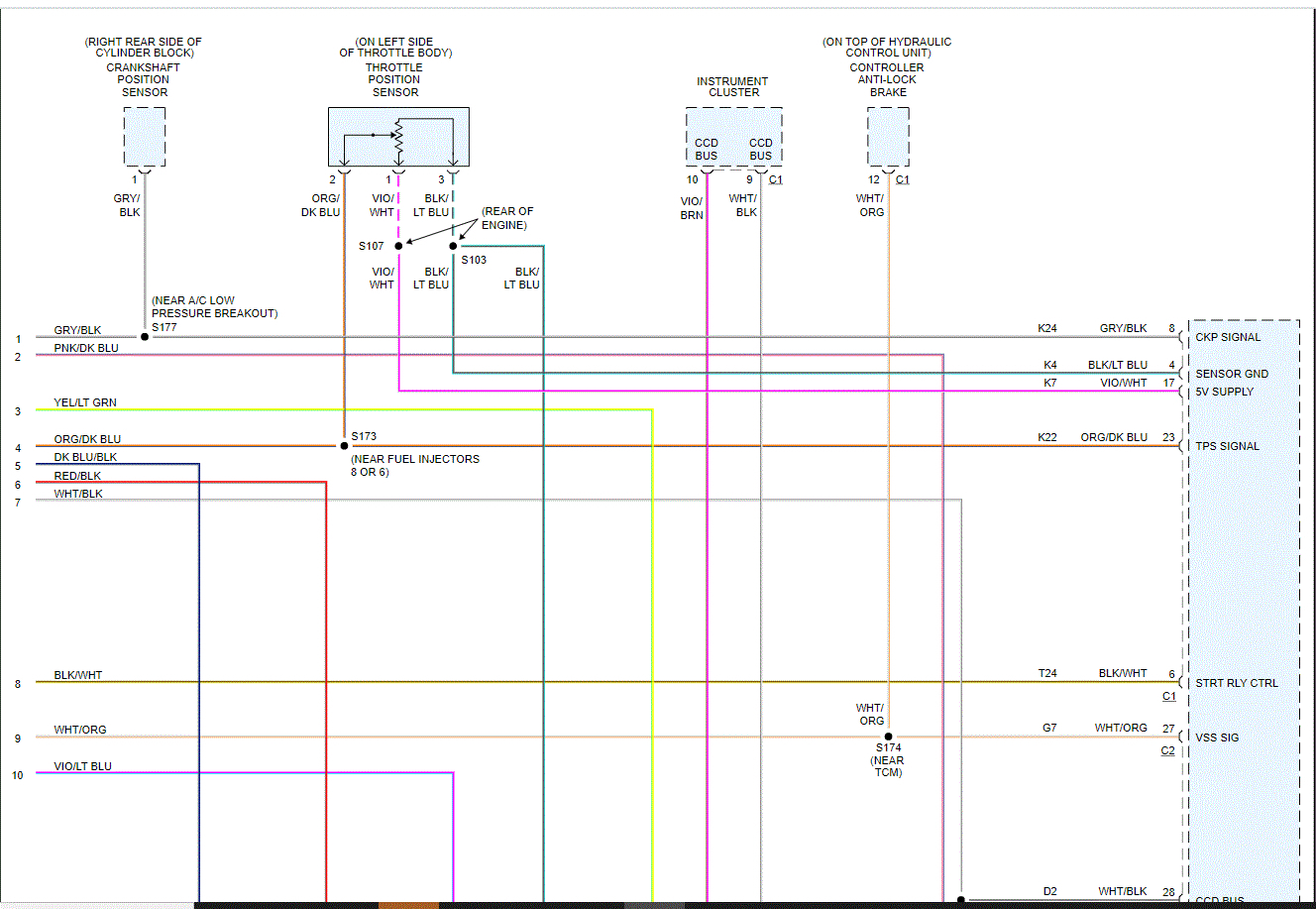

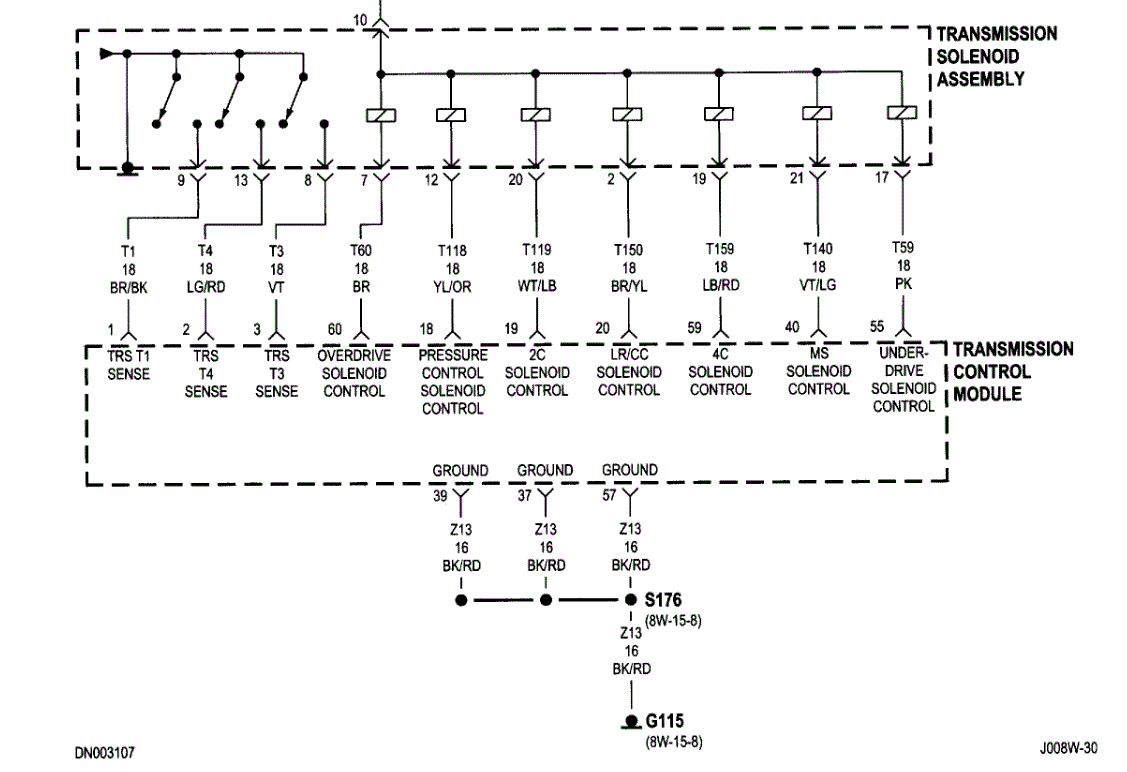

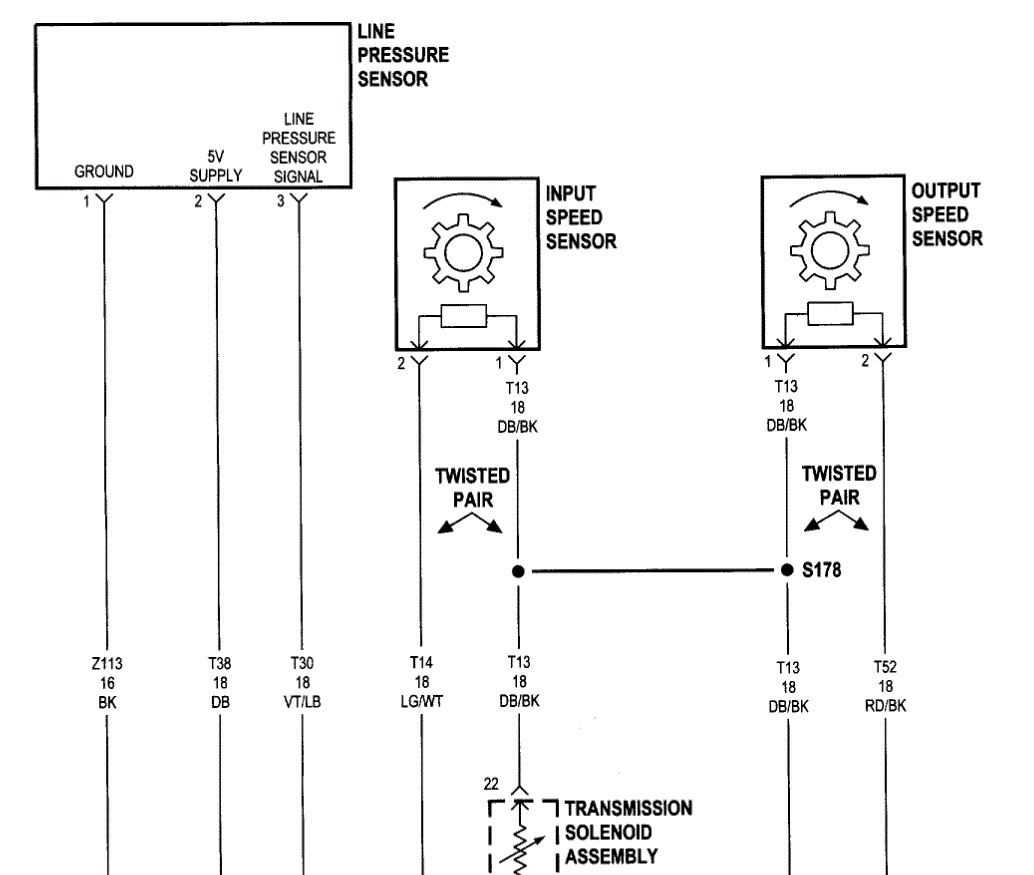

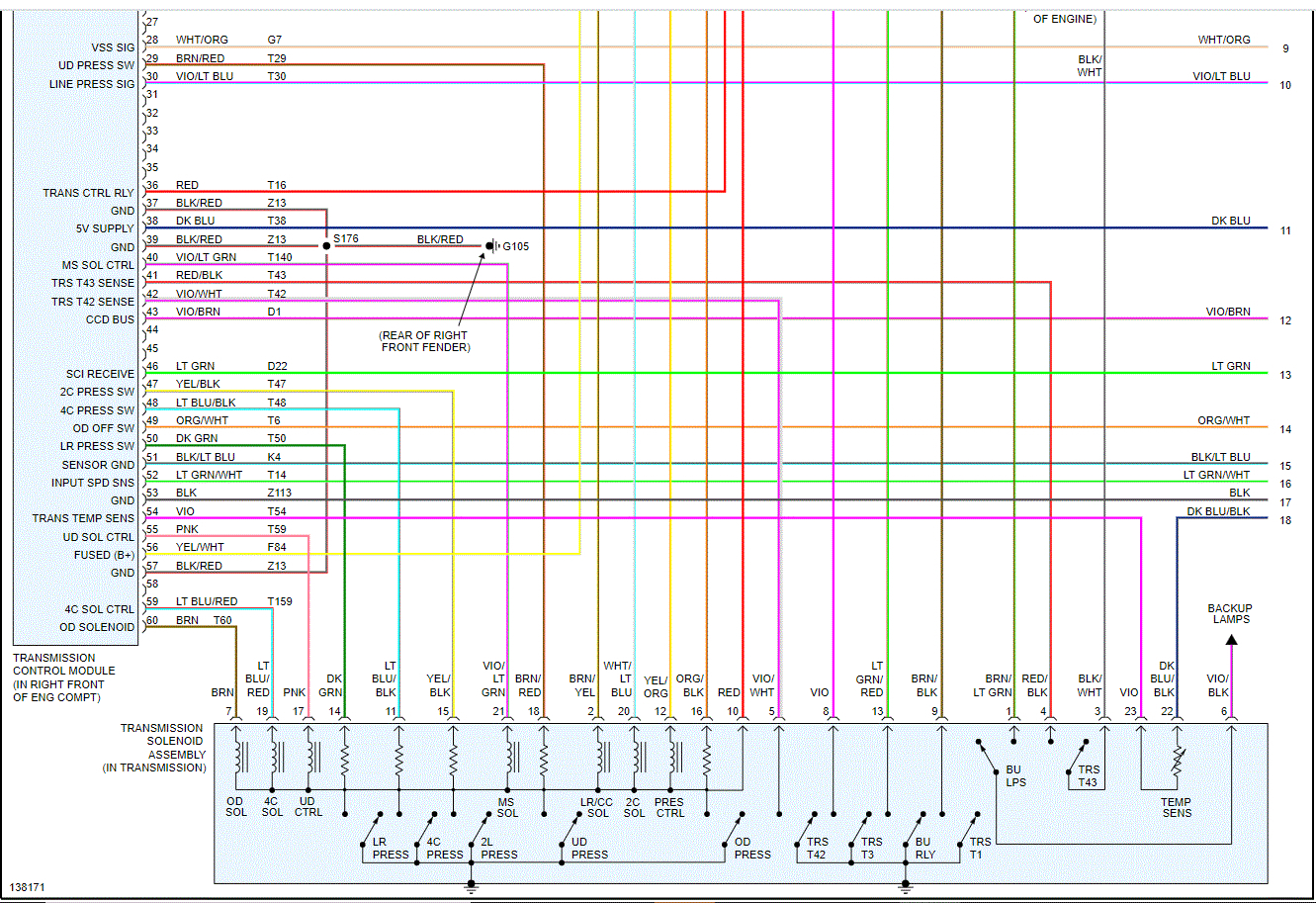

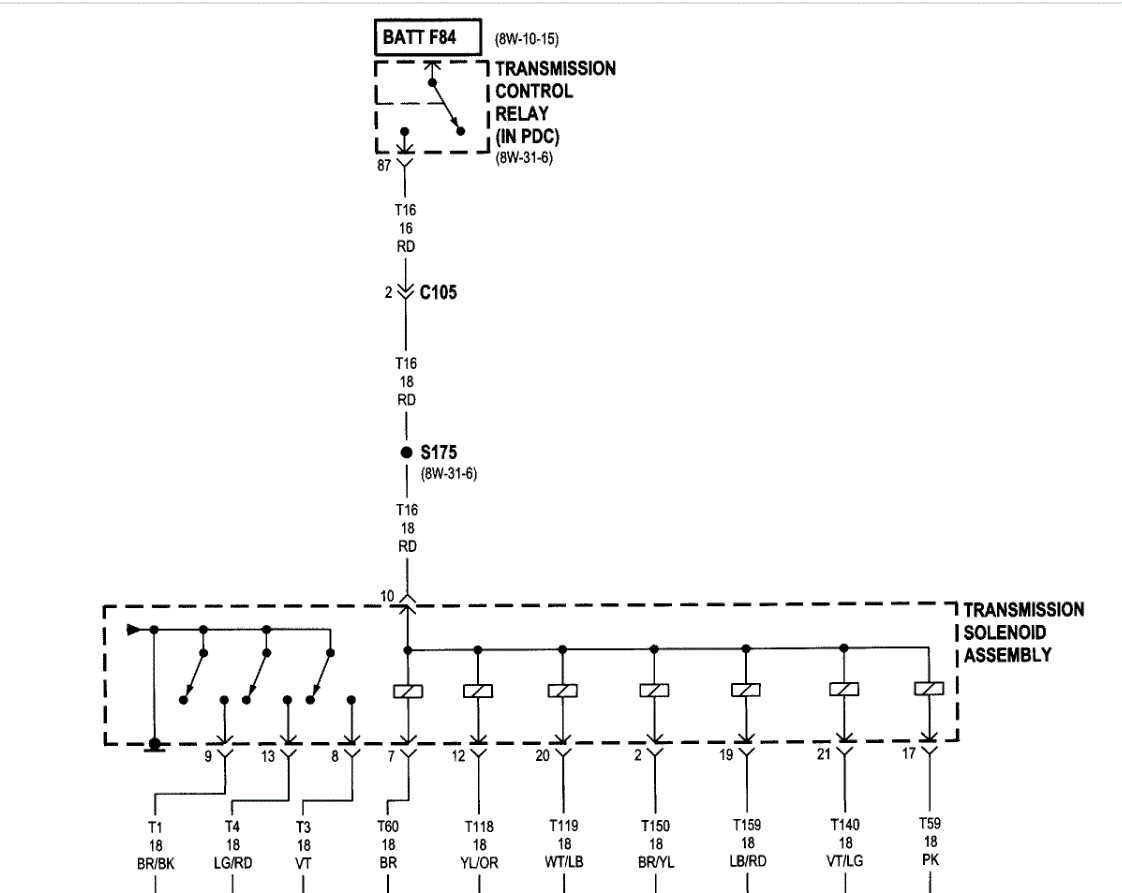

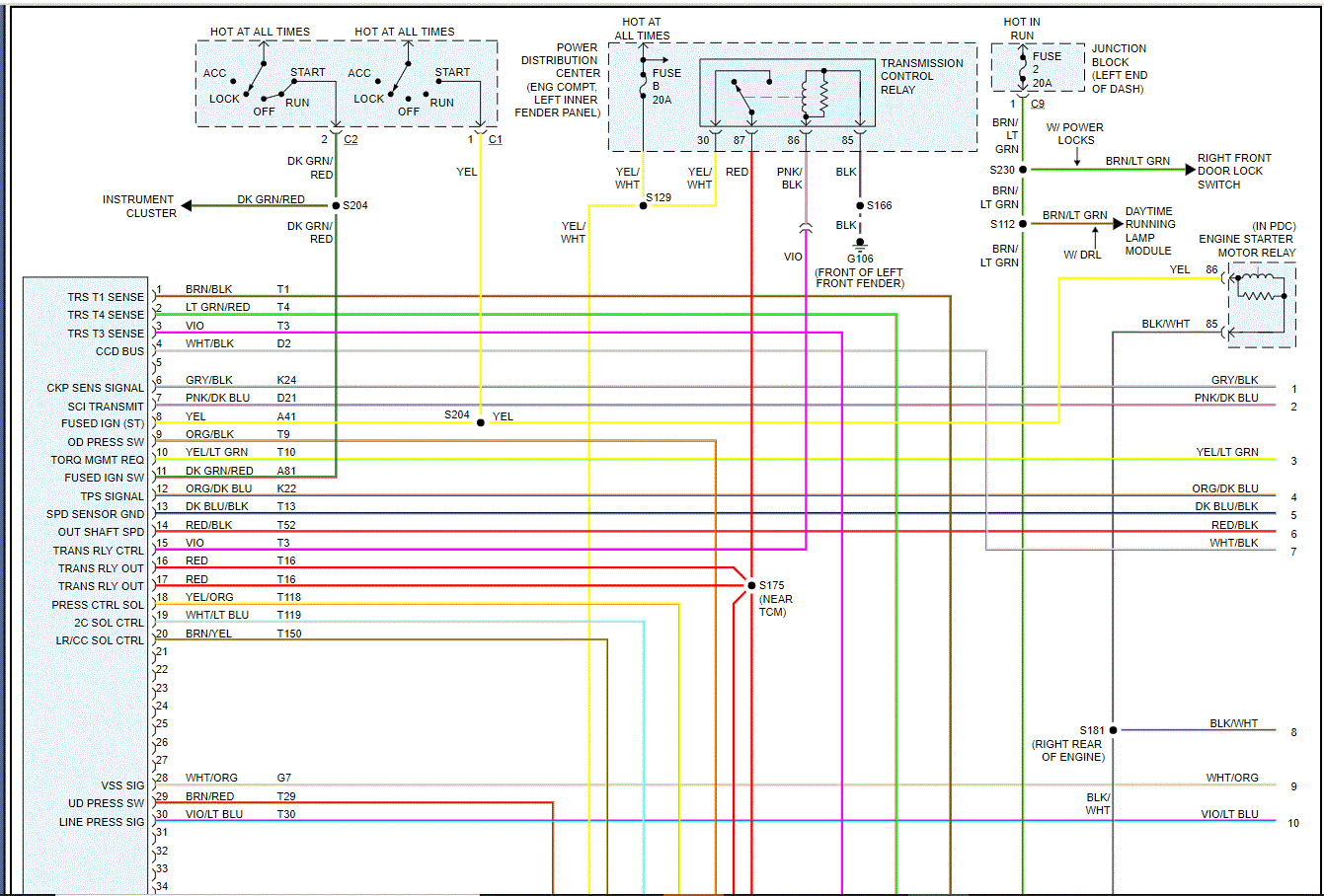

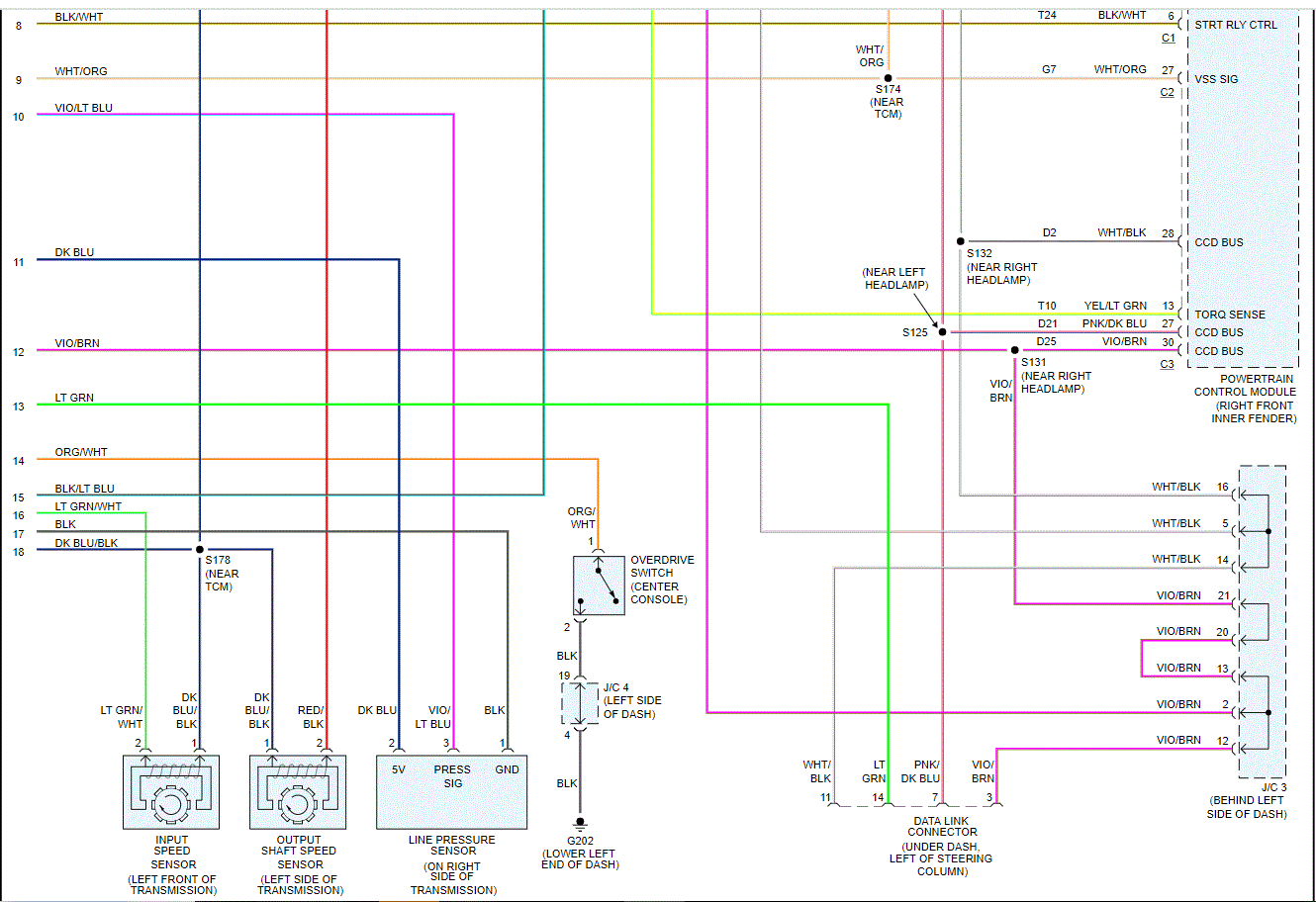

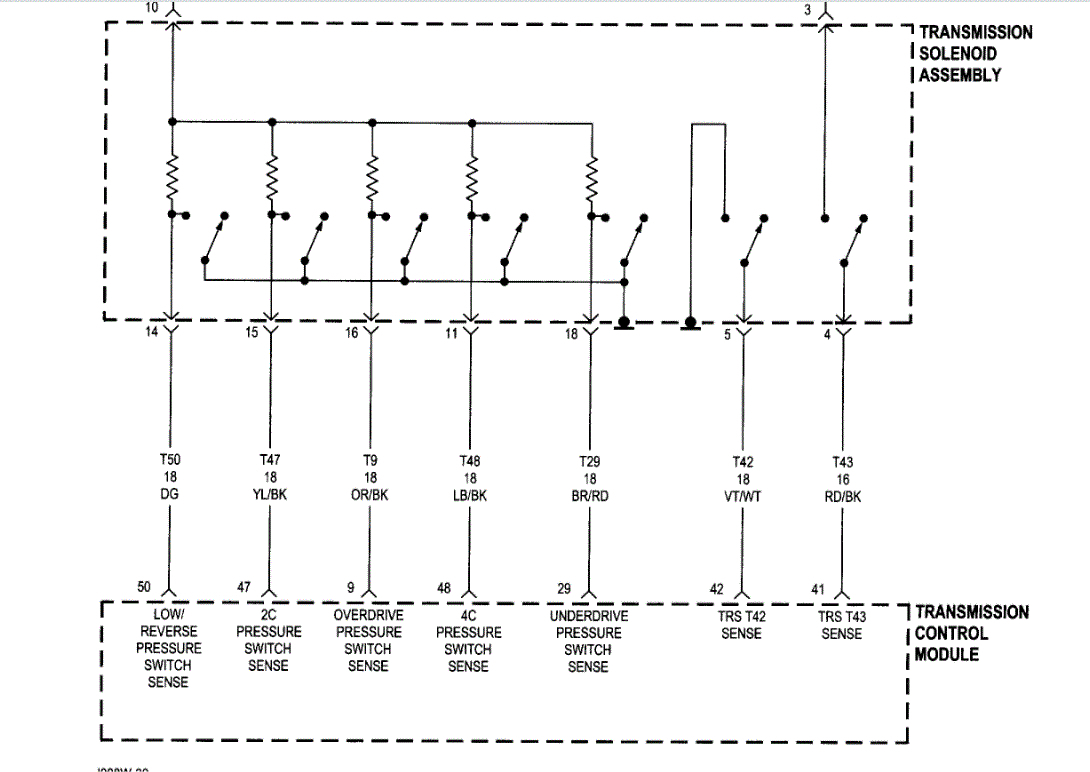

If you look below, I attached several pics. The first 4 are the AT circuit which includes the TCM. The remaining pics are the manufacturer's schematics. They have it broken down further.

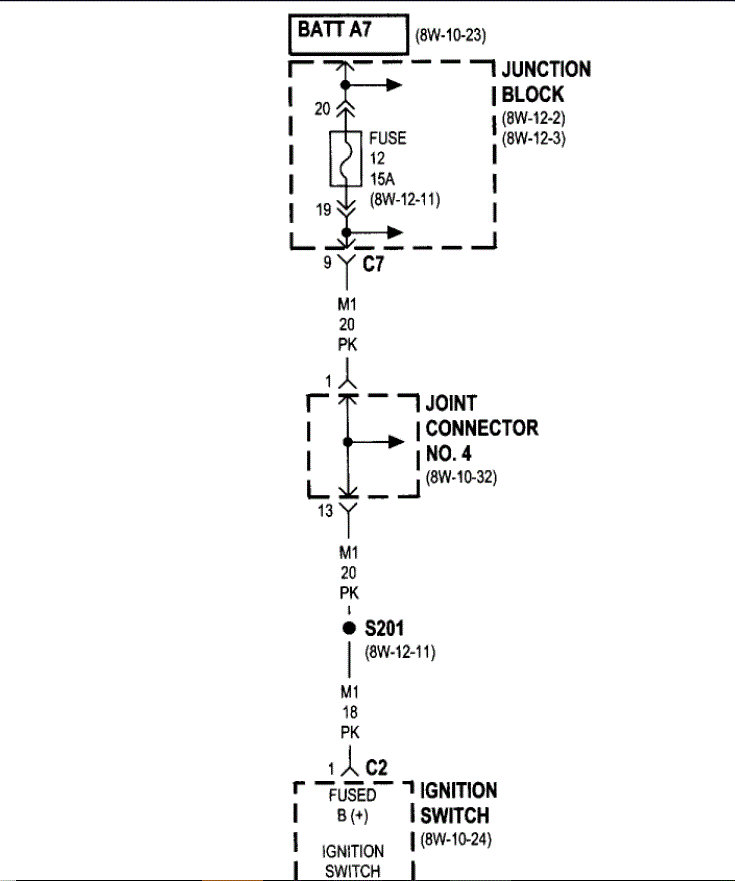

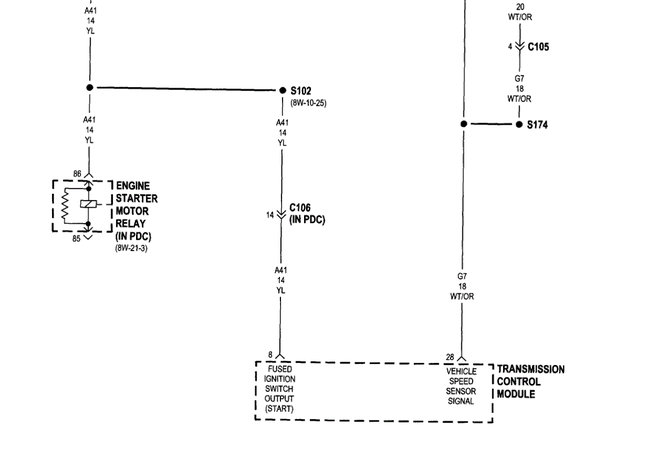

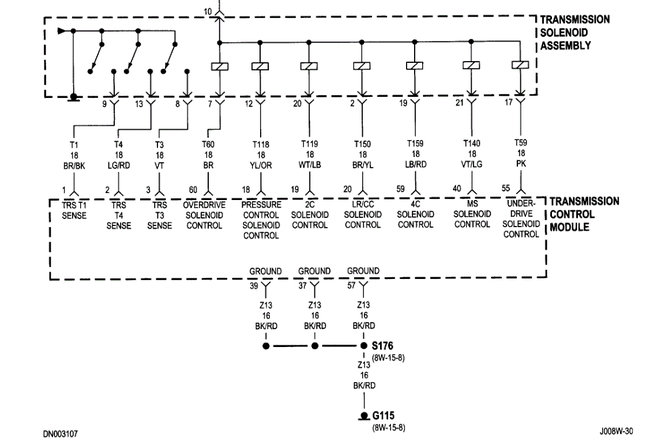

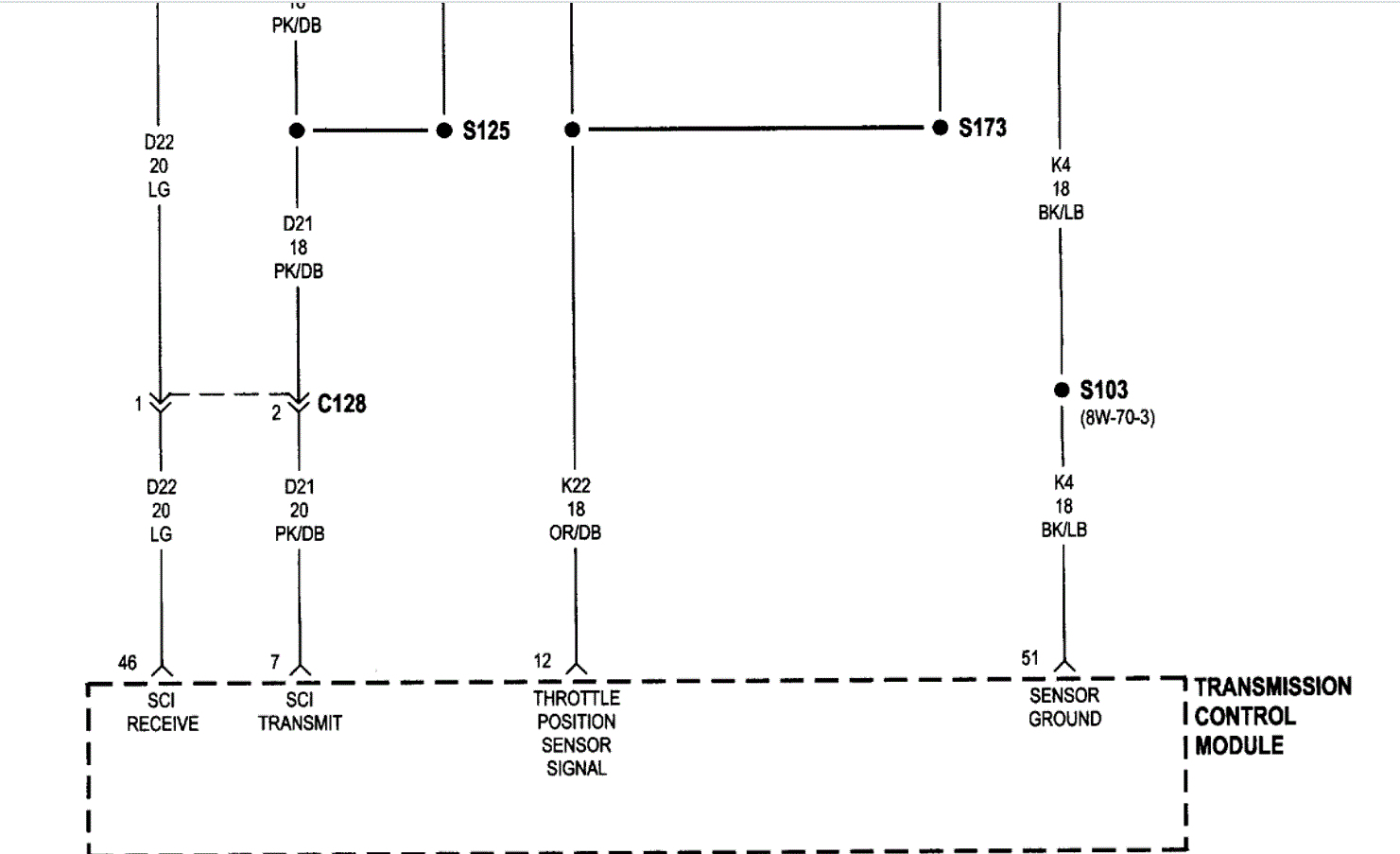

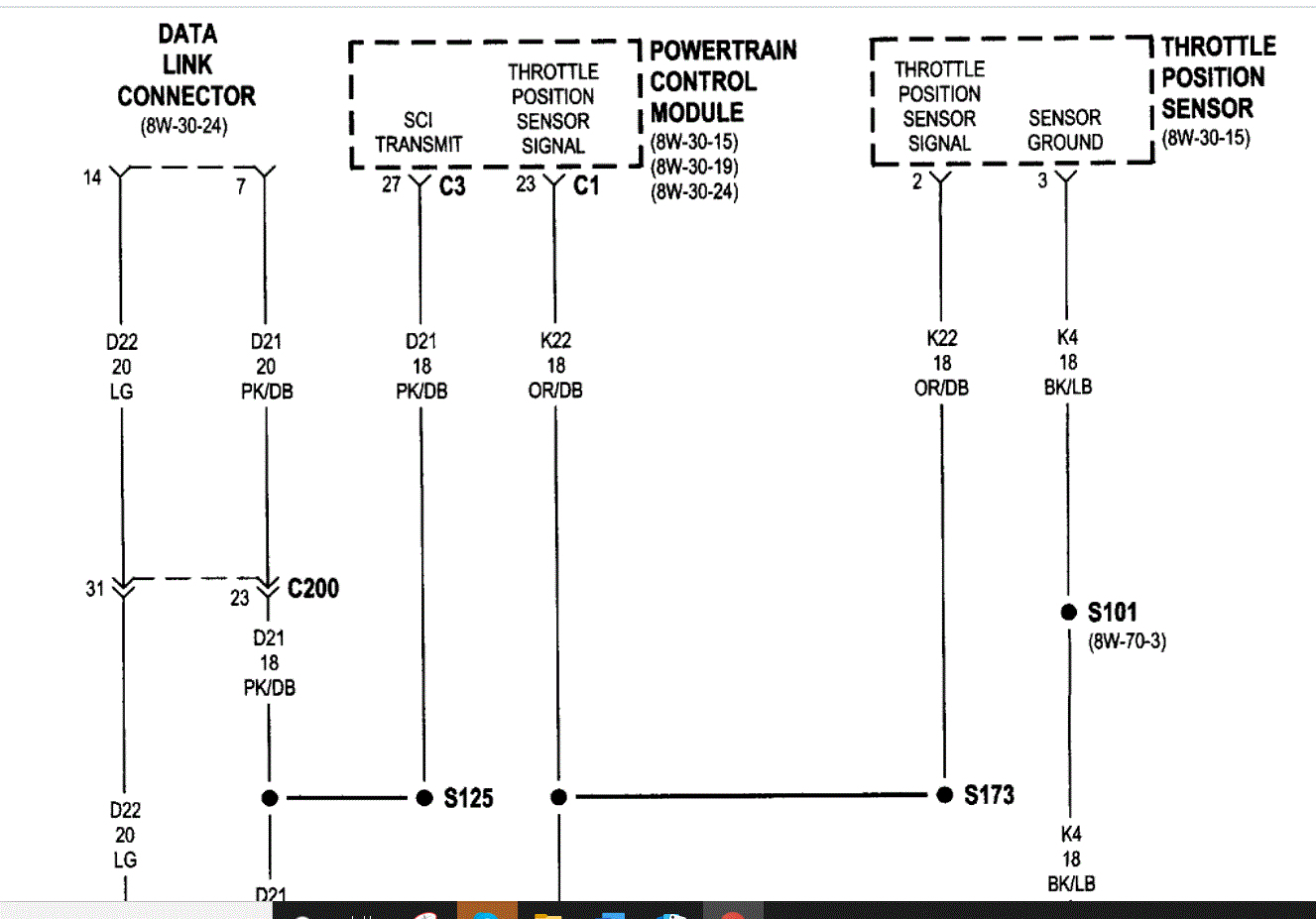

I had to cut each page (picture) in half to make them readable. So, every two pics are one page from the manual. I did overlap them so you can follow from one to the next.

Here is a link you may find helpful:

https://www.2carpros.com/articles/how-to-check-wiring

I hope this helps. Let me know if you have other questions.

Take care,

Joe

See pics below.
