I am in need of a transfer case actuator plug wiring diagram so I know where the wires go in the connector.
Oct 26, 2019 at 2:00 PM
Transfer case plug diagram
1997 FORD EXPEDITION
PRATTMAN
- MEMBER
- 1 POST
- FOLLOW
Repair Safety Notice:
This information is for general instructional purposes only. Vehicle repair can be dangerous.
Verify all information, follow manufacturer service procedures, use proper tools and safety equipment,
and consult a qualified repair shop when needed.
Advertisement
Hello, I'm Danny.
Here is a wire checking tutorial in case you need to view:
https://www.2carpros.com/articles/how-to-check-wiring

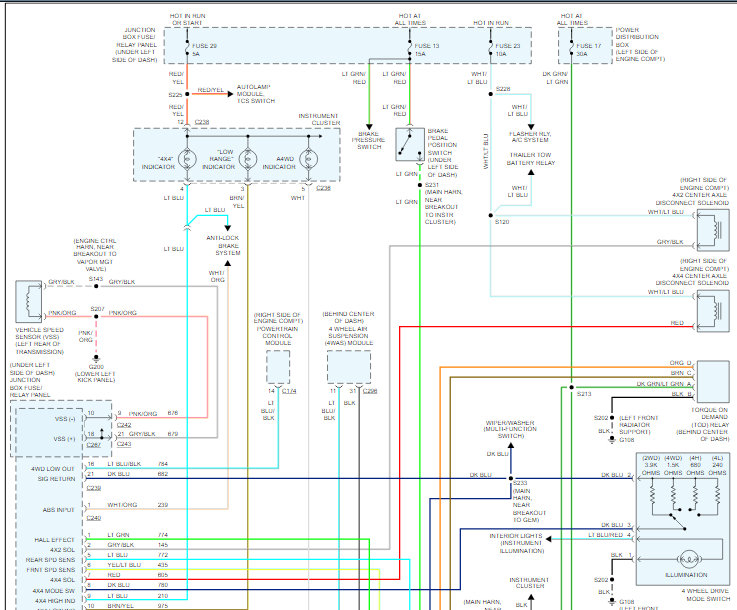

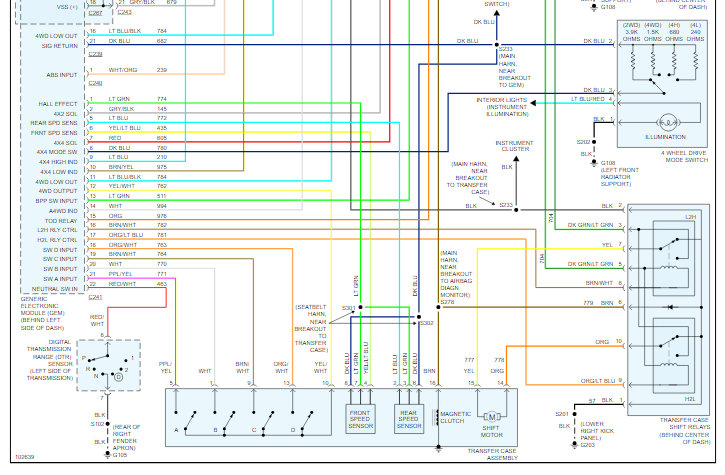

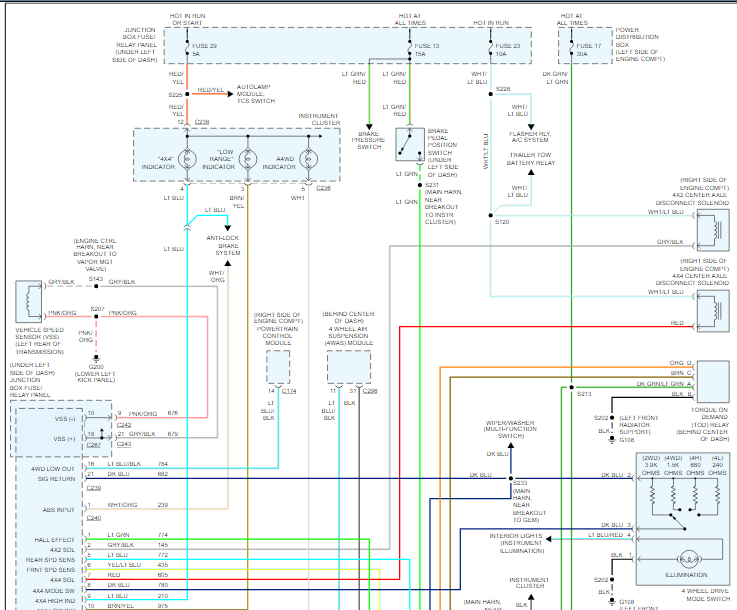

I've attached the transfer case wiring diagram below as you requested. I've split it in half to make it larger in size by making it 2 photos. Hope this helps and thanks for using 2CarPros.
Danny-
Here is a wire checking tutorial in case you need to view:
https://www.2carpros.com/articles/how-to-check-wiring
I've attached the transfer case wiring diagram below as you requested. I've split it in half to make it larger in size by making it 2 photos. Hope this helps and thanks for using 2CarPros.
Danny-
