LOCATION OF FUSE BOXES

2005 SUZUKI XL7
25,300 MILES • 6 CYL • 4WD • AUTOMATIC
Avatar
LARRYSDOME
  • MEMBER
  • 1 POST
IS THERE MORE THAN ONE FUSE BOX.
Mar 17, 2009 at 1:39 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,853 POSTS
  • ASE Certified Mechanic
Hello,

Here is a guide to show you how to check the fuses.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

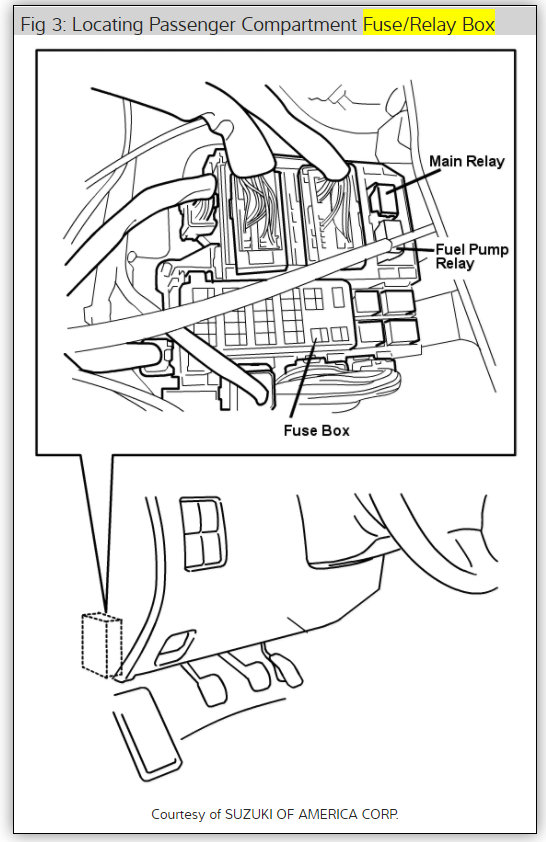

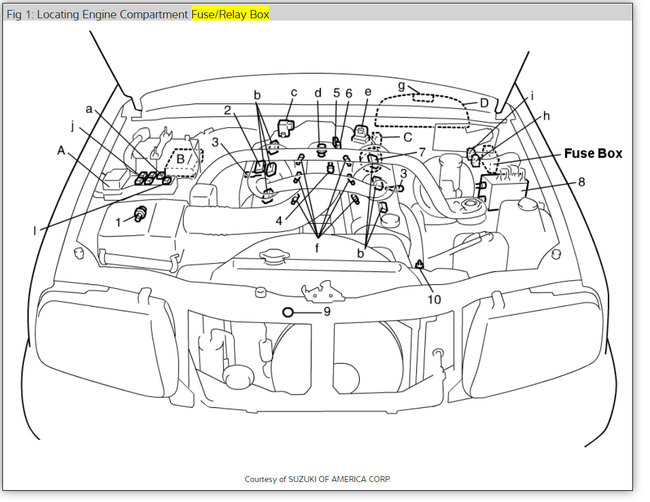

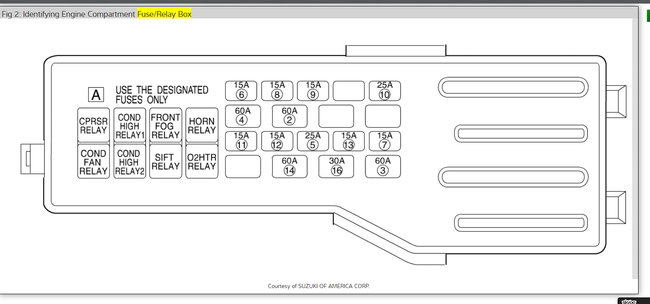

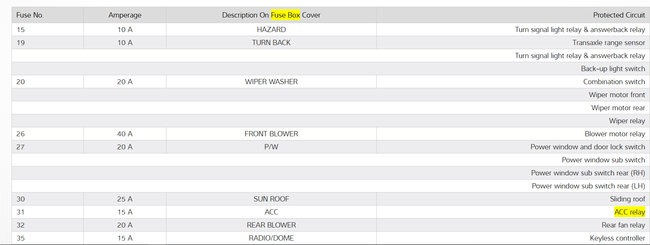

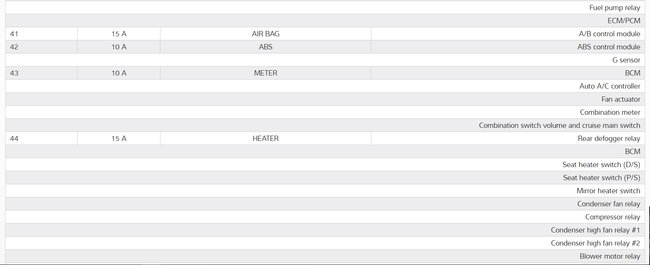

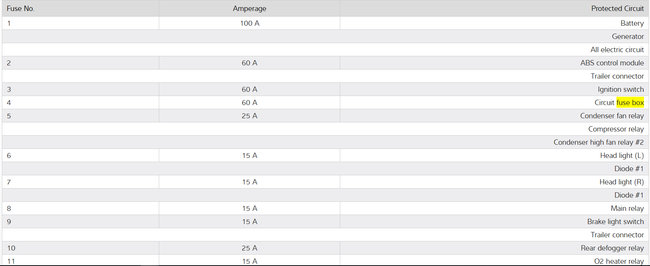

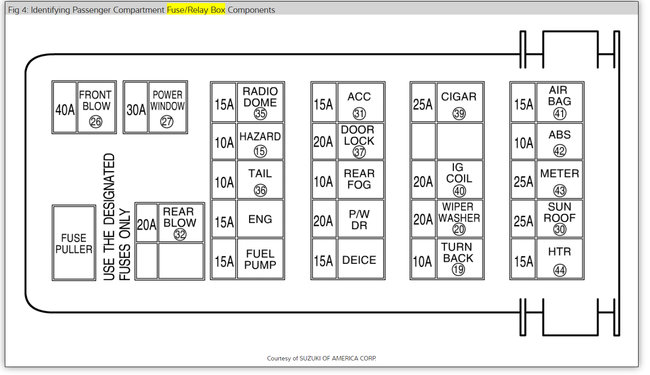

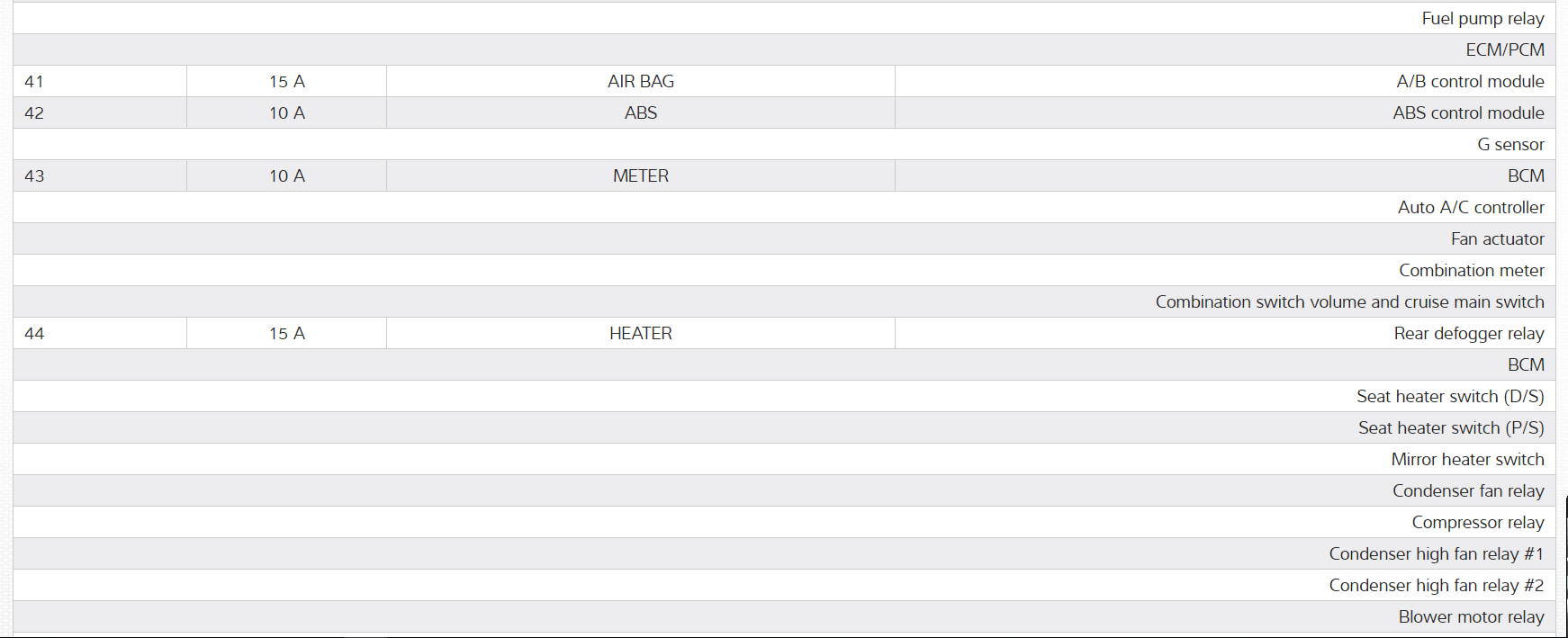

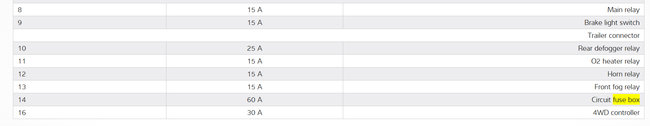

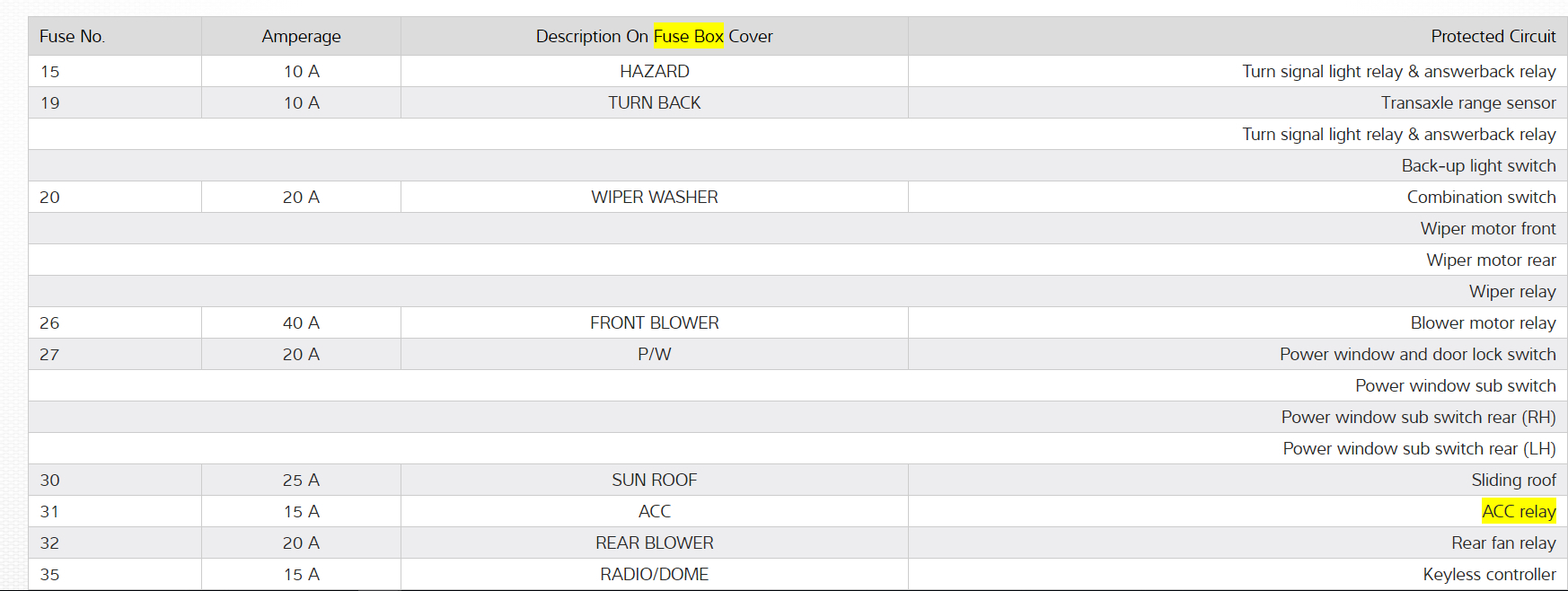

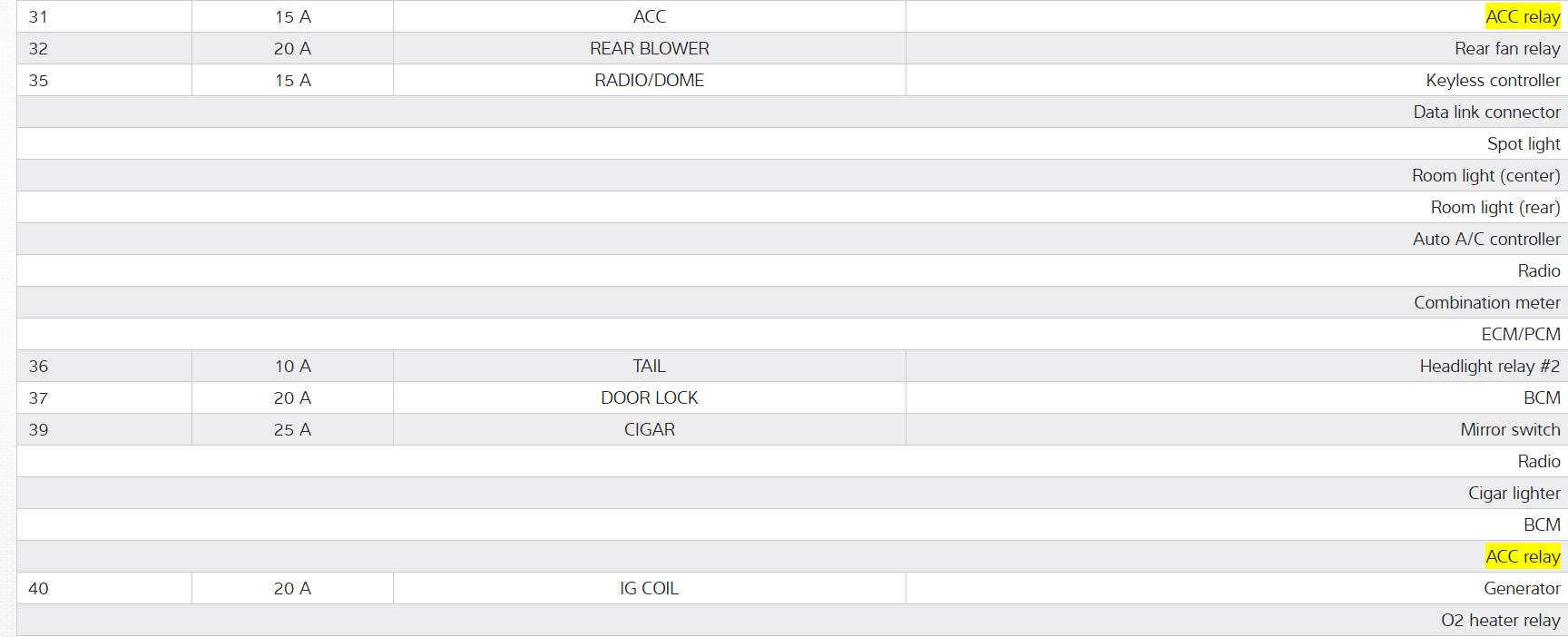

Here is the location of the fuses (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
