Suspension diagram

1994 HONDA CIVIC
170,000 MILES • 1.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
JOSUE RODRIGUEZ2
  • MEMBER
  • 23 POSTS
Are there any suspension diagrams rear and front for the car listed above hatchback that include all bolts, screws, and washers? Any sort of suspension diagram would help. I forgot which screw went where and with what. Any help would be appreciated.

Thanks
Mar 15, 2021 at 2:25 PM
Advertisement
Avatar
STEVE W.
  • ✓Experienced Mechanic
  • 15,330 POSTS

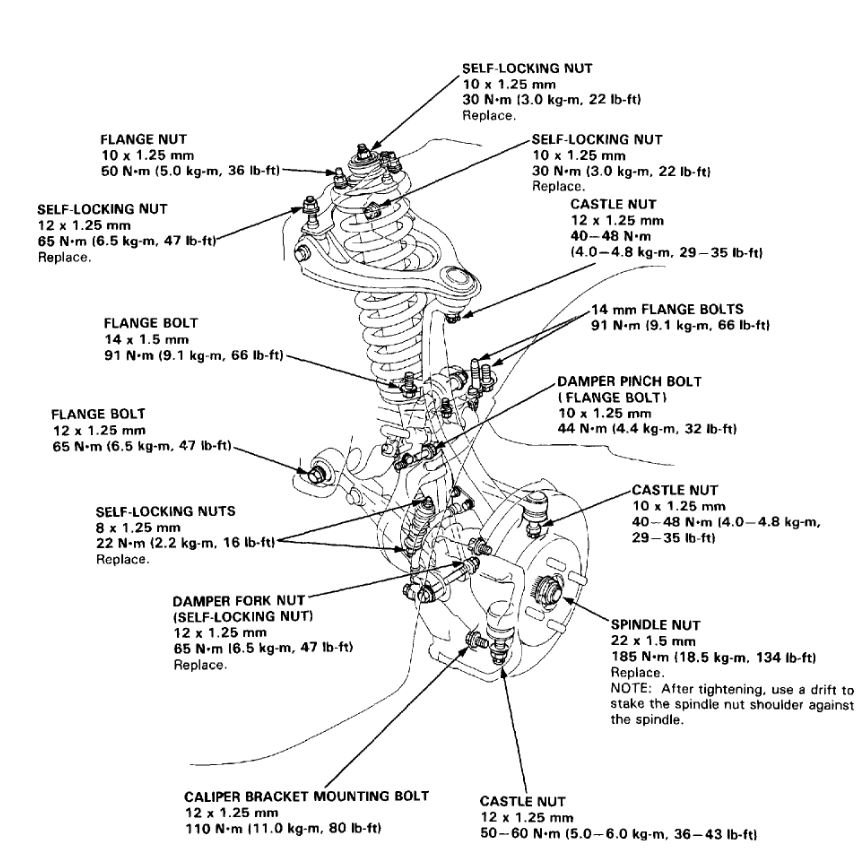

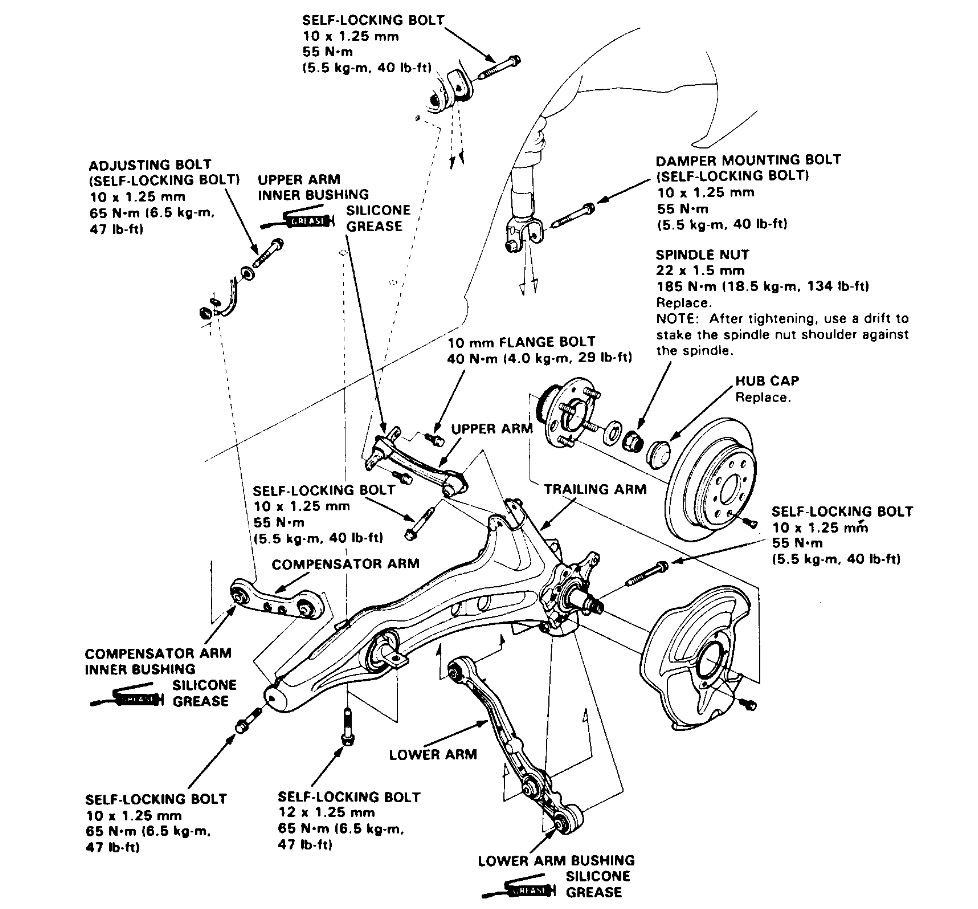

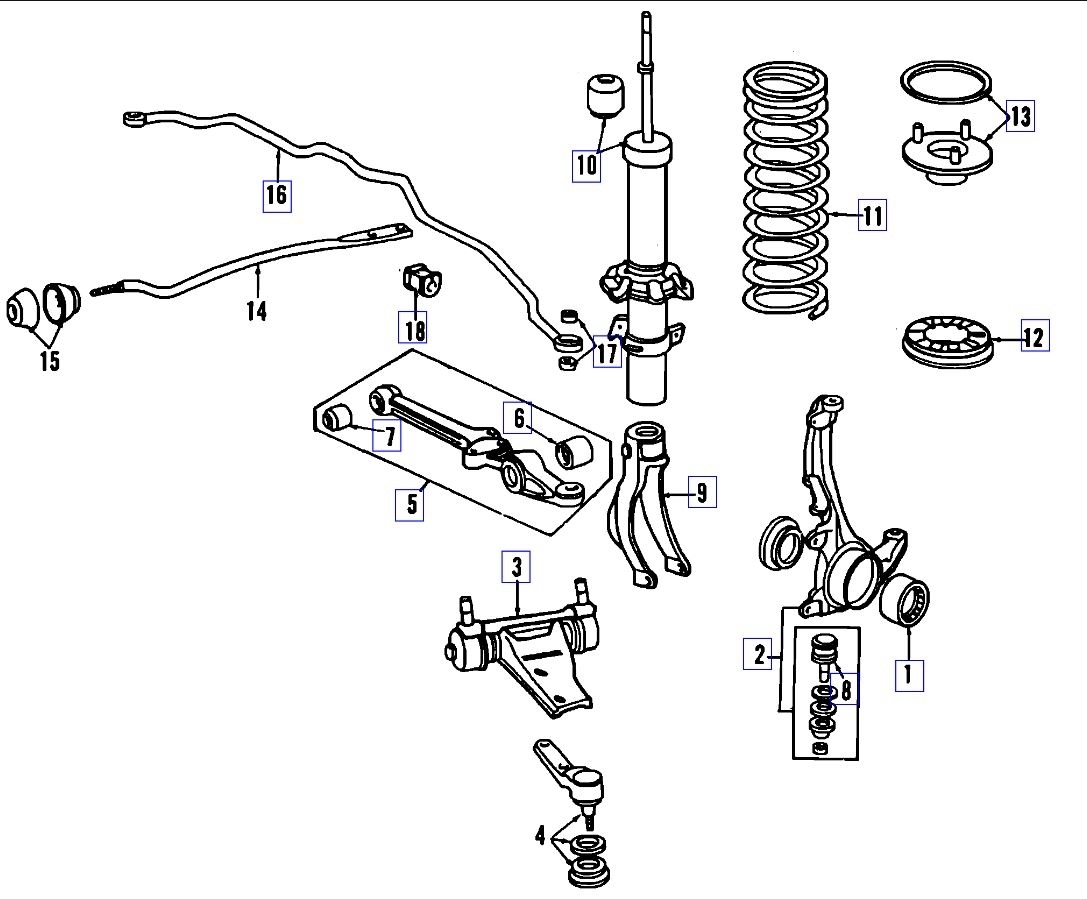

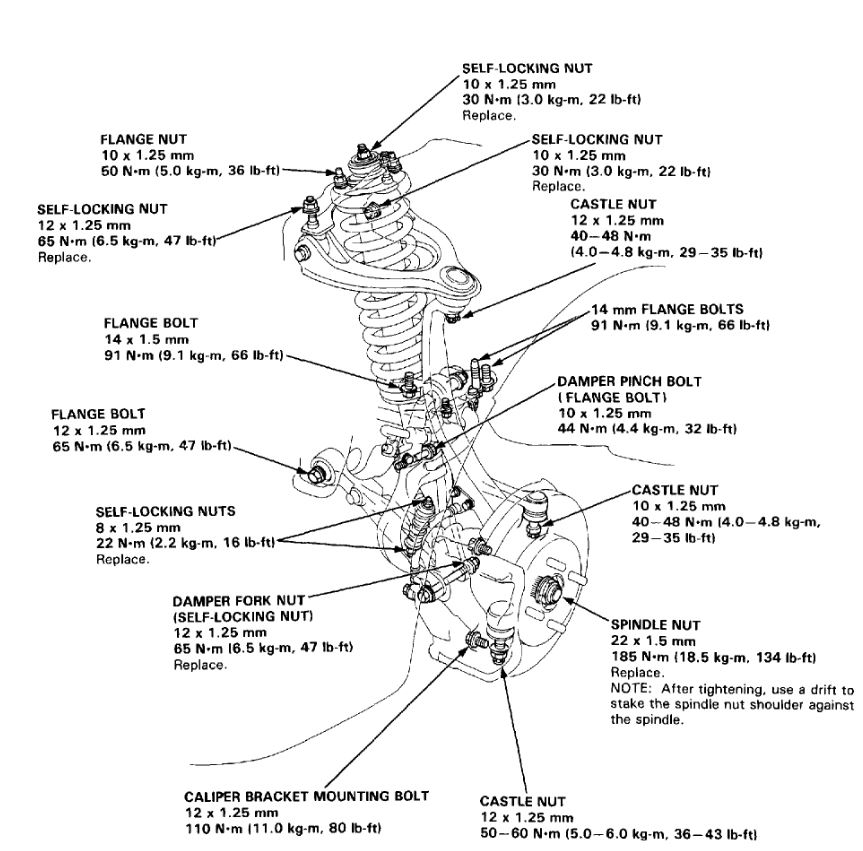

These might help. These are the main suspension components and most of the fasteners. Beyond those you would need the build manual.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Mar 15, 2021 at 3:39 PM
Avatar
JOSUE RODRIGUEZ2
  • MEMBER
  • 23 POSTS
This is exactly what I was looking for.

Thanks for the help.
Mar 16, 2021 at 6:53 AM
Avatar
STEVE W.
  • ✓Experienced Mechanic
  • 15,330 POSTS
You are welcome.
Mar 16, 2021 at 8:46 AM
