Installing aftermarket stereo, need correct pin out info and wiring colors for all three harnesses

2007 FORD EXPEDITION
100,000 MILES • 5.4L • V8 • 4WD • AUTOMATIC
Avatar
AWILDHEART
  • MEMBER
  • 1 POST
Trying to install aftermarket stereo but not sure what harness I need for my SUV I have already purchased a few that were supposed to work for my vehicle, but the wire and pin outside don't match up. My SUV has three harnesses coming out from where the stock 6-disc changer head unit was, but I can't figure out what the wires go to on one of them. Looking for correct pin out info and wiring colors for all three harnesses on the vehicle listed above Eddie Bauer Edition.
Oct 5, 2021 at 6:52 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓ASE Certified Mechanic
  • 110,194 POSTS
  • ASE Certified Mechanic
Hi,

I will be happy to help, but I need to narrow things down. There are three possible systems. I read through the schematics on them, and none indicate a 6-disc changer.

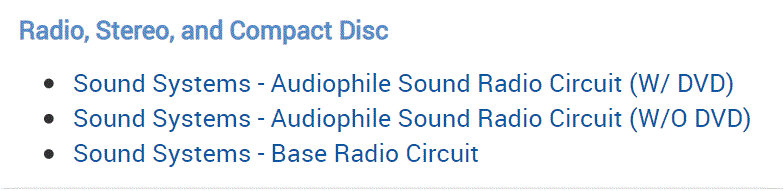

Take a look at the pic below and let me know which one you feel is the correct one.

Take care,

Joe

See pic.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Oct 6, 2021 at 8:33 PM
