color code for speakers.
Apr 22, 2020 at 1:00 AM
Wiring diagram for speakers
2005 MERCEDES BENZ ML350
CHOMP
- MEMBER
- 1 POST
Advertisement
JACOBANDNICKOLAS
- ✓ASE Certified Mechanic
- 110,194 POSTS
Hi,
Are you looking for wiring info?

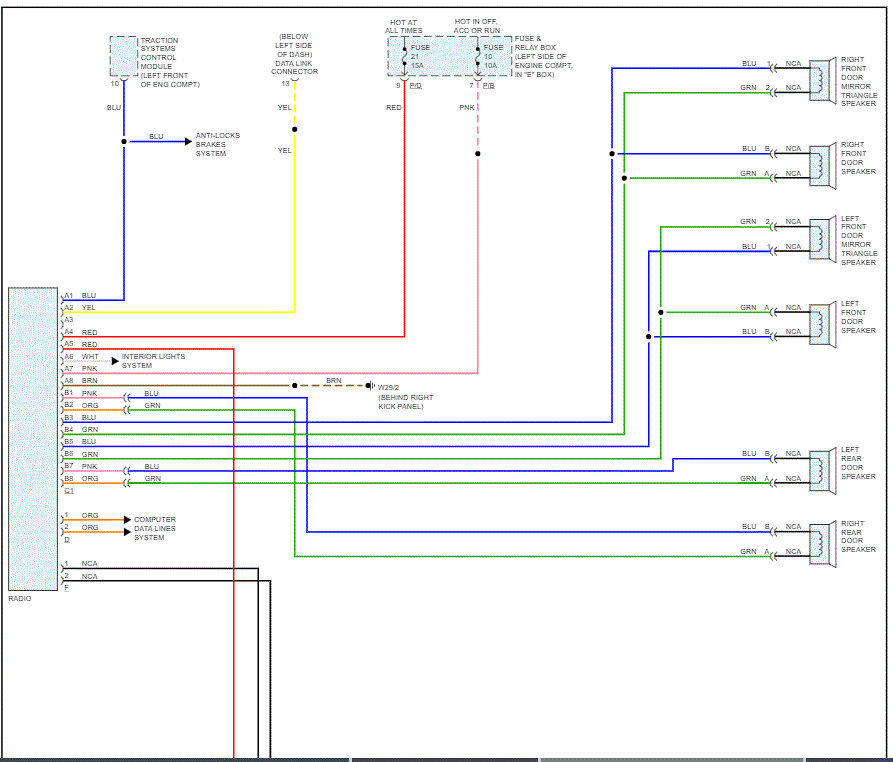

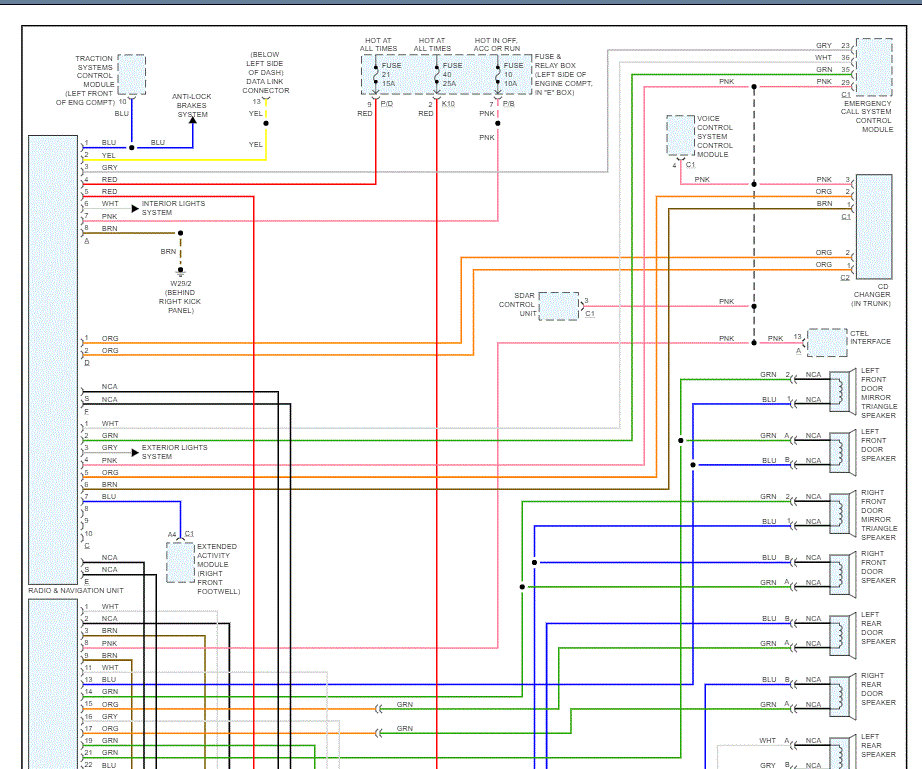

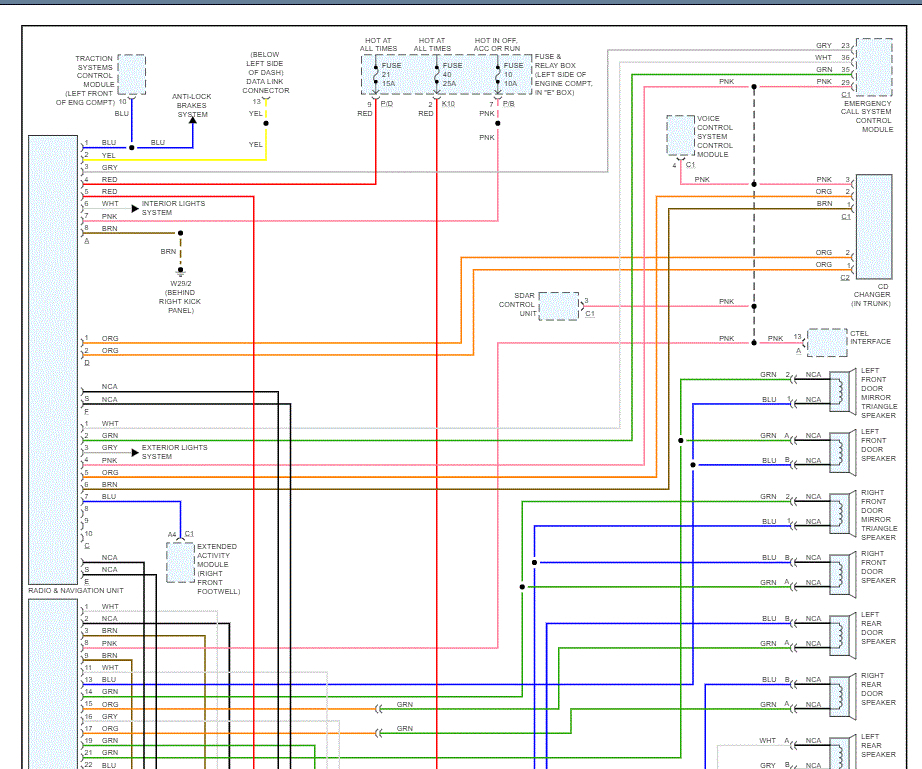

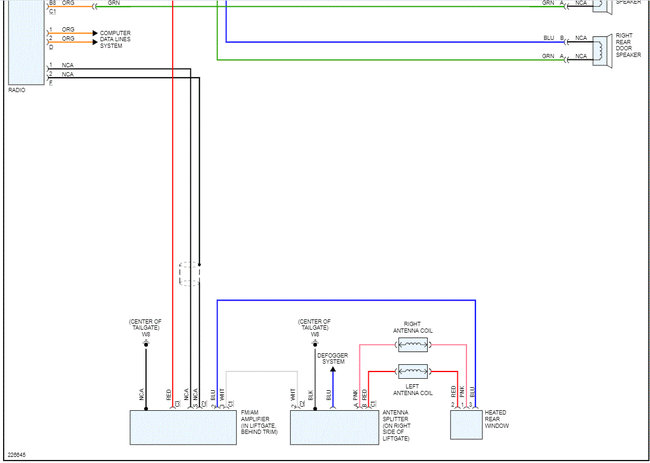

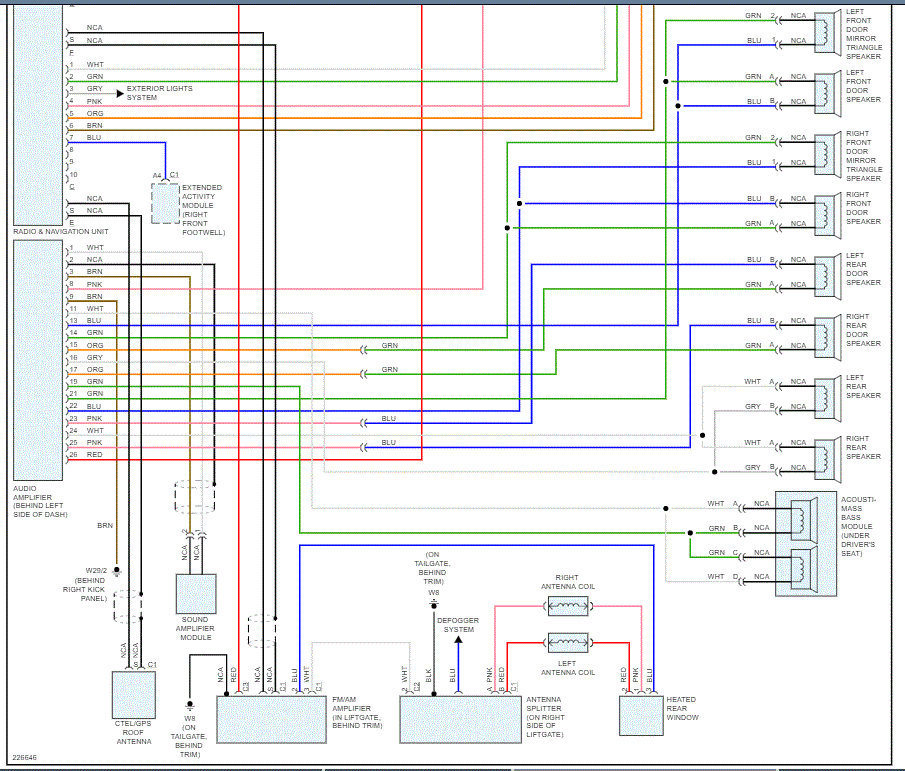

I attached four pics below. They were actually two pages, but I cut them in half to make them readable. The first two are page 1. The second two are page two. They both indicate wiring color to speakers. I hope this is what you meant.
Let me know if this helps.
Joe
Are you looking for wiring info?
I attached four pics below. They were actually two pages, but I cut them in half to make them readable. The first two are page 1. The second two are page two. They both indicate wiring color to speakers. I hope this is what you meant.
Let me know if this helps.
Joe
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
