Spark plugs wire schematic needed?
SALLYMANDERMATIC
MEMBER
2004 FORD RANGER
3.0L
6 CYL
2WD
MANUAL
158,106 MILES
Wiring diagram for spark plugs.
Sunday, February 26th, 2023 AT 2:51 PM
3 Replies
STEVE W.
MECHANIC
13,573 POSTS

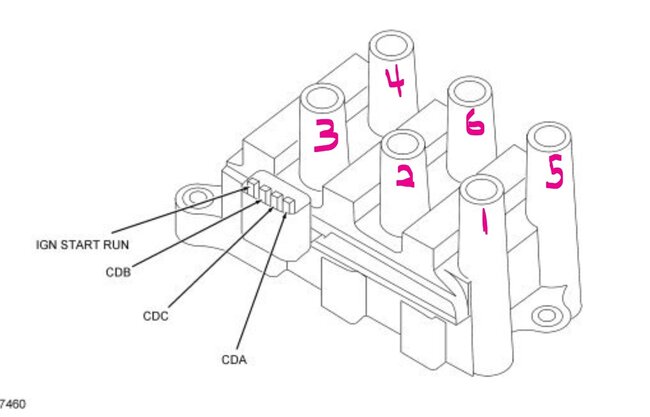

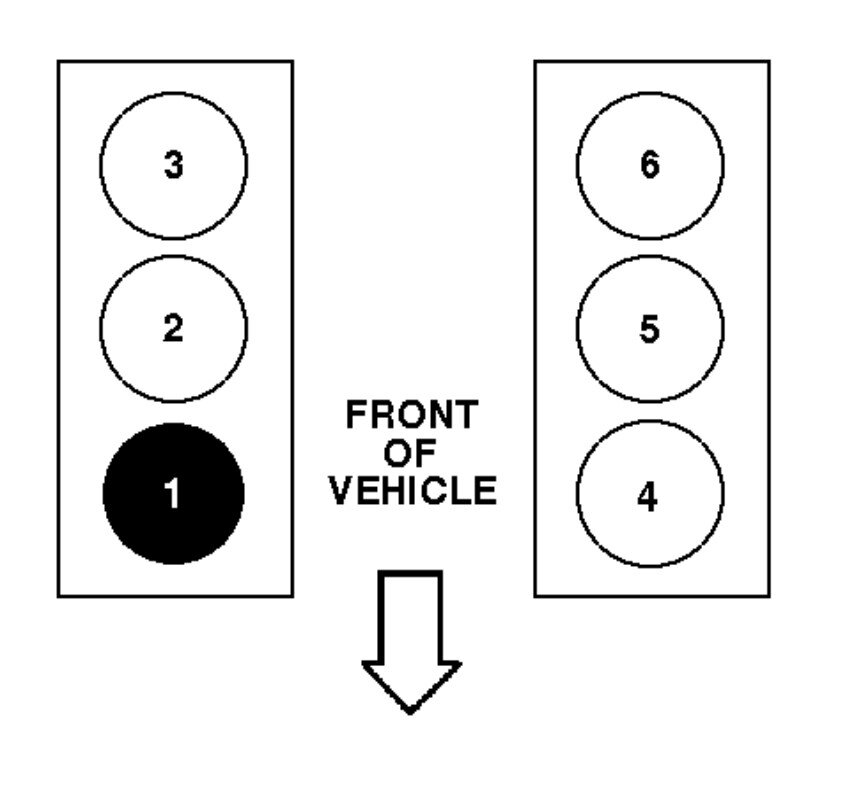

This is the cylinder locations and the plug wire locations on the coil. Be sure where the electrical connector is.
