3 wires to the sensor. I'm getting 5.1 volts on one pin and 6 on another. Aren't I supposed to get 12 volts here instead of 6?
Apr 16, 2023 at 4:15 PM
Camshaft Position Sensor wiring?
2005 MERCEDES BENZ SLK350
MART443
- MEMBER
- 2 POSTS
Advertisement
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS

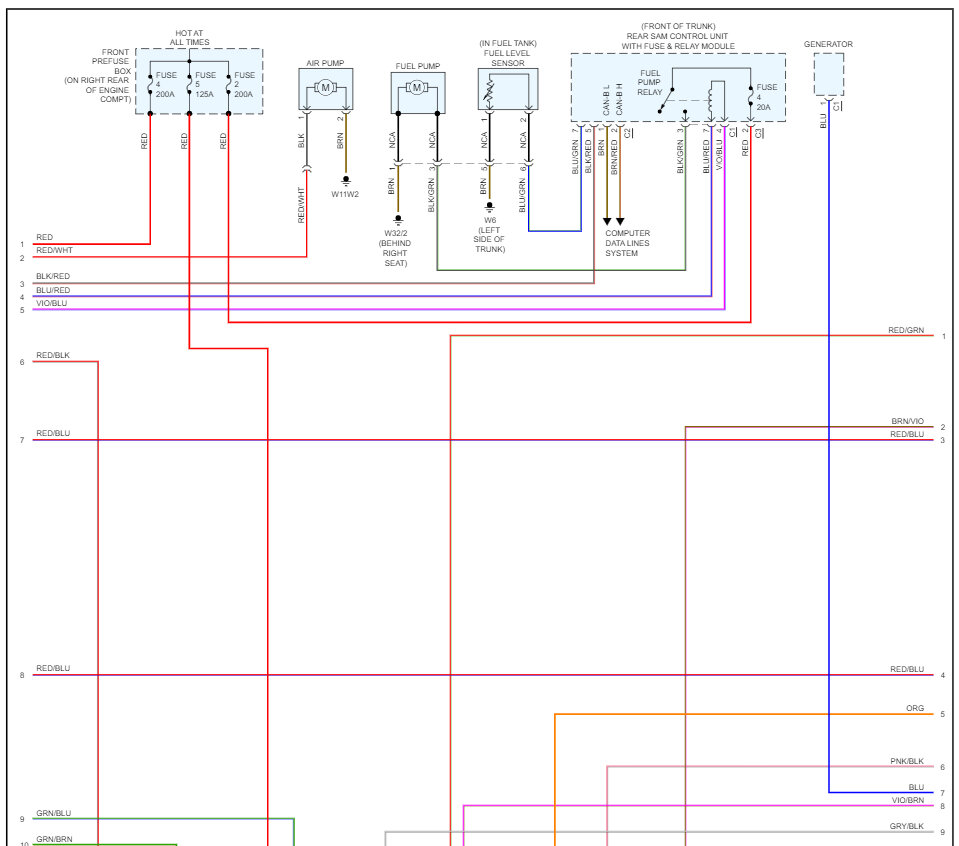

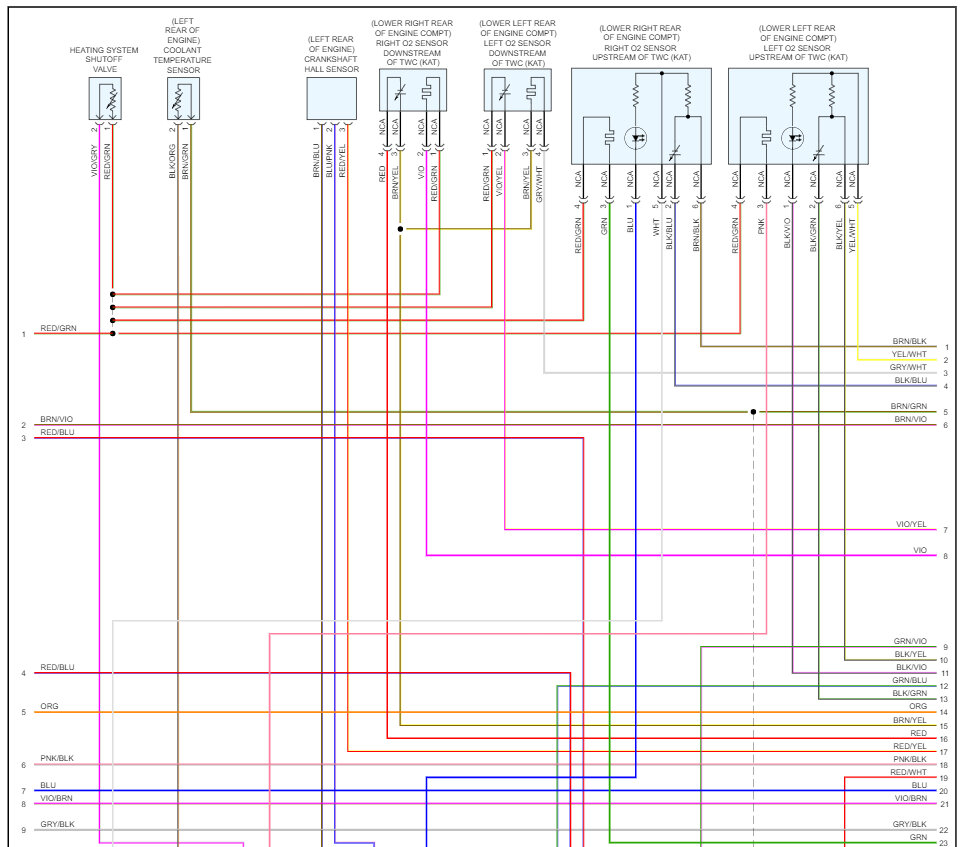

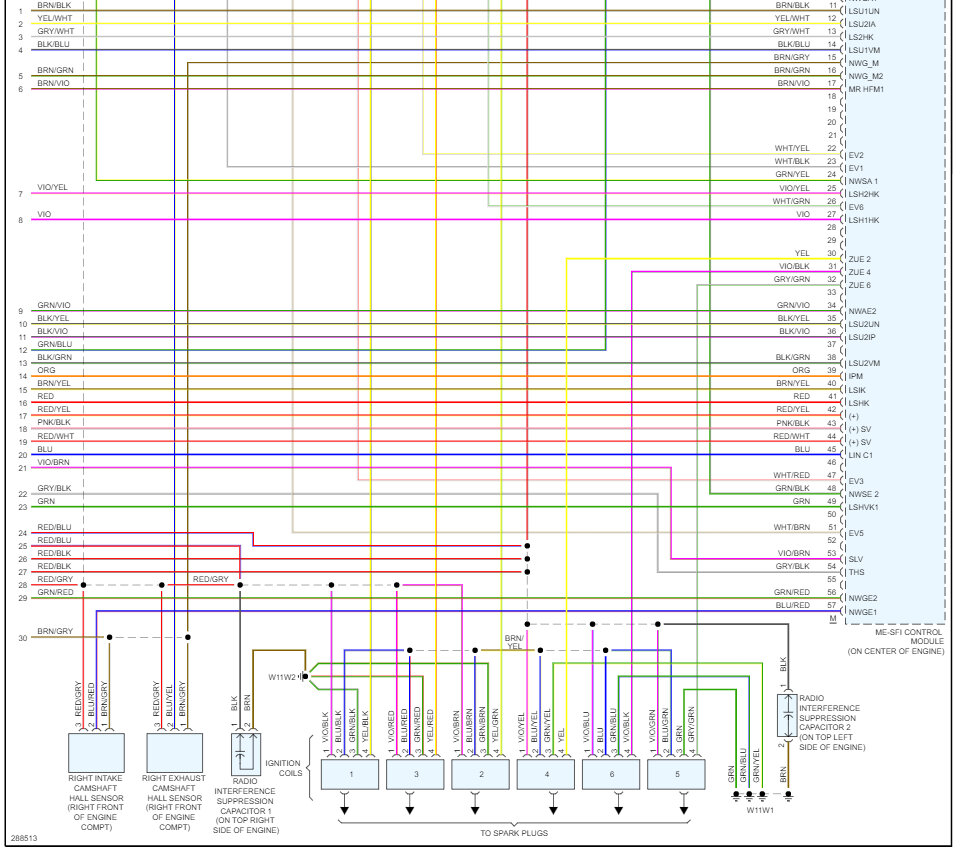

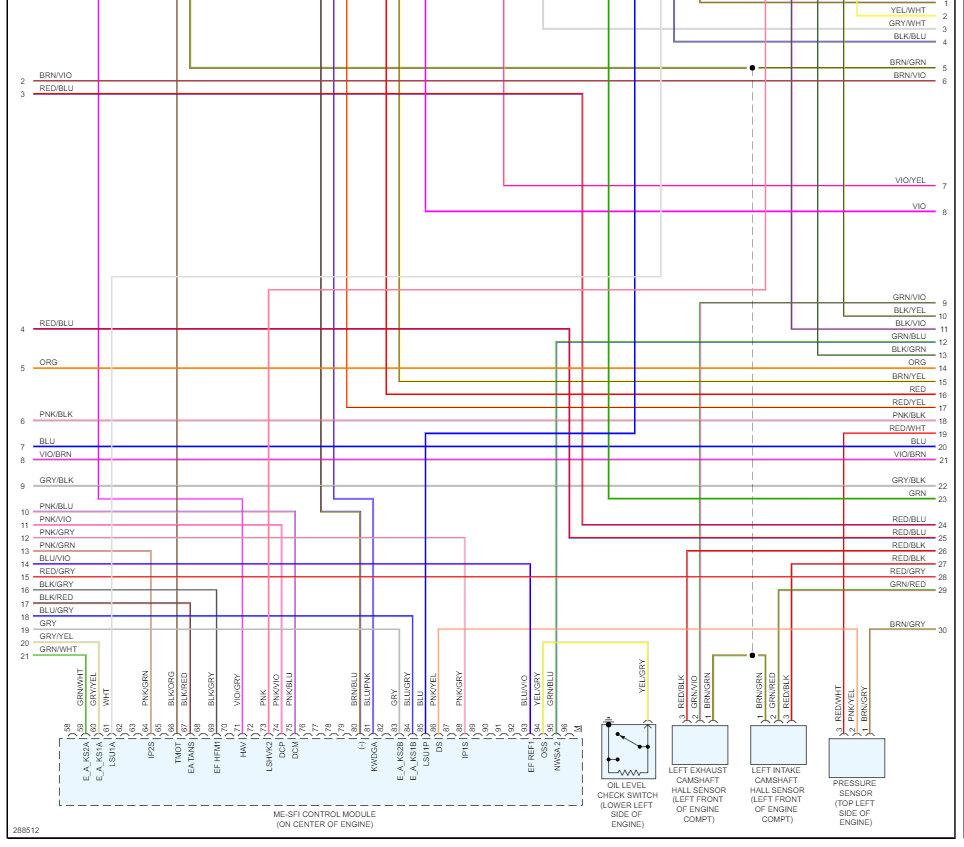

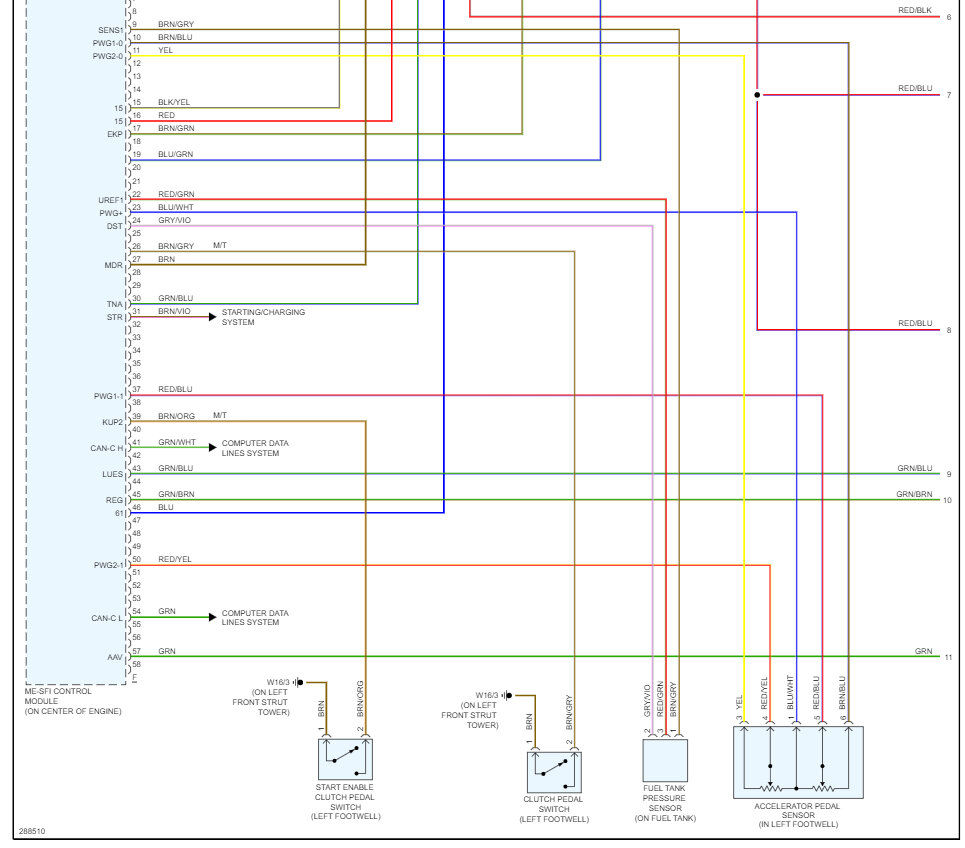

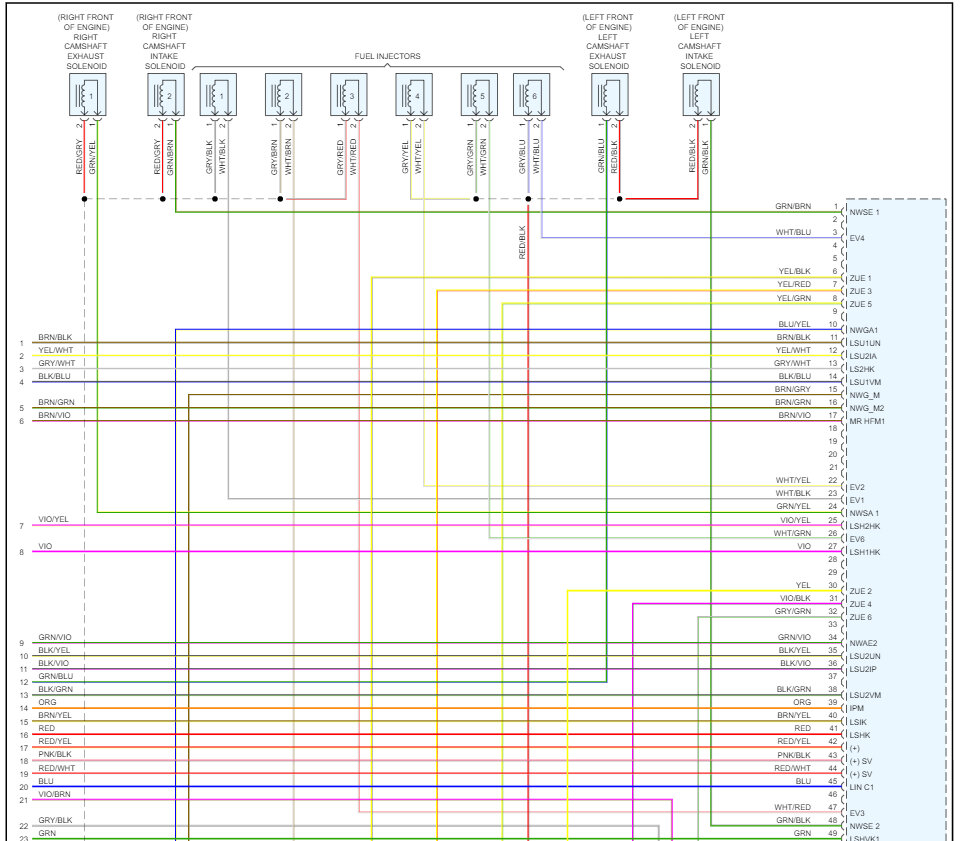

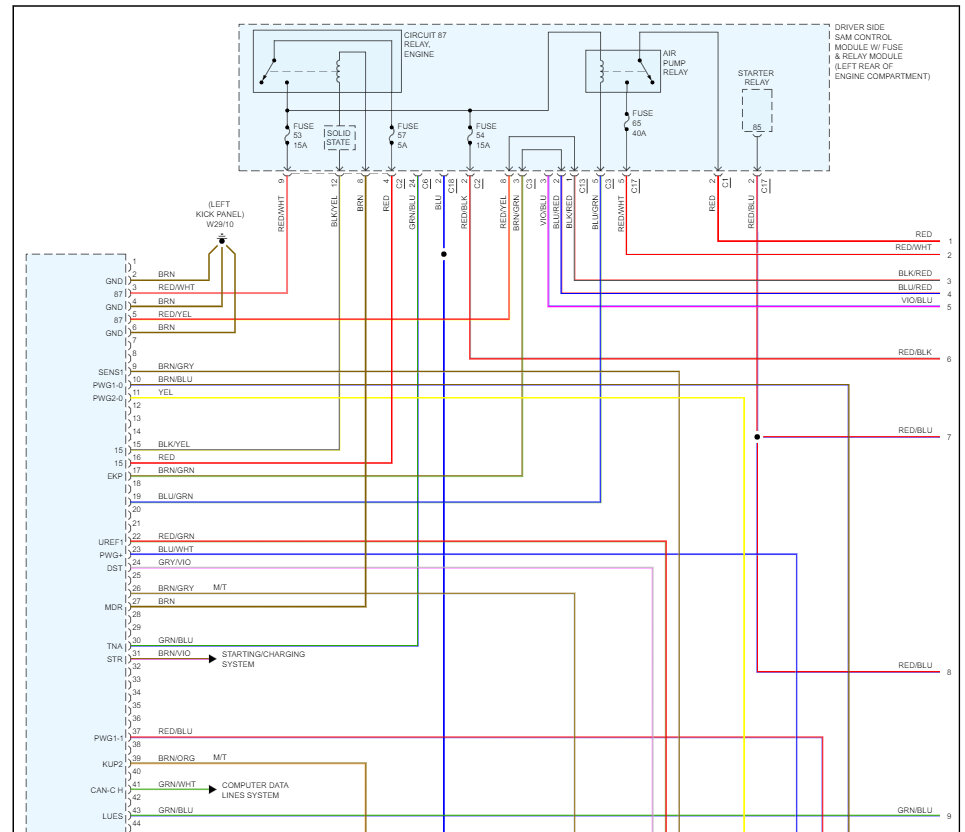

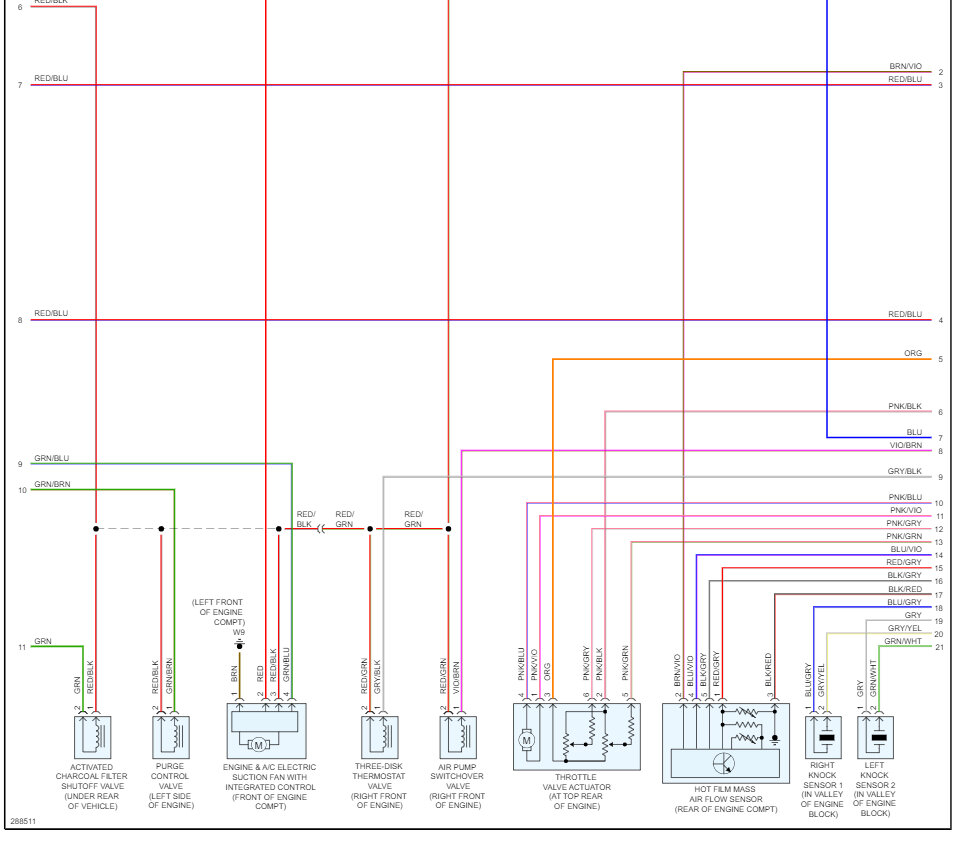

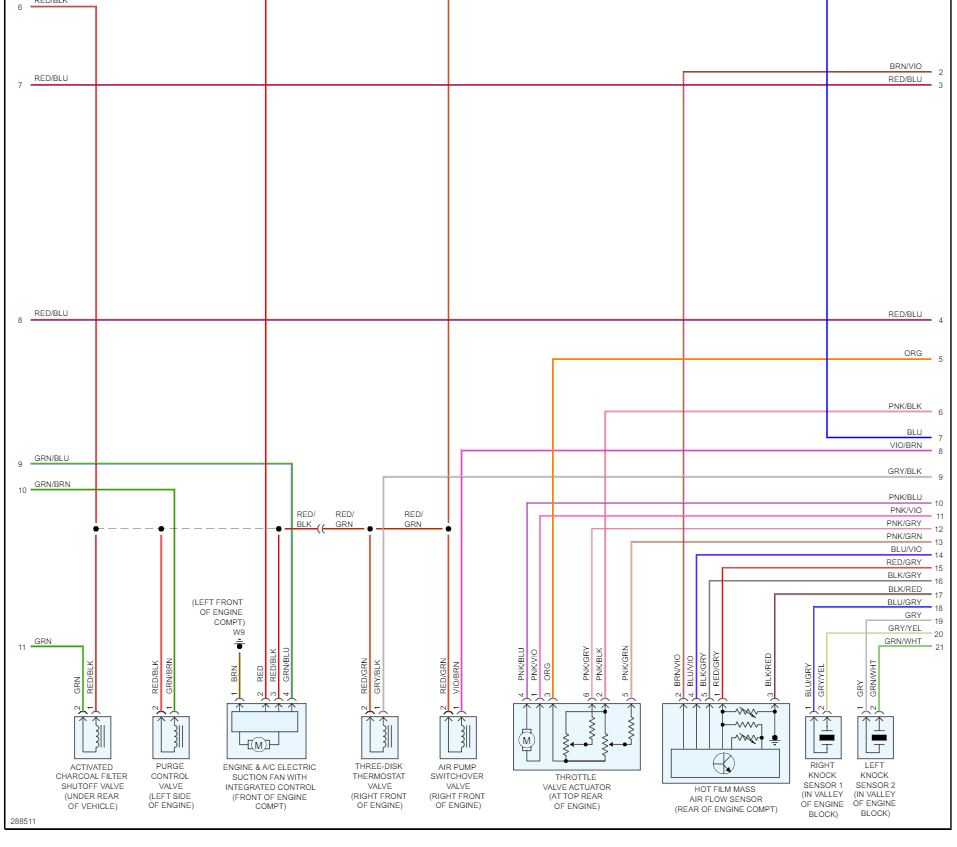

5 volts is correct. This is called the reference voltage. Here are the engine wiring diagrams which include the camshaft sensor wiring. This guide can help you test the connections:
https://www.2carpros.com/articles/how-to-check-wiring
Check out the images (below). Please let us know what happens.
