Side mirrors wiring diagram

Tiny
JESUS BERRIOS2
  • MEMBER
  • 2010 TOYOTA TACOMA
  • V6
  • 2WD
  • AUTOMATIC
  • 120,000 MILES
I need the wiring diagram of the side mirrors for my truck. Thanks for the help!
Monday, January 14th, 2019 AT 9:16 AM

3 Replies

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,878 POSTS
Hi and thanks for using 2CarPros.

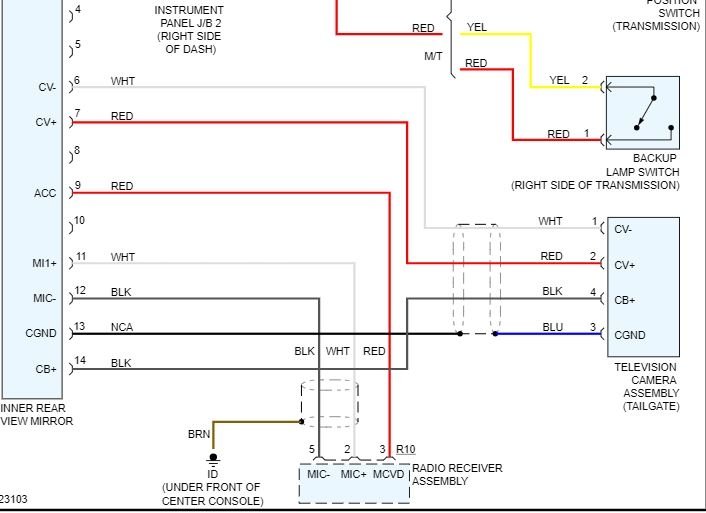

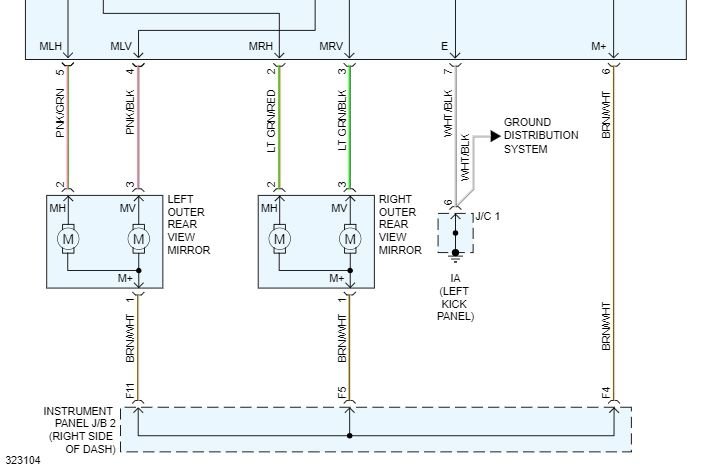

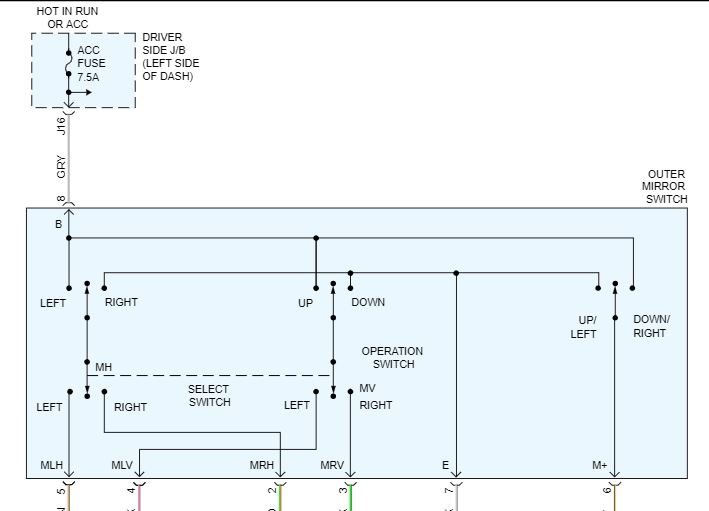

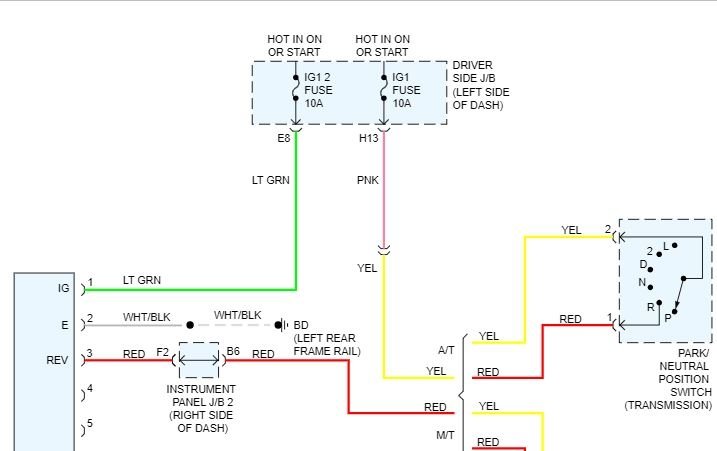

I attached the schematics. There are two different set ups. One is standard power windows (pictures 1 and 2) and the other is Electrochromic Mirror. (pictures 3 and 4). I had to break the schematic into two parts because of size, but I overlapped them so you could follow.

I noted that you indicate "Little Knowledge, so here are a few links you may find helpful.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

https://www.2carpros.com/articles/how-to-use-a-voltmeter

https://www.2carpros.com/articles/how-to-check-wiring

Let me know if this is what you needed or if you have other questions.

Take care,
Joe
Images (Click to make bigger)
Thumb
Thumb
Thumb
Thumb
