Side mirror wiring diagram

2013 SCION TC
150,000 MILES
Avatar
JESUS BERRIOS2
  • MEMBER
  • 9 POSTS
I need the side view mirror wiring diagram for the vehicle listed above. Thanks in advance!
Jan 28, 2019 at 6:46 AM
Advertisement
Avatar
SEVAG P
  • ✓ASE Certified Mechanic
  • 405 POSTS
  • ASE Certified Mechanic
Hi,

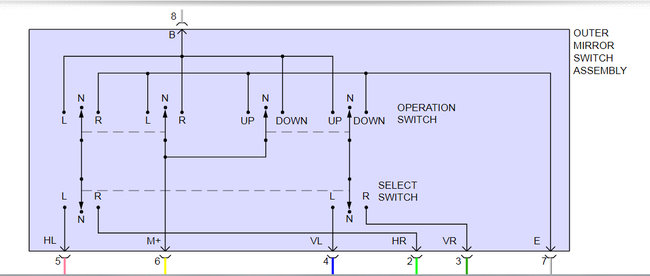

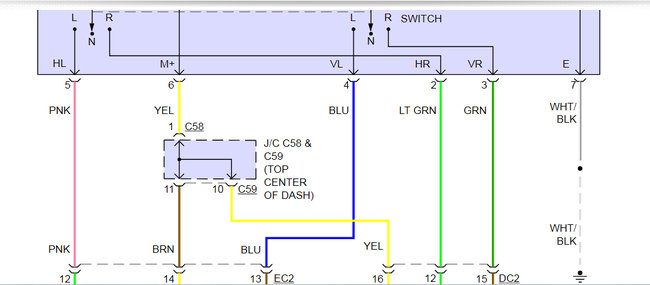

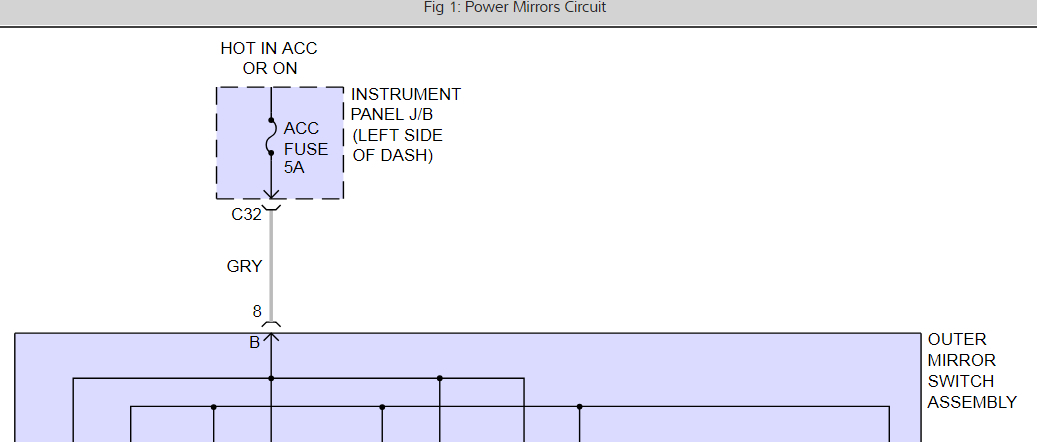

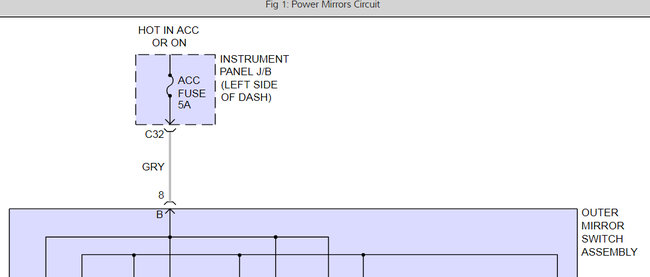

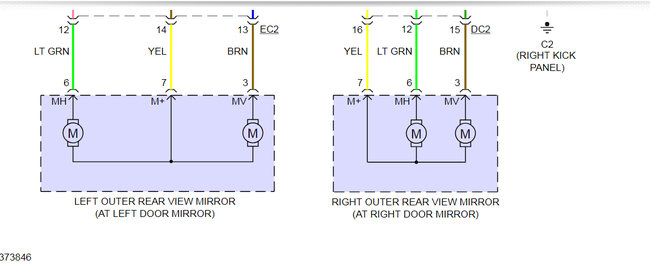

i am sending the diagram divided into four sections to have a clear picture. then you can print it to attach together. let me know if you need more help. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jan 28, 2019 at 9:50 AM
