Shroud radiator and Idler drive belt pulley remove and install procedure

2011 KIA PICANTO
220,000 MILES • 1.1L • 3 CYL • FWD • MANUAL
Avatar
JOHANNES H C CLOETE
  • MEMBER
  • 1 POST
What is the correct way to take out and install shroud radiator (coolant bottle and fan) and what is the correct pulley for the idler as i got two different one`s from supplier?
Aug 2, 2017 at 3:27 AM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • CAR REPAIR CONTRIBUTOR
  • 54,189 POSTS
Hello,

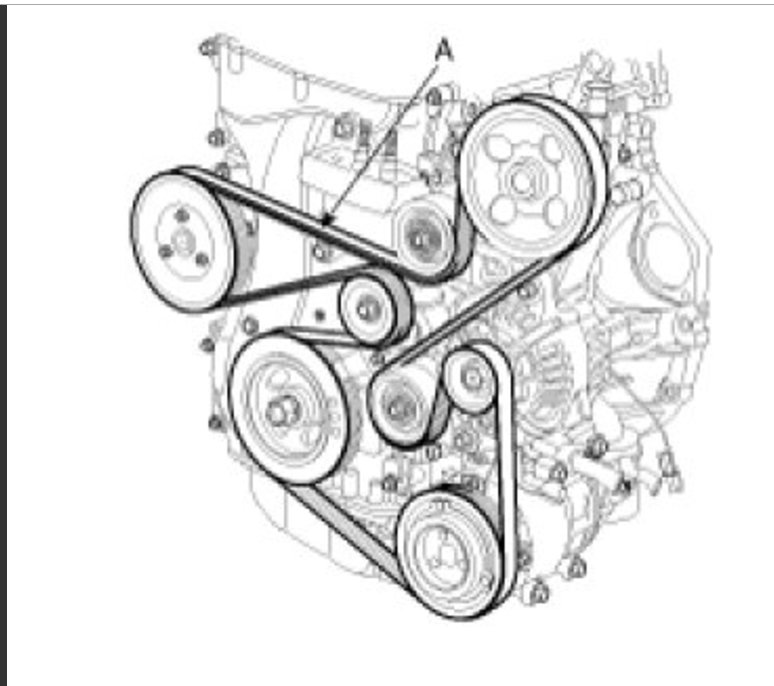

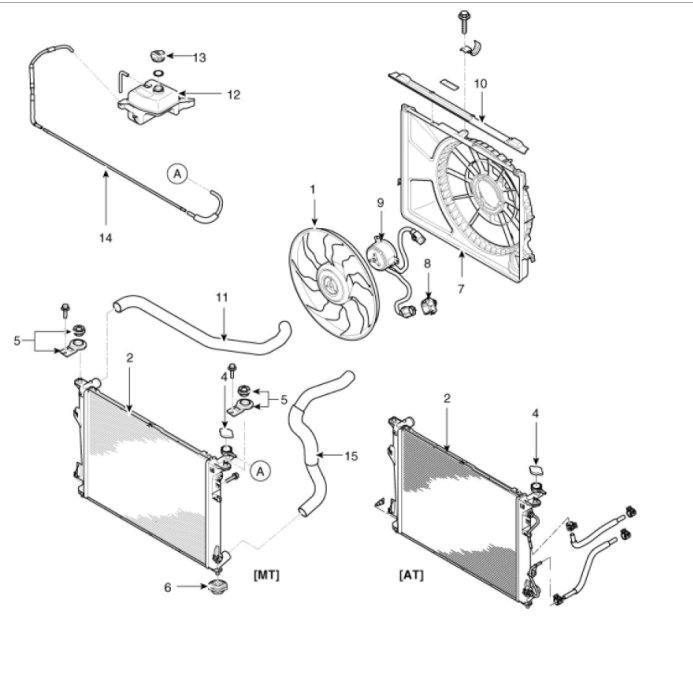

I think I have found the right diagrams for you (below). Here are some guides that should help as well. These will give you an idea on the job.

https://www.2carpros.com/articles/how-to-replace-a-car-radiator

and

https://www.2carpros.com/articles/replace-electric-fan-motor

and

https://www.2carpros.com/articles/serpentine-belt-tensioner-replacement

Please let us know what happens.

Cheers, Ken
