What fuses go to the shift solenoids in my car listed above CE model.
Oct 17, 2018 at 4:10 PM
Transmission wiring diagrams please
2006 TOYOTA COROLLA
JENGIRL66
- MEMBER
- 1 POST
Advertisement
STRAILER
- ✓ASE Certified Mechanic
- 54,832 POSTS
Hello,

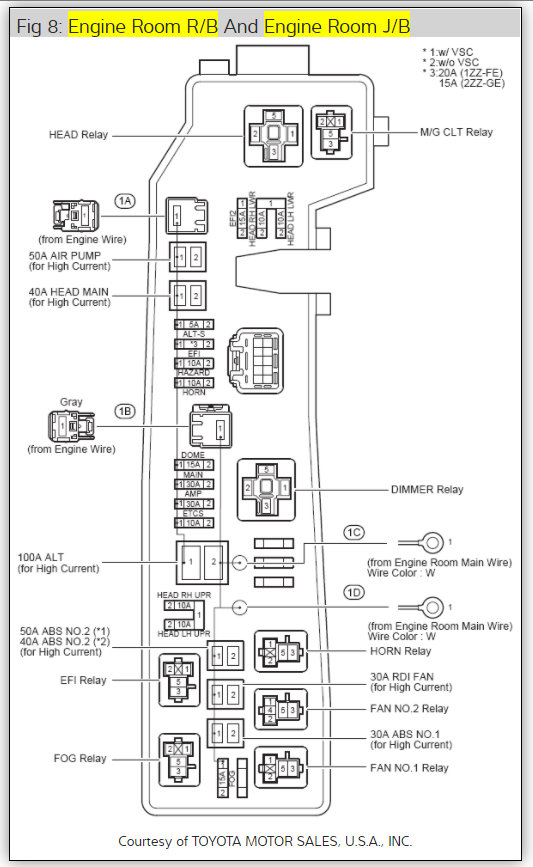

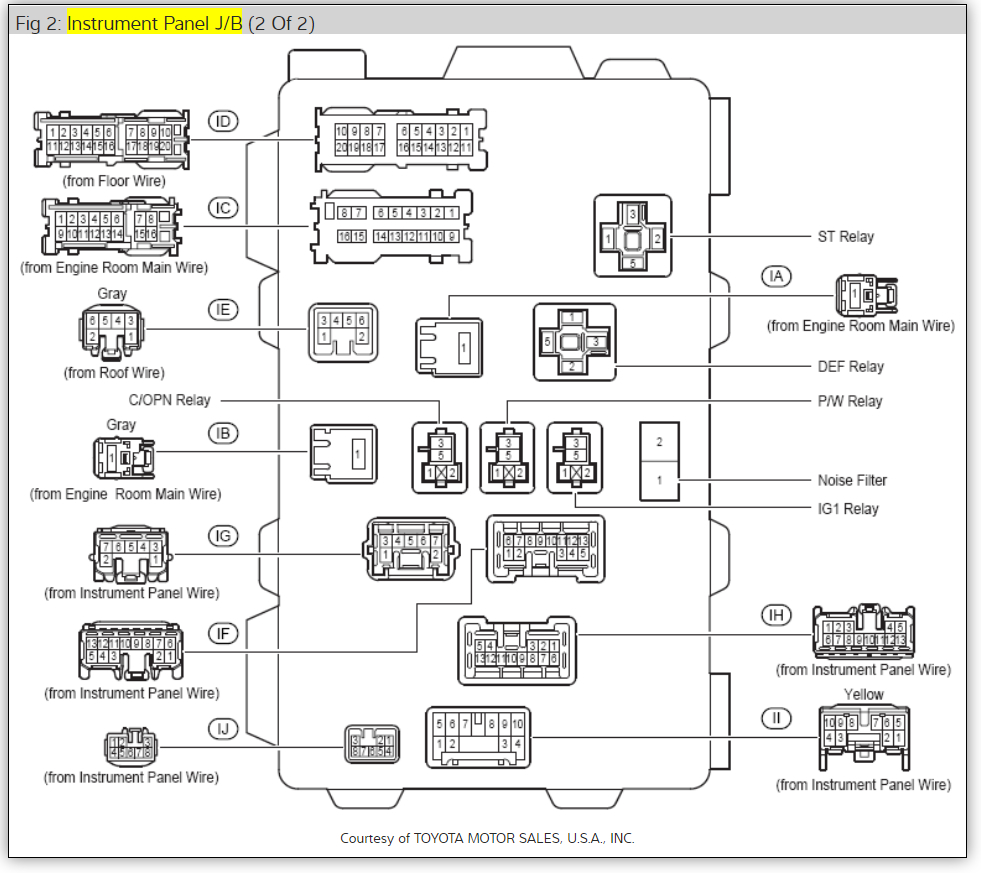

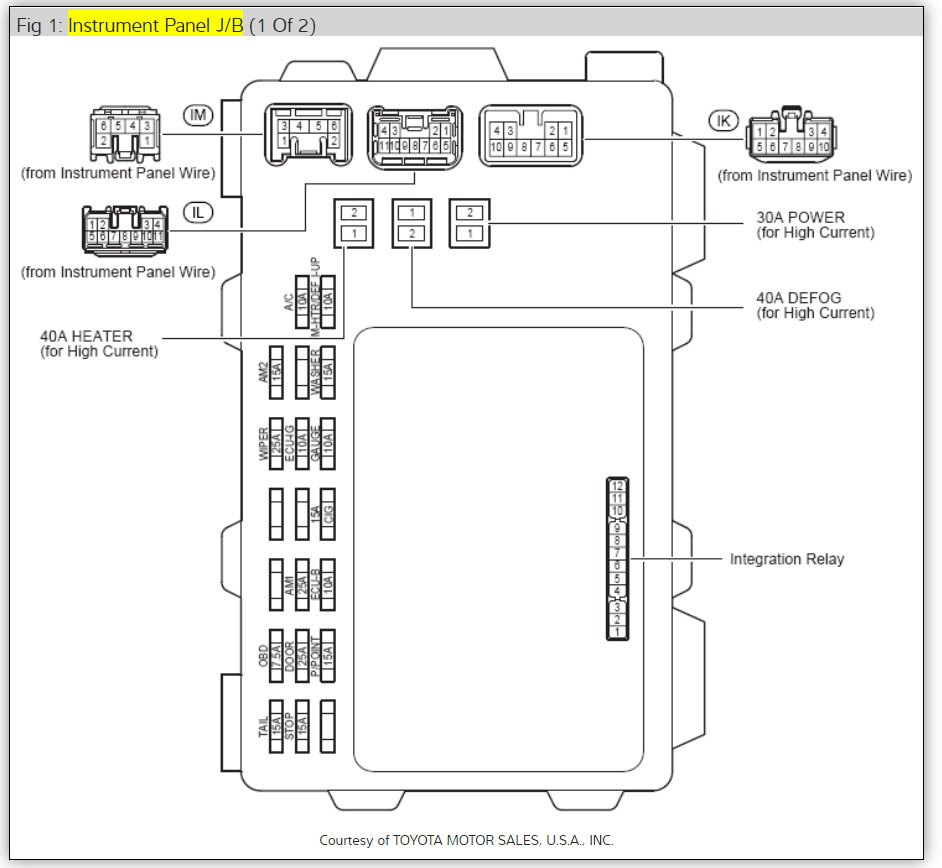

No solenoid has its own fuse, but there are five fuses that run the transmissions system which you need to check. Here is a guide to help you and the fuse location along with the transmission wiring diagrams so you can see how the system works:
https://www.2carpros.com/articles/how-to-check-a-car-fuse

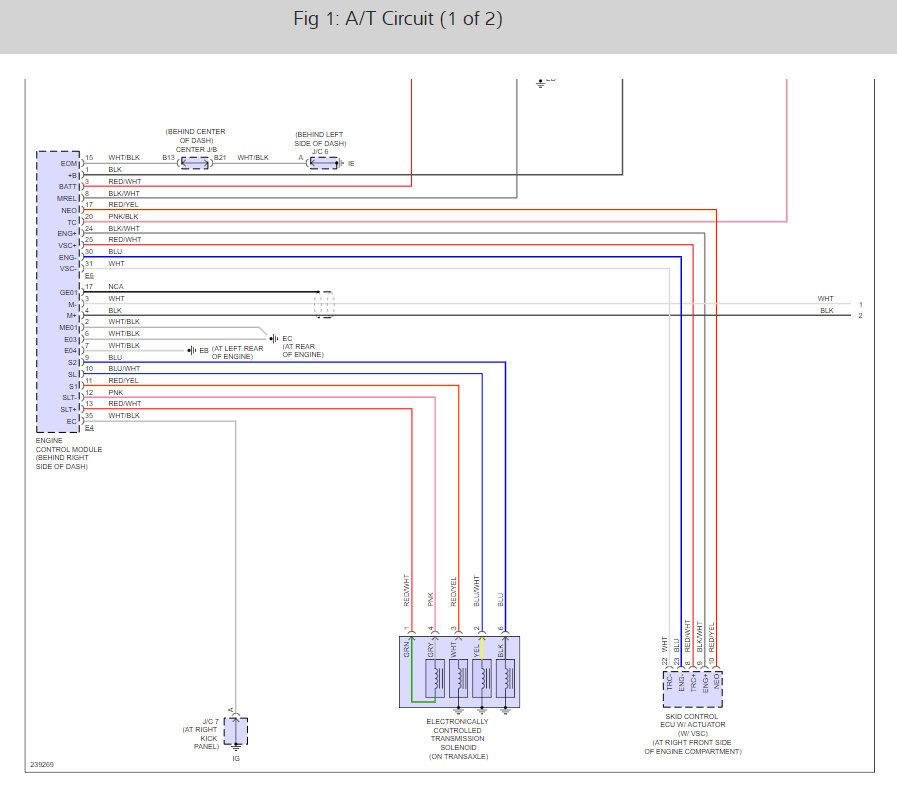

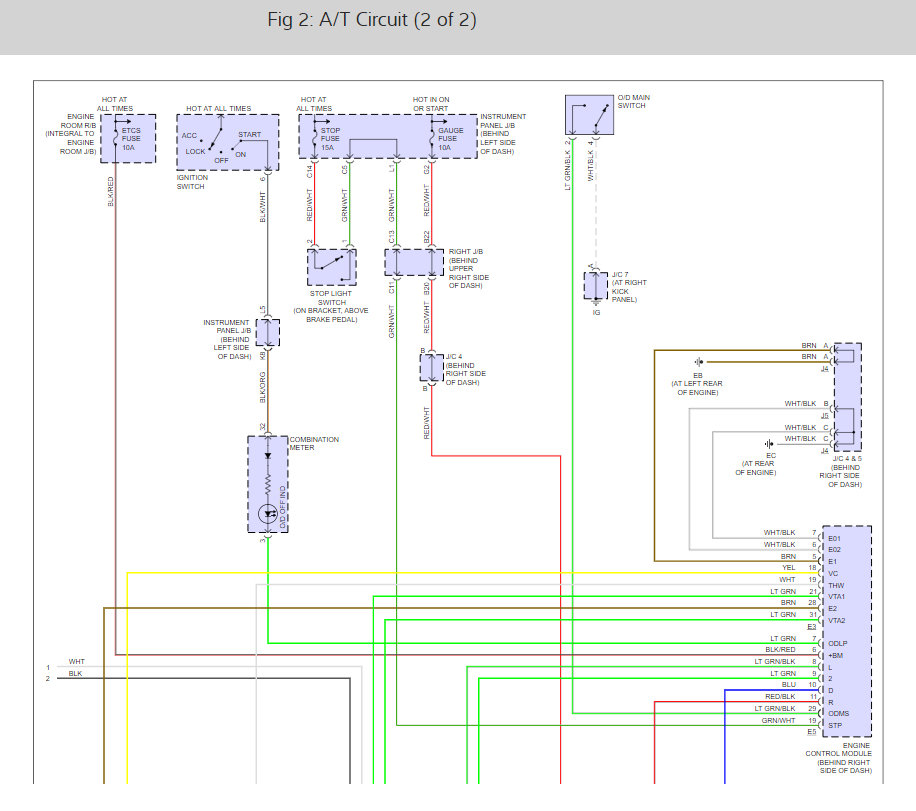

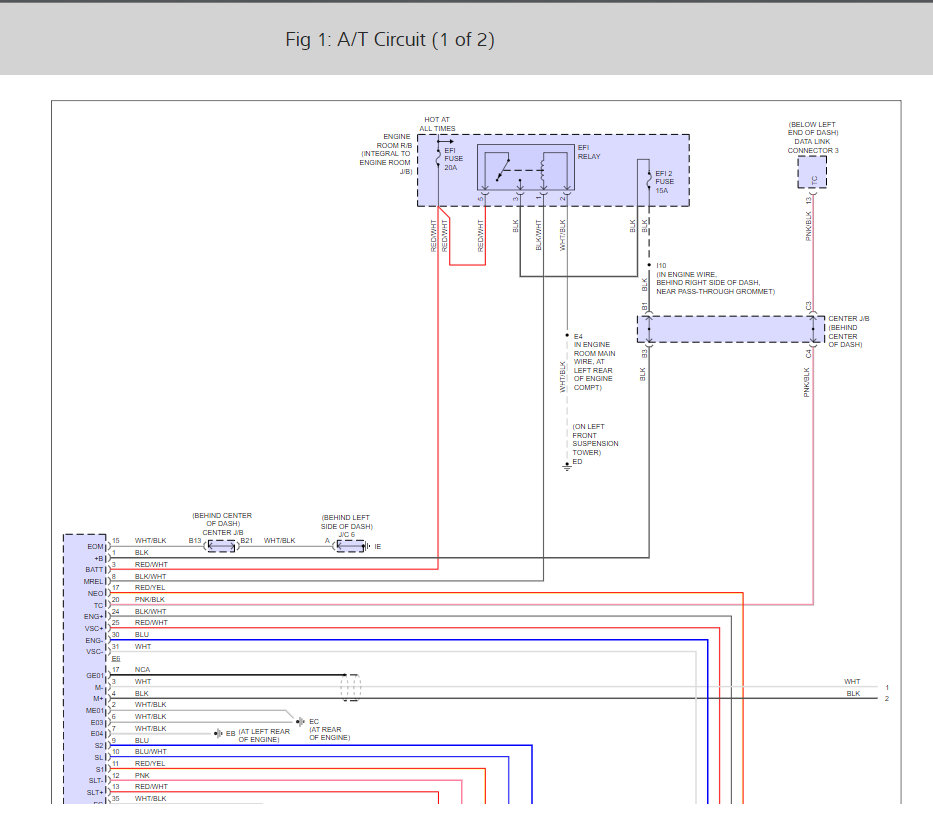

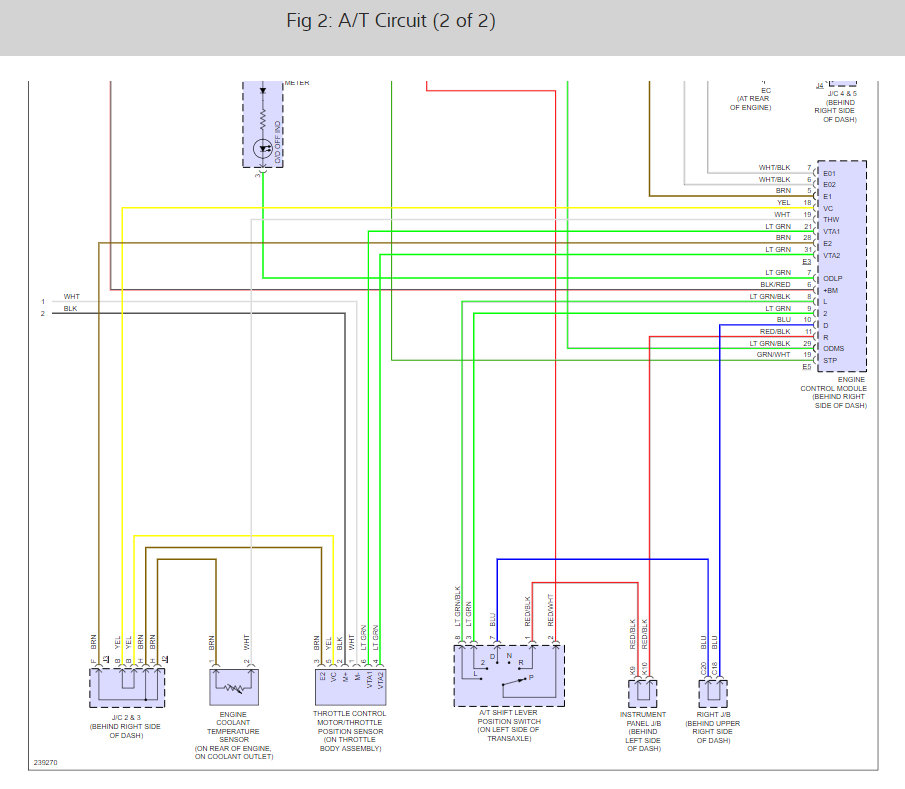

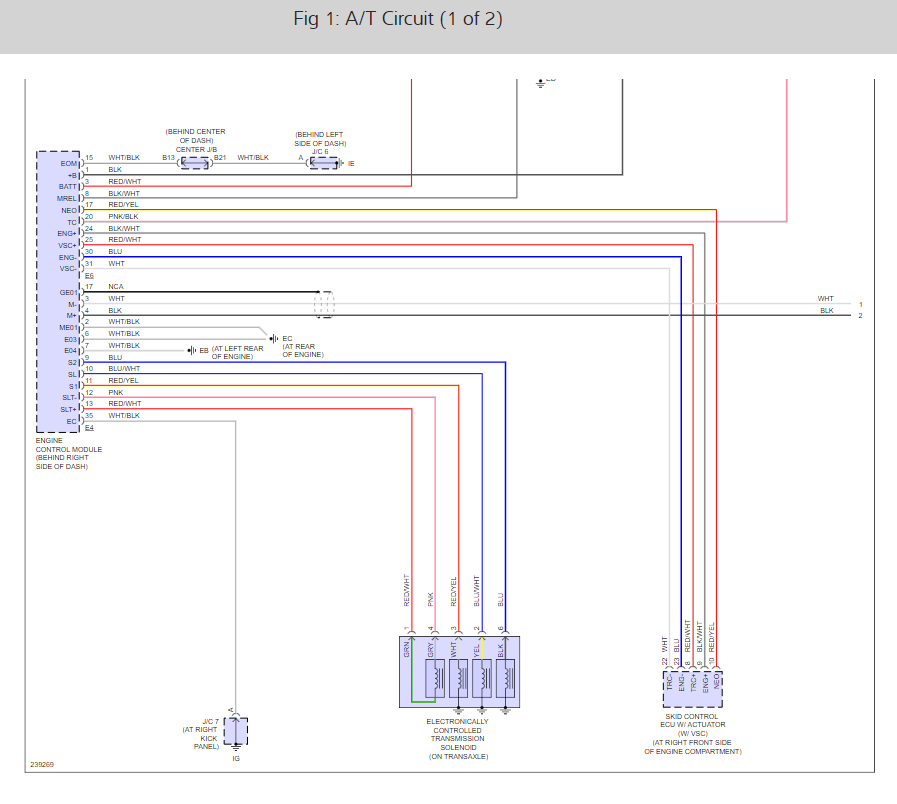

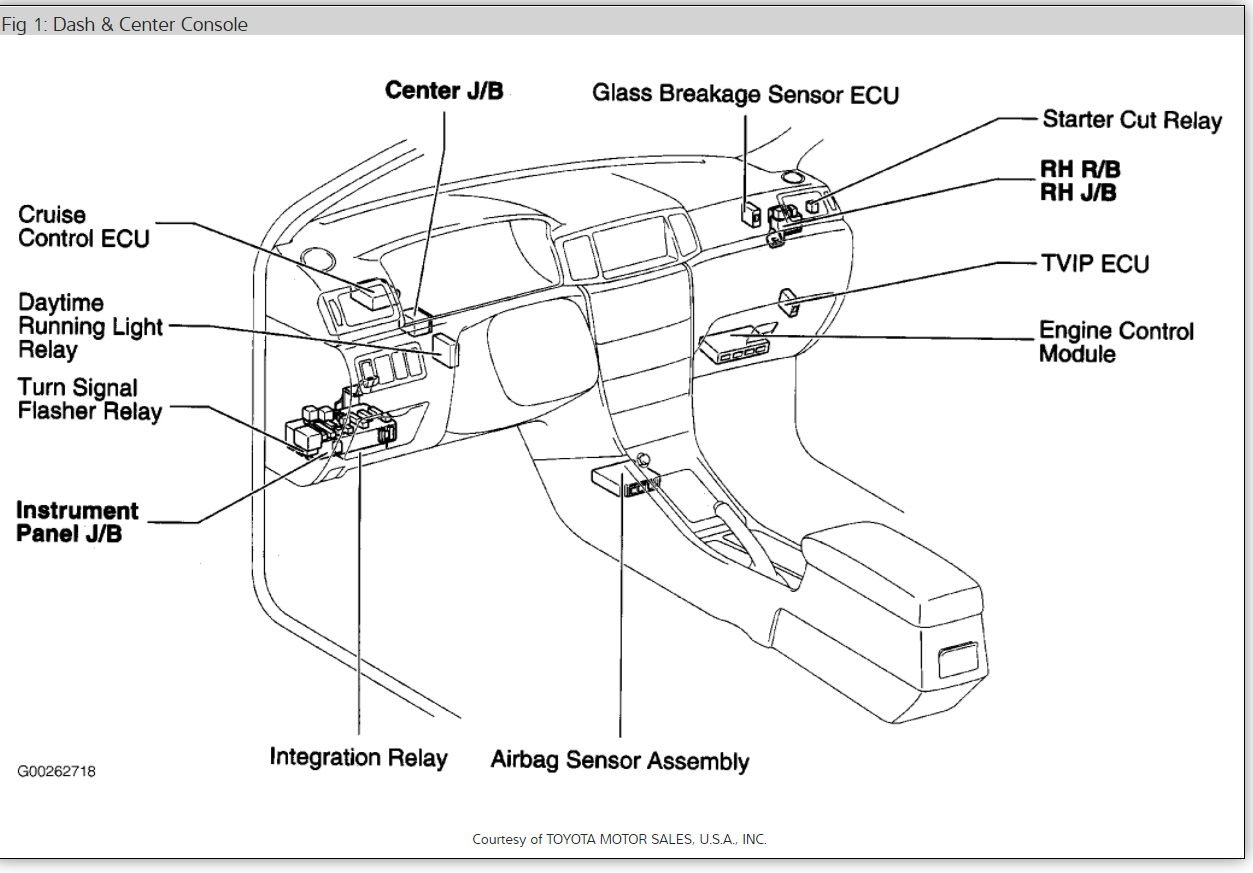

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
No solenoid has its own fuse, but there are five fuses that run the transmissions system which you need to check. Here is a guide to help you and the fuse location along with the transmission wiring diagrams so you can see how the system works:
https://www.2carpros.com/articles/how-to-check-a-car-fuse
Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
