Shift motor wiring diagram needed?

2000 FORD EXPEDITION
150,000 MILES • 4.7L • V8 • 4WD
Avatar
BEEPERPA
  • MEMBER
  • 1 POST
Replace the shift motor on the transfer case and I guess I messed up the wires where they go.
Jan 20, 2023 at 8:18 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

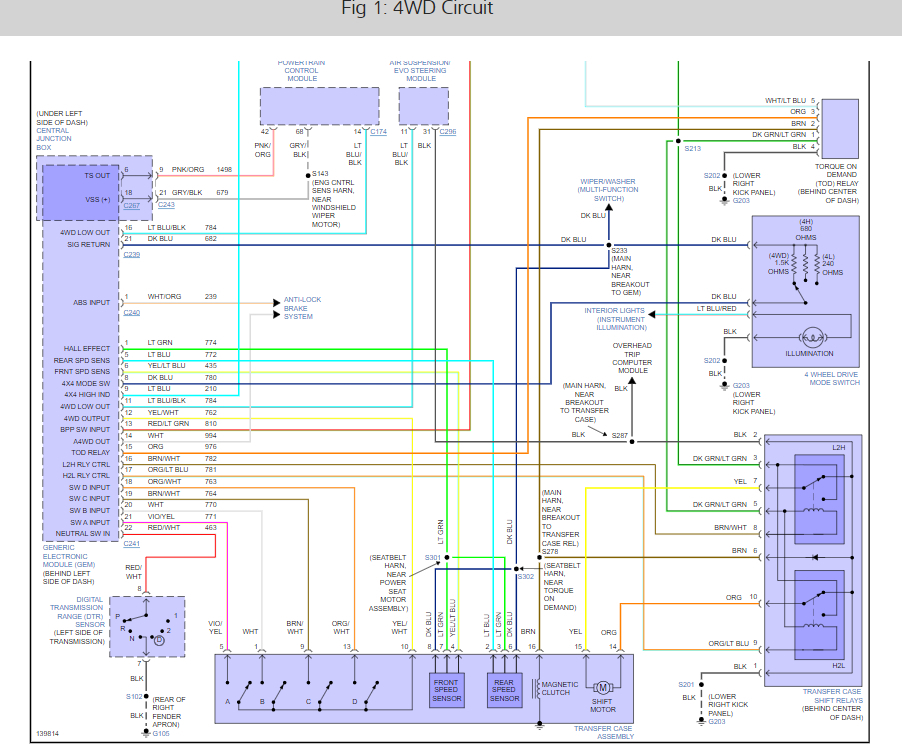

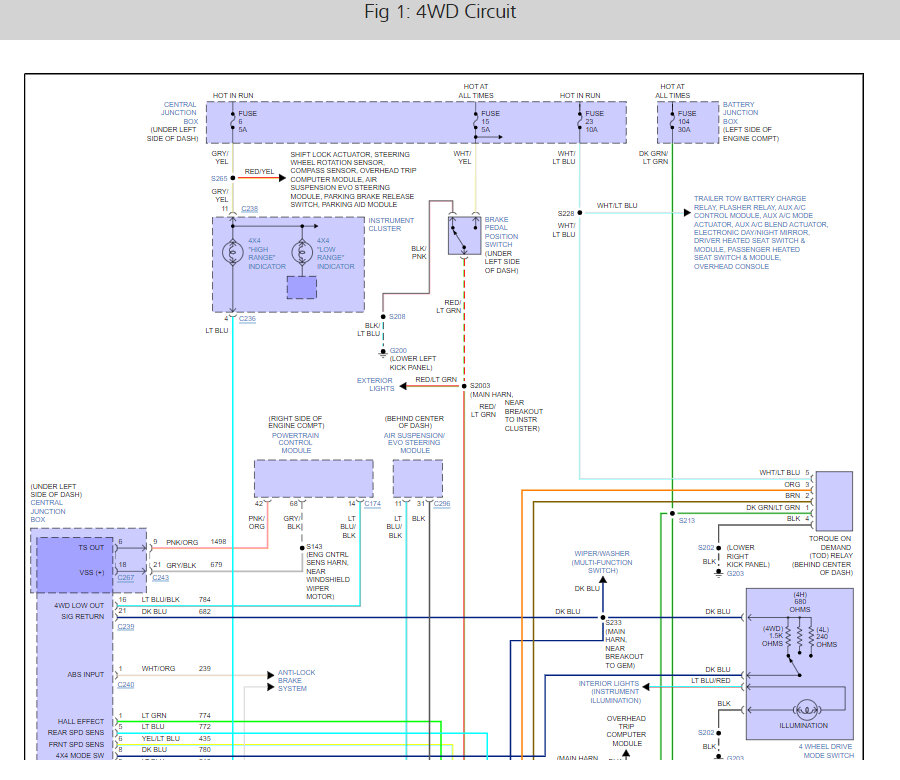

Here are the transfer case wiring diagrams so you can do the repair and I have included the wiring repair guide that will help you test the connections.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
