Shift interlock solenoid wiring diagram

2006 CHEVROLET MONTE CARLO
100,000 MILES • V6 • 2WD • AUTOMATIC
Avatar
PANICKID12
  • MEMBER
  • 1 POST
All my wires to my shift interlock solenoid have been severed and I'm having trouble finding a color coded wiring schematic/diagram online for free. Any help would be much appreciated.
Jun 28, 2020 at 11:38 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • ✓Experienced Mechanic
  • 110,248 POSTS
Hi,

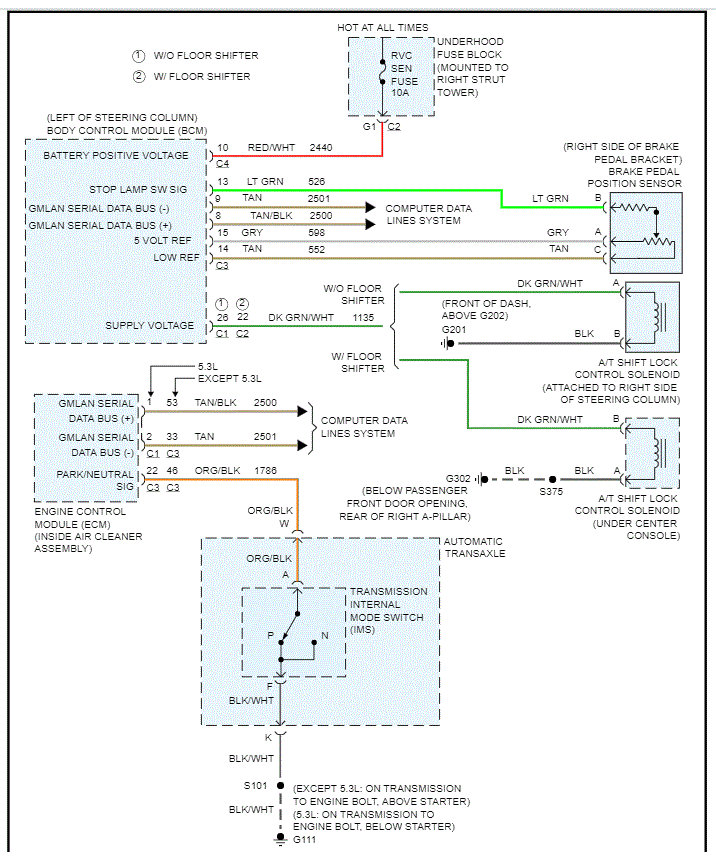

I attached a pic below for both column and floor shift. Let me know if that helps and is what you needed. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Joe
Image (Click to enlarge)
Attached Media
Jun 28, 2020 at 3:36 PM
