Serpentine belts routing diagram needed

2005 DODGE STRATUS
1,500 MILES • 2.4L • 4 CYL
Avatar
DH7389
  • MEMBER
  • 1 POST
Replacement for both belts and routing diagram needed.
Dec 25, 2016 at 3:15 PM
Advertisement
Avatar
HMAC300
  • ✓ASE Certified Mechanic
  • 48,601 POSTS
  • ASE Certified Mechanic

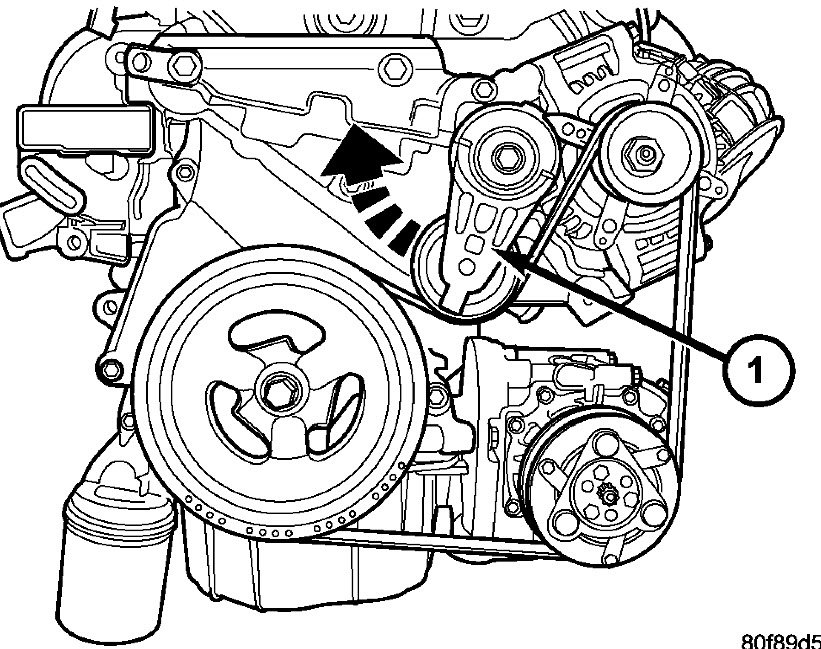

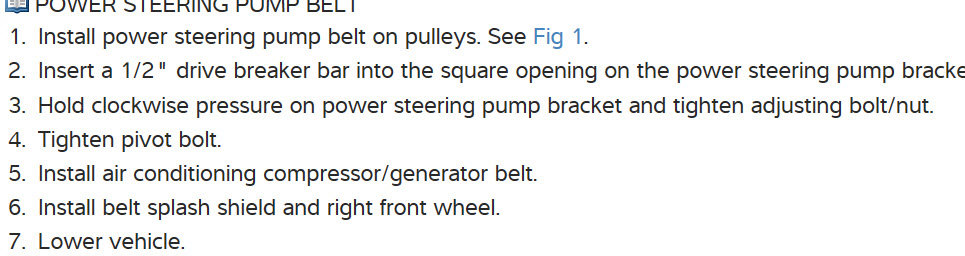

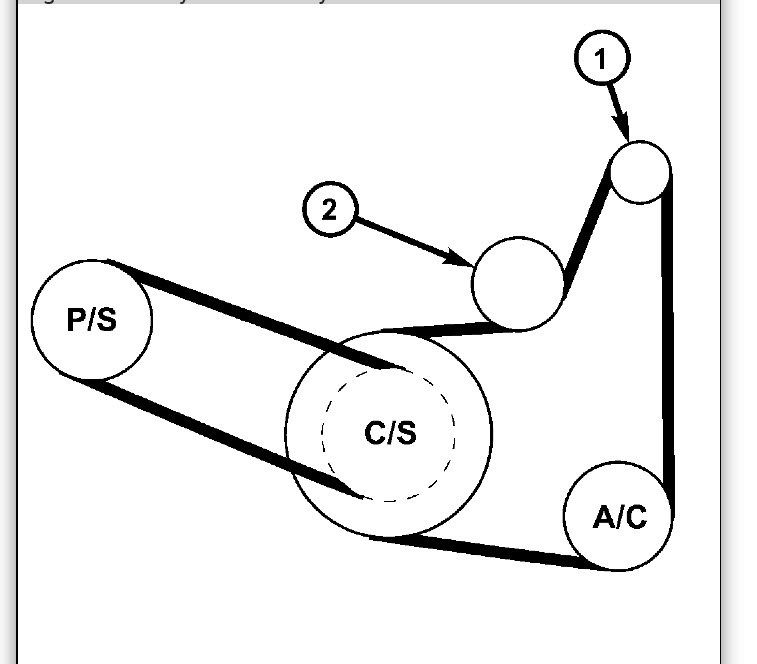

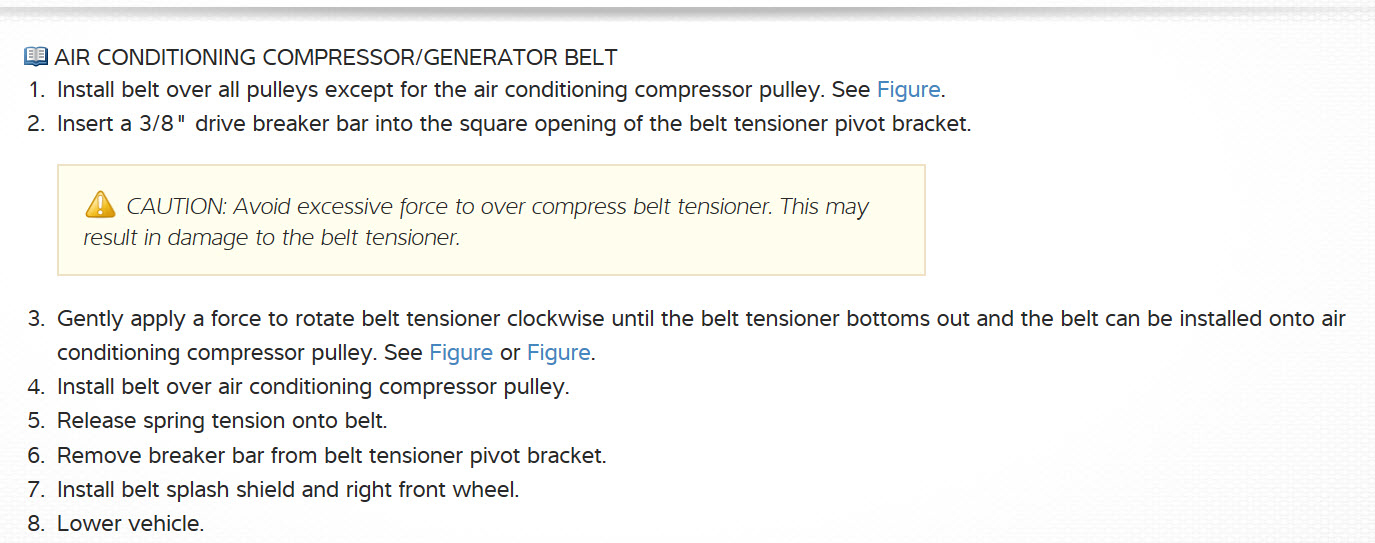

routing diagram should be on radiator header belts and tensioner should be replaced at 60,000 miles. if any oil is on them they are shot and should be measured by a gauge not cracks. see pictures for instructions.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
