Serpentine belt routing diagram needed?

Tiny
MATTHEW TURNER ASHBY
  • MEMBER
  • 2010 FORD FUSION
  • 2.5L
  • 4 CYL
  • 2WD
  • AUTOMATIC
  • 230,000 MILES
I can't, for the life of me, find any info on how to run it. I thought I had the new one on correctly, but it keeps popping off.
Monday, October 14th, 2024 AT 5:30 PM

1 Reply

Tiny
JACOBANDNICKOLAS
  • MECHANIC
  • 109,885 POSTS
Hi,

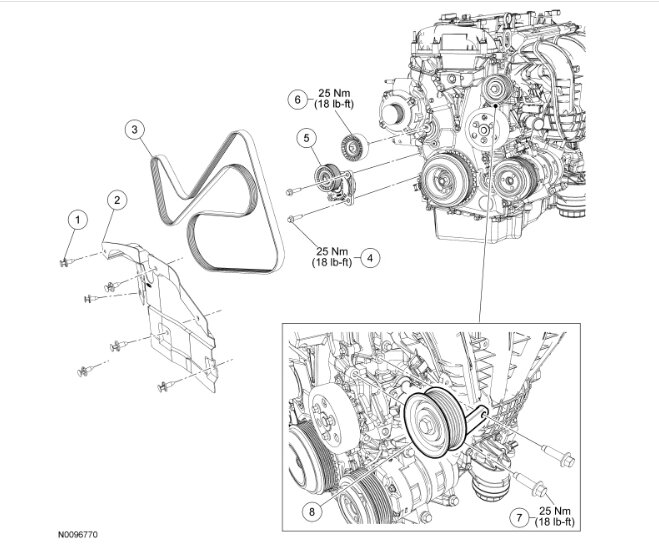

The best I could find is an exploded view of the belt and components. Note that the belt is pictured how it would route.

Take a look at the pic and let me know if this helps.

Take care,

joe

See pic below.
Image (Click to make bigger)
Thumb
