Serpentine belt routing instructions needed?

2005 CHEVROLET IMPALA
179,000 MILES • 3.8L • V6 • 2WD • AUTOMATIC
Avatar
CWEATHERBY1
  • MEMBER
  • 1 POST
I changed the alternator and obviously the belt had to be undone. There is not a sticker anywhere to be found showing the routing diagram. I need to know how this belt goes back around these pulleys. Please
Aug 6, 2023 at 5:40 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
STRAILER
  • CAR REPAIR CONTRIBUTOR
  • 54,189 POSTS

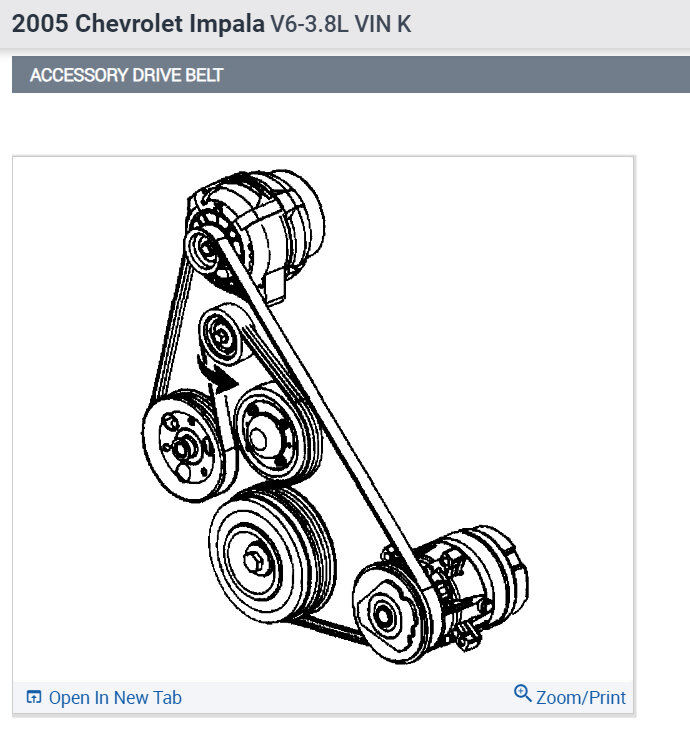

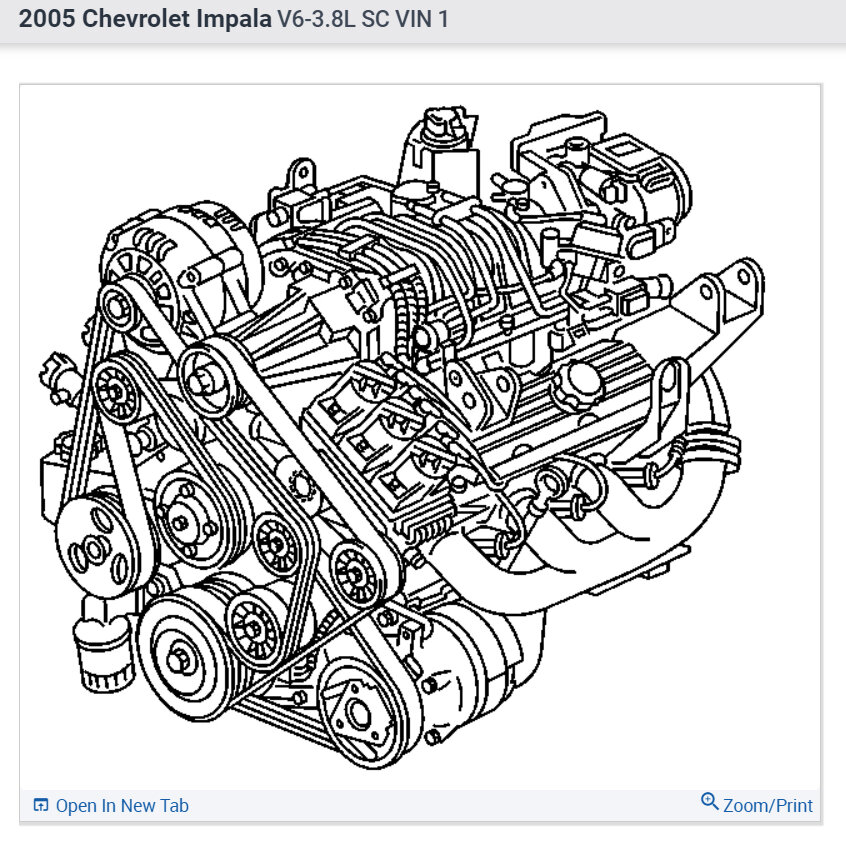

Sure, here is the belt routing and a generic guide to help you with the steps:

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
