Serpentine belt routing instructions needed?

Tiny
CWEATHERBY1
  • MEMBER
  • 2005 CHEVROLET IMPALA
  • 3.8L
  • V6
  • 2WD
  • AUTOMATIC
  • 179,000 MILES
I changed the alternator and obviously the belt had to be undone. There is not a sticker anywhere to be found showing the routing diagram. I need to know how this belt goes back around these pulleys. Please
Sunday, August 6th, 2023 AT 5:40 PM

2 Replies

Tiny
KEN L
  • MASTER CERTIFIED MECHANIC
  • 48,363 POSTS

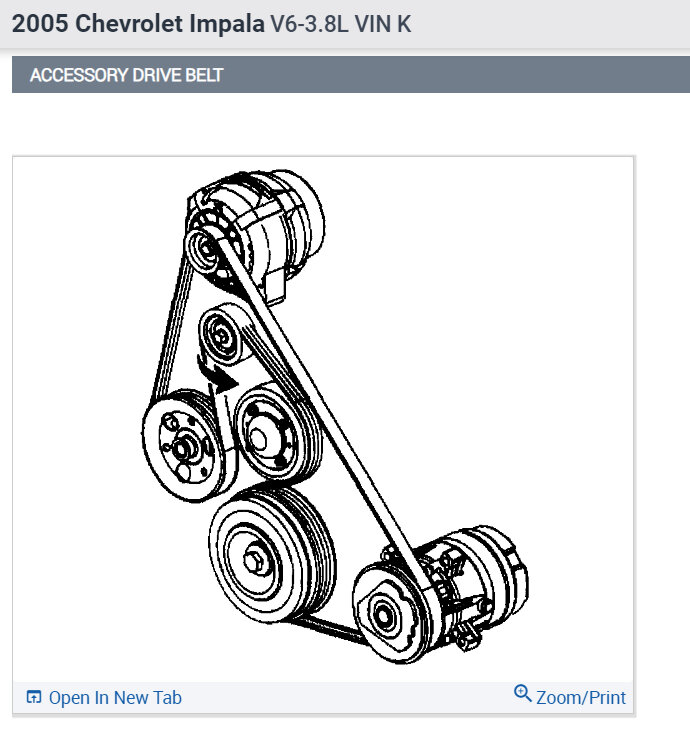

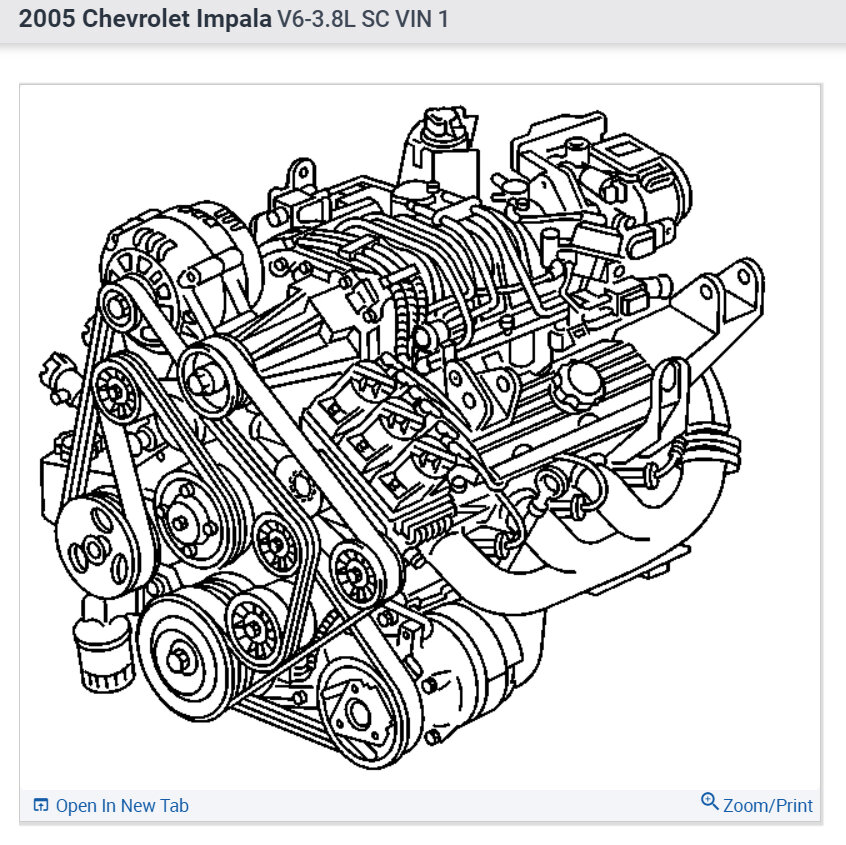

Sure, here is the belt routing and a generic guide to help you with the steps:

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
