Serpentine belt diagram

Tiny
CALEB MCLEAN
  • MEMBER
  • 1998 FORD CONTOUR
  • 250,000 MILES
Do you have or know where I can get the serpentine belt diagram for a 98 Ford Contour?
Tuesday, August 23rd, 2016 AT 10:37 PM

1 Reply

Tiny
SATURNTECH9
  • MECHANIC
  • 30,869 POSTS

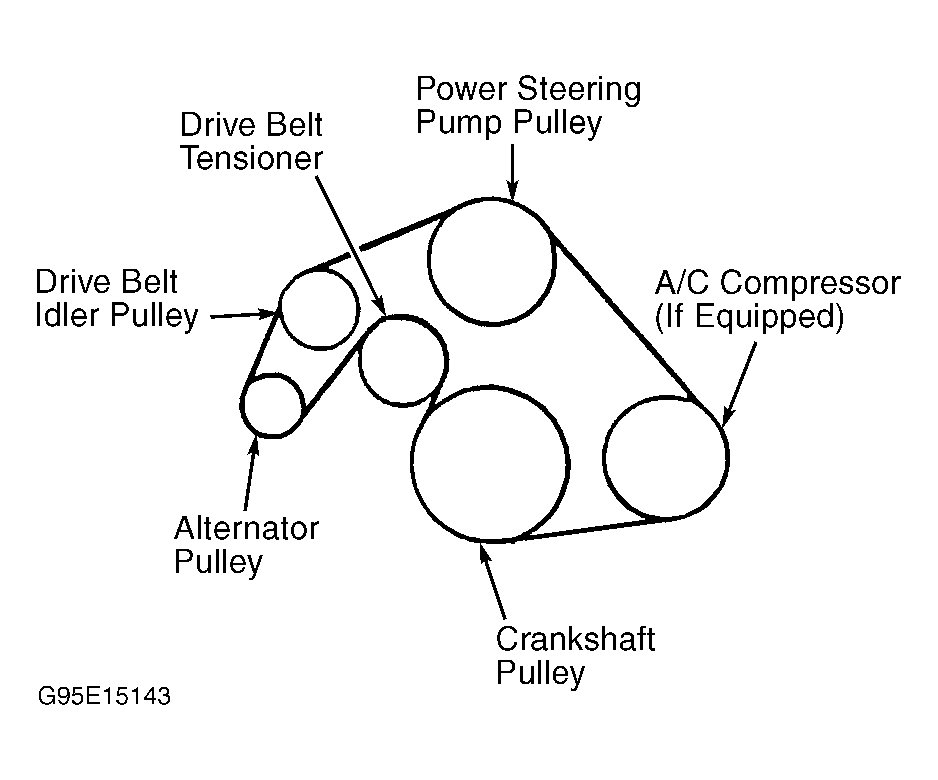

Take a look at the attached picture below (click on it to make it larger)
Image (Click to make bigger)
Thumb
