I need a diagram for the serpentine belt routing.
Sep 15, 2023 at 1:17 PM
Serpentine belt routing diagram needed?
2004 MAZDA TRIBUTE
MATT NEWCOMB
- MEMBER
- 1 POST
Advertisement
JACOBANDNICKOLAS
- ✓ASE Certified Mechanic
- 110,194 POSTS
Hi,

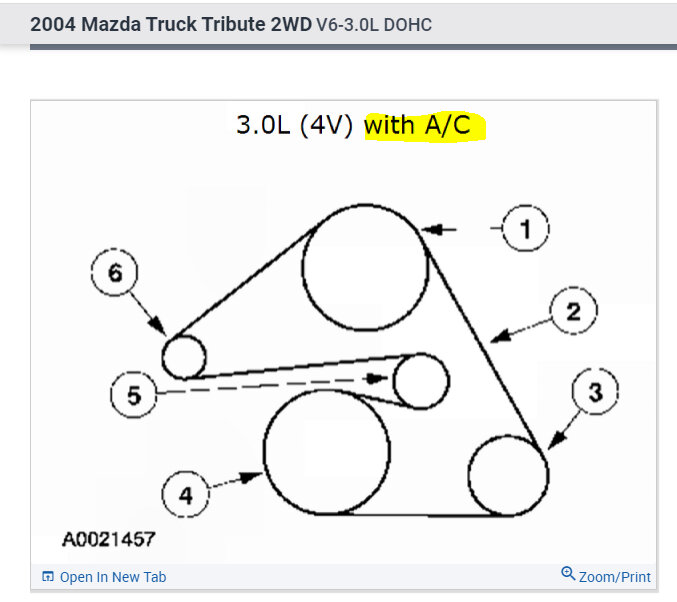

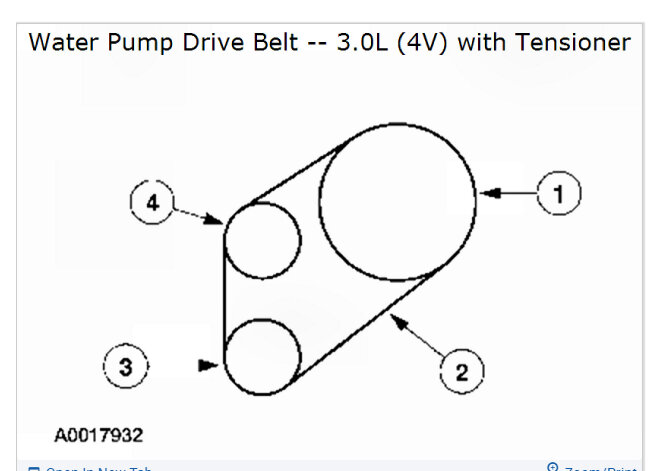

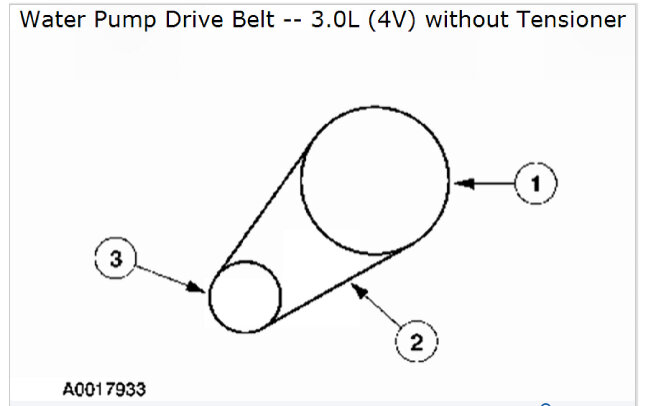

From what I am seeing, there is a serpentine belt (pic 1 below) and a water pump belt that can have a tensioner or not. I attached all the pics I have. Take a look at them and let me know if they help.
Take care,
Joe
See pics below.
From what I am seeing, there is a serpentine belt (pic 1 below) and a water pump belt that can have a tensioner or not. I attached all the pics I have. Take a look at them and let me know if they help.
Take care,
Joe
See pics below.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Click here to log in and view diagram.
