Serpentine belt diagram needed
AUNTBEA
MEMBER
1990 CHEVROLET SILVERADO
5.7L
V8
2WD
AUTOMATIC
140,000 MILES
I need routing for a serpentine belt with and without A/C for the truck listed above.
Friday, January 13th, 2017 AT 3:08 PM
1 Reply
CARADIODOC
MECHANIC
33,864 POSTS
Here is a guide to help you step by step with instructions in the diagrams below to show you how on your car.
https://www.2carpros.com/articles/replace-serpentine-belt

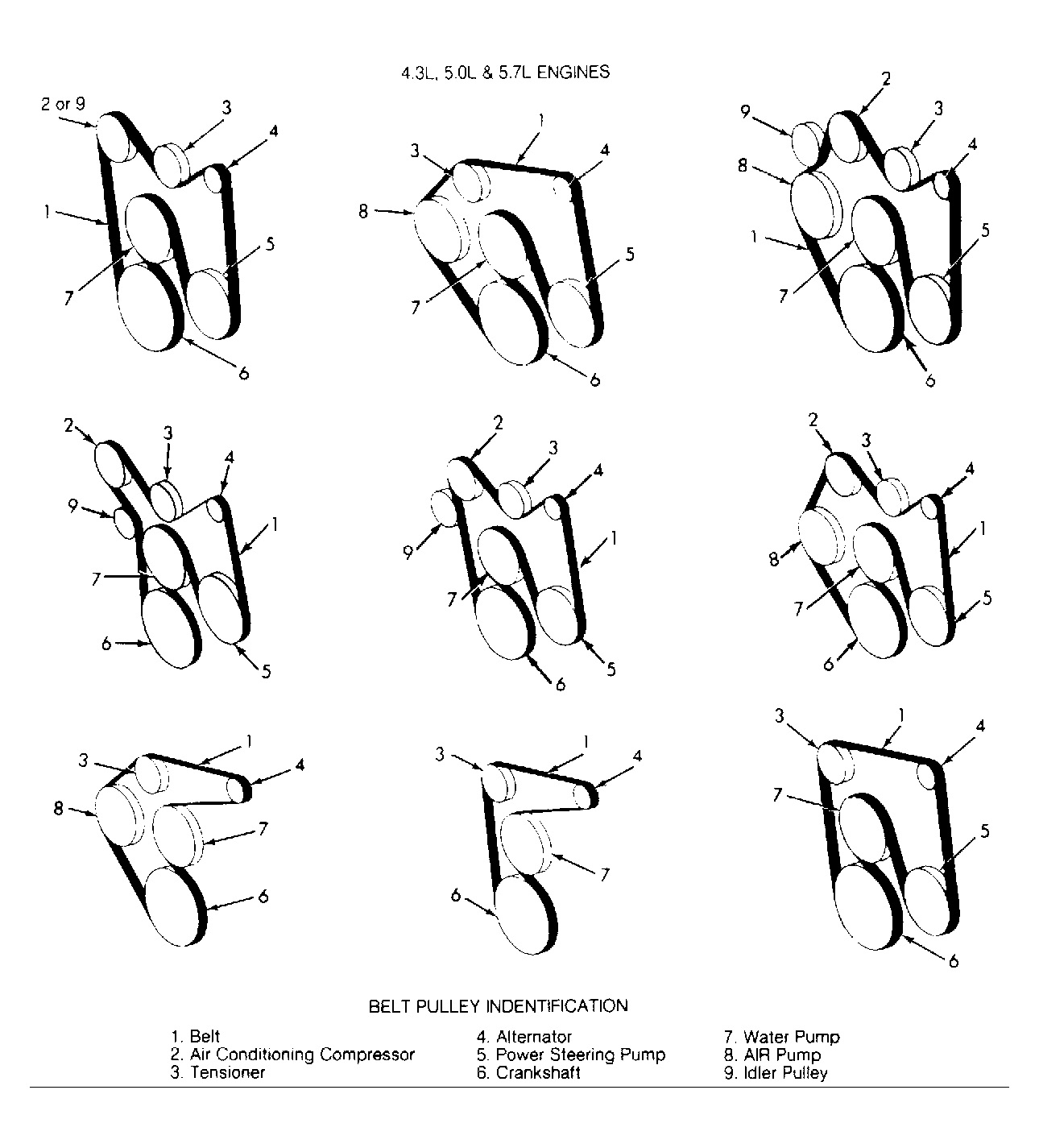

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to make bigger)
