Serpentine belt diagrams needed?

2005 HOLDEN RODEO
200 MILES • AUTOMATIC
Avatar
DAVID CAITENS
  • MEMBER
  • 2 POSTS
Forgot how to put the fan belt on. other diagrams show water pump pulley, mine has not.
Mar 6, 2025 at 7:51 PM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
Sure, here is the serpentine belt routing diagram, please check out the diagrams below and let me know if this is the correct engine size. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Mar 7, 2025 at 10:52 AM
Avatar
DAVID CAITENS
  • MEMBER
  • 2 POSTS
Need aus rodeo 6ve1 3.5.
Mar 7, 2025 at 1:31 PM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

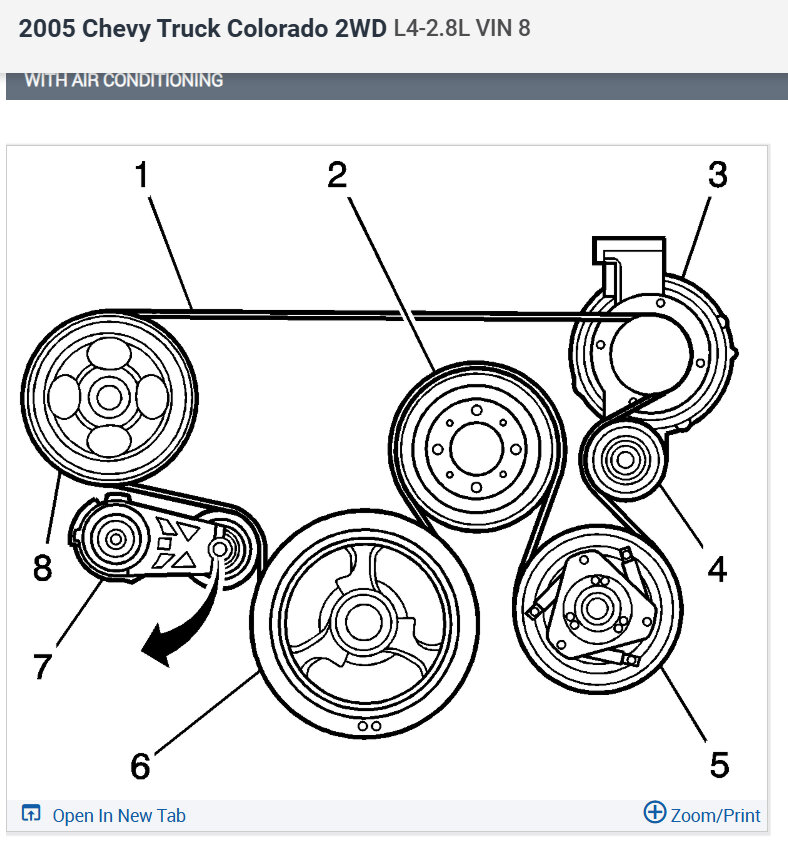

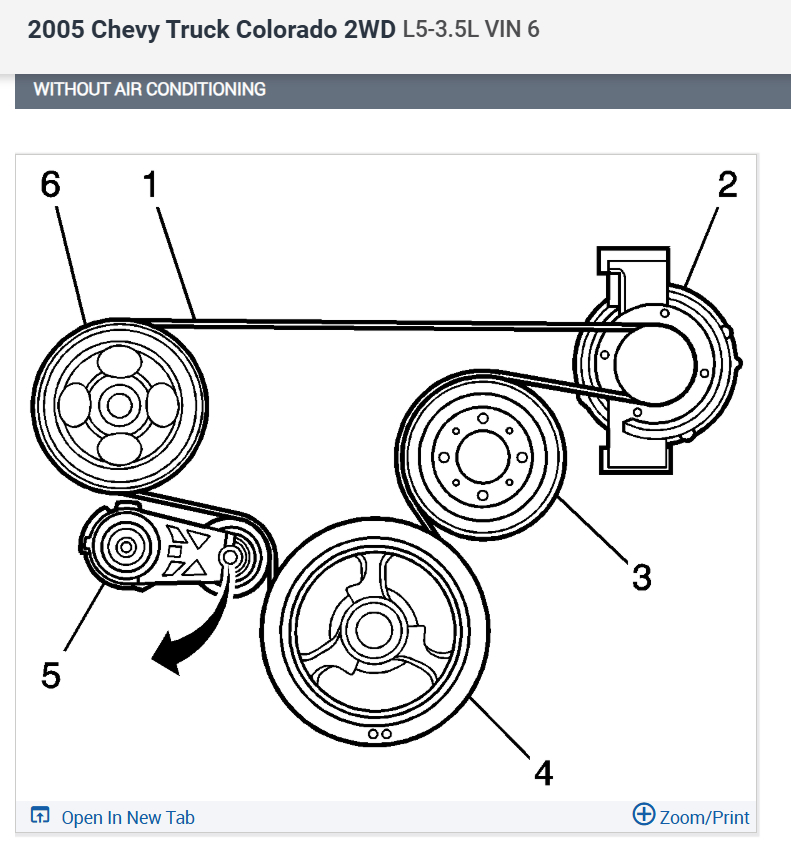

It looks like it is the same routing, here is the from both AC and non-AC engines. Check out the images (below).
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Mar 8, 2025 at 9:45 AM
