Need a diagram on how to replace a serpentine belt on the car listed above 20 engine.
Saturday, September 8th, 2018 AT 12:11 PM

9 Replies

Tiny
CJ MEDEVAC
  • MECHANIC
  • 11,004 POSTS

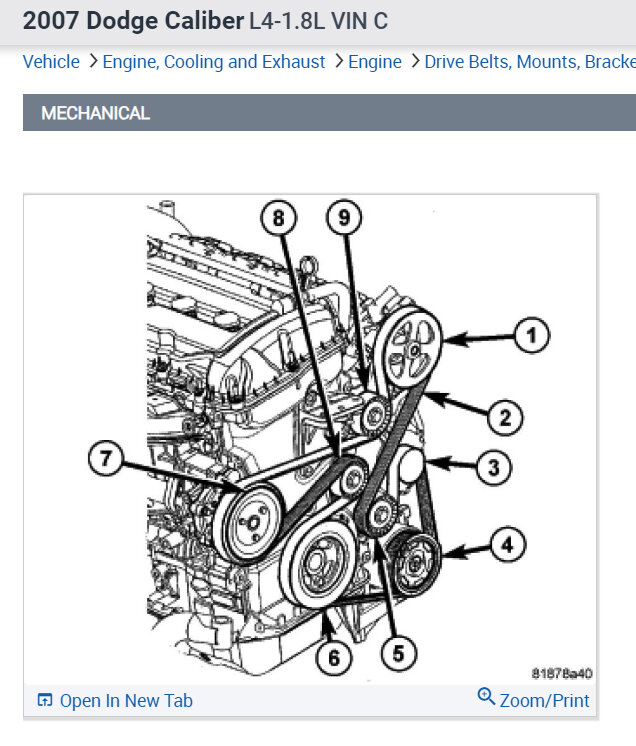

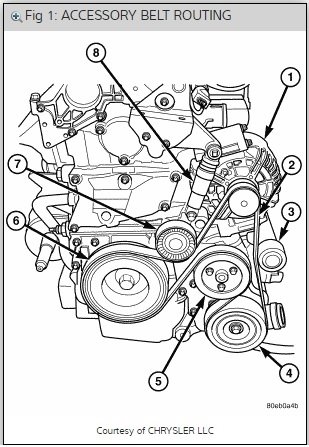

Here is the serpentine belt routing diagrams to help you step by step with instructions in the diagrams below to show you how on your car. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to make bigger)
Thumb
Thumb
SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+2
Saturday, September 8th, 2018 AT 4:57 PM
Tiny
BARBARA1963
  • MEMBER
  • 99 POSTS
  • 2007 DODGE CALIBER
  • 2.0L
  • 4 CYL
  • 2WD
  • AUTOMATIC
I had to replace the alternator plus put a new battery because the alternator drained it, the car don't have a diagram on the car to put the serpentine belt back on and I didn't pay attention when I took it off, please send me the diagram please
Was this
answer
helpful?
Yes
No
+2
Friday, December 18th, 2020 AT 9:58 AM (Merged)
Tiny
CARADIODOC
  • MECHANIC
  • 33,864 POSTS

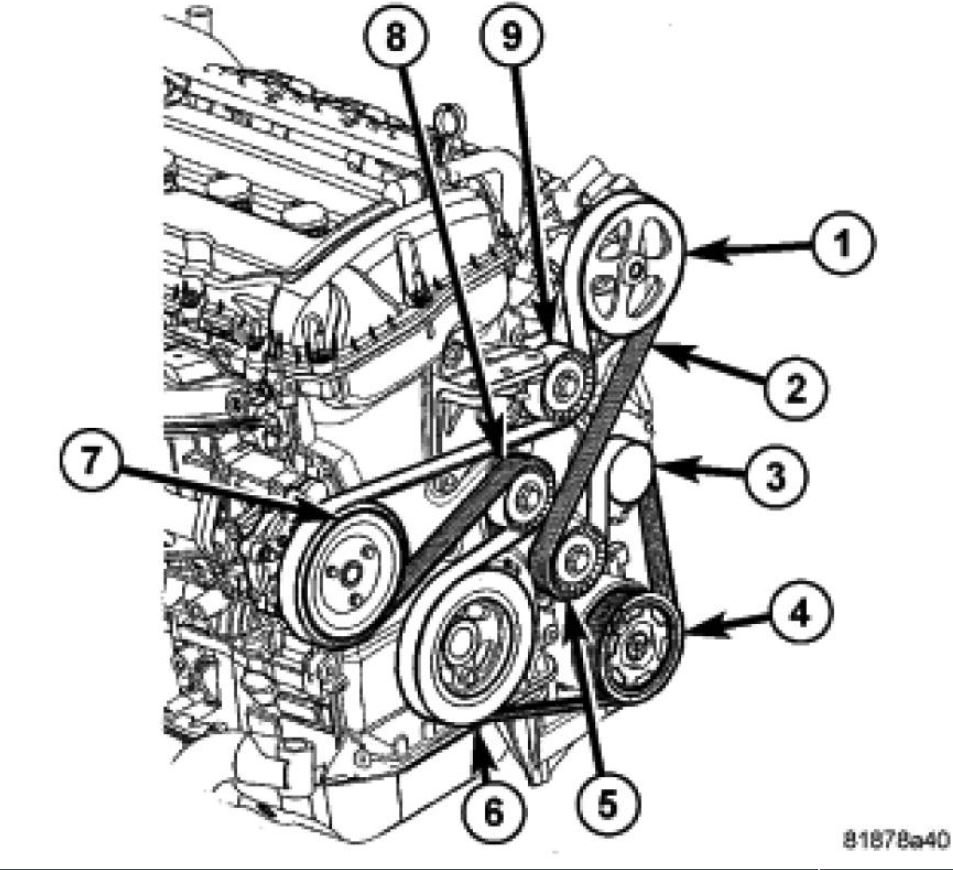

Here's the diagram for your serpentine belt. Its a good idea to draw it on a clean flat spot under the hood with a sharpie if the decal is missing. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
+12
Friday, December 18th, 2020 AT 9:58 AM (Merged)
Tiny
ROSSRIZZO
  • MEMBER
  • 1 POST
  • 2007 DODGE CALIBER
Engine Mechanical problem
2007 Dodge Caliber 4 cyl Front Wheel Drive Automatic

where can I get a routing diagram for the drive belt car has a/c
Was this
answer
helpful?
Yes
No
+1
Friday, December 18th, 2020 AT 9:58 AM (Merged)
Tiny
DOCFIXIT
  • MECHANIC
  • 18,828 POSTS

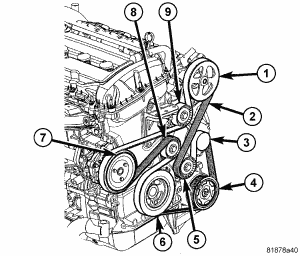

https://www.2carpros.com/forum/automotive_pictures/198357_Graphic_5.png

SPONSORED LINKS
Was this
answer
helpful?
Yes
No
+34
Friday, December 18th, 2020 AT 9:58 AM (Merged)
Tiny
2CP-ARCHIVES
  • MEMBER
  • 4,540 POSTS
  • 2007 DODGE CALIBER
  • 50,000 MILES
Can I replace clutch of ac compressor because it make a big noise and im check it and use another diagram of serpentine belt?
Was this
answer
helpful?
Yes
No
Friday, December 18th, 2020 AT 9:59 AM (Merged)
Tiny
HMAC300
  • MECHANIC
  • 48,601 POSTS

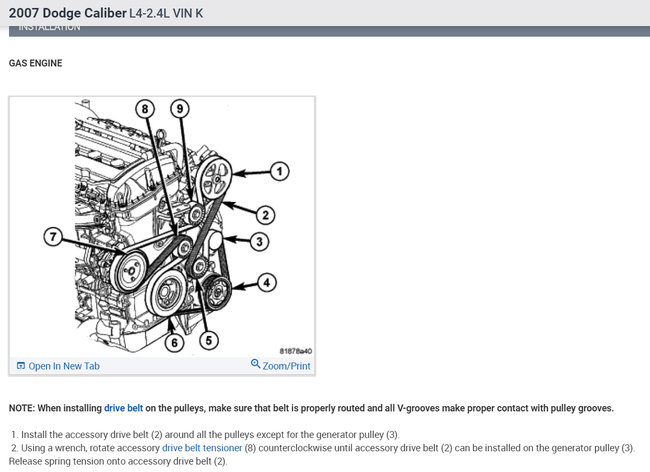

Here is the serpentine belt diagrams below with a guide that will help walk you through he steps of replacement.

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to make bigger)
Thumb
Was this
answer
helpful?
Yes
No
+1
Friday, December 18th, 2020 AT 9:59 AM (Merged)
Tiny
SHORNUF
  • MEMBER
  • 1 POST
  • 2007 DODGE CALIBER
  • V8
  • FWD
  • MANUAL
  • 60,000 MILES
I suspected the fan belt was going because of the noise, but when the mechanic ran a "diagnostic" on it they said it was the air compressor. Is there any relation between the two?
Was this
answer
helpful?
Yes
No
-1
Friday, December 18th, 2020 AT 9:59 AM (Merged)
Tiny
CH112063
  • MECHANIC
  • 1,320 POSTS
Yes there definitely is. I'm sure your mechanic would rather it had not been the a/c compressor belt. He is correct. I am sorry you have this trouble. He will fix it with as little cost as possible I'm sure. The a/c is driven by the same pulley and if it is just the front it may not be too expensive. OK
Was this
answer
helpful?
Yes
No
-1
Friday, December 18th, 2020 AT 9:59 AM (Merged)
