Can I get a diagram for the Seatbelt wiring warning chime?

2017 HYUNDAI ACCENT

145,000 MILES • 1.6L • 4 CYL • 2WD • AUTOMATIC

SAM31

MEMBER
1 POST
FOLLOW

Hi, would you have a wiring diagram for the 2017 seat belt warning chime? I have your 2000 accent diagram but I'm not sure if it has changed.
Thanks. Phil

Jan 19, 2023 at 6:57 AM

Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.

JACOBANDNICKOLAS

AUTOMOTIVE REPAIR CONTRIBUTOR
110,190 POSTS

Hi,

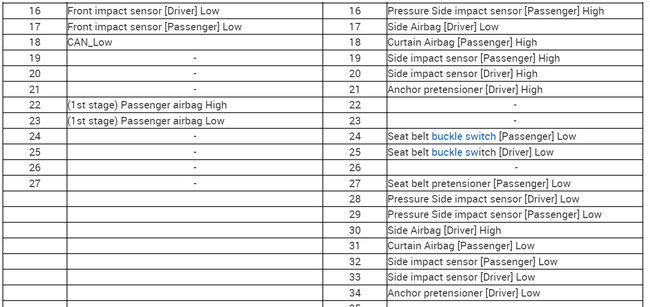

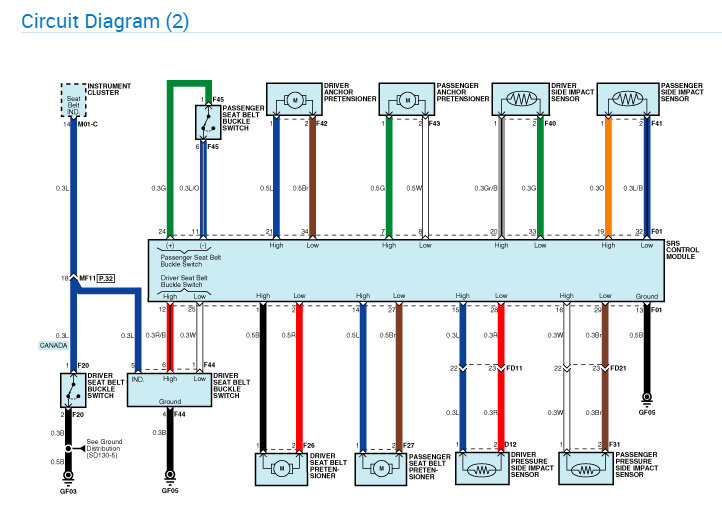

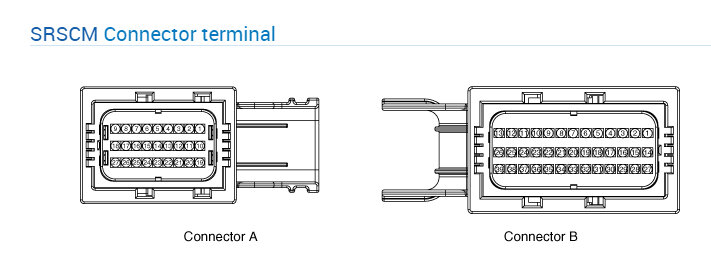

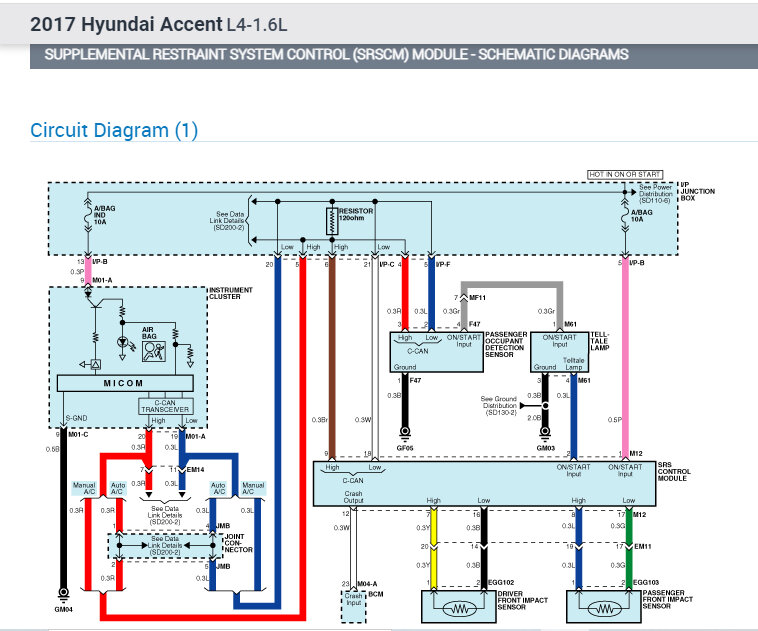

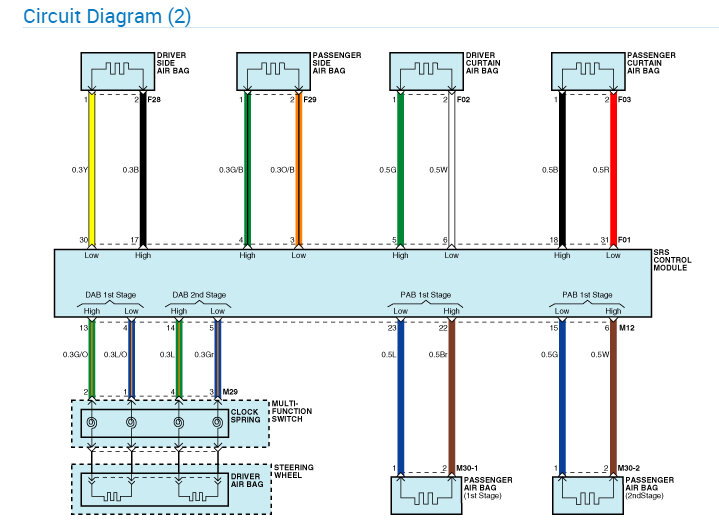

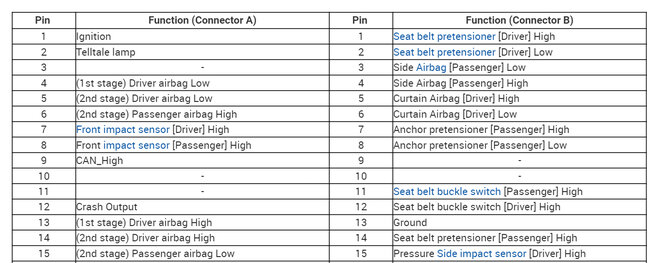

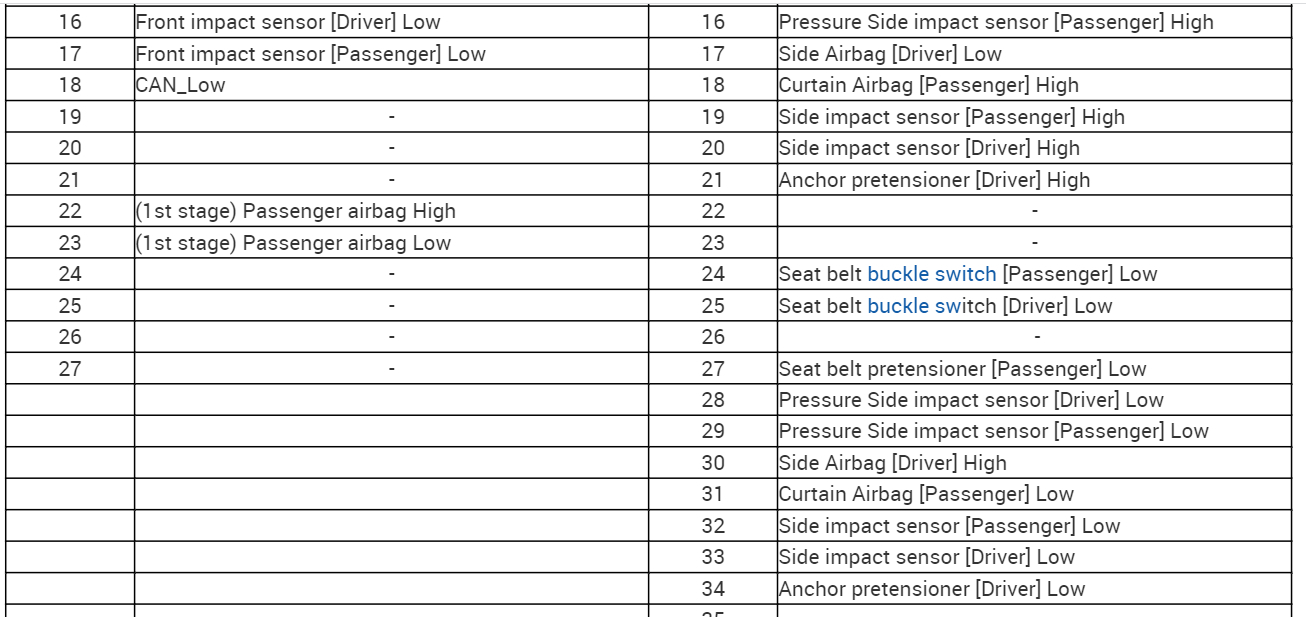

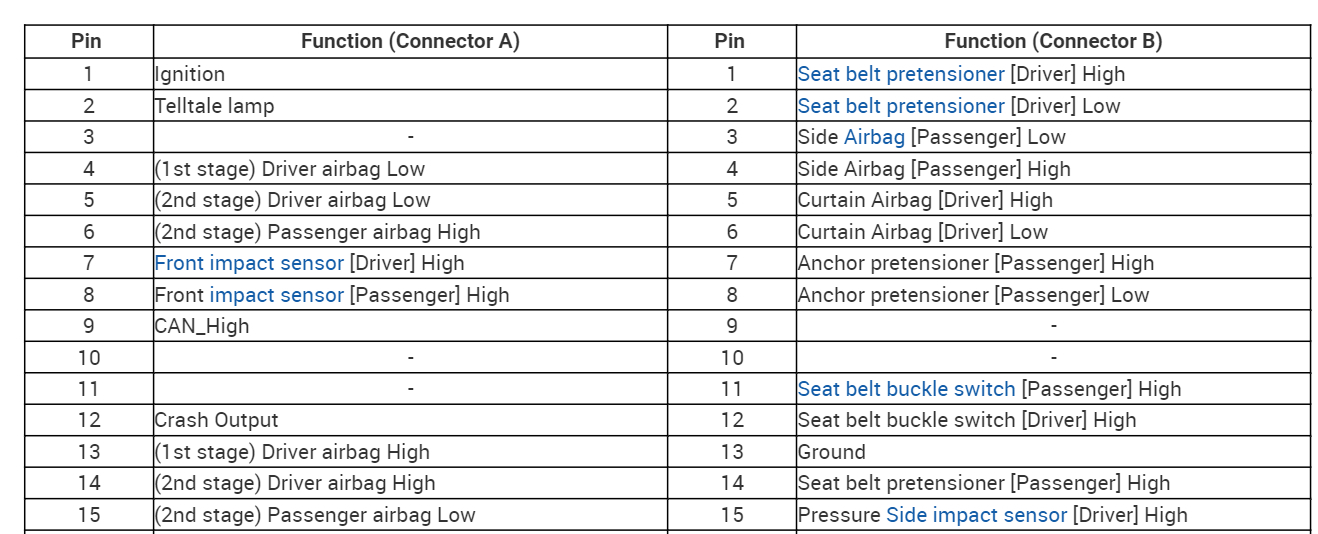

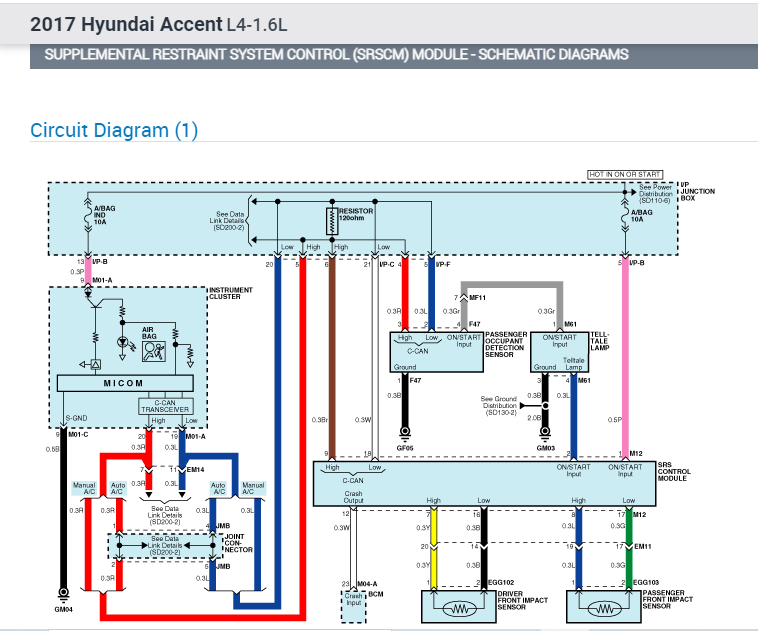

I attached the supplemental restraint system wiring schematics below. They include the seat belt buckle wiring as well.

Take a look through them and let me know if they help.

Take care,

Joe

See pics.
