Seat Belt Alarm Wiring Circuit diagram needed?

2016 TOYOTA LAND CRUISER PRADO
123,045 MILES • 4WD • AUTOMATIC
Avatar
MBIR
  • MEMBER
  • 18 POSTS
Can you help with the circuit diagram for Toyota Prado and Hilux. I want to pick the signal responsible for the Alarm on and off when seat belt is buckled or otherwise.
Jan 27, 2024 at 4:20 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

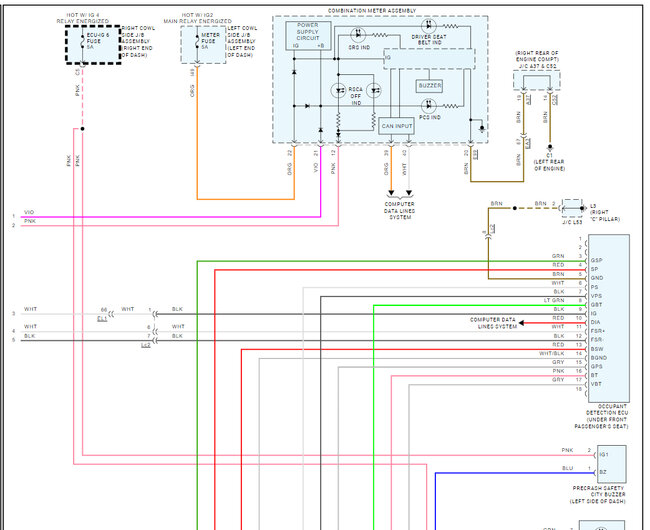

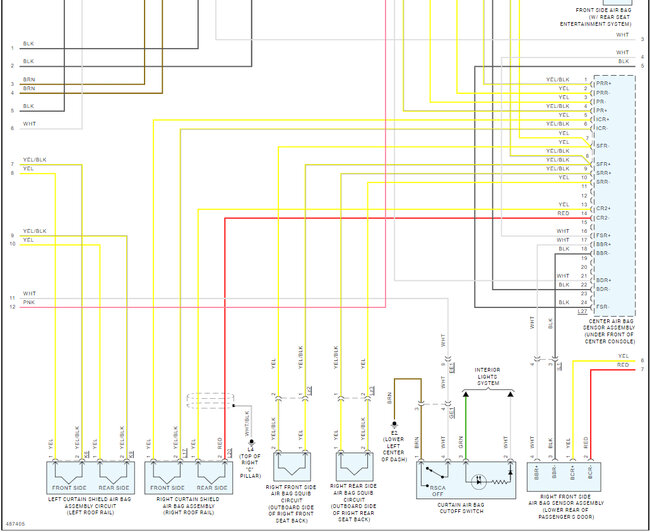

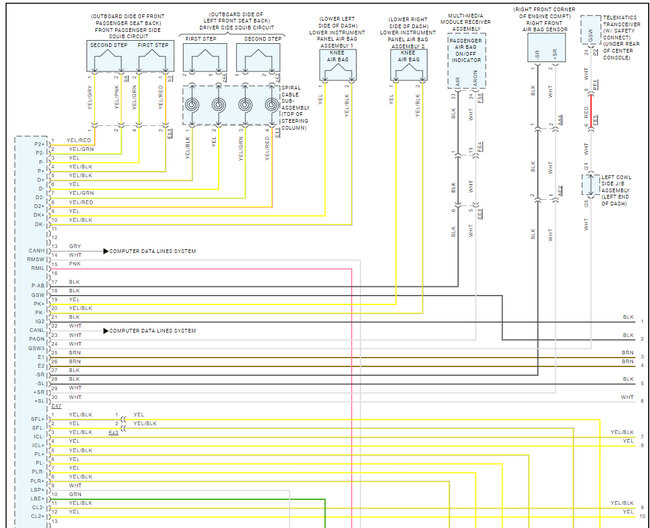

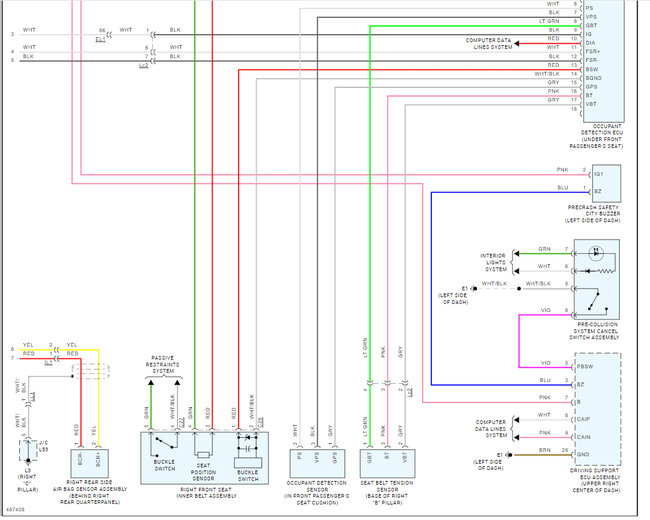

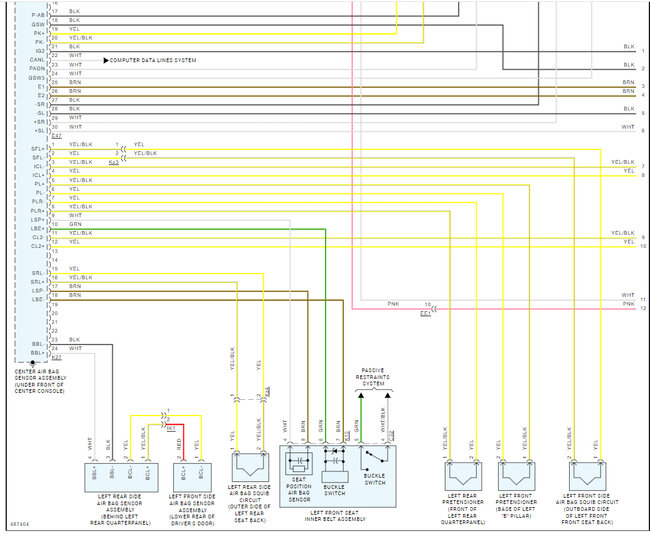

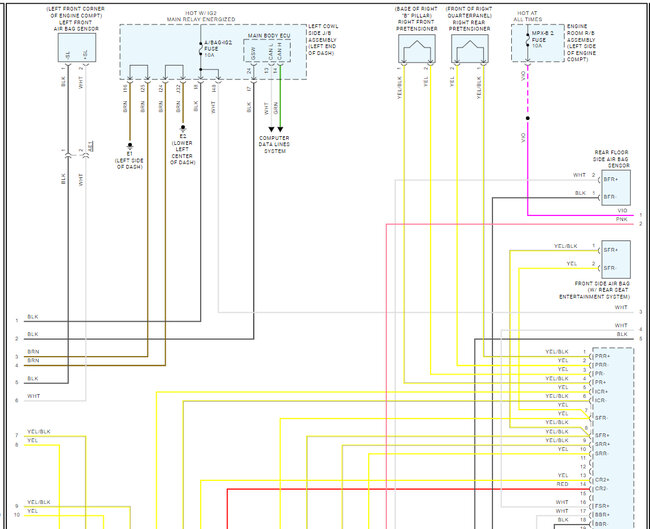

Here are the wiring diagrams for the seat belt system you have requested. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jan 27, 2024 at 11:17 AM
