Replacing cam phasers/sprocket

2016 FORD F-150

165,000 MILES • 5.0L • V8 • 4WD • AUTOMATIC

JBOI

MEMBER
4 POSTS

When removing the cam phasers/sprocket. Do the timing marks have to line up with the colored link? I have read the repair manual. It helps and doesn't. Thank you

Nov 12, 2021 at 12:36 PM

JACOBANDNICKOLAS

✓ASE Certified Mechanic
110,194 POSTS

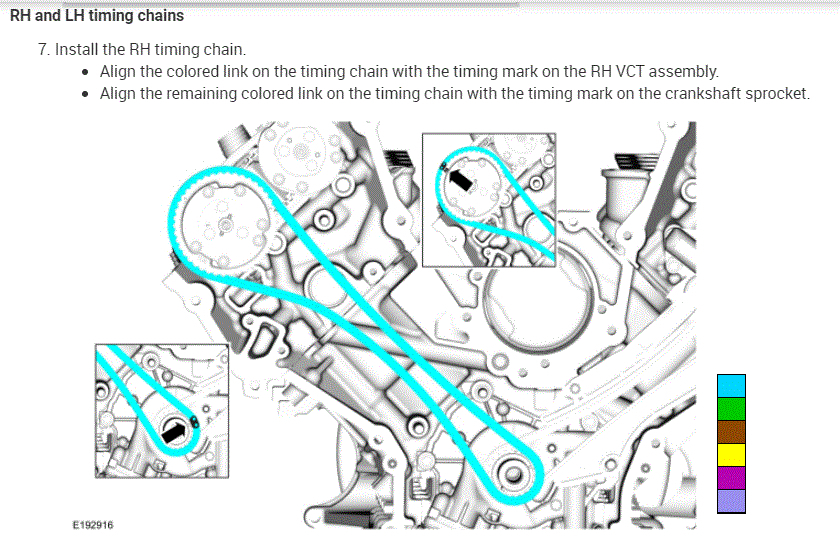

I just read through the manual, and it doesn't indicate doing that for removal, but it does for install. However, the pullies need to be in specified positions for removal. So, for installation, align the colored link on the timing chain with the timing mark on the VCT assembly.

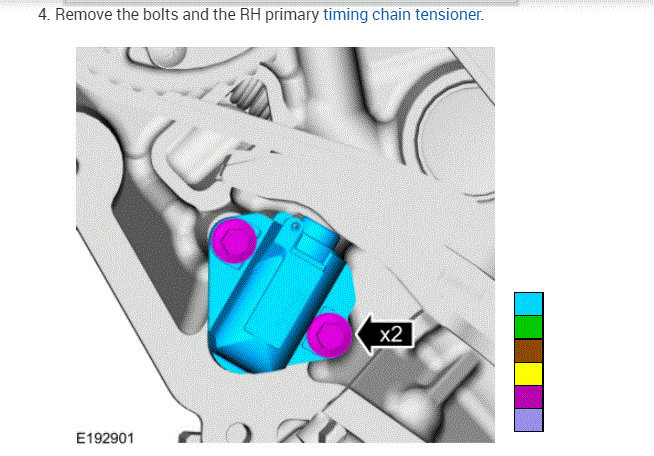

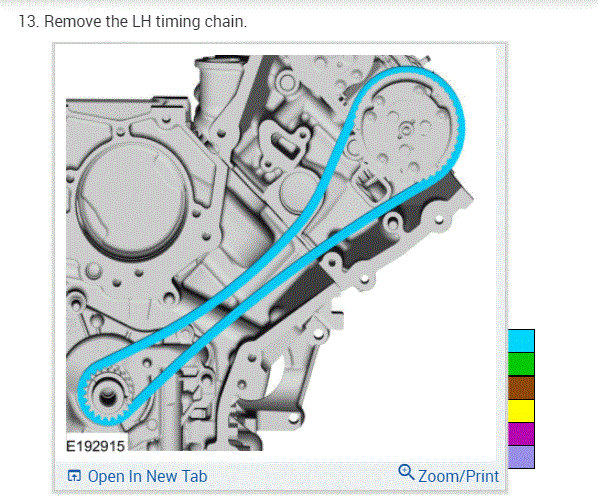

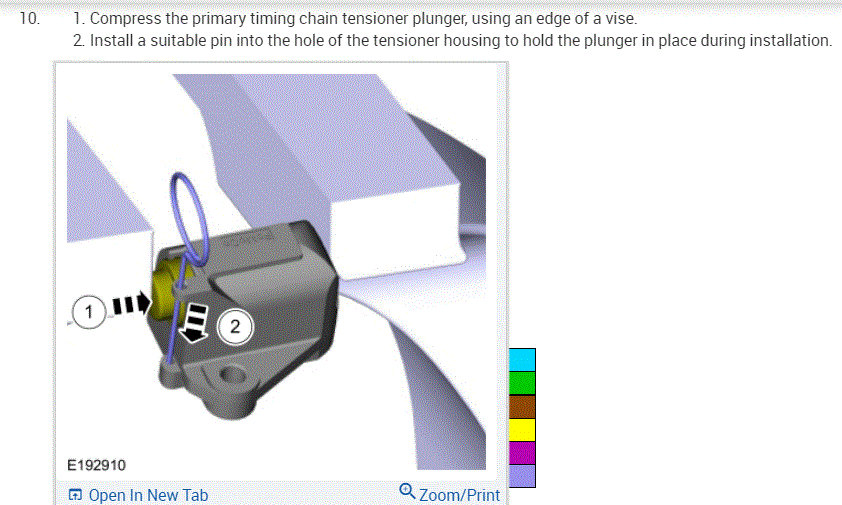

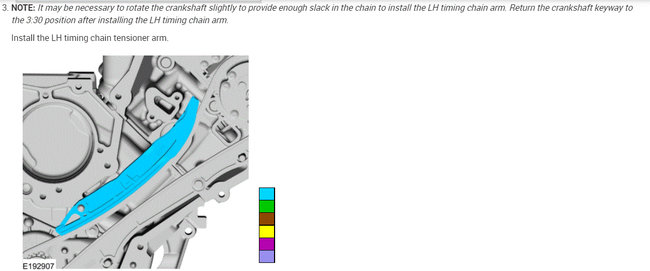

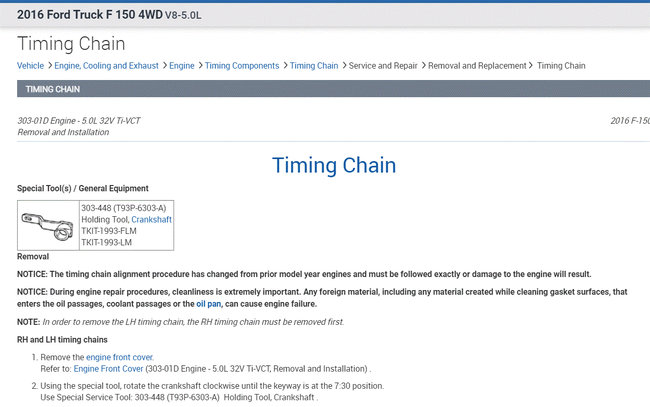

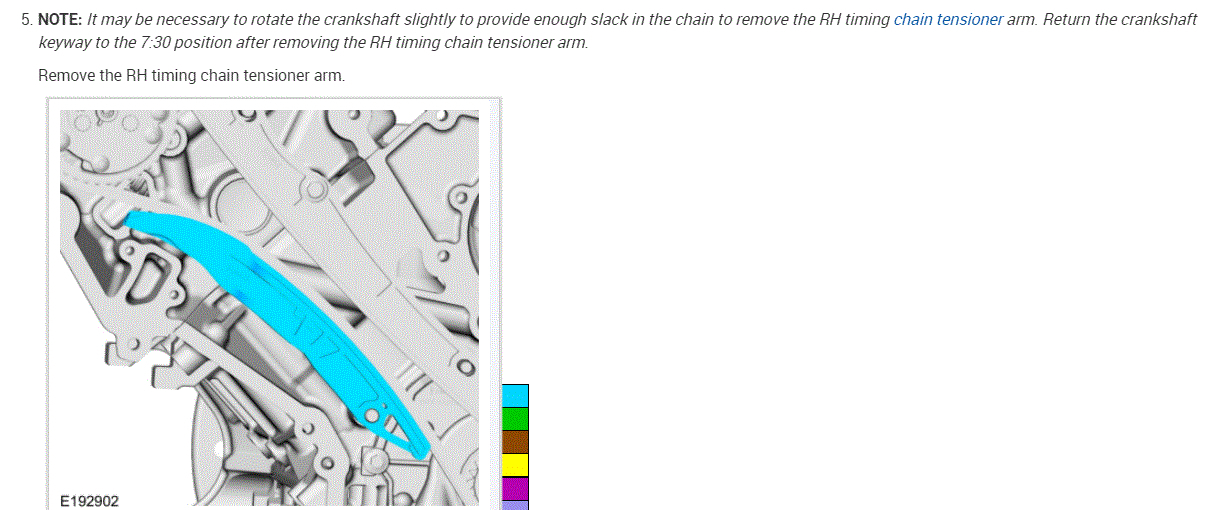

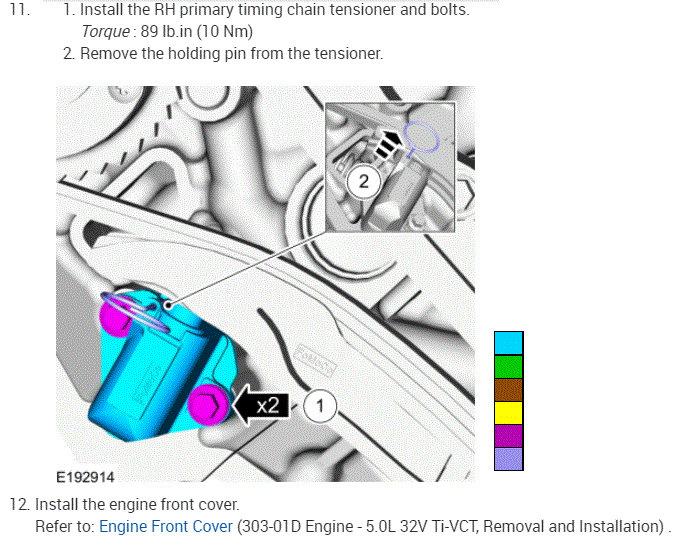

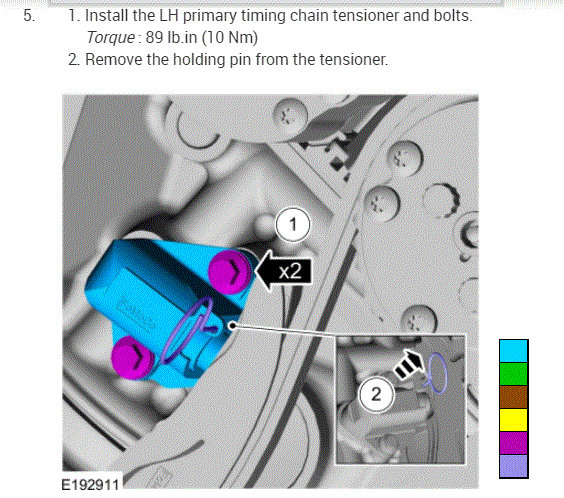

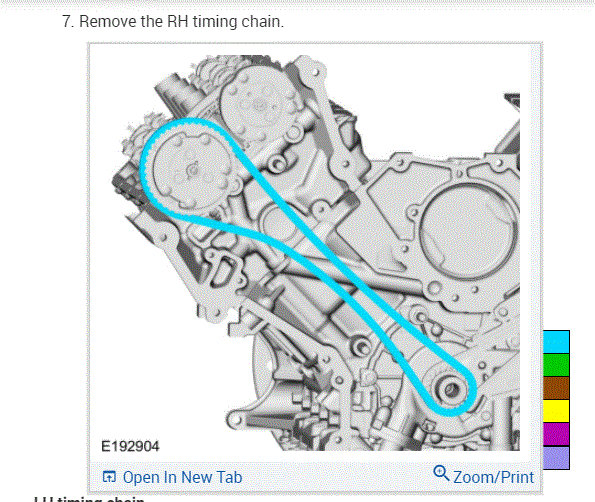

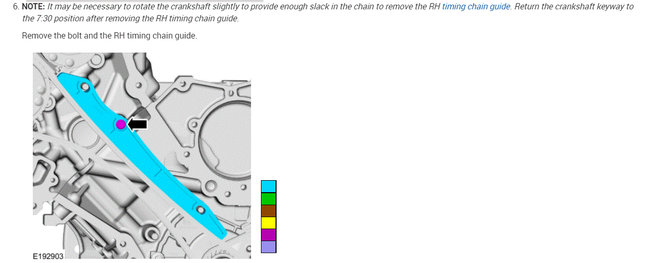

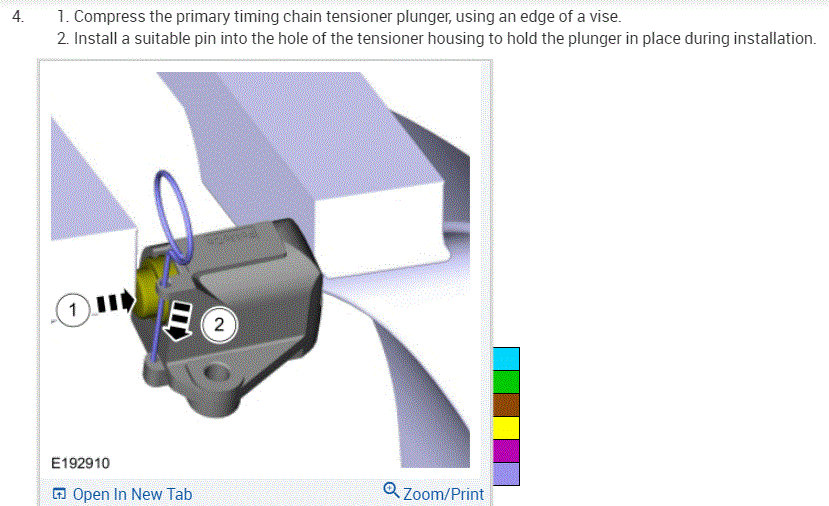

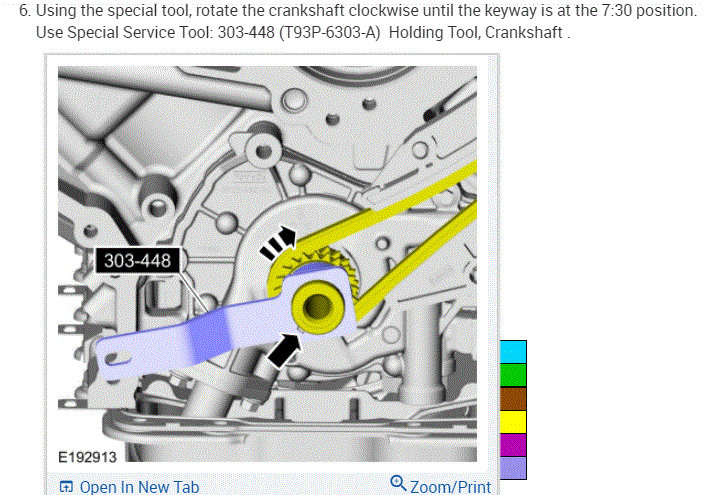

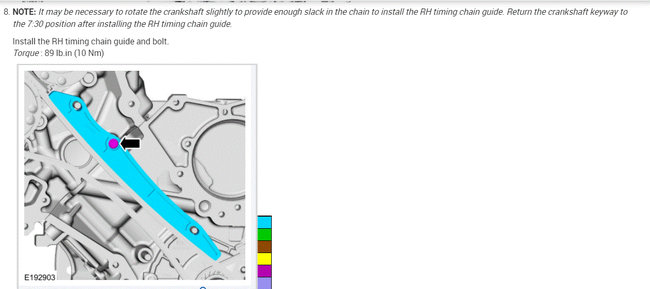

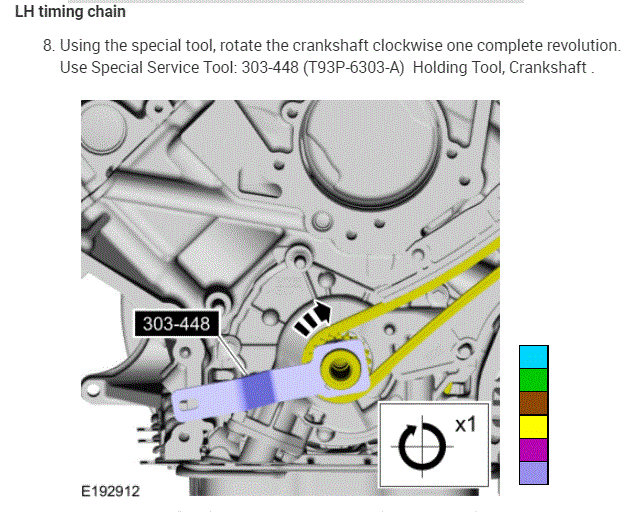

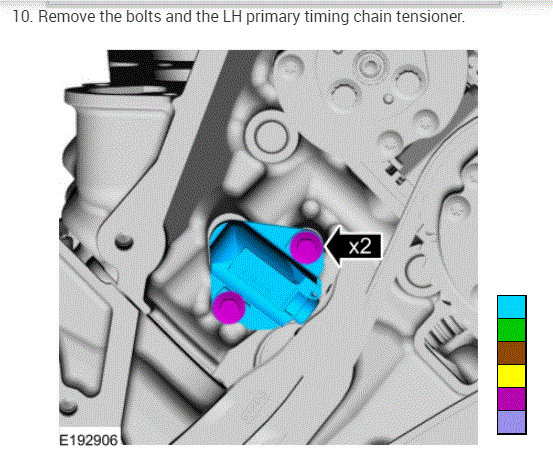

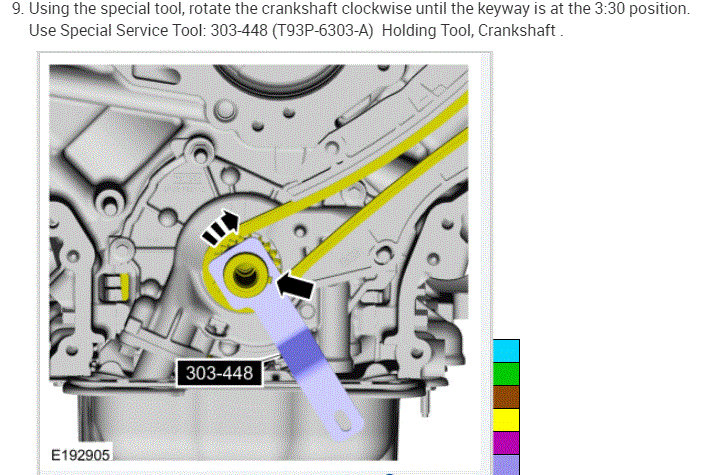

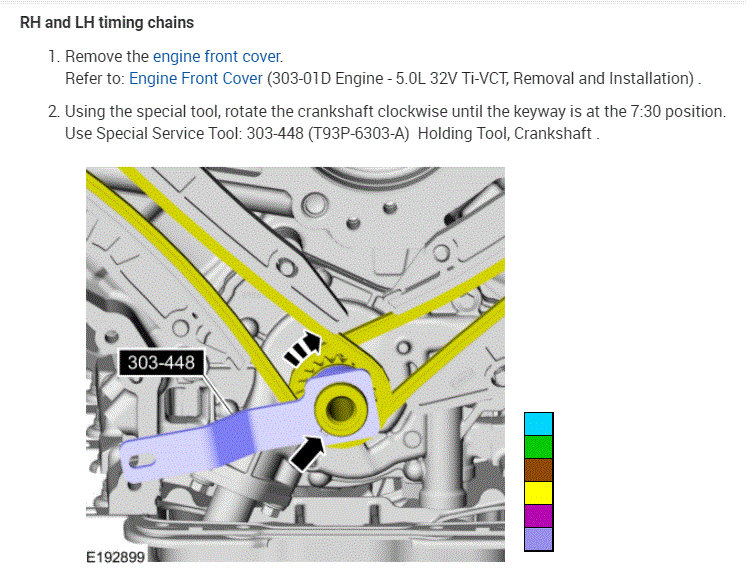

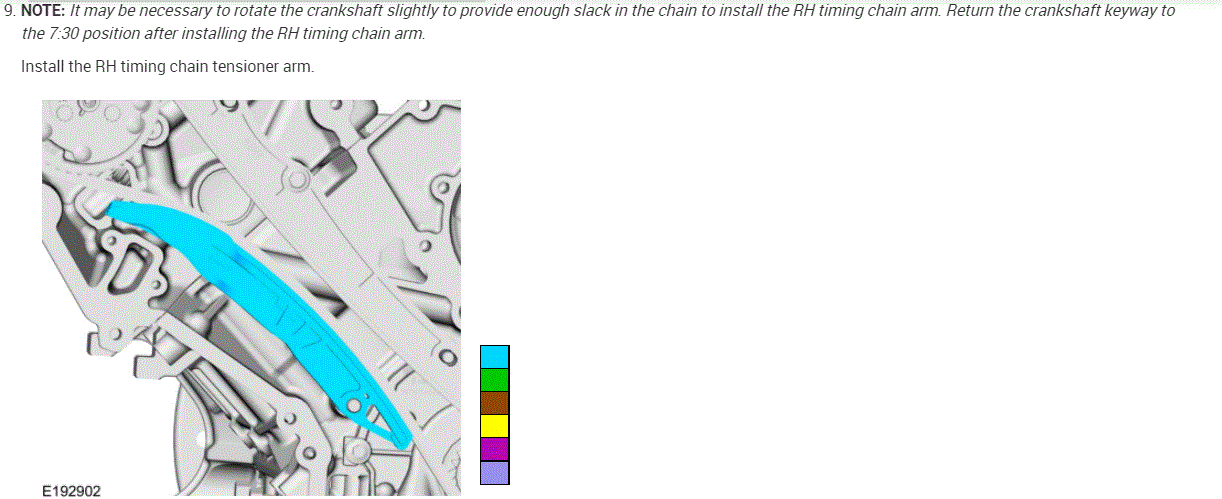

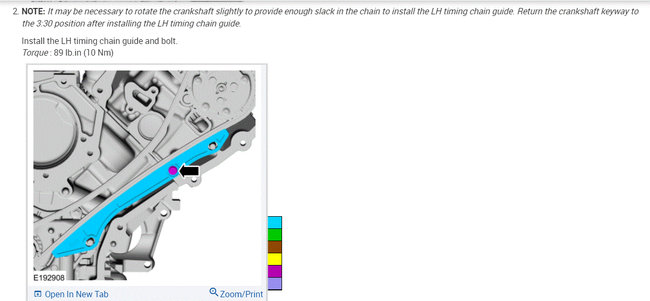

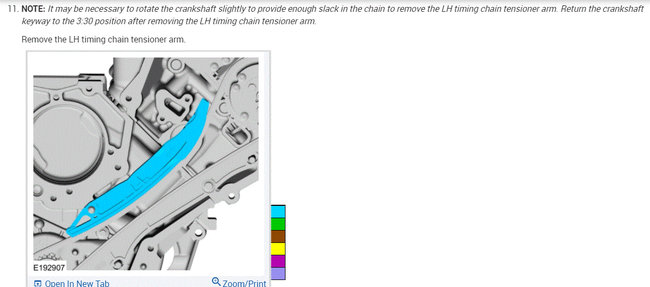

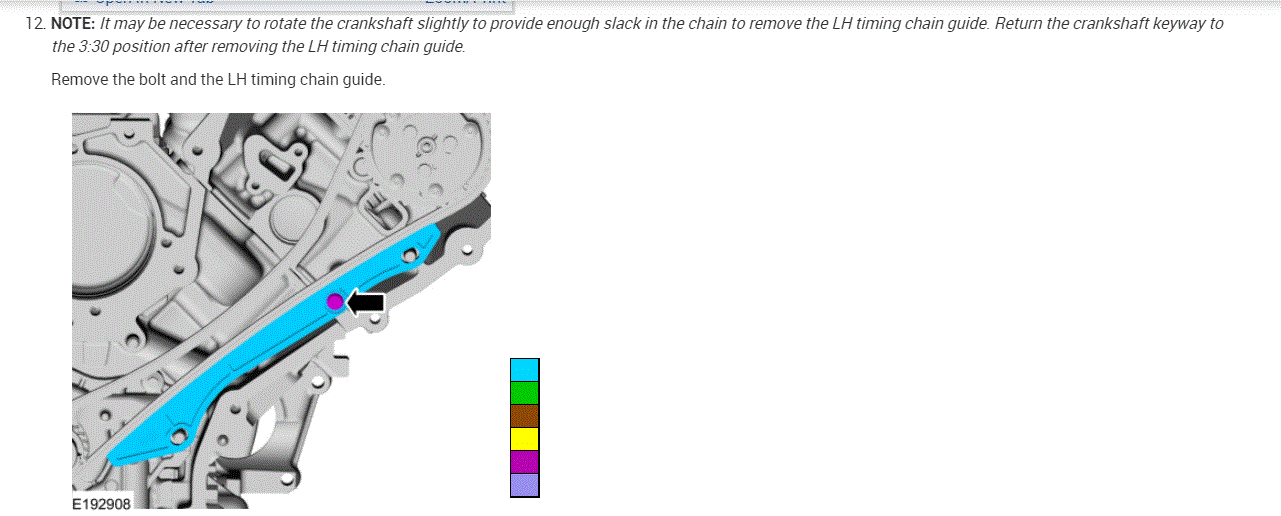

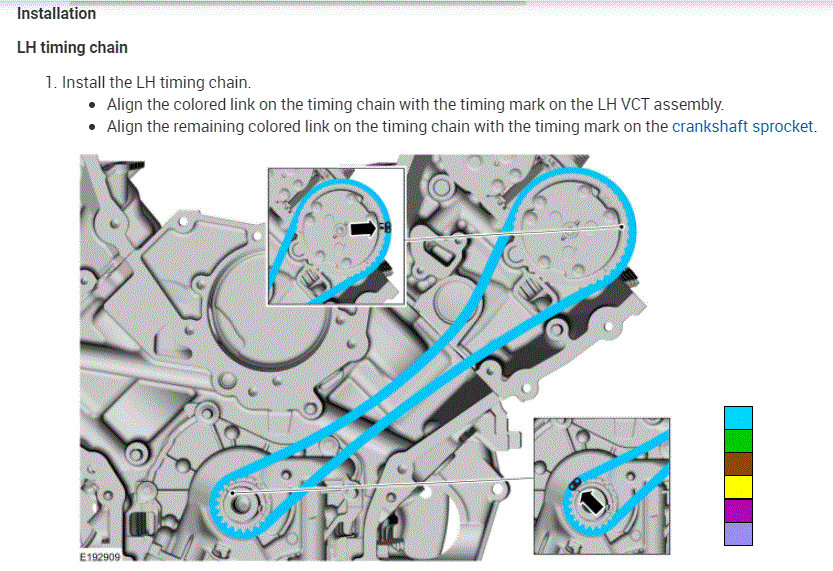

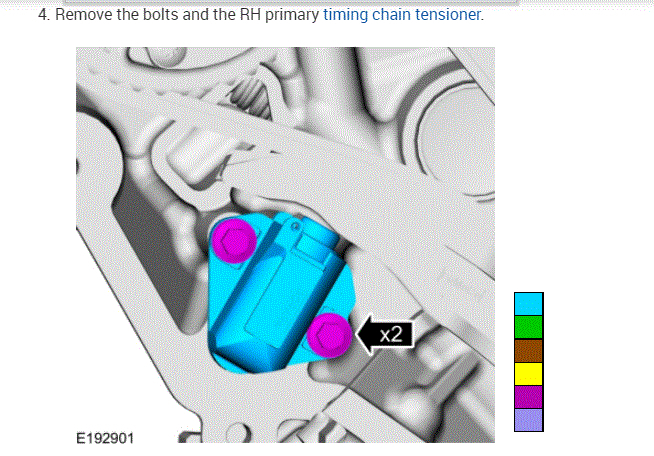

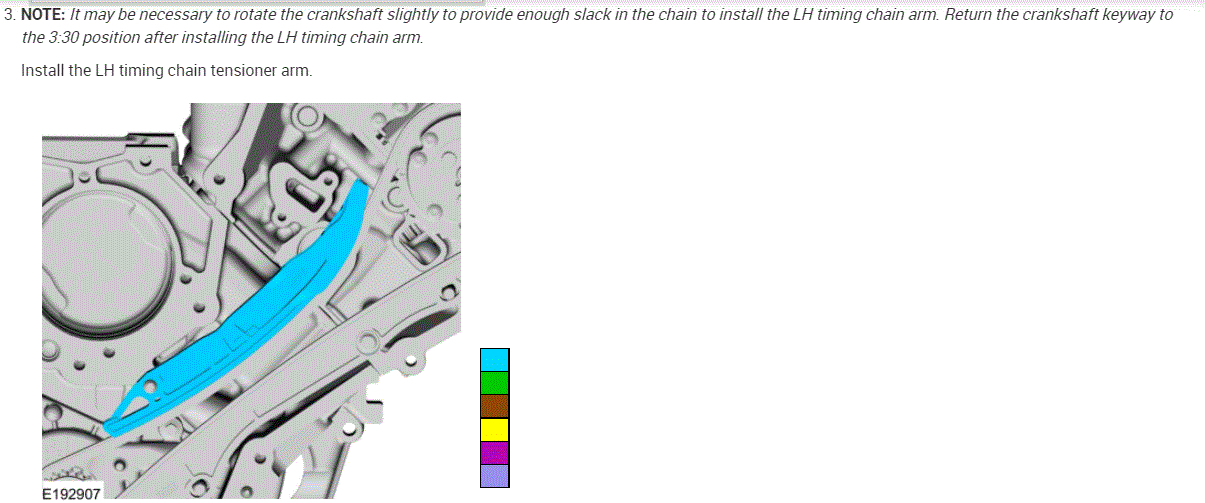

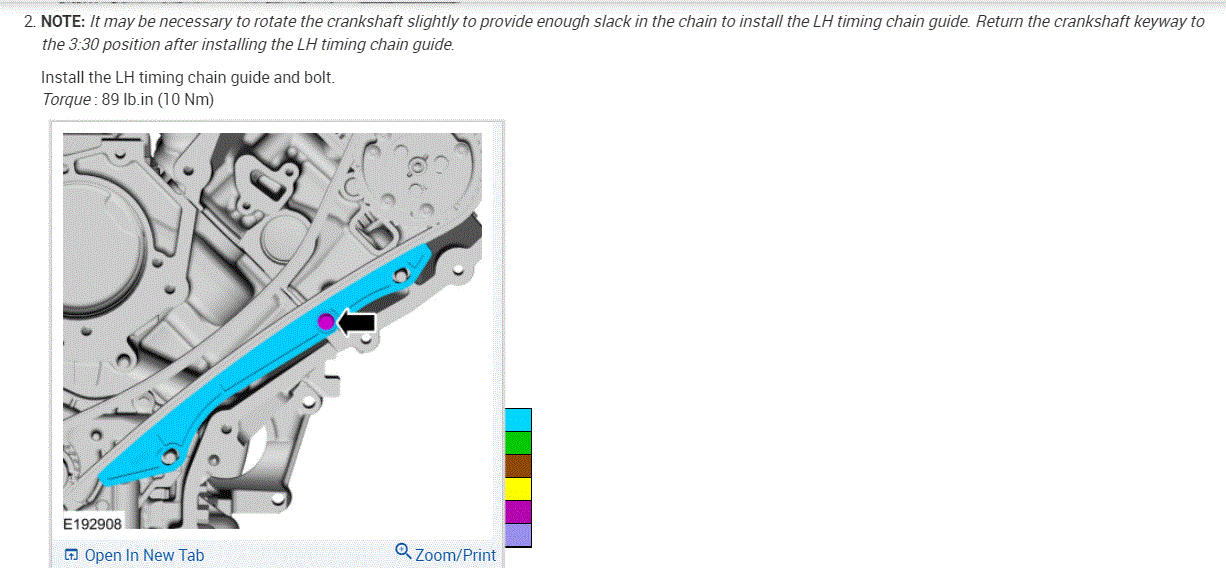

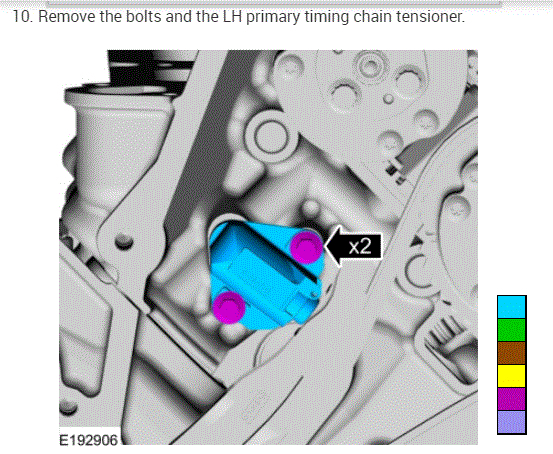

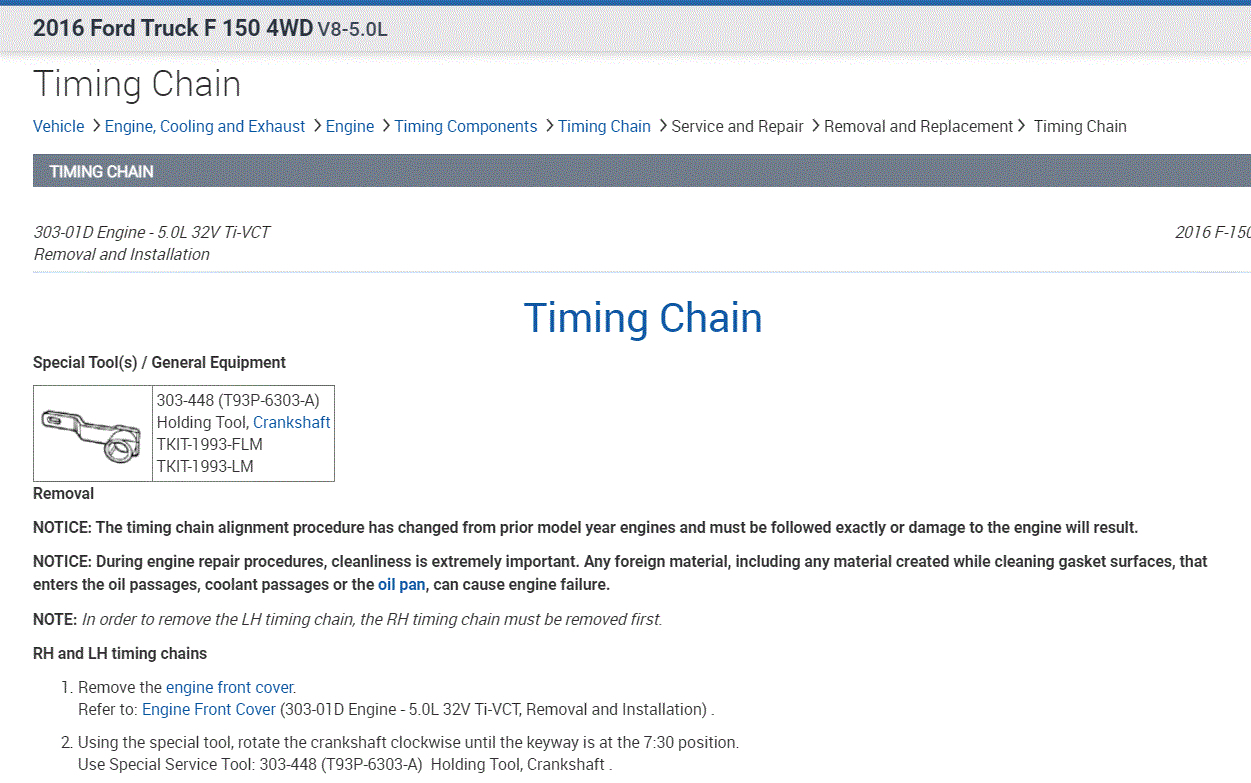

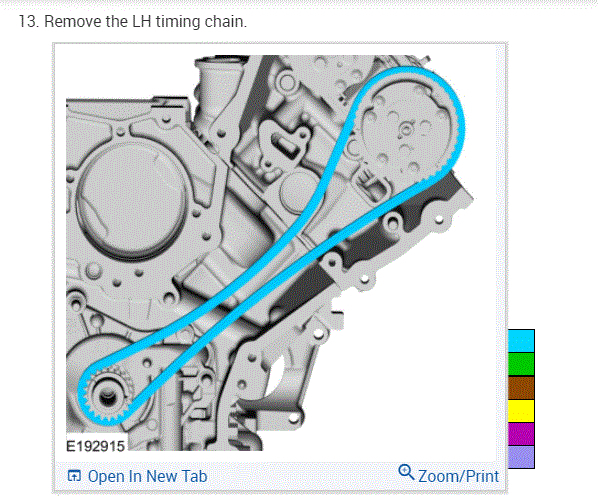

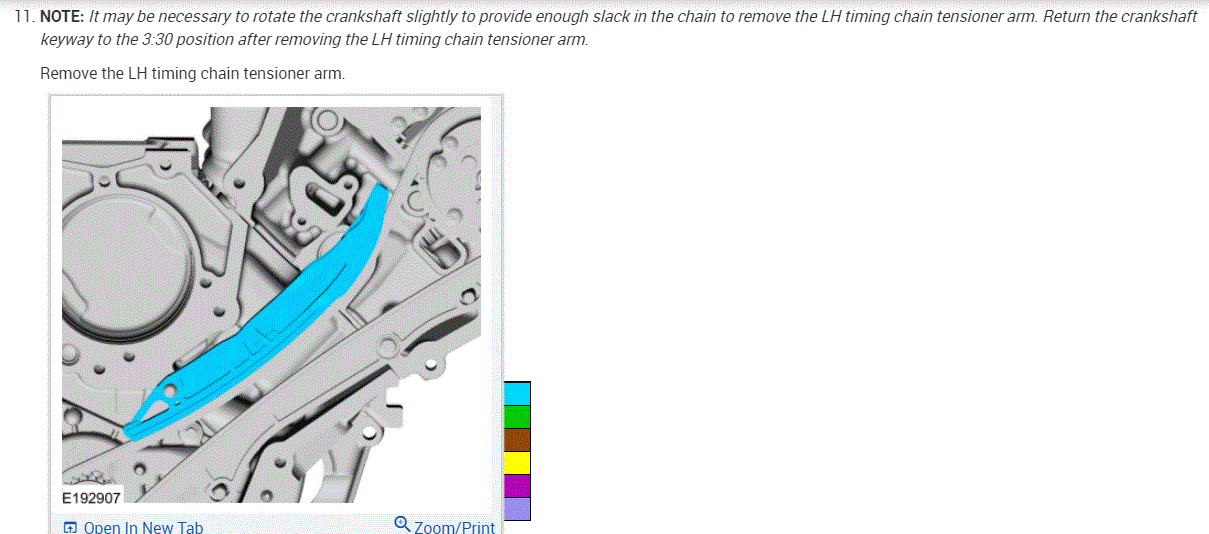

I attached the directions for timing chain replacement. It explains the procedures related to removal and replacement. Take a look through it and see if you have questions.

Let me know if that helps or if you have other questions.

Take care,

Joe

See pics below.

Images (Click to enlarge)

Professional Diagram for 2CarPros Members
Click here to log in and view diagram.

Nov 12, 2021 at 4:56 PM

JBOI

MEMBER
4 POSTS

Thank you, I'll look at them.

Nov 13, 2021 at 5:07 AM

JBOI

MEMBER
4 POSTS

I got a better understanding. Just wanted to be sure. They didn't have to line up. Before removal. Thank you a lot.
