Replaced engine with another same, vacuum diagram needed?

2016 CHEVROLET IMPALA
199,000 MILES • 3.6L • V6 • 2WD • AUTOMATIC
Avatar
JAY ZEE
  • MEMBER
  • 1 POST
I have been putting everything back together from engine swap and can't figure out the hoses from the brake booster and where each one goes, vacuum hoses. Need diagram please if available.
Jul 13, 2023 at 10:07 AM
Advertisement
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic

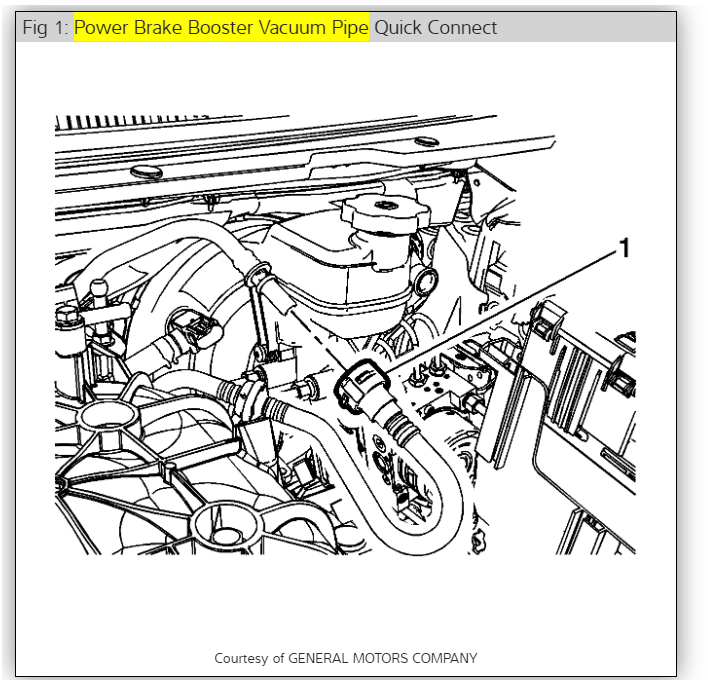

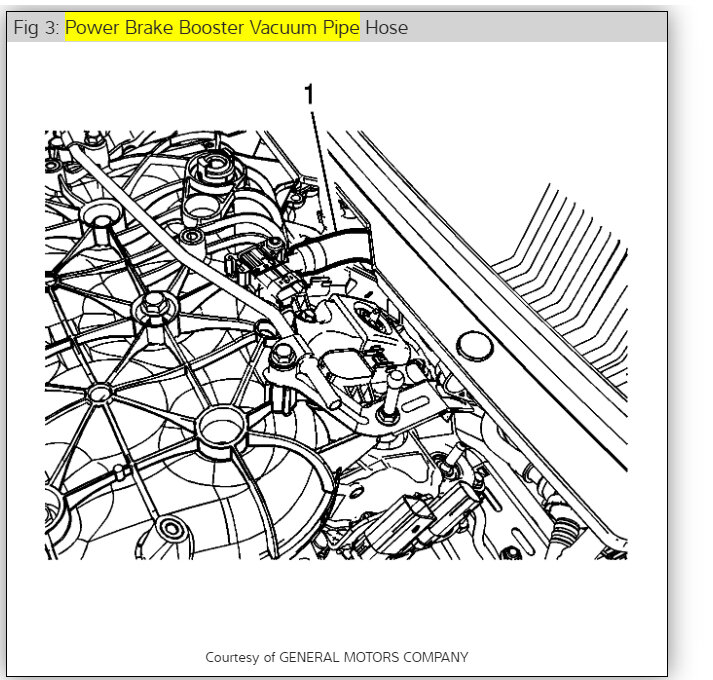

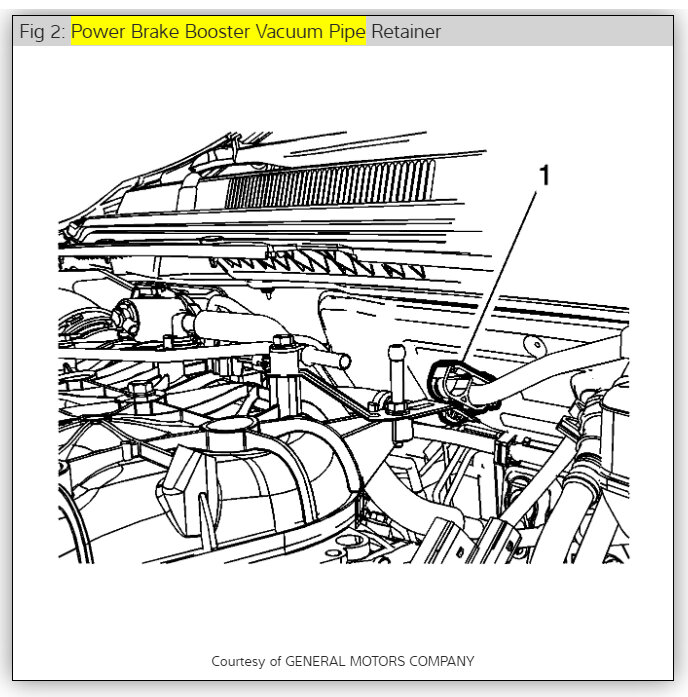

Sure, here are the vacuum line diagrams for the brake booster. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Professional Diagram for 2CarPros Members
Click here to log in and view diagram.
Jul 13, 2023 at 5:26 PM
Avatar
RAY ZUNIGA
  • MEMBER
  • 1 POST
I still can't figure out hose locations. I need diagram from intake I believe there are 2 from intake and which one goes where? Including brake booster. please
Jul 18, 2023 at 2:33 AM
Avatar
STRAILER
  • ✓ASE Certified Mechanic
  • 54,832 POSTS
  • ASE Certified Mechanic
I called AllData and checked Mitchell1 they don't not have that vacuum diagram for some reason, can you upload an image of the lines in question, and I can help see where they go.
Jul 20, 2023 at 9:42 AM
