A/C compressor relay location

1996 GMC JIMMY
170,000 MILES
Avatar
HEATHER DAWN HILLHOUSE
  • MEMBER
  • 5 POSTS
I cannot find a diagram or any information to tell me which of the three relays on the passenger side under the hood is the one to the A/C compressor.
May 4, 2018 at 2:24 PM
Repair Safety Notice: This information is for general instructional purposes only. Vehicle repair can be dangerous. Verify all information, follow manufacturer service procedures, use proper tools and safety equipment, and consult a qualified repair shop when needed.
Advertisement
Avatar
ASEMASTER6371
  • CAR REPAIR CONTRIBUTOR
  • 52,796 POSTS
Good afternoon.

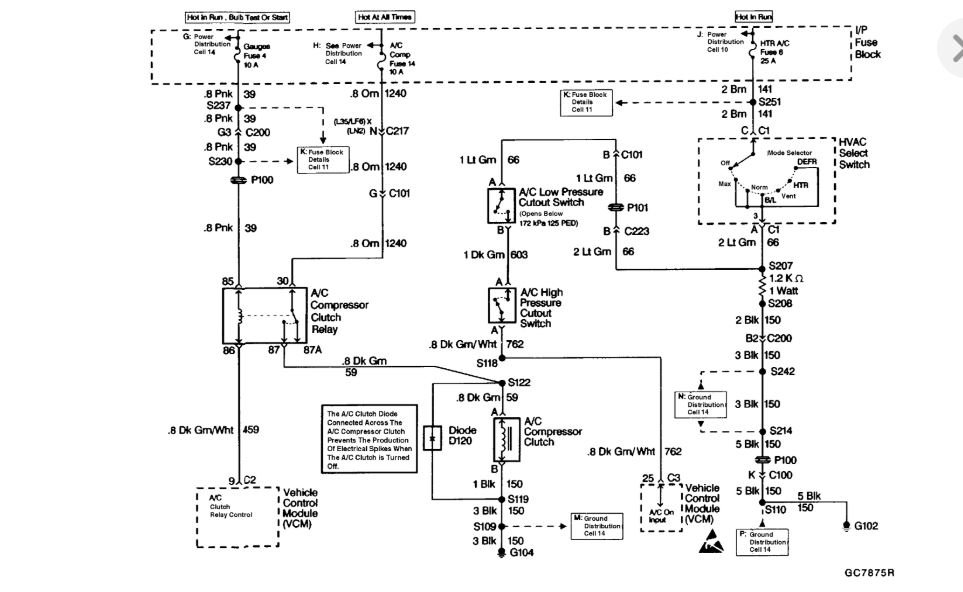

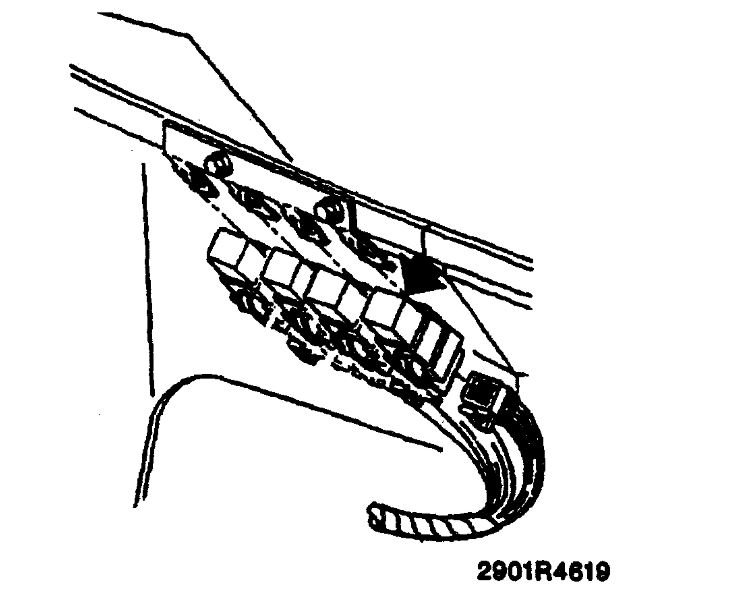

Attached is the diagram for you and the location.
